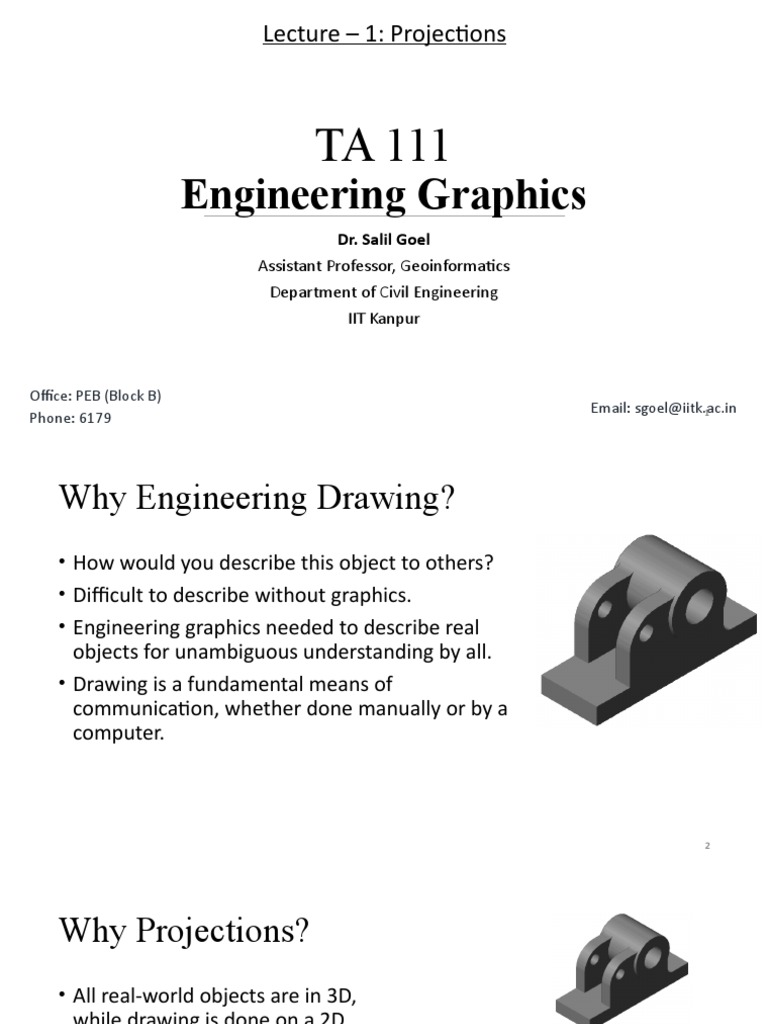

Lecture – 1: Projections

TA 111
Engineering Graphics
Dr. Salil Goel
Assistant Professor, Geoinformatics
Department of Civil Engineering
IIT Kanpur

Office: PEB (Block B)

Email: sgoel@iitk.ac.in
1
Phone: 6179
Why Engineering Drawing?
• How would you describe this object to others?
• Difficult to describe without graphics.
• Engineering graphics needed to describe real
objects for unambiguous understanding by all.
• Drawing is a fundamental means of
communication, whether done manually or by a
computer.

2
 Why Projections?
• All real-world objects are in 3D,
while drawing is done on a 2D
surface.
• Representation of 3D object on 2D
paper has challenges:
• Loss of information
• Shape can be described
approximately
• Size may not be actual

Note: Images shown to you on this slide are projections of 3D objects onto the image plane. 3
Theory of Projection
• Projection is a process of causing an
image to be formed by rays of sight
taken in a particular direction from ne
Pla
an object to a picture plane. re
i c tu
• Shape is described the projection. P
• Projection theory is the basis for
shape representation.

Center of Projection4
Two types of Projections
ne
ne e Pla
Pla tur
re Pi c
c tu
Pi

on
cti
oje
Pr
f
te ro
n
Ce
Perspective or Converging Parallel (orthographic) 5
Perspective Projection
• All dimensions are foreshortened –
size is a function of location of
picture plane.
• Pleasing to the eyes – Camera does
the same.
• What happens if we move the
picture plane along the line joining
the observer and the object?

6
Parallel Projection
• Move the observer to the infinite
distance.
• Line of sight become parallel
• What happens if we move the
plane along the line joining the
object and observer?

7
Projectors
A
A

Projectors A' B
Projectors B
A'
Projection
B' Plane
B'
Projection
Plane Center of Projection at
Infinity (Direction of
Center of Projection)
Projection
Projectors are converging. Projectors are parallel to each other.
Orthographic projection: If they are perpendicular
to projection plane.
8
Projectors: Lines from coordinate in original space to coordinate in projected space.
Orthographic Projection
• Special case of parallel projection: Projectors are perpendicular to the
projection plane.

9
Axonometric Projection
• Special case of orthographic projection with one plane.
• Object is turned so three faces are seen in projection plane.

10
 Projection Systems

Parallel Perspective

Orthographic Oblique Aerial Linear

One Point

Cabinet Two Point

Cavalier
Multiview Axonometric
Three Point
First Angle
Isometric
Second Angle
Third Angle Dimetric
Fourth Angle
Trimetric
11
Orthographic Projection
Projectors are parallel to each other.
Projects are perpendicular to the projection plane.

12
Principal Views
• At most 6 principal views are
possible by looking from
different directions.
• For most objects, three
orthographic views are
generally sufficient.

13
Orthographic Projection: Glass Box Concept

• Imagine a glass box around

the object.

• Project object on to the faces

of the box.

• Open the box.

14
Orthographic Projection: Glass Box Concept
• While unfolding the plane,
the frontal plane remains
stationary.
• All other planes revolve
outwardly from the original
position till they lie in the
frontal plane.
• Hinge lines are also known as
folding lines.

15
Orthographic Projection: Glass Box Concept

Hinge lines

16
Let’s revisit the process…

17
Projection to Planes

Top
vi ew
Fro
nt v ew
iew v i
ofi le
/Pr
de
Si

18
Orthographic View on a Sheet

Hinge lines
Top view

Front view Side/Profile view

19
 z

Drawing Orthographic Views

y

Miter line
45
0

y
x

z z
x 20
y
Three orthographic views

Top View

Front View Side View (Right)

21
Important points to remember
• Always use a miter line (at 45 deg) for reflecting profile views.
• Draw views concurrently (using projections)
• Use H pencil for object lines, hidden lines, dimensions, lettering etc.
• Use 2H pencil for construction lines.
• Professional drawing does not contain quadrants or projection lines.
• For this course only, DO NOT ERASE construction lines unless
specified.

22
Drawing example

20

20

25

60
20 50
100
40

80
12

Draw this in your notebook.

23
Types of Lines

Object- Continuous thick

Dimension-Arrowed line
Construction-Continuous thin
Hidden-Dashed line
Center line-Chain thin
Hinge line-Chain thick

24
 Types of Lines
Center Line
Object Line
Top Viewing
Direction
100 Top View

Hidden Line
Construction Line

Front Viewing
Direction Front View

IMPORTANT NOTE:
Object lines and construction lines should always be distinguishable
 You may use H for object lines and 2H for construction lines
 You should NOT erase the construction lines after drawing (in this course)
25
Draw 3D picture of the object for given views

26
Draw 3D picture of the object for given views

27
