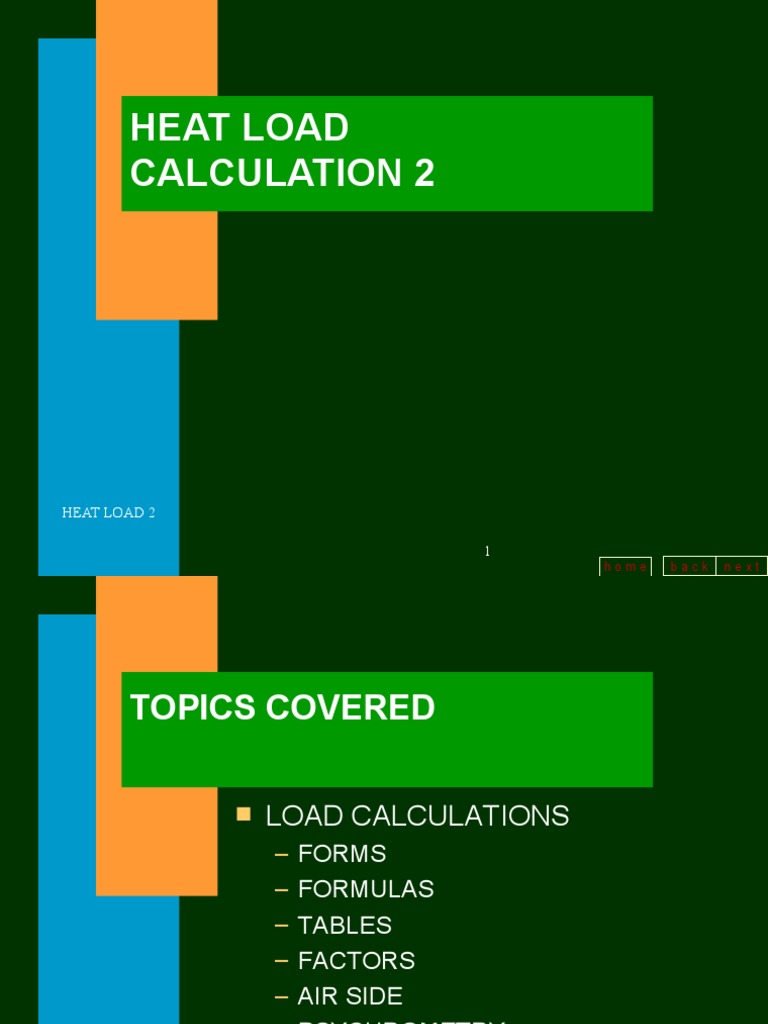

HEAT LOAD
CALCULATION 2
HEAT LOAD 2
1
home back next
TOPICS COVERED
LOAD CALCULATIONS
– FORMS
– FORMULAS
– TABLES
– FACTORS
– AIR SIDE
– PSYCHROMETRY
HEAT LOAD 2
2
home back next
HEAT LOAD 2 3
HEAT LOAD FORM
SEE TRANSPARENCY
HEAT LOAD 2
4
home back next
HEAT LOAD ESTIMATE
PROBLEM
General office
Ceiling 10’
Wall 4 ½” brick, plastered both side
Window- ordinary ¼” single glass internal
shade
Door- plywood sandwich air space
Occupants - 35 person
Lighting - Fluorescent
HEAT LOAD 2
5
home back next
DESIGN CONDITIONS
Outdoor design conditions
– 92°F db / 80°F wb or 95db/83wb
– Overestimating effect
– Night time temp. & rh different
– 76°F db/ 75°F wb / 95% rh
HEAT LOAD 2
6
home back next
DESIGN CONDITIONS
Indoor design conditions
– Base on requirement and standards
– 75°F db / 55% rh
– 72°F db / 55% rh
– 71°F db / 50% rh
Peak time at
– 4.00 pm
HEAT LOAD 2
7
home back next
CURRENT AIR-CONDITIONING DESIGN DATA
COMPARISON
JKR ASHRAE 95 CIBSE
INDOOR
24 23-26 22+/-2
TEMP.(o C)
LIGHTING LOAD
4-6 (2) 1.85-4.65 1.4
(w/ft2)
OFFICE EQUIP.
- 0.8-2 1.4
(w/ft2)
OUTLET
VELOCITY 25-50* 40-150 -
(ft/min.)
FRESH AIR
20 20 20
(cfm/person)
*-Carrier Handbook
HEAT LOAD 2 8
QUESTION
Fill in the table other information
for the following conditions
– Outdoor air 92db/80wb
– Indoor 75db/55%rh
HEAT LOAD 2
9
home back next
SOLAR GAIN THROUGH
GLASS
Cooling Load = Window Area x
Peak solar heat gain (Table 4) x
Storage Factor (Table 5) x Shade
Factor (Table 6)
Refer to Table 4, Table 5 and
Table 6
HEAT LOAD 2
10
home back next
SOLAR AND TRANSMISSION
GAIN
Heat Gain Through Walls &
Roofs = Area x Equivalent
Temp. Difference (Table 7 for wall &
Table 8 for roof) x Transmission
Coefficient (U) (Table 9)
HEAT LOAD 2
11
home back next
TRANSMISSION GAIN (EXCEPT
WALLS AND ROOFS)
Heat gain through all glass = Area x
Temp. Difference (OA - RA) x
Transmission coefficient (U) (Table 9)
Heat gain through shade wall, partition
= Area x Temp. Difference (OA - RA -
5°F) x Transmission coefficient (U)
(Table 9)
HEAT LOAD 2
12
home back next
TRANSMISSION GAIN (EXCEPT
WALLS AND ROOFS) (2)
Heat gain through wall, partition
(adjacent to Kitchen,Boiler Room) =
Area x Temp. Difference (OA - RA +
15°F to 25°F) x Transmission
coefficient (U) (Table 9)
HEAT LOAD 2
13
home back next
INFILTRATION
When ventilation exceeds
infiltration (+ve pressure), then
infiltration = 0
When rooms are design at -ve
pressure, have to consider
HEAT LOAD 2
14
home back next
INTERNAL LOADS
People
– No. of people from no. of chairs or
base on per floor area
– Table 10 - Heat gain from people
No. of people x Table 10
Activity, Sensible & Latent
HEAT LOAD 2
15
home back next
INTERNAL LOADS
Power
– Table 53 - Heat gain from electric
motors
– Electric motors contribute only
sensible heat to space
HEAT LOAD 2
16
home back next
INTERNAL LOADS
Lights - Estimate (w/ft2)
Lights - Type
– Incandescent
rated lamp watt x 3.413
– Fluorescent lamp
rated lamp watt x 1.25 x 3.413
HEAT LOAD 2
17
home back next
INTERNAL LOADS
Appliances
– most appliances contributes both
sensible and latent heat load.
– They contribute latent heat by virtue of
their function ex. drying, cooking
– Hood to remove this is most effective
– Table 50 & 51- Heat Gain from
Restaurant
HEAT LOAD 2
18
home back next
SAFETY FACTOR
Safety factor added for possible
error in the survey
Over estimating safety factor will
cause oversized air conditioning
equipment - difficult to maintain
space conditions
< 5%
HEAT LOAD 2
19
home back next
ROOM SENSIBLE HEAT (RSH)
Now all the load components
contributing to sensible load can be
added
HEAT LOAD 2
20
home back next
SUPPLY AIR DUCT LOSSES
In transferring air from system
cooling coil to space, four losses
must be considered;
– Supply duct heat gain
– supply duct leakage loss
– fan heat
– bypassed outdoor air
HEAT LOAD 2
21
home back next
SUPPLY DUCT HEAT GAIN
Supply air in the duct at 50°F to
60°F passes through surrounding
environment above 90°F - potential
heat gain to supply air
Insulation reduces this gain
Typical figure < 2% of RSH
HEAT LOAD 2
22
home back next
SUPPLY DUCT LEAKGE LOSS
Lost capacity in the supply air duct
depends on duct shape, duct
pressure and workmanship.
Low pressure (0 - 2”s.p) : <5%
Medium pressure (2” - 6”s.p) : 2% -
3%
High pressure (6” & above) : <1%
HEAT LOAD 2
23
home back next
FAN HEAT
Draw through (draw through the
cooling coil) fan add heat to air
supply. Electrical losses for motor
which lies in the air stream also add
heat
< 5%
HEAT LOAD 2
24
home back next
BYPASS OUTDOOR AIR
Some of the air passing through the
coil remain untreated.
Load equivalent to infiltration load
Depends on bypass factors use
Load = cfm x (toa-trm) x bf x 1.09
HEAT LOAD 2
25
home back next
EFFECTIVE ROOM SENSIBLE
HEAT (ERSH)
This load determine the cfm
required across the cooling coil
ERSH = RSH + (SUPPLY DUCT
GAIN + SUPPLY DUCT LEAK
LOSS + FAN) + BYPASS
OUTDOOR AIR
HEAT LOAD 2
26
home back next
LATENT LOAD
The latent counterpart of infiltration,
internal loads, and supply duct load
are also calculated to determine the
Room Latent Heat and Effective
Room Latent Heat
Vapor Transmission - only for low
or high dew point application.
HEAT LOAD 2
27
home back next
ROOM LATENT HEAT (RLH)
SUM OF ALL ROOM LATENT LOAD
– INFILTRATION
– PEOPLE
– STEAM
– APPLIANCES
– ADDITIONAL HEAT GAINS
– VAPOUR TRANSMISSION
HEAT LOAD 2
28
home back next
EFFECTIVE ROOM LATENT
LOAD (ERLH)
ROOM LATENT HEAT (RLH) +
SUPPLY DUCT LEAKAGE LOSS +
BYPASS OUTDOOR AIR
HEAT LOAD 2
29
home back next
OUTDOOR AIR / VENTILATION
RATES
Outdoor air/ventilation rates from Table
11-Ventilation Std.
Outdoor air quantity can be determined
either by cfm/person or cfm/ft2 or
airchange rate (ach)
Air change is defined as the quantity of
changed air every hour
cfm = vol x ach
60
HEAT LOAD 2
30
home back next
OUTDOOR AIR HEAT
Outdoor air heat comprised of both
sensible and latent load
Except for bypassed air, the load
appears on the upstream of the coil
Requirements of outdoor/fresh air
base on air change rate or cfm/sq.ft
or per person
HEAT LOAD 2
31
home back next
QUESTION
Calculate the outdoor/fresh air
requirement of the office space, if
the recommended fresh air change
is 2 ach.
Answer : (ach/60) x Vol.
= (2/60) x 32000
= 1067 cfm
HEAT LOAD 2
32
home back next
RETURN DUCT LOSSES
Return duct are normally shorter
than supply duct
Temperature of air at about 75°F -
80°F
Return duct slightly negative
1% for Return duct heat gain &
1% for return duct leakage loss
HEAT LOAD 2
33
home back next
RETURN AIR or BLOW THRU’
FAN
Fan and motor heat appear on the
upstream side of the coil.
…..hp x 2545
HEAT LOAD 2
34
home back next
GRAND TOTAL HEAT
Total heat load the coil must
remove from the air passing over it.
Also known as dehumidifier load
HEAT LOAD 2
35
home back next
REFRIGERATION LOAD
Introducing two additional loads not
experience by the coil
– Piping sensible heat gain
– Pumping heat gain
HEAT LOAD 2
36
home back next
APPARATUS DEW POINT
(ADP)
Effective Room Sensible Heat (ERSH)
Effective Room Total Heat (ERTH)
ADP obtained from plot ESHF line
or Table 65
Indicated ADP & Selected ADP
ADP must be > 48°F
HEAT LOAD 2
37
home back next
QUESTION
ERSH = 115 000
ERLH = 15 000
Calculate the ESHF
Find ADP if room is 75°F/55%rh
from table
HEAT LOAD 2
38
home back next
DEHUMIDIFIED AIR QUANTITY
Dehumidified rise = (trm-tadp)x(1-BF)
Cfmda = ERSH
1.09 x (trm-tadp)x(1-BF)
HEAT LOAD 2
39
home back next
SUPPLY AIR QUANTITY (cfmsa)
Outlet temp. diff = RSH =Fdes.dif
(trm - tgrille) 1.09 x cfmda
Supply cfm = RSH = cfmsa
1.09 x Fdes. dif
Bypass cfm = cfmsa - cfmda
HEAT LOAD 2
40
home back next
RESULTING ENTERING AND
LEAVING CONDITIONS AT
APPARATUS
t = trm + cfm x (t - t )
edb oa oa rm
cfmsa
tldb = tadp + bf x (tedb - tadp)
tewb & tlwb read from psych. chart
HEAT LOAD 2
41
home back next
SOME EX. OF COMPUTERISED
HEAT LOAD CALCULATIONS
See Lotus files
HEAT LOAD 2
42
home back next
HEAT LOAD 2 43
GO TO PSYCHRO 2
