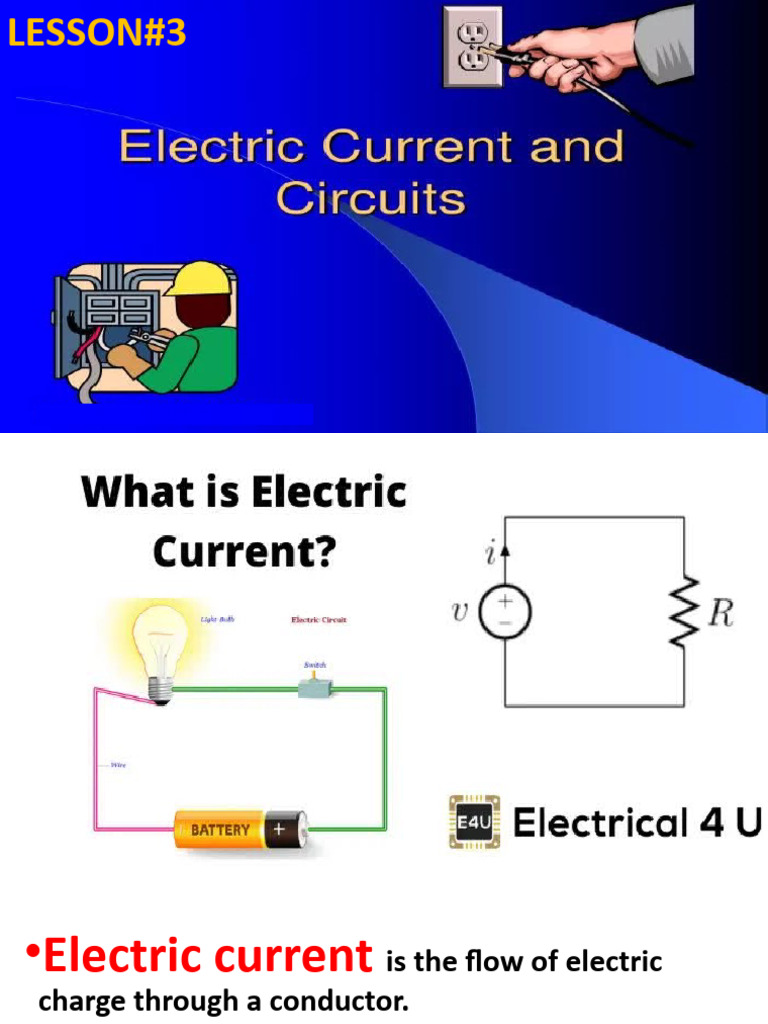

of electrons through wires and other conductive materials, creating the basis for electrical power generation, transmission, and utilization in various electrical and electronic devices. The flow of electric current can occur in two main types: Direct Current (DC) In DC, electric charge flows in one direction continuously. Batteries and many electronic devices, such as laptops and cell phones, use direct current. FORMULA The Voltaic Pile was a stack of alternating discs of two different metals, usually copper and zinc, separated by pieces of cardboard soaked in a saltwater solution. This arrangement created a continuous and stable source of electrical current, which was a groundbreaking discovery in its time. It provided the world with a reliable method of generating electricity and laid the foundation for many subsequent developments in the field of electrochemistry and electrical engineering. Georg Simon Ohm (1789-1854) was a German physicist and mathematician who is best known for formulating Ohm's Law, one of the fundamental principles in electrical engineering and physics. Ohm's Law relates the voltage (V), current (I), and resistance (R) in an electrical circuit and is essential for understanding and analyzing electrical circuits. DEVICES USES FOR OMHS LAW OMEGA
The device that can measure resistance is
called Ohmmeter. The device that can measure voltage is called Voltmeter The device that can measure ampere is called Ammeter. MULTI-TESTER
The device that can measure voltage,
FORMULA FOR OHM`S 1.There is a potential difference of V= 20V across a resistor with R= 50 Ω. What is the current through the resistor? USING GUFSA:
GIVEN: V= 20V R= 50Ω
UKNOWN:? I OR CURRENT FORMULA: I=V/R SUB/SOL: I=20V/50 Ω I=O.4 A amper - answer 2. An appliance has a current of 1.2 A and has a resistor of 100 Ω. Calculate the Voltage. V =? Using GUFSA: GIVEN: R = 100 Ω I =1.2 A UKNOWN: V? FORMULA:V= I R SUB/SOL: V = (1.2 A) (100 Ω) V= 100 V - ANSWER Kirchhoff's laws are two fundamental principles in electrical circuit theory that help analyze and solve electrical circuits. These laws are named after the German physicist Gustav Kirchhoff and are essential for understanding and solving complex electrical networks. The two main Kirchhoff's laws are: Kirchhoff's Current Law (KCL Kirchhoff's Current Law (KCL) In electronics, a circuit is a complete circular path that electricity flows through. •A.Calculate the total resistance
•B. Compute for the current
•C. Find the value of V₁ and V₂
• A.Calculate the total resistance. Given: R=6Ω R=4Ω Unknown: R? Formula: R1+R2 Sub/Sol: =6Ω+4Ω R=10Ω-answer B.Compute for the current Given: V=20V R=10Ω Unknown: I Formula: I=V/R Sub/Sol: I=20v/10
I = 2A answer C.Find the value of V₁ and V₂. GIVEN: V1 V2 I=2A I=2A
R=6Ω R=4Ω Unknown: FORMULA: V= IR SOB/SOL:
V₁ = (2A) (6Ω) V₂ = (2A) (4Ω)
#2 sample (parallel) A.Find the current flow on each resistor. B.Calculate the total Current C.Calculate the total resistance A.Find the current flow on each resistor. Given: 30V, 4Ω,6Ω, 8Ω Unknown:? I or resistor Formula: I= V/R Sub/Sol: I1=30V/4Ω= 7.5A - answer I2=30V/6Ω= 5 A - answer I =30V/8Ω= 3.75A -answer • B.Calculate the total Current IT = I1+I2+I3 + I.... So on.. Given: = I17.5A = I25A = I33.75A Unknown: ampere total or IT Formula: I1+I2+I3 SUB/SOL IT = 7.5A + 5A + 3.75A IT=16.25 A - answer C.Calculate the total resistance GIVEN: I= 16.25A V= 30V Unknown: R or Resistance Formula: R=V/I SUB /SOL: I=30V/16.25A IT=1.85Ω-answer 1.An air conditioner has a charge of 500 C that requires a current of 1.2 A. Calculate the time in minutes 2.A light bulb requires a current of about 0.75 A If this light bulb is turn on for one and half hour, compute for the value of charge. 3.Coffee maker is used for 30 minutes and has a charge of 200C. Solve for the value of Voltage if the value of resistance is 100 ohms. 4.Calculate the current if the voltage is 12 and the resistance is 10 ohms. 5.A rice cooker can cook rice for 30 minutes. If the rice cooker requires a 2 A for 220 V. Calculate the resistance Directions: Solve the following problem. •A.Calculate the total resistance •B.Compute for the current •C. Find the value of V₁ and V₂ 2 •A.Find the current flow on each resistor. •B.Calculate the total Current •C.Calculate the total resistance
