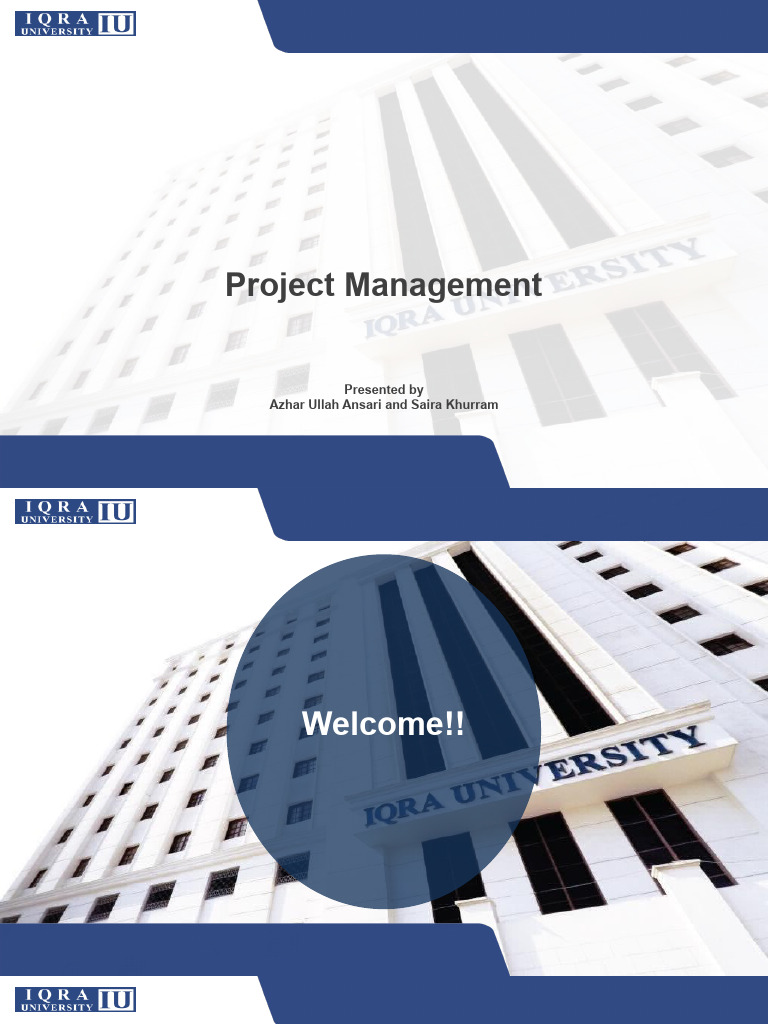

Presented by
Azhar Ullah Ansari and Saira Khurram
Welcome!!
PROJECT PLANNING
“WHAT ARE WE GOING TO DO IN THE PROJECT?”
Planning
Means organizing project in logical order and identifying and defining
work activities in a manner that help achieve project objectives.
✧ Note that the scope statement includes not only what it will do,
but what will not be included.
Work Breakdown Structure (WBS)
✧ A Work breakdown structure is a diagram showing the major
subtasks of the project.
✧ Break project tasks into successively finer levels:
✧ Program - Project - Task – Work Package - Work Unit
✧ Each work unit:
▪ short time span
▪ specific start & end point
▪ budget able in terms of money, resources
▪ can be assigned an individual responsibility
▪ can be scheduled
WBS of our project
Network Diagram
✧ Network diagrams can be constructed from the WBS, adding
dependencies and estimated durations.
Critical Path
✧ The critical path is the longest path through the network diagram.
✧ Any delay to an activity in the critical path will cause delays to
the overall project.
Slack
✧ Tasks not on the critical path have slack - the duration by
which they can be late without making the project later than
the critical path duration.
Gantt Chart
✧ A Gantt Chart shows the tasks and their durations graphically, in
calendar form, with one bar per activity.
✧ The bar shows the earliest start date & expected duration.
Gantt Chart
✧ Gantt charts can also show summary activities (see `Planning' entry),
dependencies (arrows), and milestones (diamonds).
✧ The dependencies make slack clear (see `Install siding' entry).
Class Activity - 1
✧ Identify and highlight the critical path in the given network.
Crashing/Fast Tracking
✧ If the critical path is still not fast enough, it is possible to shorten
the duration by changing some assumptions.
✧ For an instance:
1. Crashing
2. Fast Tracking
Crashing/Fast Tracking
✧ Crashing: Change the duration of some critical task, e.g., if it is possible to
parallelize it by assigning more people to it.
✧ Fast tracking: Allow tasks to be done in parallel by changing the logic in the
network diagram.
✧ Productivity is not proportional to the number of people working on a task
✧ Adding people to a late project makes it later because of communication
overheads
✧ The unexpected always happens. Always allow contingency in planning
If tasks can be parallelized (as in building construction) these allow total
duration to be greatly reduced.
Class Activity - 2
✧ You are assigned a project to arrange a birthday party of your sibling in your
lawn.
▪ To successfully accomplish this project, you will perform different tasks.
▪ Arrange the tasks(s) in the form of WBS as we have done earlier in this lecture.
Review Questions
✧ What is WBS? How it may help you?
✧ What is a Critical Path?
✧ How will you define the term ‘slack’?
✧ What is the difference between crashing and fast tracking?
References
✧ https://www.projecttimes.com/articles/10-steps-to-creating-a-project-plan.html
✧ PMI (2004). A Guide to the Project Management Body of Knowledge (3rd Ed.).
Project Management Institute
✧ https://opentextbc.ca/projectmanagement/chapter/chapter-4-framework-for-projec
t-management-project-management/
✧ https://project-management.com/project-management-phases/
Web Resources
✧ https://www.youtube.com/watch?v=wEWhnodF6ig
✧ https://www.youtube.com/watch?v=akO2Lf1fHmM
✧ https://www.youtube.com/watch?v=uJD4G9EDH8w
✧ https://www.youtube.com/watch?v=23FheJ7tol4
