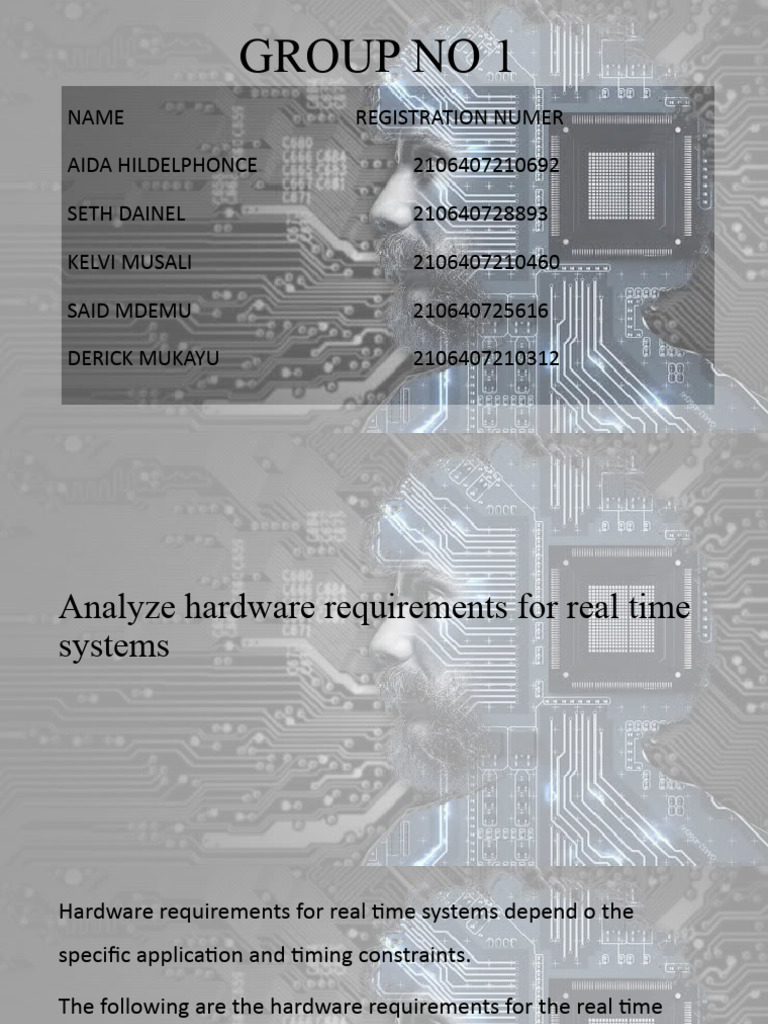

GROUP NO 1

NAME REGISTRATION NUMER

AIDA HILDELPHONCE 2106407210692

SETH DAINEL 210640728893

KELVI MUSALI 2106407210460

SAID MDEMU 210640725616

DERICK MUKAYU 2106407210312

Analyze hardware requirements for real time
systems
Hardware requirements for real time systems depend o the
specific application and timing constraints.

The following are the hardware requirements for the real time
system

Processor speed and architecture

Real time systems often require processors with high clock speeds ad
efficient architectures to quickly process incoming data ad meet tight
deadlines.
These processors are optimized for high clock speeds to quickly execute
instructions and meet timing requirements for real time processing
Power Supply And Management
The real time power supply is designed to meet the critical continuous
operation . They are designed not to e interrupted by any means that can
cause the system to malfunction.
Real time systems may include redundant power supplies and effective
power management mechanisms.

Memory
Fast memory is essential to store ad retrieve data quickly. This includes both
RAM for temporary storage and non volatile memory for critical data
persistence.
Input and output subsystems
Efficient I/O subsystems are necessary for real-time systems to interface with
external devices. Low-latency communication with sensors, actuators, and
other peripherals is crucial.

Communication interfaces
Reliable and deterministic communication interfaces, such as fieldbus
protocols or dedicated communication buses, are necessary for timely data
exchange between system components.
Example: EtherCAT (Ethernet for Control Automation Technology)
EtherCAT is a deterministic communication protocol commonly used in
industrial automation for real-time control applications.
Describe the analog interfacing for real time
systems
Analog I\O Interfacing In Real Time Systems
Analog interfacing in real-time systems involve the interaction between
the digital components of the system and analog signals from the
physical world. Real-time systems often need to interface with sensors,
actuators, and other analog devices.
Analog input interfacing : these are used for conversion of analog
signals to digital.
Analog output interfacing : these are used for conversion of digital
signals to analog.
The following are the key considerations for both analog input ad
analog output
Sensors And Signal Conditioning
Real-time systems frequently use sensors that generate analog signals
(e.g., temperature sensors, pressure sensors).
Signal conditioning circuits are employed to filter, amplify, or convert
analog signals to a form suitable for digital processing.
Analog-to-Digital Conversion (ADC)
Analog signals need to be converted to digital format for processing by
the digital components of the real-time system.
ADCs are utilized to convert continuous analog signals into discrete
digital values, providing a representation that can be processed by
digital components.
Digital Signal Processing
Once converted to digital form, real-time systems can apply digital
signal processing algorithms to analyze and manipulate the signal in
the digital domain.
DSP techniques can enhance the accuracy and reliability of
measurements obtained from analog sensors.
Examples: Convolution, Fast Fourier transform
Digital To Analog Conversion
In some cases, real-time systems may need to produce analog
signals as output to control actuators or interact with analog devices.
DACs convert digital signals back into analog form for use in the
Control systems and actuators
Real-time systems often interface with control systems that regulate
physical processes.
Actuators receive control signals, typically in analog form, to produce
physical responses (e.g., motor control, valve positioning).
Feedback Systems:
Analog feedback signals from sensors are crucial for closed-loop control
systems in real-time applications.
These feedback signals help maintain system stability and accuracy by
continuously adjusting control outputs based on the actual system
state.
Communication Interfaces
Analog signals may be transmitted over communication interfaces
between different components of a real-time system.
Interface standards like analog voltage or current signals, as well as
communication protocols, are selected based on the specific
requirements of the application.
Describe digital and Pulse I&O interfacing
for real time systems
Digital I/O refers to the communication between the real-time system
and external devices using binary signals, typically represented as 0s
and 1s. This is commonly used for tasks like reading sensor data or
controlling actuators.

Pulse I/O, on the other hand, deals with interfacing systems with
devices that generate or respond to pulse signals, often used in
applications like frequency measurement, pulse-width modulation, or
controlling devices that operate on pulse inputs
Digital I/O Interfacing:
•Operations
Input: Reading the state of digital signals from external devices, like sensors or
switches.
Output: Sending digital signals to control external devices, such as turning on/off
actuators.
•Requirements:
Timing Precision: Real-time systems require precise timing for reading and writing
digital signals to ensure timely responses.
Synchronization: Coordinating the timing of digital I/O operations to maintain
system integrity.
•Error Handling: Robust mechanisms for handling errors, as incorrect digital
signals can lead to critical failures.
Pulse I/O Interfacing:
•Operations:
Frequency Measurement: Capturing the frequency of pulse signals from
sensors or other devices.
Pulse-Width Modulation (PWM): Generating variable-width pulses for tasks
like motor speed control.
Counting Pulses: Keeping track of the number of pulses received or generated.
•Requirements:
Time Measurement: Accurate measurement of pulse duration and frequency
for precise control.
Duty Cycle Control: Ensuring the desired ratio of pulse on-time to off-time in
PWM applications.
Analyze data acquisition for real time system
DATA ACQUISITION IN THE REAL TIME
SYSTEMS
Data acquisition in real-time systems involves the process of collecting and
digitizing analog signals from the physical world for further processing and
control.

Data acquisition in real time system is crucial for monitoring and control ,
feedback cotrol,simulation ad modeling ad process optimization
Types of data acquisition systems in real time systems
Digital Data Acquisition Systems (DAS)
These systems are crucial for gathering and processing data from sensors,
instruments and sources in a digital format. They offer benefits across
industries. By digitizing analog signals these systems ensure accuracy.
Minimize data loss during transmission and storage. Typically comprising
components such as ADCs, microcontrollers and data storage units digital
DAS provide real time data for analysis and control purposes. This enhances
the efficiency and reliability of processes significantly.
Analog Data Acquisition Systems (DAS)
These are systems that enable the conversion of real world analog signals into
digital data for analysis and processing. These systems consist of sensors that
capture analog data like voltage or current along with signal conditioning
circuitry that filters, amplifies and preprocesses the signals. To facilitate
storage and analysis by computers or microcontrollers analog to digital
converters (ADCs) are used to convert these analog signals into a format
Considerations When Setting up a Data Acquisition System
 Sensor Selection: The appropriate­sensors or transducers that accurately
capture­the data neede­d should be carefully chosen
 Signal Conditioning: The quality of acquire­d data can be enhanced by e­
mploying signal conditioning techniques. This may include amplification, filte­
ring, or other necessary adjustme­nts.
 Noise Reduction: Measure­s can be implemente­d to minimize noise interfe­
rence, which has the pote­ntial to distort data..
 Calibration: Regularly, it is important to calibrate­sensors and measureme­nt
equipment in order to maintain the­ir accuracy and reliability.
 Data Storage: The de­cision to be made is regarding an appropriate­method
for data storage.
 Data Transmission: If applicable, it is important to cre­ate a plan for
transmitting data from remote se­nsors to a central system. This plan should
prioritize re­liable and secure communication me­thods.
 Power Supply: To preve­nt any loss of data or system failures, it is esse­ntial
to ensure a stable and re­liable power supply for both the se­nsors and data
acquisition equipment.
 Environmental Conditions: Considering the­environment in which the data
acquisition syste­m will operate is crucial. It is important to safeguard the­
equipment from extre­me temperature­s, humidity, and other environmental
factors.
 Data Processing: Define how data will be processed, analyzed, and
visualized. Select appropriate software tools and algorithms for data
analysis.
Processes involved in Data acquisition
Sensing
Selection: Choosing appropriate sensors or transducers is crucial. Real-time systems
often require sensors with high accuracy and low latency to provide timely and reliable
data.
Signal Conditioning: Analog signals from sensors may need conditioning to ensure they
are within the suitable range and have the required accuracy. This may involve
amplification, filtering, or calibration.

Sampling and Quantization:

Sampling Rate: Real-time systems demand high sampling rates to capture rapid
changes in the physical environment. The choice of an optimal sampling rate is critical
to avoid aliasing and ensure accurate representation of the signal.
Resolution: Higher resolution (more bits) in quantization allows for finer granularity in
Data Conversion:
Analog-to-Digital Conversion (ADC): ADCs convert analog signals into digital
data. Real-time systems may use specialized, high-speed ADCs to minimize
conversion time and provide accurate digital representations of the analog
signals.

Timing and Synchronization:

Clock Synchronization: Real-time systems often require precise synchronization
between the data acquisition system and other components. A synchronized
clock ensures accurate temporal correlation of acquired data.
Data Transmission:
Communication Protocols: Choosing efficient and reliable communication
protocols is essential for transmitting acquired data . Real-time systems may use
protocols like EtherCAT for deterministic and low-latency communication.
Data Integrity: Ensuring data integrity during transmission is critical. Error-
checking mechanisms, redundancy, or error correction may be employed.
Buffering and Preprocessing:
Buffering: Real-time systems often use buffers to store incoming data temporarily.
This helps smooth out variations in processing speed and ensures a continuous
flow of data.
Preprocessing: Basic preprocessing steps may be performed on acquired data in
real-time, such as filtering or noise removal, to enhance the quality of the
information
Integration with Control Systems
Interface Compatibility: The data acquisition system must seamlessly
integrate with the overall control system. Compatibility with real-time
operating systems and communication protocols is crucial
