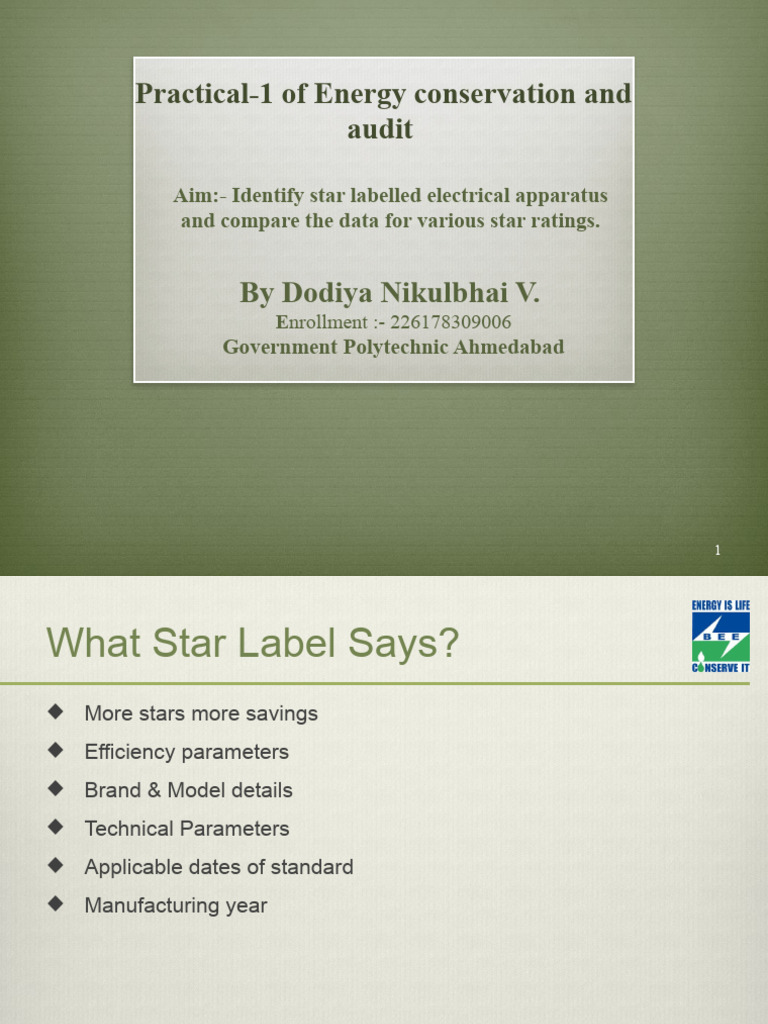

Practical-1 of Energy conservation and

audit

Aim:- Identify star labelled electrical apparatus

and compare the data for various star ratings.

By Dodiya Nikulbhai V.
Enrollment :- 226178309006
Government Polytechnic Ahmedabad

1
What Star Label Says?
 More stars more savings
 Efficiency parameters
 Brand & Model details
 Technical Parameters
 Applicable dates of standard
 Manufacturing year

2
Star Label Description

More Stars
More Savings
Efficiency
When comparing Parameter
similar sized products
look for more stars Lower Electricity
and save money Consumption means
higher savings.
Sometimes efficiency
is written (eg. AC),
where higher is better

3
Star Label Description

Label Period
Brand & Model

Label Period is period

for which standard is
applicable. Standard Type of Appliance
are revised with time. Brand
Model
Frost Free Refrigerator Year of
manufacturing
2012 2016
Star 5 Star 3

4
Star Label Description
• Air Conditioners (All)
• Refrigerators (All)
• Distribution Transformer
• Geysers
• Washing Machine
• Inverter
• LED Lamps
Technical Details • DG Set

Technical parameters
with respect to the
appliance type
Applicable standard
& test conditions for
the appliance type
Unique Code
Applicable
Conditions
5
Other Type of Labels

• Colour Television
• LPG Stove
More Stars
More Savings
Unique Code
When comparing
similar sized Applicable standard
products look for & test conditions for
more stars and the appliance type
save money Star rating plan
Applicable
• TFL
Conditions

6
 How to Check Authenticity

• Go to BEE official
STEP 1 website & Click on
Search and Compare

www.beestarlabel.com

• Click on the
equipment of your
interest
STEP 2

• Check the
STEP 3 specification of the
equipment

7
1. Direct Cool Refrigerator
Company:- Samsung
Mandatory Appliance

Standard: IS 1476 (Part 1):2000

Section 14(a): S.O.1899 dated

26.05.2016

Section 14 (b): S.O. 1898 dated

26.05.2016

Regulation: BEE/S&L/Ref/70/2016-
17 dated 07.07.2009

Star Labeling Parameter

Annual Energy Consumption
Lower is Better
8
 1. Direct Cool Refrigerator
Star Minimum CEC Storage Star 1 Star 5 Savings
Rating Volume Energy Energy (Rs)
Consum Consum
Band ption ption
1 Star 0.264* Vadj_tot_dc+221 ≤ CEC < 0.33*Vadj_tot_dc+277
190 339 138 1005
2 Star 0.211* Vadj_tot_dc+177 ≤ CEC < 0.264*Vadj_tot_dc+221
210 346 141 1024
3 Star 0.169* Vadj_tot_dc+141 ≤ CEC < 0.211*Vadj_tot_dc+177
230 352 144 1044
4 Star 0.135* Vadj_tot_dc+113 ≤ CEC < 0.169* Vadj_tot_dc+141
260 362 148 1073
5 Star CEC < 0.135*Vadj_tot_dc+113 290 372 152 1102
310 379 154 1122
Total Adjusted Storage Volume for no frost
(Vadj_tot_dc)= fresh food storage volume +1.31*freezer Assuming Rs 5 per kWh.
storage volume Refrigerator under standard
conditions

9
Energy Saving Tips for Refrigerator
 Allow the hot food to cool first, then put in the fridge.
 Do not overfill your refrigerator : Excessive loading of refrigerator,
create trouble in the circulation of cold air inside.
 Set the refrigerator temperature as per need : Refrigerator set to
lower than needed will increase your energy consumption by - 20 to
25 %.
 Don’t open refrigerator door unnecessarily : Frequently opening
of refrigerator door will increase energy consumption by 7%.
 Clean it regularly : By cleaning up the condenser coil, you can
reduce energy consumption by approx. 5%.
 To get extra saving go for star labelled refrigerator: Old inefficient
refrigerators consumes as much as 40% more energy than a five star
rated refrigerator.
10
2. Room Air Conditioner
Company:- LG
Mandatory Appliance
Split AC
Standard: IS 1391:1992

Section 14(b): S.O.180(E)

dated 12.01.2009

Section 14 (a): S.O. 181 (E) Window AC

dated 12.01.2009

Regulation: No.2 /11(5)/03-

BEE dated 06.07.2009

Star Labeling Parameter

Energy Efficiency Ratio

Higher is Better 11
 Energy & Cost Saving for 1.5 Ton Split
Air Conditioner at Different Star Rating
Star EER Cooling Input Units Per Unit Electricity Cost
Rating Capacity Power Consumption/ Charge Cost/Month Saving
(Watts) (Watts) Day (approx.) per year
(w.r.t.
Base
Star)
kWh Rs. Rs. Rs.
Base 2.5 5200 2080 17 4 2040 0
Star
1 2.7 5200 1926 15 4 1800 1200
2 2.9 5200 1793 14 4 1680 1800
3 3.1 5200 1677 13 4 1560 2400
4 3.3 5200 1576 13 4 1560 2400
5 3.5 5200 1486 12 4 1440 3000

Note: Assuming 8 hours operation per day for five months in year

12
 3. Inverter Type Air Conditioner
Company :- Mitsubishi

Star Level Min Max

Voluntary Appliance
ISEER ISEER
Star 1 3.10 3.29
Star 2 3.30 3.49 Standard: IS 1391:1992
ISO 16358-1: 2013
Star 3 3.50 3.99
Star 4 4.00 4.49
Star 5 4.50 - Star Labeling Parameter
Indian Seasonal Energy
Efficiency Ratio (ISEER)

13
Energy Saving Tips for AC
 Set the room temperature between 25°C to 27°C.
 When a hot day is expected, turn on the air conditioner early rather
than wait until the building becomes hot.
 Adjust air conditioner louvres towards the ceiling (as cool air falls).
 Have your unit serviced regularly, and keep filters clean.
 Install your air conditioner on the shady side of the building and make
sure the air flow around it isn’t obstructed.
 Always prefer a higher star rated air conditioner than a lower rated
one. Although higher rated air conditioners are a bit more costly than
lower rated ones, but the energy conservation that they provide will
act as a profitable investment in the long run.

14
 4. LED Lamps
Company :- Crompton
Star Rating Plan – Voluntary Phase
(validity up to 31 Dec 2017)

Voluntary Appliance
Star Rating Rated Luminous Remarks
Efficacy (lm/watt)

Self ballasted non directional

1 star ≥ 68 & < 79 freezed
general service LED lamps for
general lighting services that work 2 star ≥ 79 & < 90
on single phase a.c supply up to
3 star ≥ 90 & < 105
and including 250 V, 50 Hz
4 star ≥ 105 & < 120

5 star ≥ 120
Standard:
IS 16102:2012- Part 1 &2, IS
16106:2012 & IS 14700 (Part
3/sec2):1999

15
 Energy Saving Calculation of LED

Example: Rated Power Consumption = 9 W

5 Star Energy performance = 120 lm/Watt
Lumen maintenance = 120*9 = 1080 lm
Base Star Energy Performance = 79 lm/Watt
Base power required for the same lumen maintenance = 1080/79 = 14W
Energy Saving = (14-9)*1200 /1000~6 kWh/year

Capacity (W) Energy Saving Monetary Saving

(kWh/year)
(Rs./year) with 5 rupees per kWh
9 6 30

16
 Energy Saving Tips for Lighting
 Look for lumens, not Watts - Buy the light bulb that gives off the
amount of light you need. Higher lumens mean brighter light.
 Dirty tube lights and bulbs absorb 50 percent of the light so dust them
regularly
 Use natural lighting during the day.
 Turn off lights when not in use.
Light Power Energy Cost
output Power
Replace yourconsumed Power
old incandescent Energy
bulbs, CFL’s Cost
with LED and save Saving
Saving
from consu consum Saving Saving
energy:
Incandesce mption by CFLs ed by against against compared compared
nt bulb (lm) by (W) for LEDs (5 Incande CFLs with with CFLs
Incand same light Star) for scent (kWh/year) Incandesc (Rs./year)
escent output same bulb ent bulb (Rs. 5/kWh)
bulb light (kWh/ye (Rs./year)
(W) output ar) (Rs.
5/kWh)
800 60 15 6 -7 ~ 64 ~ 10 ~ 320 ~ 50
17
 5. Ceiling Fans
Company :- Havells

Voluntary Appliance

Standard: IS 374
Star Rating Index Calculation for Ceiling
Fans
Star Rating Service Value for Ceiling Fans
1 star ≥3.2 to <3.4
2 star ≥3.4 to <3.6
3 star ≥3.6 to <3.8
4 star ≥3.8 to <4.0
5 star ≥4.0

18
Energy & Cost Saving for Ceiling Fan

Example: Air Delivery = 220 cubic meter/minute

Service value (Base Star) = 3.2
Power consumption (Base Star) = 220/3.2 = 69W
5 star power consumption = 220/4 = 55W
Operation: 12 hours a day, for 300 days.
Energy Saving = (69-55)*12*300/1000= 51 kWh/year
Cost Saving (Rs. 8/unit)= 51*8 = 408

Air Delivery Base Power 5 Star Power Energy Cost Saving

(cmm) Consumption Consumption Saving (Rs./year)
(W) (W) (kWh/year)
220 69 55 51 255
210 66 53 47 235
228 71 57 51 255

19
Putting Stars to the Test: Comparing Performance
Across Ratings

Appliance Brand Power Consumption Voltage Star Rating Estimated Electricity

(Watts) Consumption per Year
(kWh)

Refrigerator Samsung 350 230 5 220

Refrigerator Whirlpool 450 230 3 300

Air Conditioner Mitsubishi 1200 230 4 1000

Air Conditioner LG 1500 230 2 1200

Washing Machine Samsung 2000 230 4 300

Washing Machine Godrej 2500 230 3 360

20
Thank You for Your Kind Attention
