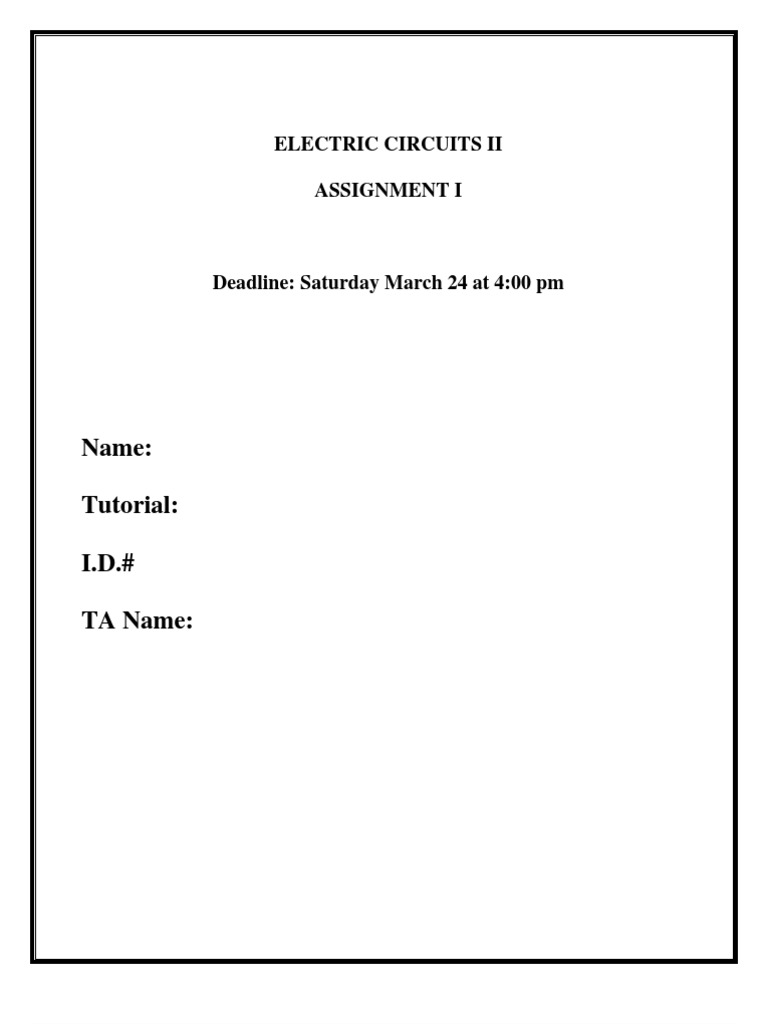

ELECTRIC CIRCUITS II ASSIGNMENT I

Deadline: Saturday March 24 at 4:00 pm

Name: Tutorial: I.D.# TA Name:

Question (I) In the circuit shown in Fig. 1 the current magnitudes are known to be: IT = 29.9A, I1 = 22.3A, and I2 = 8.0 A. If the supply frequency is 60Hz, obtain the circuit constants R and L.

Figure 1

Question (2) In the network shown in Fig. 2, the two equal capacitances C and the parallel resistance R are adjusted until the detector current ID is zero. Assuming a source angular frequency , determine the values of Rx and Lx.

Figure 2

Question (3) a) Derive an expression for the load impedance ZL that yields maximum average power transfer.

b)

Find the value of ZL in the circuit shown below for maximum power transfer.

Question (4) In the circuit shown, i(t) = 10 sin t . Calculate the value of C such that v(t) = Vo sin t Find Vo.

V.
