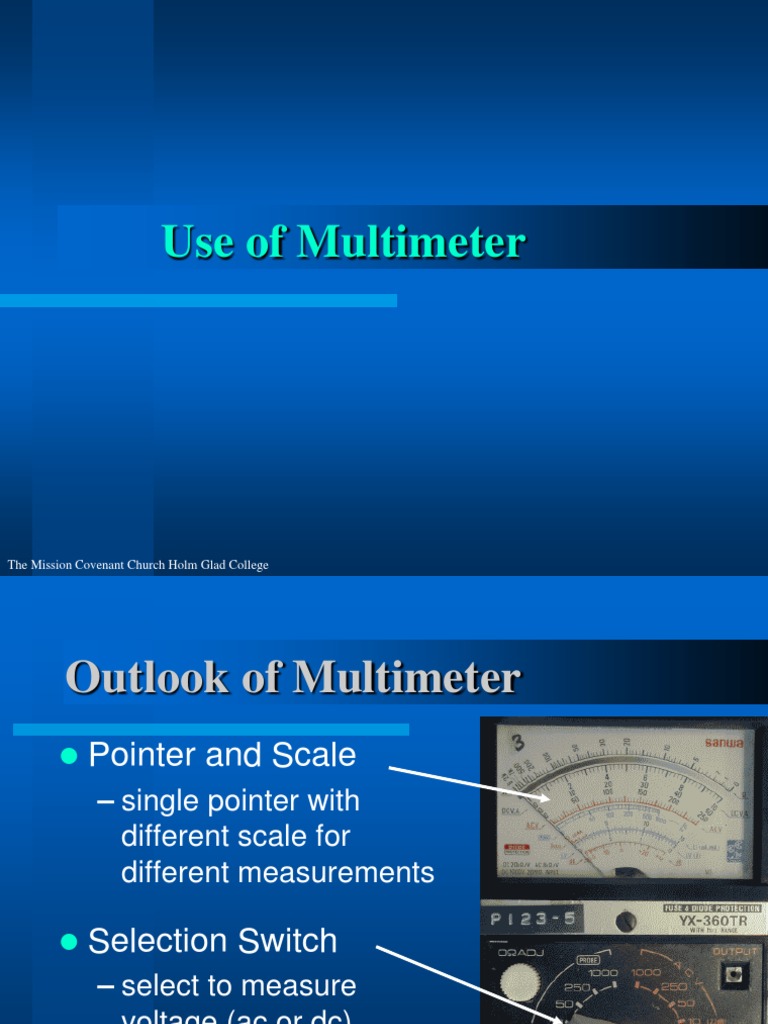

Use of Multimeter

The Mission Covenant Church Holm Glad College

Outlook of Multimeter

Pointer and Scale


single pointer with different scale for different measurements

Selection Switch
select to measure voltage (ac or dc), current or resistance.

The Mission Covenant Church Holm Glad College

Reading from Multimeter

As the Selection Switch is at DC25mA, the multimeter is used as a ammeter with fsd 25mA. The 250A scale is used. Reading = 17.5mA

The Mission Covenant Church Holm Glad College

Using as an Ohmmeter
With the input terminals shorted, set zero by turning the 0 Adjust Knob. Remember to set zero again if the ohmmeter range is changed.

The Mission Covenant Church Holm Glad College

Reading from Multimeter

As the Selection Switch is at x10, the reading has to be multiplied by 10. The reading is 90, so the resistance is 900 .

The Mission Covenant Church Holm Glad College

Measuring AC Voltage
If AC voltage is measured, remember to use the output terminal instead of the positive terminal. The negative terminal is still used.

The Mission Covenant Church Holm Glad College

Digital Multimeter

Same as analogue multimeter but it has the advantage of having a large internal resistance. If the reading is larger than the range, the reading cannot be shown. The COM terminal is always used. The other terminal can be 10A, AmA, V depending on the measurement.
The Mission Covenant Church Holm Glad College

Digital Ohmmeter

In the figure shown, the resistance of the resistor is 0.824k.


There is no need to multiplied 2k for digital ohmmeter as it is the range, but not the conversion factor.
The Mission Covenant Church Holm Glad College

Measuring AC/DC

Make sure that the switch is switched to the correct side for DC or AC measurement.
DC AC

The Mission Covenant Church Holm Glad College

Use of Multimeter The Mission Covenant Church Holm Glad College
Outlook of Multimeter Pointer and Scale – single pointer with different scale for different measurements Selection Swi
Reading from Multimeter As the Selection Switch is at DC25mA, the multimeter is used as a ammeter with fsd 25mA. The
Using as an Ohmmeter With the input terminals shorted, set zero by turning the 0 Adjust Knob. Remember to set zero
Reading from Multimeter As the Selection Switch is at x10, the reading has to be multiplied by 10. The reading is 90,
Measuring AC Voltage If AC voltage is measured, remember to use the “output “ terminal instead of the “positive” termin
Digital Multimeter Same as analogue multimeter but it has the advantage of having a large internal resistance. If the r
Digital Ohmmeter In the figure shown, the resistance of the resistor is 0.824k. There is no need to multiplied 2k for
Measuring AC/DC Make sure that the switch is switched to the correct side for DC or AC measurement. DC AC The Mission
