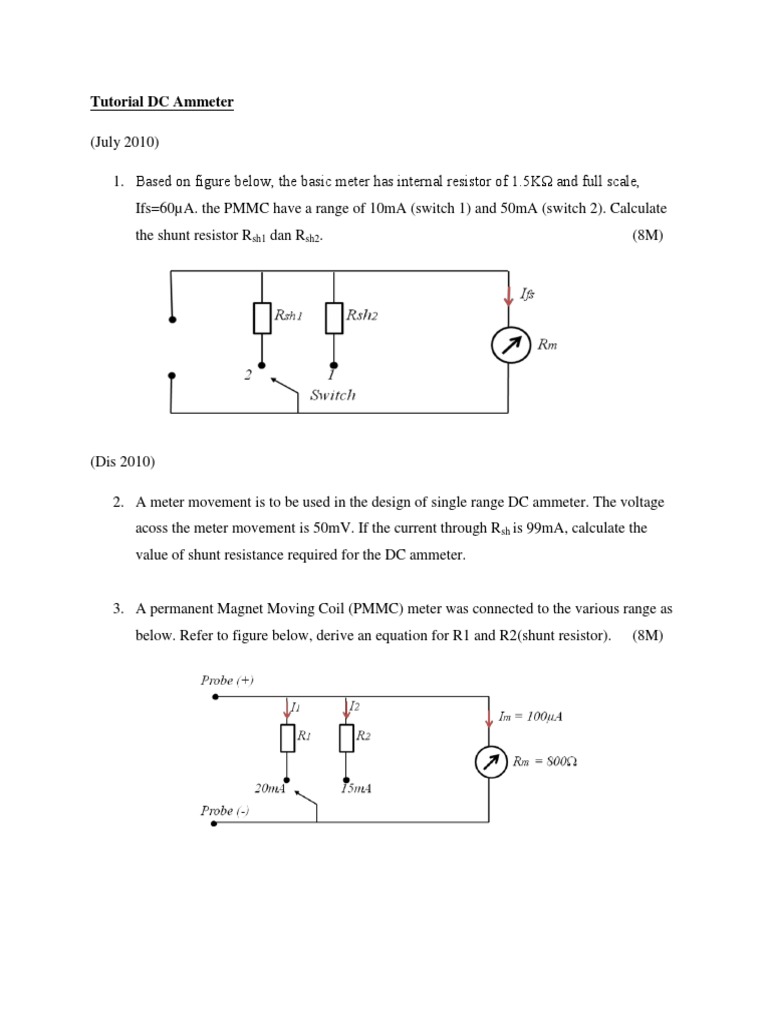

Tutorial DC Ammeter (July 2010) 1. Based on figure below, the basic meter has internal resistor of 1.

5K and full scale, Ifs=60A. the PMMC have a range of 10mA (switch 1) and 50mA (switch 2). Calculate the shunt resistor Rsh1 dan Rsh2. (8M)

(Dis 2010) 2. A meter movement is to be used in the design of single range DC ammeter. The voltage acoss the meter movement is 50mV. If the current through Rsh is 99mA, calculate the value of shunt resistance required for the DC ammeter.

3. A permanent Magnet Moving Coil (PMMC) meter was connected to the various range as below. Refer to figure below, derive an equation for R1 and R2(shunt resistor). (8M)

4. Referring to figure above, calculate the value of resistor R1 and R2. If the current range at 20mA and 15mA. (10M)

5. State 3 precautions when using an ammeter

(3M)

(Dis 2011) 6. Determine the required shunt resistance for an ammeter to measure DC current in range of 0 100mA given that the internal current is 25mA and internal resistance is 15. (3M)

7. State a usage of the shunt resistor in PMMC.

(1M)

8. List TWO (2) different types of the DC ammeter.

(2M)

9. A PMMC meter with an internal resistance of 2K and a full scale current of 50A. The circuit with shunt resistor provides a range of ammeter 5mA and RB for 50mA. Draw the ammeter circuit that consists RA and RB values. Calculate the RA and RB values. (13M)

10. A PMMC movement having Im = 1mA & Rm = 500 is to be converted into multirange ammeter. Calculate shunt resistances for current ranges 10mA & 50mA 11. (6M)
