SI NO ITEM NAME MATERIAL AS PER DRG ALTERNATIVE MATERIAL UNIT WT QTY TOTAL WT(KGS) REMARKS

1 COLUMN H 150 X 150 X 31.5 UC 152 X 152 X 37KG/MTR 111 8 888.0

2 RAFTER H 150 X 150 X 31.5 UC 152 X 152 X 37KG/MTR 173.9 4 695.6
3 HORIZONDAL BEAM H 150 X 150 X 31.5 UC 152 X 152 X 37KG/MTR 123.33 6 740.0
4 HOIST BEAM H 254 X 146 X 46 UB 254 X 146 X 43 KG/M 455.8 1 455.8
5 PURLIN UP 100 X 50 X20 PFC 100 X 50 X 10 37.74 21 792.5
6 V.BRACING(RAFTER TO COLUMN) L 75 X 75 L 75 X 75 X 10 22.8 4 91.2
7 V.BRACING(H. BEAM TO COLUMN) L 75 X 75 L 75 X 75 X 10 8.16 12 97.9
8 ROOF BRACING ROD WITH TURN BUCKLE 16 MM MS ROD 16 MM MS ROD 14.22 6 85.3
9 SAG ROD, BOTH END THREADED 10 MM MS ROD 10 MM MS ROD 0.682 18 12.3
10 BASE PLATE 300 X 300 X16 MM MS PLATE 11.304 8 90.4
11 STIFFNER PLATES(J2/-) 9MM MS PLATE 10MM MS PLATE 1.76625 16 28.3
12 STIFFNER PLATES(J1/-) 9MM MS PLATE 10MM MS PLATE 2.0096 8 16.1
13 STIFFNER PLATES(C1/- AND C/-) 9MM MS PLATE 10MM MS PLATE 1.2246 24 29.4
14 STIFFNER PLATES(C1/- AND C/-) 9MM MS PLATE 10MM MS PLATE 3.5325 8 28.3
15 STIFFNER PLATES(C1/- AND C/-) 9MM MS PLATE 10MM MS PLATE 0.883125 12 10.6
16 STIFFNER PLATES(J/- ) 9MM MS PLATE 10MM MS PLATE 0.883125 16 14.1
17 STIFFNER PLATES(H/- AND H1/-) 9MM MS PLATE 10MM MS PLATE 1.37375 16 22.0
18 HOIST BEAM STOPPER L 75 X 75 X 210 L 75 X 75 X 210 2.331 4 9.3
19 PURLIN SUPPORT - P/- L 75 X 75 X 100 1.11 28 31.1
20 STIFFNER PLATES(B1/- ) 9MM MS PLATE 10MM MS PLATE 0.883125 32 28.3
21 STIFFNER PLATES(B2/- ) 9MM MS PLATE 10MM MS PLATE 3.03952 16 48.6
22 STIFFNER PLATES(B3/- ) 9MM MS PLATE 10MM MS PLATE 3.1441605 4 12.6
23 STIFFNER PLATES(B4/- ) 9MM MS PLATE 10MM MS PLATE 3.189141 4 12.8
24 STIFFNER PLATES(B5/- ) 9MM MS PLATE 10MM MS PLATE 3.707712 12 44.5
25 ROOFING SHEET SPANDEK ROOFING SHEET 4870 X 1000 MM 11 0
DETAILS TO BE COLLECTED
FROM CLIENT
26 FENCING POST L50 X 50 L50 X 50 X 8 10.476 24 251.4
27 BASE PLATE OF FENCING POST 4 MM MS PLATE 0.11304 24 2.7
28 DIAGONAL BRACING WITH TURN BUCKLE 10 MM MS ROD 0.93 32 29.8
29 FENCING MAIN DOORS WITH PAD LOCK L50 X 50 L50 X 50 X 8 139.68 1 139.7
30 FENCING BACK DOOR WITH PAD LOCK L50 X 50 L50 X 50 X 8 61.11 1 61.1
31 CHAIN LINK FENCING - JALLY 1.8 MTR X 26 MTR
DETAILS TO BE COLLECTED
FROM CLIENT
TOTAL 4.77 TON
SI NO DETAILS MATERIAL QTY
1 ANCHOR BOLTS FOR COLUMNS M20 X 450MM 32
2 ANCHOR BOLTS FOR FENCING POST M12 - EXPANSION BOLTS 26
3 JOINT - J1
M16 X 50 MM HSFG BOLTS AND
NUTS WITH WASHER
32
4 JOINT - C1/-
M16 X 65 MM HSFG BOLTS AND
NUTS WITH WASHER
72
3 HOIST BEAM STOPPER
M16 X 50 MM HSFG BOLTS AND
NUTS WITH WASHER
6
4 VERTICAL BRACINGS
M16 X 50 MM HSFG BOLTS AND
NUTS WITH WASHER
120
5 PURLINS M1O X 35 28
6 ROOFING SHEET FIXING
M6 J BOLT AND NUT WITH
RUBBER WASHER
50
7 SAG ROD M10 NUTS 72
8 ROOF BRACINGS M16 NUTS 24
9 FENCING BRACING M10 NUTS 64

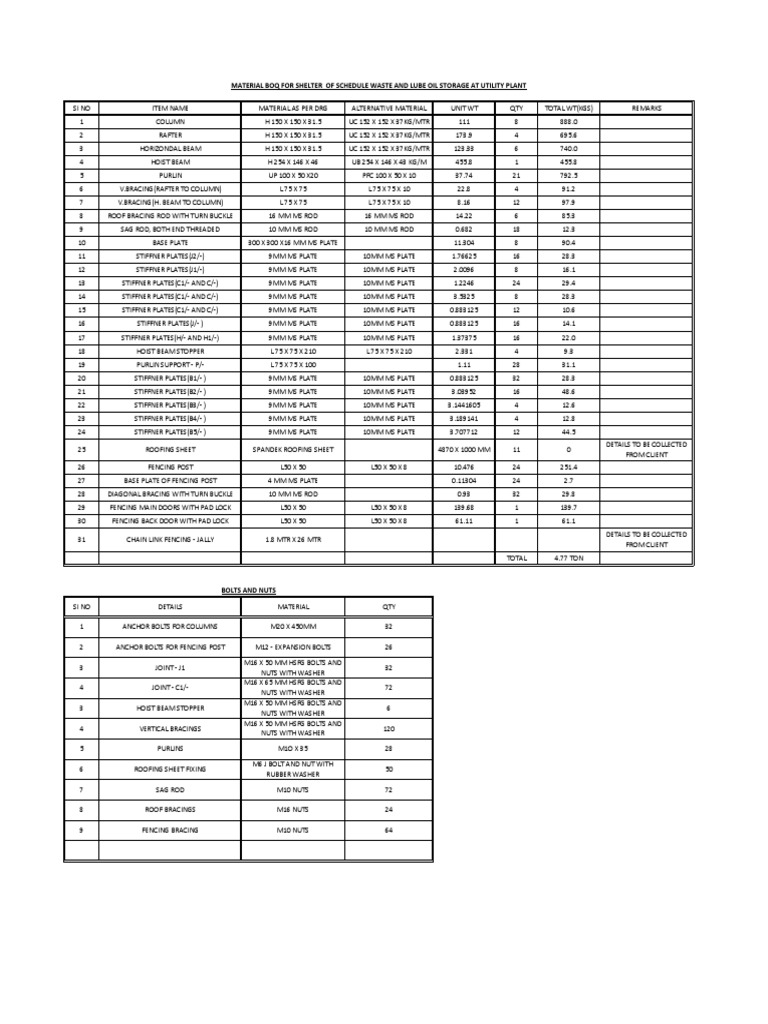

MATERIAL BOQ FOR SHELTER OF SCHEDULE WASTE AND LUBE OIL STORAGE AT UTILITY PLANT
BOLTS AND NUTS
SI NO MATERIAL LENGTH QTY TOTAL WT. TON Price per unit Cost Price per unit Cost
1 UC 152 X 152 X 37KG/MTR 6 MTR 11 2.442
720 7920 718 7898
2 UB 254 X 146 X 43 KG/M 12 MTR 1 0.516
1560 1560 1750 1750
3 PFC 100 X 50 X 10 12 MTR 7 0.857
0
4 L 75 X 75 X 10 6 MTR 5 0.333
160 800 175 875
5 L50 X 50 X 8 6 MTR 13 0.454
98 1274 98 1274
6 16 MM MS ROD 6 MTR 9 0.085
50 225 67 603
7 10 MM MS ROD 6 MTR 12 0.004
20 120 32 384
8 MS PLATE - 16 MM 2 MTR X 1 MTR 1 0.251
1230 1230
9 MS PLATE - 10 MM 2 MTR X 1 MTR 2 0.314
675 1350 740 1480
10 4 MM MS PLATE 2 MTR X 1 MTR 1 0.063
260 260 350 350
11 SPANDEK ROOFING SHEET 4.87 MTRS X 1 MTR 11
0
12 FENCING JALLY 1.8 MTR X 26 MTRS 1
0
TOTAL WT 5.320
13509 15844
BOLTS AND NUTS
SI NO DETAILS MATERIAL QTY REMARKS
1 ANCHOR BOLTS FOR COLUMNS M20 X 450MM 32
2 ANCHOR BOLTS FOR FENCING POST M12 - EXPANSION BOLTS 26
3 JOINT - J1
M16 X 50 MM HSFG BOLTS AND NUTS
WITH WASHER
32
4 JOINT - C1/-
M16 X 65 MM HSFG BOLTS AND NUTS
WITH WASHER
72
3 HOIST BEAM STOPPER
M16 X 50 MM HSFG BOLTS AND NUTS
WITH WASHER
6
4 VERTICAL BRACINGS
M16 X 50 MM HSFG BOLTS AND NUTS
WITH WASHER
120
5 PURLINS M1O X 35 28
6 ROOFING SHEET FIXING
M6 J BOLT AND NUT WITH RUBBER
WASHER
50
7 SAG ROD M10 NUTS 72
8 ROOF BRACINGS M16 NUTS 24
9 FENCING BRACING M10 NUTS 64
PROCUREMENT MATERIALS
Supplier 1 Supplier 2
