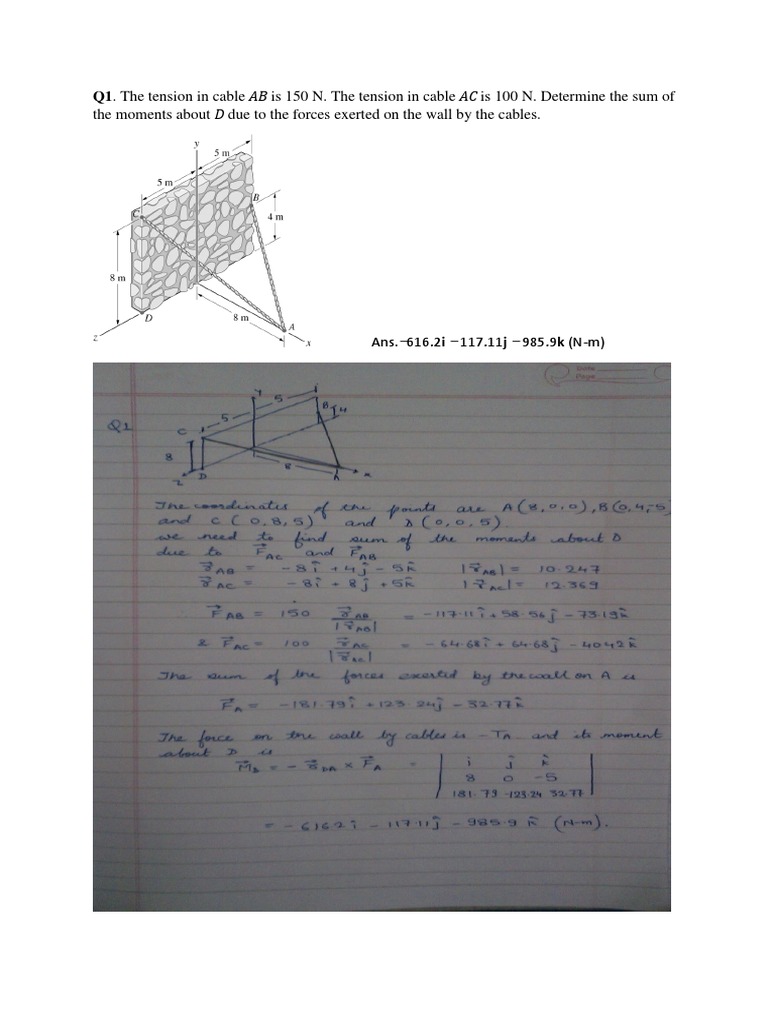

Q1. The tension in cable AB is 150 N. The tension in cable AC is 100 N.
Determine the sum of
the moments about D due to the forces exerted on the wall by the cables. Ans.616.2i 117.11j 985.9k (N-m)
Q2. Determine the moment of the force along chain about hinge axis (i.e. x-axis) of the door. Ans. 44.406 lb-ft
Q3. Determine the magnitudes of F1 and F2 and the direction of F1 so that the loading creates a zero resultant force and couple moment on the wheel. (Ans: 68.1 N, 25.9N, 18.1)
