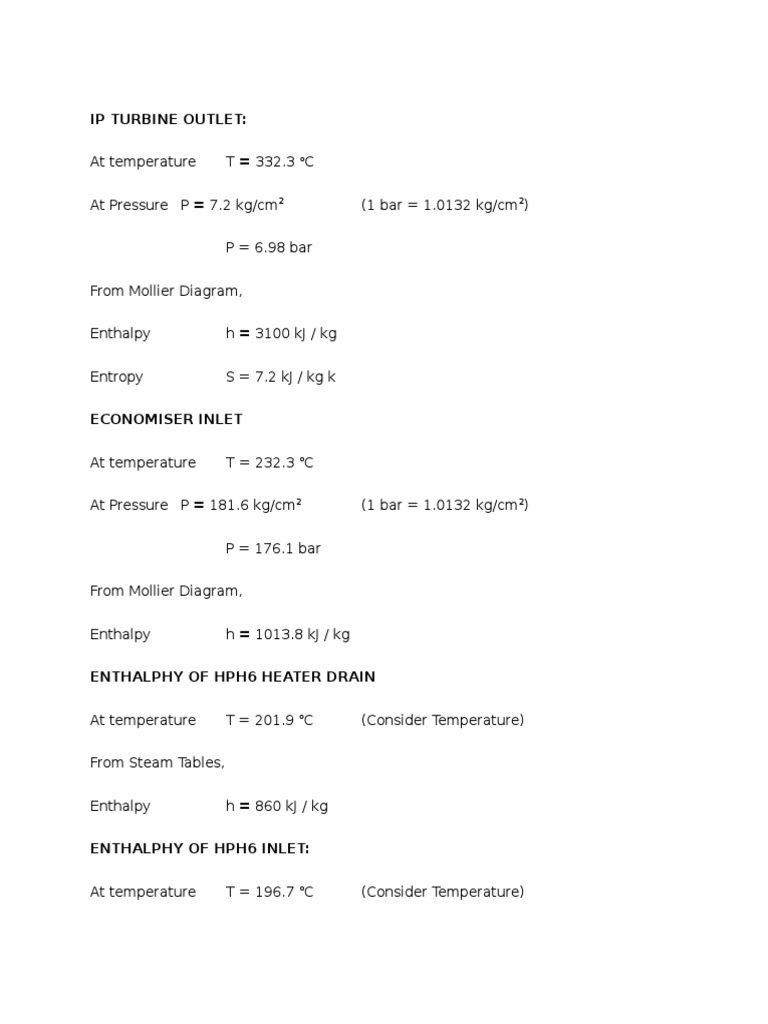

IP TURBINE OUTLET:

At temperature

T = 332.3 oC

At Pressure P = 7.2 kg/cm2

(1 bar = 1.0132 kg/cm2)

P = 6.98 bar
From Mollier Diagram,
Enthalpy

h = 3100 kJ / kg

Entropy

S = 7.2 kJ / kg k

ECONOMISER INLET
At temperature

T = 232.3 oC

At Pressure P = 181.6 kg/cm2

(1 bar = 1.0132 kg/cm2)

P = 176.1 bar
From Mollier Diagram,
Enthalpy

h = 1013.8 kJ / kg

ENTHALPHY OF HPH6 HEATER DRAIN

At temperature

T = 201.9 oC

(Consider Temperature)

From Steam Tables,

Enthalpy

h = 860 kJ / kg

ENTHALPHY OF HPH6 INLET:

At temperature

T = 196.7 oC

(Consider Temperature)

From Steam Tables,

Enthalpy

h = 829.9 kJ / kg

ENTHALPHY OF HPH6 OUTLET

At temperature

T = 232.8 oC

(Consider Temperature)

From Steam Tables,

Enthalpy

h =1013 kJ / kg

2. Reheat steam flow

QHPT Gland leak off = ((P2*1000) / V) 1/2
P2=HPT exhaust steam pressure= 32.65 bar
V=specific volume of HPT exhaust steam= 0.0792m 3/kg
QHPT Gland leak off = {(33.65*1000) / (0.0792*1000)} 1/2
= 20.61 kg / sec
Gland sealing= (HPT Gland leak off X 1.366) /17.077
= 20.61*1.366 / 17.077
=1.648 kg/sec
= 6 TPH
EXTRACTION-6 STEAM FLOW (BLEED STEAM FLOW)
Qes-6 =
