Output

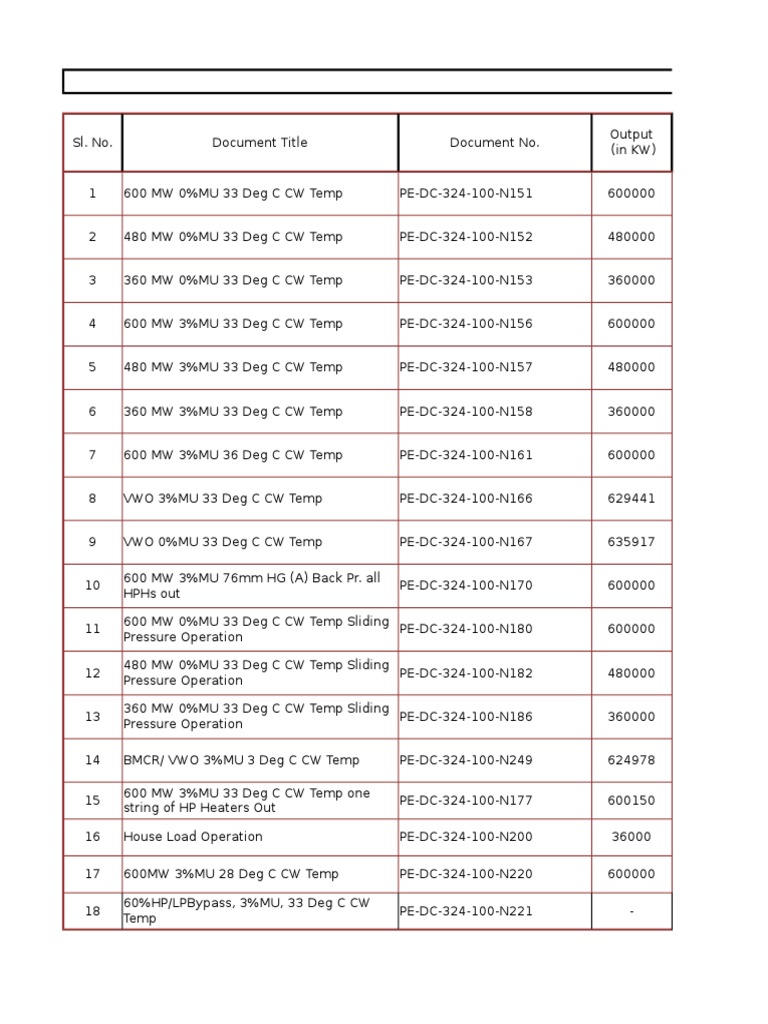

Sl. No. Document Title Document No.
(in KW)
1 600 MW 0%MU 33 Deg C CW Temp PE-DC-324-100-N151 600000
2 480 MW 0%MU 33 Deg C CW Temp PE-DC-324-100-N152 480000
3 360 MW 0%MU 33 Deg C CW Temp PE-DC-324-100-N153 360000
4 600 MW 3%MU 33 Deg C CW Temp PE-DC-324-100-N156 600000
5 480 MW 3%MU 33 Deg C CW Temp PE-DC-324-100-N157 480000
6 360 MW 3%MU 33 Deg C CW Temp PE-DC-324-100-N158 360000
7 600 MW 3%MU 36 Deg C CW Temp PE-DC-324-100-N161 600000
8 VWO 3%MU 33 Deg C CW Temp PE-DC-324-100-N166 629441
9 VWO 0%MU 33 Deg C CW Temp PE-DC-324-100-N167 635917
600 MW 3%MU 76mm HG (A) Back Pr. all
10 PE-DC-324-100-N170 600000
HPHs out
600 MW 0%MU 33 Deg C CW Temp Sliding
11 PE-DC-324-100-N180 600000
Pressure Operation
480 MW 0%MU 33 Deg C CW Temp Sliding
12 PE-DC-324-100-N182 480000
Pressure Operation
360 MW 0%MU 33 Deg C CW Temp Sliding
13 PE-DC-324-100-N186 360000
Pressure Operation
14 BMCR/ VWO 3%MU 3 Deg C CW Temp PE-DC-324-100-N249 624978
600 MW 3%MU 33 Deg C CW Temp one
15 PE-DC-324-100-N177 600150
string of HP Heaters Out
16 House Load Operation PE-DC-324-100-N200 36000
17 600MW 3%MU 28 Deg C CW Temp PE-DC-324-100-N220 600000
60%HP/LPBypass, 3%MU, 33 Deg C CW
18 PE-DC-324-100-N221 -
Temp
NOTE Heat Rate =[Mf x (Es-Ef) + Mc x (Eh- Ec)] x 1000/Output
Where
Mf Mass Flow Rate of Feedwater at the Inlet of Boiler ( in T/Hr )
Mc Mass Flow Rate of Reheat Steam (in T/Hr)
Es Enthalpy of Main Steam at the Outlet of Boiler (in Kcal/Kg)
Ef Enthalpy of Feedwater at the Output of Top Heater (in Kcal/Kg)
Eh Enthalpy of HRH Steam at the Outlet of Reheater (in Kcal/Kg)
Ec Enthalpy of CRH Steam at the Inlet of Reheater (in Kcal/Kg)
Output Output (in Kw)
Heat Rate Calculation -Jindal India Thermal Power Lim
Mass Flow Rate of Feed Water At the Inlet Enthalpy of Main Steam at the Outlet
of Boiler in T/hr. of Boiler in Kcal/kg
Mf Es
1830.588 810.7
1444.15 810.7
1087.977 810.7
1899.47 810.7
1503.062 810.7
1123.699 810.7
1918.109 810.7
1995.388 810.7
1946.979 810.7
1640.656 810.7
1827.274 813.3
1430.276 821.9
1058.089 829.9
2050 810.7
1762.752 810.7
1612.25 810.7
1876.195 810.7
1226 810.7
-Jindal India Thermal Power Limited
Enthalpy of Feed Water at the Output of Mass Flow Rate of Reheat Steam in
Top Heater in Kcal/kg T/hr.
Ef Mc
290.3 1553.374
272 1253.064
259.3 953.077
291.4 1550.46
276.8 1247.779
259.3 950.116
292.1 1564.442
294.6 1622.544
295.6 1640.481
174.9 1586.549
291.8 1546.683
277.1 1230.907
259.3 927.191
293.8 1613.855
235.3 1579.953
223.7 1285.76
290.7 1533.017
145.85 1182.482
Enthalpy of HRH Steam at the Enthalpy of CRH Steam at the Inlet of
Outlet of ReHeater in Kcal/kg ReHeater in Kcal/kg Heat Rate
(in Kcal/Kwh)
Eh Ec
858.6 727.5 1927.14
860.1 728.5 1964.31
861.7 728.9 2018.00
858.6 726.7 1984.83
860.2 727.4 2017.06
861.7 728.1 2073.73
858.5 726.7 2001.54
858.2 726.6 1975.32
858.1 727.2 1914.76
858.2 735.9 2061.94
858.6 729.2 1921.77
860.3 735.9 1942.37
861.9 742.4 1984.85
858.3 726.3 2036.35
858.3 731.7 2023.34
847.3 742.6 -
858.7 726.8 1963.04
861.2 721.05 -
