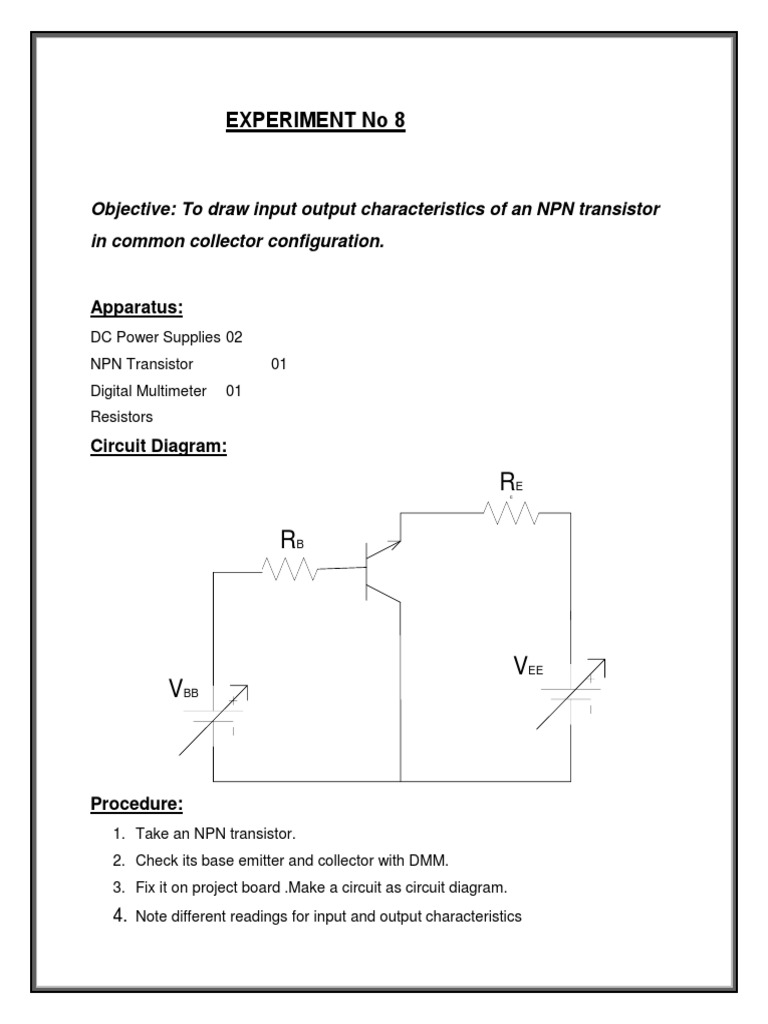

EXPERIMENT No 8

Objective: To draw input output characteristics of an NPN transistor

in common collector configuration.

Apparatus:
DC Power Supplies 02
NPN Transistor 01
Digital Multimeter 01
Resistors
Circuit Diagram:

RE c

RB

VEE
VBB

Procedure:
1. Take an NPN transistor.
2. Check its base emitter and collector with DMM.
3. Fix it on project board .Make a circuit as circuit diagram.
4. Note different readings for input and output characteristics
Observations:
INPUT CHARACTRISTICS
VEE VBB VBC IB
(v) (v) (v) (ua)
10 0.20 0.208 -0.80
10 0.40 0.398 0.20
10 0.50 0.461 3.90
10 0.60 0.490 11.0
10 0.80 0.516 28.8
10 1.00 0.531 46.9
10 1.20 0.543 65.7

OUTPUT CHARACTRISTICS

VEE 0 1 2 3 4 5
(V)
IB (uA) 20 20 20 20 20 20

VCE (V) 0.005 0.179 0.215 0.252 0.296 0.345

IE (uA) -5.00 821.0 1785 2748 3704 4655
IB (uA) 30 30 30 30 30 30

VCE (v) 0.005 0.160 0.188 0.212 0.237 0.265

IE (mA) -5.00 840.0 1812 2788 3763 4735
IB (uA) 40 40 40 40 40 40

VCE (v) 0.005 0.143 0.167 0.185 0.201 0.217

IE (mA) -5.00 857.0 1833 2.815 3799 4783

Conclusion:
