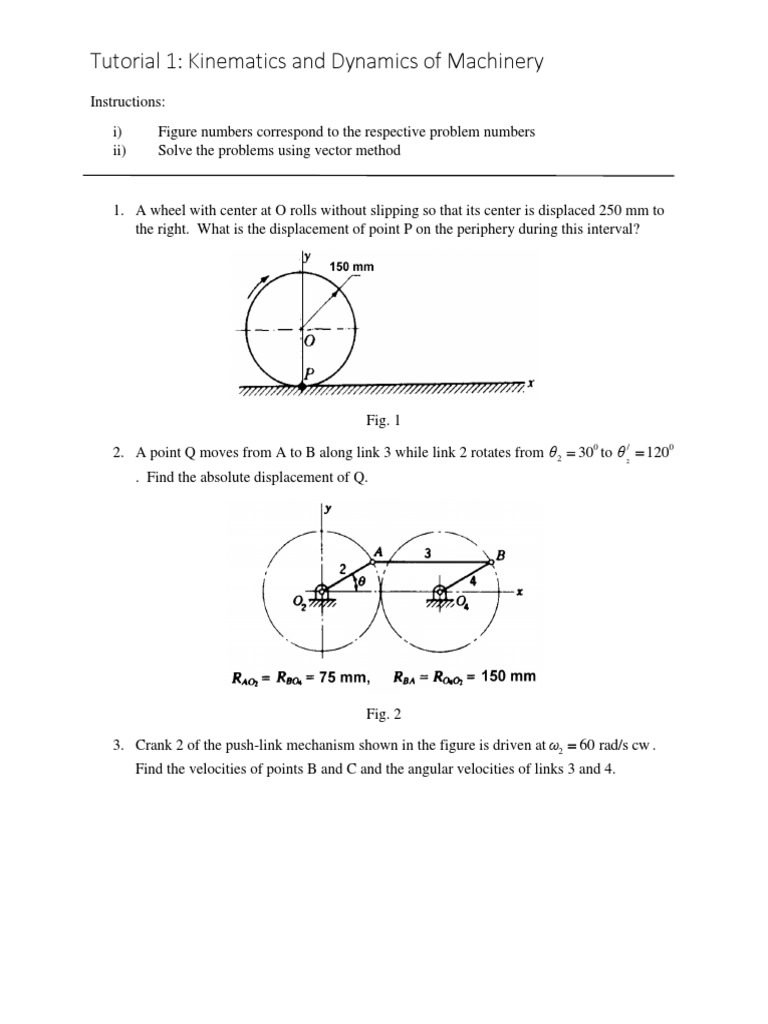

    Tutorial 1: Kinematics and Dynamics of Machinery

    Instructions:
    i) Figure numbers correspond to the respective problem numbers
    ii) Solve the problems using vector method

    1. A wheel with center at O rolls without slipping so that its center is displaced 250 mm to
    the right. What is the displacement of point P on the periphery during this interval?

    Fig. 1

    2. A point Q moves from A to B along link 3 while link 2 rotates from θ2  300 to θ 2/  1200
    . Find the absolute displacement of Q.

    Fig. 2

    3. Crank 2 of the push-link mechanism shown in the figure is driven at ω2  60 rad/s cw .


    Find the velocities of points B and C and the angular velocities of links 3 and 4.
    Tutorial 1: Kinematics and Dynamics of Machinery

    Fig. 3

    4. Find the velocity of point C on link 4 of the mechanism shown in the figure if crank 2 is
    driven at ω2  48 rad/s ccw . What is the angular velocity of link 3?

    Fig. 4
