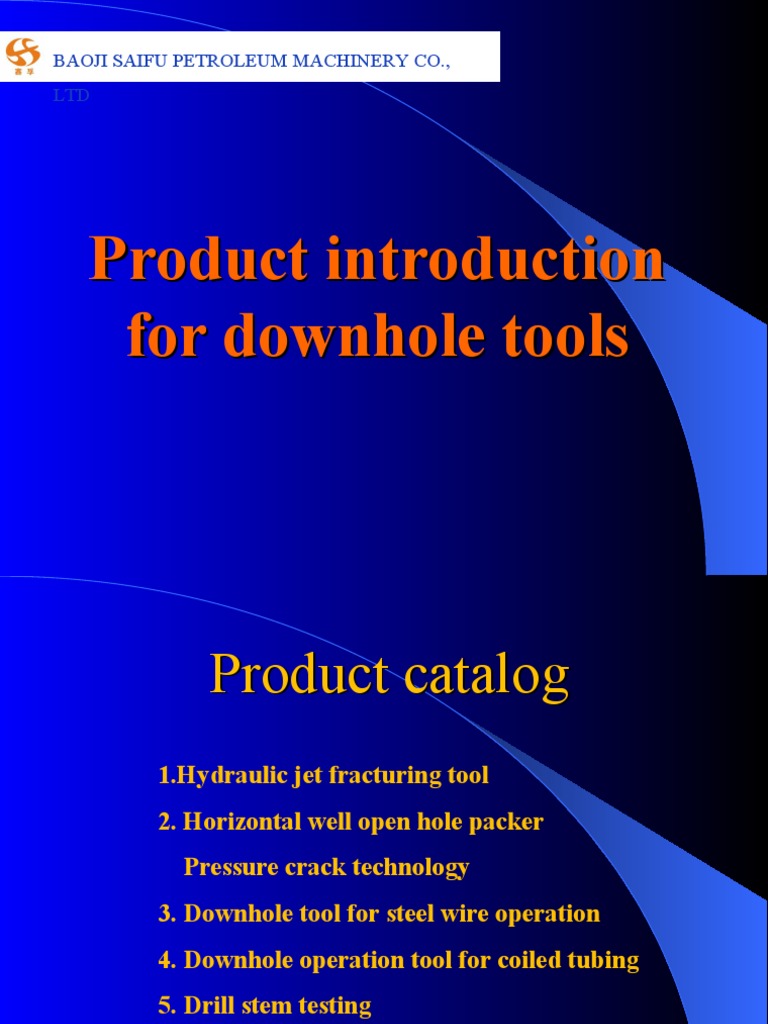

BAOJI SAIFU PETROLEUM MACHINERY CO.

,
LTD

Product introduction
for downhole tools
Product catalog
1.Hydraulic jet fracturing tool
2. Horizontal well open hole packer
Pressure crack technology
3. Downhole tool for steel wire operation
4. Downhole operation tool for coiled tubing
5. Drill stem testing
Matching tool for hydraulic jet fracturing
technology
No. Name String support
Technical parameters

Basic string of dragging string Safety joint+ejector+ centralizer+ packer+ guide


1
hydraulic jetting tool head

slip connector + hydraulic release + high-


basic string of dragging type
2 performance ejector+ CT-Y211 packer+ coupling
hydraulic jetting tool pressure:70MPa
locator+ guide device
connection:2 7/8UP TBG
basic string of double-dragging Safety joint + centralizer + jetting and packing tool
3 hydraulic jetting tool with high + oil pipe+ high-performance ejector+ packer+
performance guide head

5 1/2 multi-layer immovable Safety joint+ N level ejector+…+ primary ejector+


string jetting tool screwed plug
4
4 Safety joint+ N level ejector+…+ primary ejector+ pressure:70MPa
1/2 multi-layer immovable
string jetting tool screwed plug connection:2 3/8UP TBG

TQ76-105 pitches balls


Fracturing, acidizing, test, production operation facilities, such as perforation pitch
5 measurement and control
system assembly TQ76-105 balls measurement and control system assembly diagram
Matching tool for hydraulic jet fracturing
technology
I. Jetting tool - string support:
1.1 String support - basic string of dragging string hydraulic jetting tool
Safety joint+ centralizer+ ejector+ packer+ centralizer (hydraulic anchor)+
check valve+ coupling+ screw pipe+ guide head
Notes: The coiled tubings are used for connecting all parts.
1.2 Technical parameters: (String sketch map attached):
5 1/2 monolayer dragging type jetting tool
Outer Inner Shape of connection
No. Name Length Remarks
diameter diameter buckle
1 AJ-99SF safety joint 99 44 667 2 7/8UP TBG
2 Centralizer 114 50 240 2 7/8UP TBG
3 Monolayer ejector 105 38 510 2 7/8UP TBG
Length of rubber
4 K344 packer 110 45 845/1657 2 7/8UP TBG
sleeve: 234/700
5 2 7/8"check valve 105 28 250 2 7/8UP TBG
6 2 7/8"coupling 93.2   134 2 7/8UP TBG
7 2 7/8"sieve pipe 78.6   490 2 7/8UP TBG
8 2 7/8"screwed plug 94   180 2 7/8UP TBG
Matching tool for hydraulic jet fracturing
technology
I. Jetting tool - string support:
2.1 String support - basic string of dragging type hydraulic jetting tool (CT-Y211 packer, applicable to
annular sand adding technology):
Coiled tubing: slip connector + hydraulic release + high-performance ejector+ CT-Y211 packer+
coupling locator+ guide device
Notes: The coiled tubings are used for connecting all parts.
2.2 Technical parameters (String sketch map attached):

5 1/2 monolayer dragging type jetting tool (CT-Y211 packer)

Outer Inner Shape of connection


No. Name Length Remarks
diameter diameter buckle
1 Outer slip connector 73 38.1 364 2 3/8UP TBG

Releasing pressure: 19-21MPa;


2 Hydraulic release 79.4 31.75 668 2 3/8UP TBG
GS fishing neck 2.62"
 The nozzles and quantity can
3 Coiled tubing ejector 105 36 405 2 3/8UP TBG be changed according to the user
requirements.

Length of rubber sleeve: 148; in


4 CT-Y211 packer 116 45 1790 2 3/8UP TBG addition to the centralizer, other
maximum outer diameters: 110

2 3/8UP TBG
5 Coupling locator 128.2 38 455 Locating load: 2T

6 2 3/8"guide device 105 230 2 3/8UP TBG Steel ball 34.925


Matching tool for hydraulic jet fracturing
technology
I. Jetting tool - string support:
2.1 String support - basic string of dragging type hydraulic jetting tool (CT-Y211 packer,
applicable to annular sand adding technology):
Conventional oil pipe: safety joint+ high-performance ejector+ CT-Y211 packer+ check
valve+ coupling+ guide head
Notes: The coiled tubings are used for connecting all parts.
2.2 Technical parameters: (String sketch map attached):
5 1/2 monolayer dragging type jetting tool (CT-Y211 packer)
Outer Inner Shape of connection
No. Name Length Remarks
diameter diameter buckle
1 AJ-99SF safety joint 99 44 667 2 7/8UP TBG
2 Centralizer 114 50 240 2 7/8UP TBG
Annular high-
3 98 45 405 2 7/8UP TBG
performance ejector
Length of rubber sleeve: 148; in
4 CT-Y211 packer 116 45 1790 2 7/8UP TBG addition to the centralizer, other
maximum outer diameters: 110
5 2 7/8"check valve 105 28 250 2 7/8UP TBG

6 2 7/8"coupling 93.2   134 2 7/8UP TBG
Combined to be a guide device
7 2 7/8"sieve pipe 78.6   490 2 7/8UP TBG
8 2 7/8"screwed plug 94   180 2 7/8UP TBG
Matching tool for hydraulic jet fracturing
technology
I. Jetting tool - string support:
3.1 String support - basic string of double-dragging hydraulic jetting tool with high performance:
Safety joint + centralizer + secondary level jetting and packing tool with high performance+
oil pipe+ primary high-performance ejector+ packer+ check valve+ coupling+ sieve pipe+ guide
head
Notes: The coiled tubings are used for connecting all parts.
3.2 Technical parameters: (String sketch map attached):
5 ½ double-dragging jetting tool with high performance
Outer Inner Shape of connection
No. Name Length Remarks
diameter diameter buckle
1 AJ-99SF safety joint 99 44 667 2 7/8UP TBG
2 Centralizer 114 50 240 2 7/8UP TBG
3 High-performance ejector 110 38 430 2 7/8UP TBG
Length of rubber
4 Jetting and packing tool 110 35 1375 2 7/8UP TBG
sleeve: 234
Length of rubber
5 K344 packer 110 45 845/1657 2 7/8UP TBG
sleeve: 234/700
6 2 7/8"check valve 105 28 250 2 7/8UP TBG
7 2 7/8"coupling 93.2   134 2 7/8UP TBG
8 2 7/8"sieve pipe 78.6   490 2 7/8UP TBG
9 2 7/8"screwed plug 94   180 2 7/8UP TBG
Matching tool for hydraulic jet fracturing
I. Jetting tool - string support:
technology
4.1 String support - basic string of immovable string hydraulic jetting tool:
Safety joint+ N level ejector+…+ primary ejector+ check valve+ coupling+ sieve pipe+ screwed plug
Notes: The coiled tubings are used for connecting all parts.
4.2 Technical parameters (String sketch map attached):
5 1/2 multi-layer immovable string jetting tool
Outer Inner Shape of connection
No. Name Length Remarks
diameter diameter buckle
1 114 safety joint 114 54 777 2 7/8UP TBG
2 Centralizer 114 50 240 2 7/8UP TBG
3 Monolayer ejector 105 38 510 2 7/8UP TBG
4 From second level to eighth level ejectors 108 26-45 691 2 7/8UP TBG
5 2 7/8" check valve 105 28 250 2 7/8UP TBG
6 2 7/8"coupling 93.2   134 2 7/8UP TBG
7 2 7/8"sieve pipe 78.6   490 2 7/8UP TBG
8 2 7/8" screwed plug 94   180 2 7/8UP TBG
4 1/2 multi-layer immovable string jetting tool
Outer Inner Shape of connection
No. Name Length Remarks
diameter diameter buckle
1 114 safety joint 114 54 777 2 7/8UP TBG
2 From first level to tenth level ejectors 90 16-48.5 602 2 7/8TBG
3 2 3/8"check valve 90 28 225 2 3/8UP TBG
4 2 3/8"coupling 78   124 2 3/8UP TBG
5 2 3/8"sieve pipe 65.9   490 2 3/8UP TBG
6 2 3/8"丝堵 90   180 2 3/8UP TBG
Matching tool for hydraulic jet fracturing
I. Jetting tool - string support: technology
5、 Fracturing, acidizing, test, production operation facilities, such as perforation pitch TQ76-105 balls
measurement and control system assembly diagram
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
1. Safety joint
The safety joint is in valved elastic clamping jaw structure, with
the characteristics of being high in tensile strength, reliable to take
off, convenient to fish and the like. When the fracturing string is
blocked or buried by the sand after the construction and cannot be
unlocked by well backwashing and other measures, it is released here,
and the oil extraction pipe is lifted and is fished by a fishing anchor
while fishing.
The safety joint is mainly composed of an upper body, a sliding
sleeve, a shearing pin, a lower body, etc. The main working principle
is that the safety joint is connected on the fracturing string and is
deepened to the designed depth along with the fracturing string.
When the fracturing string is blocked or buried by the sand after the
construction and cannot be unlocked by well backwashing and other
measures, a φ 55 steel ball is fed into the oil pipe, the oil pipe is
pressurized by 20-22MPa (in addition to the ground pressure in the
oil pipe) until the pin is sheared off, and the sliding sleeve is
descended; at this moment, the upper oil extract pipe is lifted above
the safety joint and the discharged strings are fished.
Matching tool for hydraulic jet fracturing
technology

II. Introduction for tools


2. Centralizer

The centralizer is a tool used for preventing the tube string


from wriggled in the perforating and fracturing process.

The centralizer is used for correcting the whole string in


the process of fracturing the tool in such a way of maximally
amplifying the size of the protruded edges of the centralizer in
the scope permitted by the drifting string, and centering the
string to the greatest extent, so as to delay the wear of the tool
and improve the construction efficiency of the string.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
3. Monolayer ejector
The special jetting tool can generate high-speed fluid to shot through the casings and rocks to
form oriented perforations, and the bottom parts of the perforations are cracked and formed gaps
depending on the increasing the annular fluid infusion pressure after exceeding the formation
fracture pressure. The selective oriented perforating can be realized in a horizontal well. It has a
self-sealing effect and is capable of realizing multi-section perforation fracturing interaction.
The single stage ejector can only perforate a place once while going down, but can perforate
more than once by dragging the string. When the string support is used, it is matched with the
safety joint, the packer, the check valve and others to drag the string to perform perforation
fracturing operation.
During the perforation fracturing, the steel ball is located in the check valve connected below
the ejector, the diameter of the oil pipe at the lower end of the ejector is sealed, the throttle is
generated by the operation of the ground pumping procedure of the field construction when the
high pressure fracturing fluid passes through the ejector, and the oil layer is transmitted by an alloy
nozzle for perforating and fracturing operation.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
4. Sliding sleeve type ejector
The special jetting tool generates the high-speed fluid to perforate through the casings and
rocks to form the perforations, the bottom of the perforations is raised based on the fluid
infusion pressure of the annular fluid, and the cracks and gaps are formed after the formation
fracture pressure is exceeded. The selective oriented perforating can be realized in the
horizontal well. The sliding sleeve type ejector has a self-packing effect and can realize multi-
section perforating and fracturing interaction. It is used for hydraulic sand blasting,
perforating and fracturing operation of the oil field.
Sliding sleeve type ejector is arranged above the primary ejector at the lower end of the
fracturing string, and can be used for performing perforating and fracturing operation in the
primary perforating position of the fracturing string. After the steel ball is fed, it is located in
the sliding sleeve in the sliding sleeve type ejector, the diameter of the oil pipe at the lower
end is sealed, the shear pin is sheared off and the sliding sleeve is slid into the sliding sleeve
seat by the ground pumping procedure operation of the field construction, the high pressure
fracturing fluid is throttled by the ejector, and the penetration oil layer is transmitted by the
alloy nozzle for perforation and fracturing.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
5. K344 expanding packer
The K344 expanding packer is an expanding fracturing packer which takes the
expansion rubber sleeve as the sealing element, is packed by the hydraulic pressure
difference, and is specially used for interlayer packing of the segmental fracturing. The
matched compositions of the corresponding downhole tool and the expanding fracturing
packer are used for segmental fracturing the construction process string, so as to finish the
operation of dragging the multi-layer and multi-section fracturing of separate layers.
Packing: The oil pipe is added with hydraulic pressure, and the hydraulic pressure is
functioned on the inner cavity of the rubber sleeve through the contact water holes below
the packer. Due to the function of the pressure difference of the matched throttler, the
rubber sleeve is expanded to be glued the casing. Therefore, the annular space of the oil
sleeve is sealed.
Deblocking: after the pressure in the oil pipe is discharged, the pressure difference is
disappeared, and the rubber sleeve is withdrawn by the elasticity.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
6. CT-Y211 packer
The CT-Y211 series packer is the packer for packing and deblocking the compressional one-way slip by
upwards lifting and downwards placing the string.
It is used for multi-layer fracturing of the coiled tubing, especially the horizontal fracturing of separate layers. It is
matched with the perforating and locating tools and other auxiliary tools to finish well entering once and fracturing
operation for multiple times.
The main structure is divided into three parts: a circulating part, a packing part and an anchoring part.
Packing: When the packer reaches the packing position, the string is raised for a distance so as to drive the mandril
of the packer to move upwards, and the replacement pin of the packer is located in a replacement state. After the
string is placed downwards, the replacement pin enters the long slot, the mandril of the packer drives the rubber
sleeve to move downwards, the slip is propped open to seize the inner wall of the casing by the conical surface of
the lower gauge ring, and the packing of the packer is started. The shear pin on the upper circulating valve is sheared
off, and the upper circulating valve is closed. The lower circulating valve is closed along with the downward
movement of the mandril.
Deblocking: After the operation is finished, the string is lifted up, the mandril of the packer is moved upwards,
the rubber sleeve is contracted, and the slip is reset. The replacement pin is located in a replacement state.
Repacking: After the completion of the first operation, the string is moved to the next target layer. The multiple
operation can be finished by repeating the steps 2 to 3.
Drilling: After every deblocking, it shall wait for about 5 min and the string is raised upwards after the rubber
sleeve is completely recovered.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
7. Check valve, coupling, sieve pipe and guide screwed plug
The check valve is used for bottom seal while fracturing; the coupling is used
for connecting with the tool at the lower end of the string; and the sieve pipe and the
guide screwed plug are used for guiding and using while the string is backflushed.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
8. Connector of oil pipe slip
The connector is used for connection between the coiled tubing and the coiled
tubing tool. The continuous oil tool is connected with the coiled tubing through the
occlusion with the slip. A group of buckle slips is used for grasping the coiled
tubing by wedging into the wall pipe, therefore, the slip cannot rotate because the
coiled tubing is grasped tighter when the tension is greater. The lower end of the
slip is occluded with the upper end of the lower joint so as to transmit larger torque.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
9. Hydraulic releasing joint
The releasing joint can realize that the string can be released and recovered even if the
string does not move. The hydraulic releasing joint is an important component in the operating
string. The steel ball with a certain specification is fed into the string so that the tool string is
stringed on the preset position so as to realize releasing, and is separated from the tool at the
lower end.
The hydraulic releasing joint is mainly composed of an upper releasing joint with a ball
seat part and a lower releasing joint with a slip anchoring part. The upper end of the hydraulic
releasing joint is connected with the string, and the lower end thereof is connected with the
tool. The steel ball is fed into the coiled tubing, the sealing surface on the ball seat is packed
by the steel ball, the shear pin is sheared off downwards by the ground pressure, and the slip
sleeve moves downwards, therefore the upper releasing joint can be separated from the slip at
this moment. The upper releasing joint, the ball seat and the steel ball can be recovered after
the releasing, and the fishing neck in the standard is left so as to perform the next finishing
operation.
Matching tool for hydraulic jet fracturing
technology
II. Introduction for tools
10. Casing collar locator
The casing collar locator is a coiled tubing tool capable of accurately locating
the coupling position, and is generally used for selective sand blasting and
perforating and sectionalized fracturing, etc. The locating sleeve coupling corrects
the length of the oil pipe and the well logging depth, so that the packer avoids the
casing coupling during the construction.
The principle is that the lifting meets the casing coupling, the coupling position
can be determined according to the change of the increased loading value, and the
packer and other downhole tools are accurately located on the preset level.
Horizontal well open hole packer
Pressure crack technology
105/78 well
Make the sectional pressure crack tool string at one time;
the ball injection compresses open hole packer and hanging
packer, inject the ball or rotate the column; separate the
Oil pipe
Large diameter
pressure tool string and connect the pressure crack column;
circulation valve apply pressure and open the primary slide sleeve for pressure
Hydraulic anchor
crack in Section 1; open the secondary slide sleeve with ball
Insert seal section injection for Section 2 pressure crack after the construction of
Releasing joint
Receiving cylinder
Section 1. When the column is not moved, the horizontal
Hanging packer sectional pressure crack can be realized, completing the fluid
drainage and well completion.
Ball injection Pressure differential Ball Float Screw Guide
slide sleeve Open hole packer slide sleeve seat collar pipe shoe
Horizontal well open hole packer
Pressure crack technology
公称尺寸(mm)
序 剪切(座封) 座封球
名称 长 备注
号 外径 内径 压力MPa mm

1 guide head 1254 146       3 1/2UP TBG.B

2 Float collar 450 141.3   35(反向承压) 53.975 5 LCSG.B×P

4 1/2 LCSG.B×3 1/2UP


3 Ball seat 490 131 26 55 28.575
TBG.P
Pressure
4 differential slide 870 140 62 35   4 1/2 LCSG.B×.P
sleeve

5 Open hole packer 1200 148 98 22   4 1/2 LCSG.B×.P

Ball injection slide 28.575-


6 sleeve 910 144 26.5-86.8 15 复合材料球1.8
88.9
4 1/2 LCSG.B×.P悬挂载荷
7 Hanging packer 2093 148 96 20
80T

8 Releasing joint 2007 149 44 10 47.625 3 1/2UP TBG.B×4 1/2LCSG.P

9 Insert seal section 1706 125 96     4 1/2 LCSG.P

10 Hydraulic anchor 600 148 98 25   4 1/2 LCSG.B×.P

Large diameter
11 circulation valve 665 148 98     4 1/2 LCSG.B×.P
Horizontal well open hole packer
Pressure crack technology
The process has the following technical difficulty
The well diameter has significant change with irregular well hole and
difficult tool design

Well hole Packer


Single edge
Well hole inner diameter
Outer Inner diameter clearance mm
mm
diameter mm mm
7″sleeve 159.42 148 62 5.71
5½″sleeve 124 115 56 4.5
4½″sleeve 101.6 95 45 3.3
6″open hole 152.4-170 148 76 11

The well hole of open-hole horizontal well has complicated trace with large
risk of column entry
It is difficult to treat the pressure crack sand blockage with high construction
risk.。
Horizontal well open hole packer
Pressure crack technology
II. Introduction to matched tools
1. Hanging packer
The hanging packer needs to satisfy reliable hanging of setting, smooth
release and other requirements, so the bi-directional slip, hydraumatic setting
and 2 releasing modes including hydraumatic and machinery are adopted for
the hanging packer to ensure reliability of tools.

Technical parameters
Total length: 2400mm Supended load: 80T
Operating temperature: 135℃ Minimal inside drift diameter: φ76mm
Maximum OD: φ148mm Maximum working pressure: 70MPa
Starting pressure: 20MPa Releasing pressure : 25MPa
Upper sub thread type: 3 1/2〞IF Lower sub thread type: 3 1/2〞UP TBG
Horizontal well open hole packer
2. Insertion seal
Pressure crack technology
The insertion seal is a key tool which plays a sealing role during tie-back
of oil tube. Whether tieback assembly is sealed has a direct influence on
fracturing construction. In order to ensure seal reliability, adopt the sealing
mode of short rubber tubing.

Self-locking pawl of the sealing spile Sealing unit of the sealing spile

Technical parameters

Total length: 1200mm Maximum working pressure: 70MPa


Operating temperature: 135℃ Minimal inside drift diameter: φ76mm
Maximum OD: φ148mm Upper sub thread type: 3 1/2〞UP TBG
Horizontal well open hole packer
Pressure crack technology
3. Open hole packer

The open hole packer is a key tool to realize sealing and separation of strata.
In order to reach process requirements that open hole packer can be placed
down for sealing and ensure success ratio of construction, adopt high
temperature and high pressure rubber tubing and compression type open hole
packer which increases compression ratio of rubber tubing.

Technical parameters

Total length: 1440mm Operating temperature: 135℃


Minimal inside drift diameter: φ76mm Maximum OD: φ146mm
Maximum working pressure: 70MPa Starting pressure: 16-18MPa
Upper sub thread type 3 1/2〞UPTBG Lower sub thread type 3 1/2〞UPTBG
Horizontal well open hole packer
Pressure crack technology
4. Pressure difference sliding bush

The pressure difference sliding bush realizes opening by dint of area


difference. Whether pressure difference sliding bush can be opened smoothly
has a direct influence on fracturing construction. In order to satisfy
construction requirements, an inner latch mechanism is increased inside to
ensure sliding bush remains to be normally open.

Technical parameters
Total length: 770mm; Outer diameter: ∅ 142mm;
Inner diameter: ∅ 76mm; Opening pressure : 38MPa;
Temperature resistance : 135℃; Thread type at both ends: 3 1/2 UP TBG
Horizontal well open hole packer
Pressure crack technology
5、Ball sliding bush
 Adopt the standardized design to reduce processing difficulty and guarantee quality;
 The ball seat can be replaced, drilled and ground on site;
 The ball seat is designed as combined cambered surface, which is high in pressure
bearing and decrease ball blocking risk.
 Ball seat: alloy — erosion resistance is good; cast iron - easy to be drilled and
ground. 2 materials are optional.

Technical parameters
Total length: 800mm; Outer diameter: ∅ 142mm;
Inner diameter: adjustable; Opening pressure : 15MPa;
Temperature resistance : 120℃; Thread type at both ends:3 1/2 UP TBG
Horizontal well open hole packer
Pressure crack technology
6. Setting ball seating + guiding device

Building the pressure realizes sealing; guiding and wash.


Horizontal well open hole packer
Pressure crack technology
III. Technical Features
The technique pipe is characterized by the following contents:
 Optimal combination of self-locking sealing insertion and hydraulic anchor
effectively avoids spile rebound under high pressure;
 Put the hanging slips down in two stages to further ensure hanging reliability;
The cycle channel with divergence on positive direction is adopted for guide shoe,
which increases processing capacity after slacking off;
 Adopt the sliding bush type setting ball seat to increase processing measures when
the pressure difference sliding bush cannot be opened.

Hydraulic anchor

guiding head
Ball seat + float collar +
Seal locking assembly

The first stage ball sheath

bush
Pressure difference sliding
Hanger

Open hole packer


Packer
Hanging slip

Segment 13 Segment 12 Segment 11 Segment 10 Segment 9 Segment 8 Segment 7 Segment 6 Segment 5 Segment 4 Segment 3 Segment 2 Segment 1
Recently the staged fracturing tool of open hole packer is put down in east
Sulige according to 9 segments. 4½″ fracturing string is used for this well.
Currently wait for fracturing.
Downhole tool for steel wire operation

 The basic tool string of the downhole tool for the steel wire operation
comprises a steel wire rope cap, a weighted lever, a jar and a universal joint.
 The fishing tool for the steel wire operation is connected below the basic
tool string, so as to finish various different operations under pressure.
According to the different operation need, the fishing, detection, testing and
others can be combined for use, so as to achieve different operation aims.
 The tool on the basic tool string at the top of the basic tool string is
processed with an outer fishing neck. Once the tool is released and dropped
into the well, it can be fished by the fishing cylinder.
Downhole tool for steel wire operation
No. Name String support Technical parameters
rope socket+ weighted lever+ jar+ gauge
1 Drifting tool string cutter
Feeding detachable rope socket+ weighted lever+
2 mechanical shaker+ detachable device
device tool string
rope socket + weighted lever + chained OD:1.875/1.5
jar/spring jar/hydraulic jar + RB
3 Fishing tool string clamping spring fishing cylinder/JUC fishing neck:1.5、
fishing cylinder/JDC fishing cylinder + /1..375
dragger
End connection:
rope socket+ weighted lever+
mechanical jar+ J type feeding nipple+ 15/16″-10UN.P×B /
Feeding instrument
4 upward movement preventing 1 1/16″-10UN.P×B
tool string centralizer+ pressure gauge+ pressure
gauge weighed lever
rope socket+ weighted lever+ paraffin
Paraffin cleaning
5 scrapers
tool string
Common steel wire operating tool string
---- Drifting tool string

 The connecting sequence of the drifting tool string is as


follows: rope socket+ weighted lever+ jar+ gauge cutter,
wherein the outer diameter of the gauge cutter is at least
2mm greater than the instrument string (operating tool
string).
Common steel wire operating tool string
------ Feeding detachable device tool string

 The connecting sequence of the feeding tool string is successively as

follows: rope socket+ weighted lever+ mechanical shaker+ detachable

device (feeding nipple+ coupling locator/slip locator)


Common steel wire operating tool string
------ Fishing tool string
 The connecting sequence of the fishing tool string is successively as
follows: rope socket + weighted lever + chained jar/spring jar/hydraulic
jar + RB clamping spring fishing cylinder/JUC fishing cylinder/JDC
fishing cylinder + dragger
JUC fishing cylinder
Spring jar

Chained jar JDC fishing cylinder

Hydraulic jar RB clamping spring fishing cylinder

Spring jar/hydraulic jar can be matched with the chained jar for use, thereby
realizing the upward jarring and downwards jarring.
Common steel wire operating tool string
------ Feeding instrument tool string
 The connecting sequence of the feeding instrument string is as follows: rope
socket+ weighted lever+ mechanical jar+ J type feeding nipple+ upward movement
preventing centralizer+ pressure gauge+ pressure gauge weighed lever

 The connecting sequence of the fishing instrument string is as follows: rope


socket+ weighted lever+ RB clamping spring fishing cylinder/JDC fishing
cylinder/JUC fishing cylinder
Common steel wire operating tool string
------ Paraffin cleaning tool string
 For the well with more severe paraffin precipitation or harder
paraffininess, the paraffin can be cleared away by six paraffin scrapers of
different diameters according to the diameter sequence from small to large.
If the paraffin cleaning operation is more difficult, the mechanical jar can be
connected in the cleaning tool string so as to improve the operating effect.
 The paraffin tool string without the jar: rope socket+ weighted lever+
paraffin scrapers

 The wax cleaning tool string with the jar: rope socket+ weighted lever+
mechanical jar+ paraffin scrapers
Downhole tool for steel wire operation
1. Rope socket
The rope socket plays a role in connecting the steel wire with either
the underground test instrument or the downhole tool.

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3.Connecting thread: 15/16″-10UN.B. / 1 1/16″-10UN.B.
Downhole tool for steel wire operation
2. Chained jar
 It can obtain the upward or downward force easily, and is a most frequent
shaker. When the stroke is long, it is conducive to increasing the speed while
jarring.

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3. Closed length: 1060mm/1314mm/852mm
 4. Unfolding length: 1568mm/2076mm/1152mm
 5. Shaking stroke: 508mm/762mm/300mm
 6.Connecting thread: 15/16″-10UN.P×B / 1 1/16″-10UN.P×B
Downhole tool for steel wire operation
3. Spring jar
 The spring jar is a tool used for providing the upward jarring during the
heavy load fishing operation. The tool can be regulated on the ground and the
releasing strength can be preset, therefore the operator can provide a controllable
impact force to the tool during the heavy load steel wire operation.

Technical parameters
 1.Outer diameter: 1.5″, 1.75″, 1.875″, 2.125″, 2.5″
 2.Fishing neck: 1.187″, 1.375″, 1. 75″, 2.313″
 3.Connecting thread: 15/16″-10UN, 1 1/16″-10UN, 1 9/16″-10UN
Downhole tool for steel wire operation
4. Hydraulic jar
 The hydraulic jar is applicable to the steel wire operation at the deeper
underground position, work based on the principle of liquid damp and gap throttle delay,
so as to obtain the reliable upward jarring force.
 The hydraulic jar is generally used with long-chain alkyl silicone oil, with smaller
viscosity. The viscosity of the hydraulic oil shall be selected according to the
underground temperature.

Technical parameters
 1.Outer diameter: 1.5″, 1.75″, 1.875″, 2.125″, 2.5″
 2.Fishing neck: 1.187″, 1.375″, 1. 75″, 2.313″
 3.Connecting thread: 15/16″-10UN, 1 1/16″-10UN, 1 9/16″-10UN
Downhole tool for steel wire operation
5. Universal joint
 The universal joint is used for providing the bent connection for the tool
string, so that it is convenient to use in the inclined shaft. Therefore, the tool string
is deviated in the well along with the oil pipe, so that the over pulling can be
reduced.

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3.Connecting thread: 15/16″-10UN.P×B / 1 1/16″-10UN.P×B
Downhole tool for steel wire operation
6. Fishing spear
 The fishing spear is used for fishing the steel wires broken in the oil pipe. The fishing spear comprises an
inner fishing spear and an outer fishing spear, wherein the inner fishing spear is unlikely to be twisted by the
steel wires, but the fishing capacity is limited; the outer fishing smear is used for the occasion that the inner
fishing spear and the outer fishing spear are unlikely to fish, and is not used for fishing the common steel wires.

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3.Connecting thread: 15/16″-10UN.P.

Downhole tool for steel wire operation
7. Locator for terminal of oil pipe
 The locator is an oil pipe joint detecting tool used for locating at the terminal of the oil pipe,
so that the depth of the oil pipe can be precisely measured. The detecting tool comprises a single
arm type and a dual arm type. Compared with the single arm type oil pipe terminal locator, the
dual arm type oil pipe terminal has the advantage of performing several applications according to
the requirements, without the need of changing the pins.

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3.Applicable oil pipe scope: 2 3/8″ 2 7/8″ 3 1/2 ″
 4.Connecting thread: 15/16″-10UN.P×B / 1 1/16″-10UN.P×B
Downhole tool for steel wire operation
8. Fishing tool
 The JU type fishing tool is used for fishing the tools with the outer fishing necks. The
connecting mandril has the different differences to be applicable to the fishing necks with
different lengths. When the fishing tools are in failure, it can jar and release upwards.
 The JD fishing tool is used for fishing the tools with the outer fishing necks. The mandril
has the different distances to be applicable to the fishing necks with different lengths. When the
fishing tools are in failure, it can jar and release downwards.

Technical parameters
 1.Fishing diameter: 1.375″
 2.Fishing neck: 1.375″
 3.Connecting thread: 15/16″-10UN.P.
Downhole tool for steel wire operation
9. Detachable device assembly
 The detachable device assembly is composed of a J-shaped slot feeder, a centralizer, a
coupling locator (or a slip locator), a feeding joint, etc.
The J-shaped slot feeder is a releasing tool used for supporting the centralizer when the centralizer
release is placed underground.
 The centralizer is a tool connected in the tool string and used for preventing the tool string
from fleeing upwards. It can be separately connected with the underground instrument release and
placed underground, and can be connected at the upper part of the downhole tool string.
The coupling locator is located in the oil pipe coupling, and provides a support surface for the
downhole instrument (such as pressure gauge).
The slip locator is located on the inner wall of the oil pipe, and provides a support surface for the
downhole instrument (such as pressure gauge).

Technical parameters
 1.Outer diameter: 1.5″/1.875″
 2.Fishing neck: 1.375″/1.5 ″
 3.Applicable oil pipe scope: 2 7/8″ 3 1/2 ″
 4.Connecting thread: 15/16″-10UN.P×B / 1 1/16″-10UN.P×B
Downhole tool for steel wire operation
9. Detachable device assembly
Downhole tool for steel wire operation
10. Weighted lever
 The weighted tool string has enough weight to overcome the friction force to move
downwards, and is mainly used for overcoming the friction force at the packing of the packing box
and the upper jacking force generated by the downhole pressure so that the steel wire operating tool
can reach a certain underground depth. In addition, the weighted lever can apply the upward or
downward force by its own weight to finish the fishing of the downhole tools.

 Technical parameters

 1.Outer diameter: 1.5″/1.875″

 2.Fishing neck: 1.375″

 3.Weight: 3kg/6kg/8kg/10kg/12kg

 3.Connecting thread: 15/16″-10UN.P×B


Downhole tool for steel wire operation
11. Gauge cutter (tube scrapper)
 The gauge cutter is also called as tube scrapper. The scrapper is used for clearing
away the attachments on the wall of the oil pipe before the underground operation is
started, so that the inner diameter of the oil pipe is smooth and can meet the downhole
operating requirements of other tools, and the outer diameter is at least 2mm greater than
the instrument string or the operating tool string. It needs to put the tube scrapper before
the steel wire operating tool goes down, therefore, it can determine whether the tool
string can pass through the oil pipe and determine the position of the joint in the oil pipe.

Technical parameters
 1.Outer diameter: 40mm/50mm/54mm/56mm/59mm
 2.Fishing neck: 1.375″
 3.Connecting thread: 15/16″-10UN.P.
Downhole tool for steel wire operation
12. Lead print
 When the lead print is used for fishing operation, it is used for determining
the geometrical shape and size of the fished object for selecting the tool as
reference when the next operation is realized.

Technical parameters
 1.Outer diameter: determined by the inner diameter of oil tube
 2.Fishing neck: 1.375″
 3.Connecting thread: 15/16″-10UN.P.
Downhole tool for steel wire operation
13. Blind box
 The blind box is used for smashing off and shattering the steel wires
or fishes.

Technical parameters
1.Outer diameter: determined by the inner diameter of oil tube
2.Fishing neck: 1.375″
3.Connecting thread: 15/16″-10UN.P.
Downhole tool for steel wire operation
14. Steel wire finding apparatus
 The steel wire finding apparatus is used for looking for the steel wire
residues broken and fallen underground, and bending the steel wire residues to be
convenient for subsequent fishing spears to fish after the broken residue is found
out.

Technical parameters
1.Outer diameter: determined by the inner diameter of oil tube
2.Fishing neck: 1.375″
3.Connecting thread: 15/16″-10UN.P.
Downhole tool for steel wire operation

15. Steel wire clipper


 The steel wire clipper is used for shearing off the steel wire when the
steel wire needs to be sheared off, and the steel wire is sheared off on the
position closest the rope cap.

Technical parameters
1.Outer diameter: 1.5 ″
2.Fishing neck: 1.375″
3.Applicable steel wire diameter: 2.4-3.2mm
Downhole tool for steel wire operation
16. Paraffin scraper
 The paraffin scrapers are placed into the oil pipe after being connected by
the steel wires, so as to quickly clear away the paraffin precipitation adhered to the
inner wall of the oil pipe. Six specifications are provided according to the severe
degree of the paraffin deposition.

Technical parameters

1.Outer diameter: 40mm/44mm/48mm/52mm/56mm/58mm six specifications


2.Fishing neck: 1.375″
3.Connecting thread: 15/16″-10UN.P.
Downhole operating tool of coiled tubing

Downhole operating tool of coiled tubing

Technical
No. Name String support
parameters

Oil pipe slip connector+Dual baffle


Oil pipe
check valve+Mechanical
1 cutting tool
release+Double circulation valve+Slip To adapt to
string
fixer+Motor+Cutter the 1.5 "and
2" coiled
Oil pipe slip connector+Double baffle
tubing is used
Well washing check valve+Mechanical
2
tool string release+Double circulation
valve+Centralizer+Well washing tool
Downhole operating tool of coiled tubing
I. Oil pipe cutting tool string

connector
Oil pipe slip

Slip fixer
Function brief:
During the motor
workover treatment, the oil

check valve
Dual baffle
pipe cutting tool string is used
for slotting and cutting the oil
pipe, and cutting the cement.
The oil pipe cutting tool
al release
Mechanic circulation valve
string is composed of an oil
pipe slip connector, a double

Motor
baffle check valve, a

Cutter
mechanical release, a double
Double

circulation valve, a slip fixer,


a motor and a cutter.
Downhole operating tool of coiled tubing

II. Well washing tool string Oil pipe slip connector

Function brief: Double baffle check valve


The well washing tool string
is composed of an oil pipe slip Mechanical release
connector, a double baffle check
valve, a mechanical release, a d
Double circulation
double circulation valve, a valve
centralizer and a well washing
tool. The tool can rotationally Centralizer
wash the paraffin, rust, silt and
other adhered impurities on the
pipe wall, and can automatically
and rotationally wash the pipe Well washing tool
wall by hydraulic power.
Downhole operating tool of coiled tubing
1. Oil pipe slip connector
Introduction
It mainly plays a role in connecting the coiled tubing
with the tool string.

Technical parameters
Outer diameter: ∅ 54mm
Minimal inner diameter: ∅ 20.7mm
Applicable oil pipe: ∅ 38.1
Length: 369mm

Connecting thread at the lower end: 1 27/32-12SA


Downhole operating tool of coiled tubing
2. Double baffle check valve

Introduction
The double baffle check valve has a complete sealing
system, and two levels of baffle valves are independent
with each other and are used for preventing the pressure at
the well bottom from fleeing upwards when the string is
gone down or taken back.

Technical parameters
Outer diameter: ∅ 54mm
Minimal inner diameter: ∅ 20.5mm
Length: 282mm
Connecting thread at the lower end: 1 27/32-12SA
Downhole operating tool of coiled tubing
3. Mechanical release
Introduction
When the tool is locked, the pins are pressed and sheared off
by delivering, the stop block slides to a space outside the mandril,
the upper and lower joints are separated, and the locked tool string
is discarded.

Technical parameters
Outer diameter: ∅ 54mm
Minimal inner diameter: ∅ 17.1mm
Length: 250mm
Connecting thread at the upper and lower end: 1 27/32-12SA
Downhole operating tool of coiled tubing
4. Double circulation valve
Introduction
The double circulation valve is composed of a valve body, a piston,
a shearing pin and a rupture disk. The dual circulating valve provides
two ways for building a circulation from the oil pipe to the annular hole.
In the downhole state, the steel ball is directly pressed to build the
circulation; or when the downhole drilling tool assembly is blocked to
lose the circulation, the rupture disk will be fractured by too high
pressure, so that the small circulating channel is built, and then the steel
ball is delivered to build the full circulation channel.
Technical parameters
Outer diameter: ∅ 54mm
Minimal inner diameter: ∅ 14.2mm
Length: 234mm
Connecting thread at the upper end: 1 27/32-12SA
Connecting thread at the lower end: 1 1/2MT
Downhole operating tool of coiled tubing
5. Slip fixer
Introduction
This tool is used for clamping the opened clamping jaw on the inner
wall of the oil pipe after the pressing during the oil pipe cutting operation,
and then a certain pressure is downwards applied, and the clamping jaw is
firmly clamped on the pipe wall to center and cut the tool stably when the
oil pipe is cut. Under the condition that the pressure is undone, the
clamping jaw is tightly clamped and is not retracted, the tool string is
released by lifting the tool at this moment, and the clamping jaw will be
retracted after being released.

Technical parameters
Outer diameter: ∅ 52.4mm
Minimal inner diameter: ∅ 15.88mm
Length: 841mm
Connecting thread at the upper and lower end: 1 1/2MT.BXP
Maximum inner diameter of clamping jaw: ∅ 62
Downhole operating tool of coiled tubing
6. Cutter
Introduction
The cutter is mainly composed of an upper joint, a mandril, a
spring, a guide cylinder, an upper cylinder, a lower cylinder, a
nozzle supporting cylinder, a nozzle, a tool bit and the like. The
steel ball is placed into the tool mandril in advance, the tool bit
correspondingly extendss forwards and is unfolded while jacking
the inclined edge as the water pressure pumped into the pipe is
increased; the longer the tool bit extends forwards, the larger the
tool bit is unfolded; when the cutter is unfolded to a certain
degree, the mandril on the lower plug jacks the steel ball, the
pressure is discharged from the ball seat, and the tool bit does not
extend forwards.

Technical parameters
 Outer diameter: ∅ 54mm
Minimal inner diameter: ∅ 19.1mm
 Length: 922mm
 Connecting thread at the upper end: 1 1/2MT
 Scope of cutting oil pipe: 2 7/8"~3 1/2"
Downhole operating tool of coiled tubing
7. Centralizer
Introduction
The centralizer is mainly composed of a centralizing rod, a
wiper block and a joint, with the main functions of centralizing
the downhole tool string and guaranteeing the tool string to be
always located in the center of the coiled tubing.

Technical parameters
Drift diameter: φ19.1
Length: 470mm
Shapes of upper and lower connection buckles: 1 1/2MT
Applicable oil pipe: 2 7/8"~5 1/2"
Downhole operating tool of coiled tubing
8. Well washing tool
Introduction
The well washing tool is mainly composed of a connecting
joint, a rod body, a washing head, a needle roller thrust bearing,
etc. The tool can rotationally wash the paraffin, rust, silt and
other impurities adhered to the pipe wall, and can automatically
and rotationally wash the pipe wall by hydraulic power after the
pressing.

Technical parameters
Outer diameter: φ57.2
Length: 439mm
Shapes of upper and lower connection buckles: 1 1/2MT
Applicable oil pipe: 2 7/8"~5 1/2"
Drill stem testing
Drill stem testing
Drill stem testing
Drill stem testing
Drill stem testing
BAOJI SAFE PETROLEUM
MACHINERY CO., LTD
 Corporate Mission
Serve the human energy

 Corporate Vision
Become a world-class
energy development
company

You might also like
