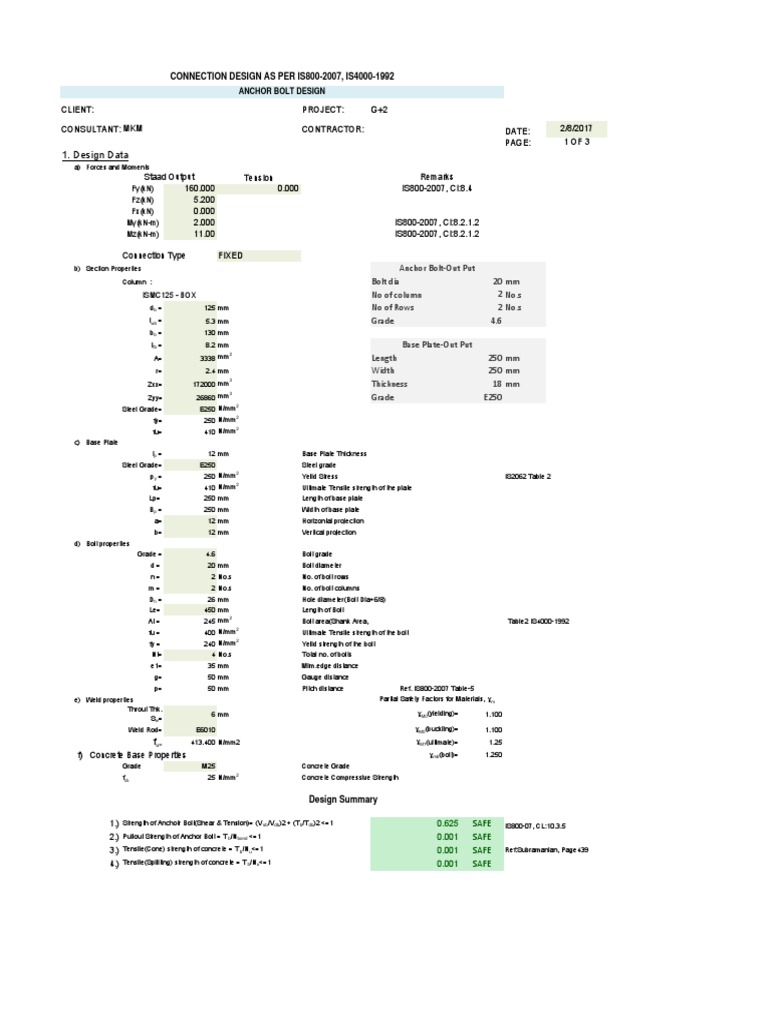

CONNECTION DESIGN AS PER IS800-2007, IS4000-1992

ANCHOR BOLT DESIGN

CLIENT: PROJECT: G+2

CONSULTANT: MKM CONTRACTOR: DATE: 2/8/2017

PAGE: 1 OF 3
1. Design Data
a) Forces and Moments
Staad Output Tension Remarks
Fy(kN) 160.000 0.000 IS800-2007, Cl:8.4
Fz(kN) 5.200
Fx(kN) 0.000
My(kN-m) 2.000 IS800-2007, Cl:8.2.1.2
Mz(kN-m) 11.00 IS800-2007, Cl:8.2.1.2

Connection Type FIXED

b) Section Properties Anchor Bolt‐Out Put
Column : Bolt dia 20 mm
ISMC125 - BOX No of column 2 No.s
db = 125 mm No of Rows 2 No.s
twb = 5.3 mm Grade 4.6
bb = 130 mm
tfb = 8.2 mm Base Plate‐Out Put
2
A= 3338 mm Length 250 mm
r= 2.4 mm Width 250 mm
3
Zxx= 172000 mm Thickness 18 mm
3
Zyy= 26860 mm Grade E250
2
Steel Grade= E250 N/mm
2
fy= 250 N/mm
2
fu= 410 N/mm
c) Base Plate
tp = 12 mm Base Plate Thickness
Steel Grade= E250 Steel grade
2
py = 250 N/mm Yeild Stress IS2062 Table 2
2
fu= 410 N/mm Ultimate Tensile strength of the plate
Lp= 250 mm Length of base plate
Bp = 250 mm Width of base plate
a= 12 mm Horizontal projection
b= 12 mm Vertical projection
d) Bolt properties
Grade = 4.6 Bolt grade
d= 20 mm Bolt diameter
n= 2 No.s No. of bolt rows
m= 2 No.s No. of bolt columns
Dh = 26 mm Hole diameter(Bolt Dia+6/8)
Le= 450 mm Length of Bolt
2
At = 245 mm Bolt area(Shank Area, Table2 IS4000-1992
2
fu = 400 N/mm Ultimate Tensile strength of the bolt
2
fy = 240 N/mm Yeild strength of the bolt
Nt= 4 No.s Total no. of bolts
e1= 35 mm Mim.edge distance
g= 50 mm Gauge distance
p= 50 mm Pitch distance Ref. IS800-2007 Table-5
e) Weld properties Partial Safety Factors for Materials, ɣm
Throut Thk.
6 mm ɣM0(yielding)= 1.100
Sw=
Weld Rod= E6010 ɣM0(buckling)= 1.100
fu= 413.400 N/mm2 ɣM1(ultimate)= 1.25
f) Concrete Base Properties ɣmb(bolt)= 1.250
Grade M25 Concrete Grade
fck 25 N/mm2 Concrete Compressive Strength

Design Summary

1.) Strength of Anchotr Bolt(Shear & Tension)= (V sb/Vdb)2 + (Tb/Tdb)2 <=1 0.625 SAFE IS800-07, CL:10.3.5
2.) Pullout Strength of Anchor Bolt = T b/Nbond <=1 0.001 SAFE
3.) Tensile(Cone) strength of concrete = T b/Nu<=1 0.001 SAFE Ref:Subramanian, Page439

4.) Tensile(Splliting) strength of concrete = T b/Nu<=1 0.001 SAFE

 CONNECTION DESIGN AS PER IS800-2007, IS4000-1992
ANCHOR BOLT DESIGN

CLIENT: 0 PROJECT: G+2

CONSULTANT: MKM CONTRACTOR: 0 DATE: 2/8/2017

PAGE: 2 OF 3
1. Strength of Anchor Bolt

i) Tension Capacity of Anchor Bolt IS800-07, CL:10.3.5

Design Tension Capacity of Anchor Bolt (Tdb)>= Tensile Load (T b)

Design Tension Capacity of bolt T db = Tnb /ɣmb

a) 0.9 x fub An = 88 kN

b) fyb x Asb (ɣmb/ɣm0) = 86 kN

Tnb = (Minimum of a&b) = 86 kN

Design Tension Capacity of bolt T db = Tnb /ɣmb = = 69 kN

Axial Tensile load per bolt is Tb1= T/Nt = 0 kN

Minor axis tensile load per bolt is T b2= (My /((P/2 = 20 kN

Major axis tensile load per bolt is T a

y1= 161 mm
y2= 0 mm
y3= 0 mm
y4= 0 mm
y5= 0 mm
T1= 68.323 kN
T2= 0.000 kN
T3= 0.000 kN
T4= 0.000 kN
T5= 0.000 kN

Major axis tensile load per bolt is T a = 34 kN

Total Tensile load per bolt = 54 kN

Tb/Tdb = 0.790 < 1

SAFE
ii) Shear Strength of Anchor Bolt

Design Shear Strength of Anchor Bolt(Vdb) >= Shear Force on Bolt (Vsb)
IS800-07, CL:10.3.3
Allowable Shear strength of bolt Vdb = Vnsb/ɣmb = 45 kN

Vnsb = Asb x (fu/√3) = 57 kN

Allowable Shear strength of bolt Vdb = Vnsb/ɣmb = 45 kN

Shear Force on Bolt (Vsb) = = 1 kN

Vdb/Vsb = 0.029 < 1

SAFE

iii) Combined Shear & Tension

2
(Vsb/Vdb)2 + (T b/Tdb) = 0.625 < 1 IS800-07, CL:10.3.5

SAFE

ANCHORBOLT IS SAFE FOR SHEAR & TENSION

 CONNECTION DESIGN AS PER IS800-2007, IS4000-1992
ANCHOR BOLT DESIGN

CLIENT: 0 PROJECT: G+2

CONSULTANT: MKM CONTRACTOR: 0 DATE: 2/8/2017

PAGE: 3 OF 3
2. Bond strength

i) Pullout strength of Anchor Bolt

Design Bond strength (Nbond)>= Tensile Load (T b)

Design Bond strength (Nbound)= =τ πd lef

τ = 1.4 IS456, CL:26.2.1.1

Nbond = τ πd lef = 68 kN IS456, CL:26.2.2.1

Tensile load per bolt is Tb= T/Nt = 0 kN

Tb/Nbond = 0.000 < 1

SAFE
ii) Tension (Cone) strength of Concrete

Tensile strength of concrete Nu= k √(fck) x lef. 1.5 Ref:Subramanian, Page439

ACI318-2005 APP.D
k = 15.5 for cast in anchor

Nu = = 739.810 kN

Tensile load per bolt is Tb= T/Nt = 0 kN

Tb/Nu = 0.000 <1

SAFE
iii) Tension (spliting) strength of Concrete

Tensile strength of concrete Nu= 0.96 √(fck) x lef. 2 (1+d/lef)

1015.200 kN

Tensile load per bolt is Tb= T/Nt = 0 kN

Tb/Nu = 0.000 <1

SAFE
