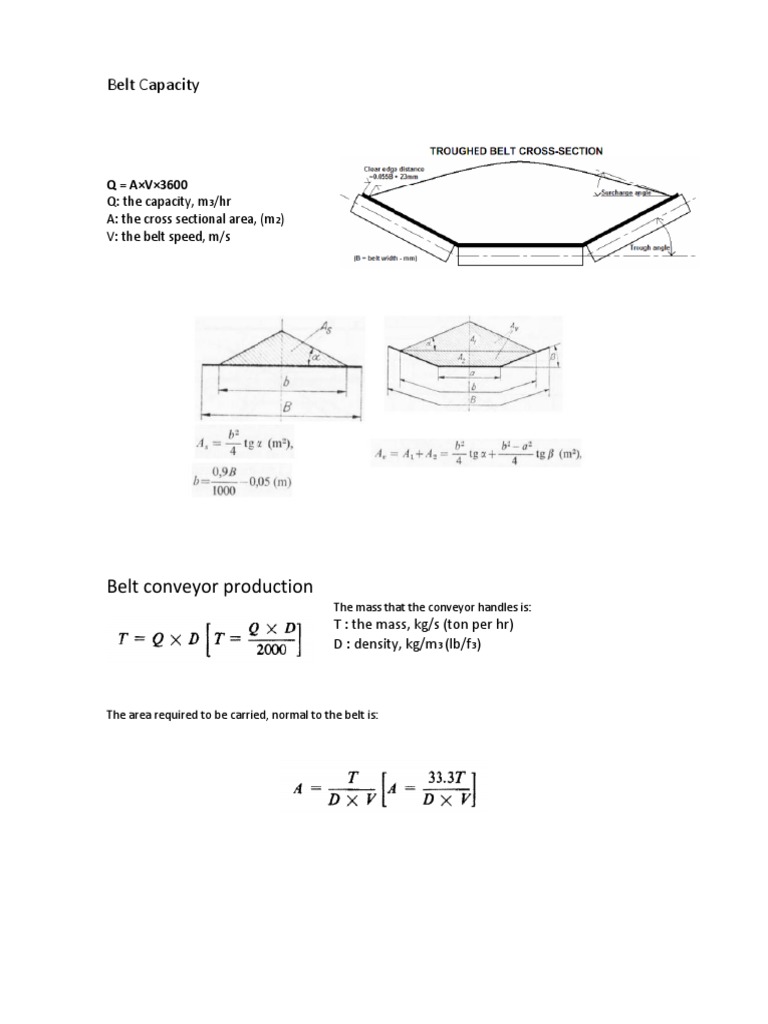

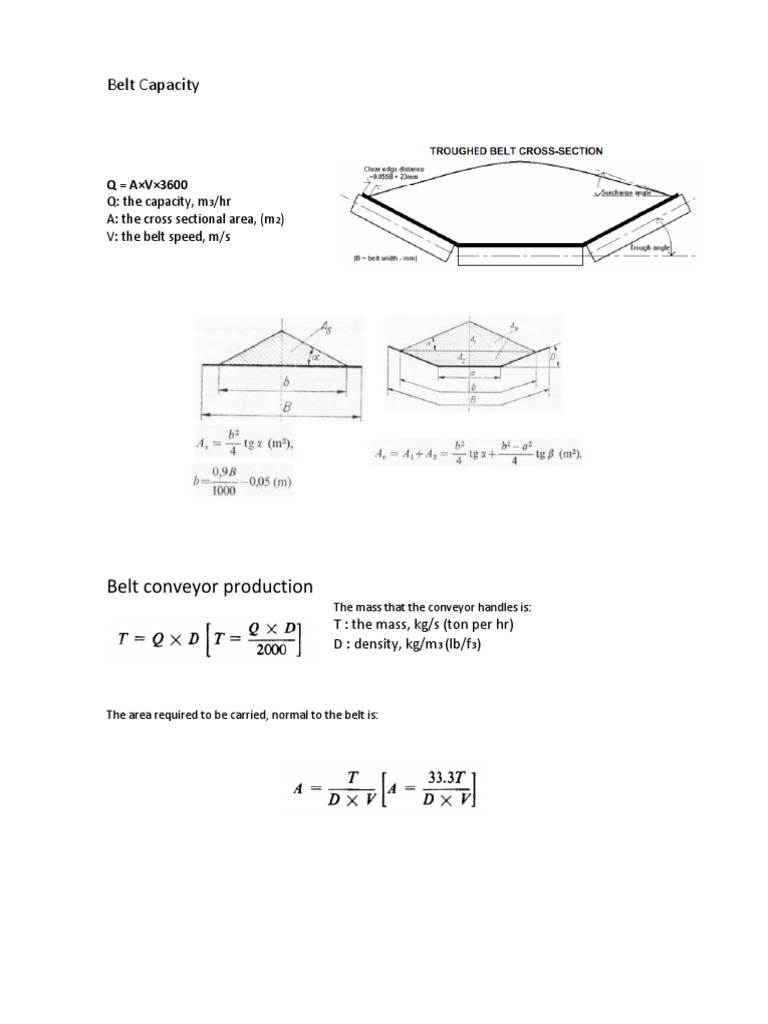

Q = A×V×3600
Q: the capacity, m3/hr
A: the cross sectional area, (m2)
V: the belt speed, m/s
20°Troughed Belt
Three Equal Rolls Standard Edge Distance =0.055b + 0.9 Inch (b : belt width)
35°Troughed Belt
Three Equal Rolls Standard Edge Distance =0.055b + 0.9 Inch (b = belt width) d
m
Table A: Maximum recommended lump size for various belt widths
If run-of-mine coal(lump and fine together) is to be conveyed at the rate of 1200 tph, When
the maximum lump size is 12 inch, minimum belt width is 36 inch; If the lumps were
uniformly sized at 12 inch, 60 inch belt would be required,
