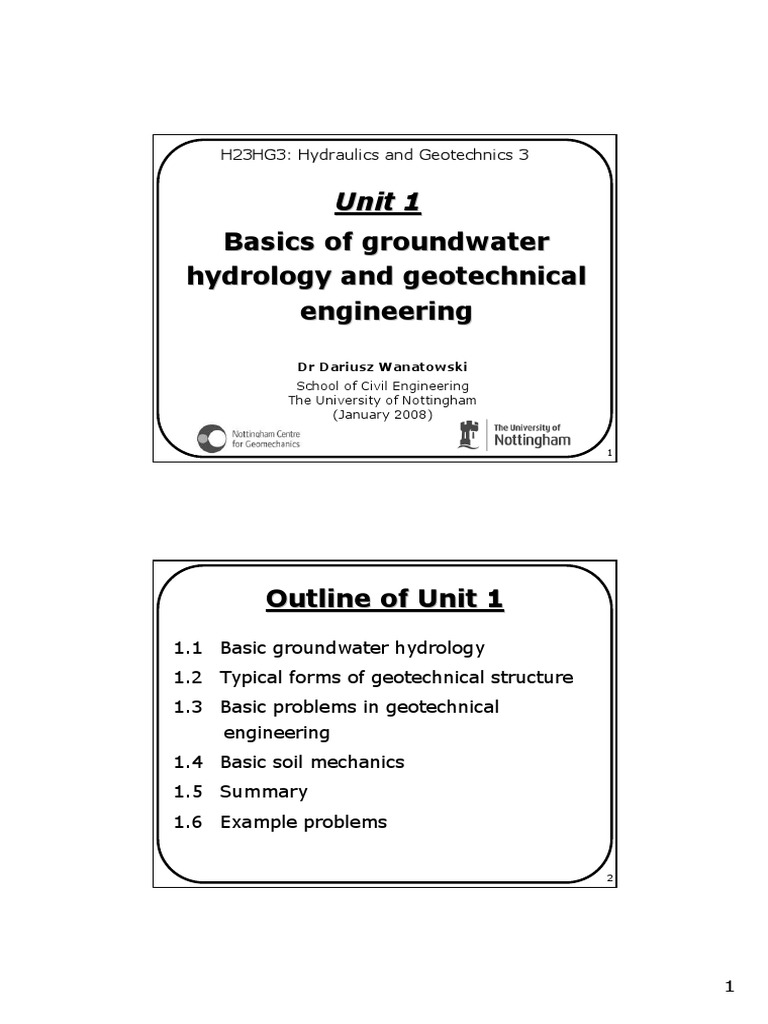

H23HG3: Hydraulics and Geotechnics 3
Unit 1
Basics of groundwater
hydrology and geotechnical
engineering
Dr Dariusz Wanatowski
School of Civil Engineering
The University of Nottingham
(January 2008)
Outline of Unit 1
1.1 Basic groundwater hydrology
1.2 Typical forms of geotechnical structure
1.3 Basic problems in geotechnical
engineering
1.4 Basic soil mechanics
1.5 Summary
1.6 Example problems
1
1.1 Basic groundwater
hydrology
Hydrologic cycle
What is ground water? How is it formed?
2
Basic groundwater hydrology
Saturated and unsaturated zone
• Subsurface water occurs in two different zones
unsaturated (aeration) zone
located immediately beneath the land surface
both water and air in the soil voids
saturated zone
located beneath the unsaturated zone
all soil voids are full of water
water in this zone is referred to as groundwater
Basic groundwater hydrology
Saturated and unsaturated zone
Unsaturated zone
Saturated zone
3
Basic groundwater hydrology
Saturated and unsaturated zone
• Groundwater flow and fluid pressure
can create serious geotechnical
problems
• In this module, flow of water in soil
will only be discussed in saturated
porous media
1.2 Typical forms of
geotechnical
structure
4
Typical forms of geotechnical structure
Geotechnical engineering
Geotechnical Engineering → a branch of civil
engineering that deals with soil, rock, and ground
water, and their relation to the design, construction,
and operation of engineering projects.
Other terms → soil engineering
→ ground engineering
→ foundation engineering
→ soil mechanics (geomechanics)
Typical forms of geotechnical structure
Geotechnical engineering
Geotechnics → the combined efforts of geotechnical
engineering and engineering geology
(after Coduto, 1999)
10
5
Examples of geotechnical engineering
construction
Natural
slope Cut
slope Embankment Road
dam embankment Construction
on soft soil
Building Tunnel
foundation Supported
excavation
(not to scale)
Offshore
(after Atkinson, 1985) foundation
Study of groundwater is essential for engineers who construct dams,
tunnels, water conveyance channels, mines, and other structures.
11
Is there anything in common for all these
structures?
Jumeirah
Deirah 12
6
The Leaning Tower of Pisa
13
14
7
The Leaning Tower of Pis
Pisa
(in 1990
1990 → the top was 5.6 m
off plumb)
15
The 2004 Nicoll Highway collapse in Singapore
16
8
São Paulo tunnel collapse (15 January 2007)
17
1.3 Basic problems in
geotechnical
engineering
18
9
Basic problems in geotechnical engineering
Typical issues addressed by
geotechnical engineers
• What soil and groundwater conditions currently exist
and how might they change in the future?
• Can the soils or rocks beneath a construction site
safely support the proposed project?
• What kind of foundation is necessary to support
planned structures?
• Are the natural or proposed earth slopes stable?
If not, what must be done to stabilize them?
• How will the site respond to potential earthquakes?
19
Basic problems in geotechnical
engineering
Problems in geotechnical engineering
can be divided into two main types:
1. Problem of equilibrium (stability)
2. Problem of compressibility
(settlement)
20
10
Basic problems in geotechnical
engineering (cont.)
1. Problem of equilibrium (stability)
The load imposed to the soil
The magnitude and distribution of stress
that is induced in the soil by this load
The resistance that the soil can afford
(shear strength)
21
Basic problems in geotechnical engineering
Problems of equilibrium
Slope
Stability
Bearing
Capacity of
Foundation
Sink in, bearing capacity failure
22
11
Basic problems in geotechnical
engineering (cont.)
2. Problem of compressibility
(settlement)
The value of the total settlement that will occur
The rate at which this value will be achieved
e.g., sponge
The ground settlement is too large
The ground cannot be too compressible
even though no failure has occurred
23
Basic problems in geotechnical
engineering (contd.)
Water may contribute to both
types of problem. Therefore,
successful design of
geotechnical structures requires
adequate consideration of
groundwater effects.
24
12
1.4 Basic soil mechanics
25
Basic soil mechanics
• Analysis of stress and strain
• Stress-strain behaviour, stiffness
and strength
• Special stress-strain states
26
13
Basic soil mechanics
Analysis of stress and strain (contd.)
1. Stress = Force / Area
σ = F / A, kN/m2 (kPa)
2. Strain = change in length / original length
ε = ∆L /L0, (%)
Hooke’s law: σ = Ε ε
E = Young’s modulus
27
Basic soil mechanics
Analysis of stress and strain (contd.)
Why the relation between stress and strain is so important?
Stresses Strains
Instability & Settlements
Loads on soil
normal stress normal strain
σ = Fn / A ε = δz / zo
shear stress shear strain
τ = Fs / A γ = δh / zo
What types of stress and strain can you see in the figures?
28
14
Basic soil mechanics
Analysis of stress and strain (contd.)
Stresses and strains in soils occur in all
directions and to do settlement and
stability analyses it is often necessary to
relate the stresses in a particular direction
to those in other directions.
• normal stress • normal strain
σ = Fn / A ε = δz / zo
• shear stress • shear strain
τ = Fs / A γ = δh / zo
29
Basic soil mechanics
Stress and strain – Mohr circle
• Values of normal stress and shear stress must
relate to a particular plane within an element of soil.
• In general, the stresses on another plane will be
σ’z
different. τ’xz θ
τ’zx
σ’1
σ’x
σ’3
• To visualise the stresses on all the possible planes,
a graph called the Mohr circle is drawn by plotting a
point (normal stress, shear stress) for a plane at
every possible angle.
30
15
Basic soil mechanics
Stress and strain – Mohr circle (contd.)
• There are special planes on which the shear stress
is zero (i.e. the circle crosses the normal stress axis).
• The state of stress (i.e. the circle) can be described
by the normal stresses acting on these planes.
• These are called the principal stresses
major principal stress σ'1
minor principal stress σ'3
τ' σ’z
τ’xz θ
τ'xz
τ’zx
σ’1
σ'x 2θ σ’x
σ'3 σ'z σ'1 σ'
τ'zx σ’3
31
Basic soil mechanics
Stress and strain - Rigid mechanics
Can we use this concept in soil mechanics?
Example – retaining wall
Soil
retaining wall
32
16
Basic soil mechanics
Stress and strain - Rigid mechanics
(contd.)
• When soils fail they develop distinct slip
surfaces.
• Slip surfaces divide soil or rock into blocks
and the strains within each block may be
neglected compared with the relative
movements between blocks, so the principles
of rigid body mechanics are applicable to
failure of slopes and foundations.
33
Basic soil mechanics
Stress and strain - Rigid mechanics
(contd.)
• Equilibrium is examined by resolution
of forces in two directions (together with
moments about one axis)
• This is done most simply by
construction of a polygon of forces.
• If the polygon of forces closes then the
system is in equilibrium.
34
17
Basic soil mechanics
Stress and strain - Rigid mechanics
(contd.)
• The following figure P
T
shows a set of forces T W
acting on a triangular P
N
block behind a N
W
retaining wall.
Forces on a body Polygon of forces
• If W, T and N are all known, we can determine the
force P that needs to be applied on the retaining wall to
maintain the stability of the soil block.
• Similarly the compatibility of displacements is
examined most conveniently by construction of a
displacement diagram.
35
Basic soil mechanics
Stress-strain behaviour, stiffness
and strength
• The analyses developed for stresses and
strains using Mohr circles are not dependent
on the material and they are equally
applicable for steel, concrete, soil or rock.
• In order to analyse any kind of structure or
solid it is necessary to have relationships
between stresses and strains. These are
called constitutive relationships.
36
18
Basic soil mechanics
Stress-strain behaviour, stiffness
and strength (contd.)
Stiffness ⇒ the gradient of the stress-
strain curve
Stress, σ’
Gradient = stiffness
Strain, ε
37
Basic soil mechanics
Stress-strain behaviour, stiffness
and strength (contd.)
The link between stresses and strains is
governed by the properties of the material.
Isotropic stress, σ’
σ’
Shear stress, τ’
τ’
dσ’ σ’ γ
dεv dτ’
εv dγ τ’
Volumetric strain, εv Shear strain, γ
Material parameters (elastic behaviour):
• Change of size: bulk modulus K = dσ
σ’/dεεv
• Change of shape: shear modulus G = dττ’/dγγ
38
19
Basic soil mechanics
Stress-strain behaviour, stiffness
and strength (contd.)
Strength ⇒ the maximum value of stress that can
be sustained
Strength of materials (after Atkinson, 1985)
39
Basic soil mechanics
Special stress and strain states
• The state of stress in the ground is three
dimensional.
• The algebra for 3-D states becomes quite
complex.
• It is also difficult to
represent general states on
flat paper.
• In practice, the majority
of geotechnical problems are
General case
simplified into 2-D or 1-D
conditions.
40
20
Basic soil mechanics
Special stress and strain states
(contd.)
σ’a
V0
• Isotropic
σ’r σ’r
∆V
• One-dimensional
• Axisymmetric
• Plane strain
41
Basic soil mechanics
Special stress and strain states
(contd.)
σ’a
V0
Isotropic:
Equal stresses in all directions.
σ'a = σ’r σ’r σ’r
p' = σ'a = σ'r = mean stress ∆V
εv = ∆V / V0 = volumetric strain
Applicable to triaxial tests before shearing.
42
21
Basic soil mechanics
Special stress and strain states
(contd.)
σ’z
One-dimensional:
Horizontal strains (εh) are zero. ∆H
H0
σ'z = vertical stress
εh=0 εh=0
εv = ∆V / V0 = ∆H / H0
= ∆e / (1+e0) = volumetric strain
where e0 is the initial void ratio
(before stress increment)
Applicable to oedometer tests and in the ground below
wide foundations, embankments and excavations.
43
Basic soil mechanics
Special stress and strain states
(contd.)
Axial symmetry Plane strain
(triaxial)
σ’1, ε1
σ’a, εa σ’2
ε2 = 0
σ’r, εr σ’r, εr
σ’3, ε3
σ’a ≠ σ’r εa ≠ εr
44
22
1.5 Summary
45
Summary - 1
• Geotechnical engineering is a
branch of civil engineering that deals
with soil, rock, and underground
water, and their relation to the
design, construction, and operation of
engineering projects.
46
23
Summary - 2
• Problems in geotechnical engineering
can be broadly divided into
equilibrium/stability and
compressibility/deformation.
• Many problems in geotechnical
engineering require the solution of a
flow in porous media.
47
Summary - 3
• The theories of basic mechanics
(equilibrium and compatibility) and of
material behaviour (stiffness and
strength) apply equally in geotechnical
engineering.
48
24
Summary - 4
• The state of stress (including pressure
induced by water) in the ground is
complex. Therefore, simple 1-D or 2-D
theories can be employed to analyse
soil behaviour.
49
1.6 Example problems
50
25
Problem 1. Equilibrium of forces using
a force polygon
The figure shows a rigid
triangular block of soil
with a slip surface. W
W
T P
Two of the forces, acting N
on the block, are known 45°
to be W=160kN and
T=60kN.
Determine, using polygon of forces, the value
of P to ensure the equilibrium of the block.
51
We can determine the force P by constructing the
polygon of forces which shall be closed to ensure the
equilibrium.
P =75kN
100kN
W
W N
T P
N
45° W =160kN
T =60kN
Forces on a body ⇒ Polygon of forces
52
26
Problem 2. Stress analysis using
a Mohr circle
The figure shows an
element of soil behind a
retaining wall. σv
σh σh
The effective vertical and
horizontal stresses are
σv=300kPa, σh=100kPa σv
and these are principal
stresses.
Draw the Mohr stress circle and determine
the maximum shear stress.
53
σv = σ1 = 300kPa
τ (kPa)
200 σh = σ3 = 100kPa
τmax =100kPa
τf=87kPa
σf=150kPa
30° 60°
0 100 200 300 400 σ (kPa)
-100
-200
54
27
Problem 3. One-dimensional stress
and strain state
At the beginning of oedometer test, the void
ratio and thickness of the specimen was
0.891 and 19mm respectively.
Find the final void ratio ef if the soil
consolidated by 3.52mm.
55
∆V ∆H ∆e
Volumetric strain: ε v = = =
V0 H 0 1 + e0
Void ratio change: ∆e = e0 – ef
We have ∆H=3.52mm, σ’z
initial void ratio e0=0.891
and initial thickness H0=19mm ∆H
H0
εh=0 εh=0
0.891- ef 3.52
= ⇒ ef=0.54
1+0.891 19
56
28
57
29
