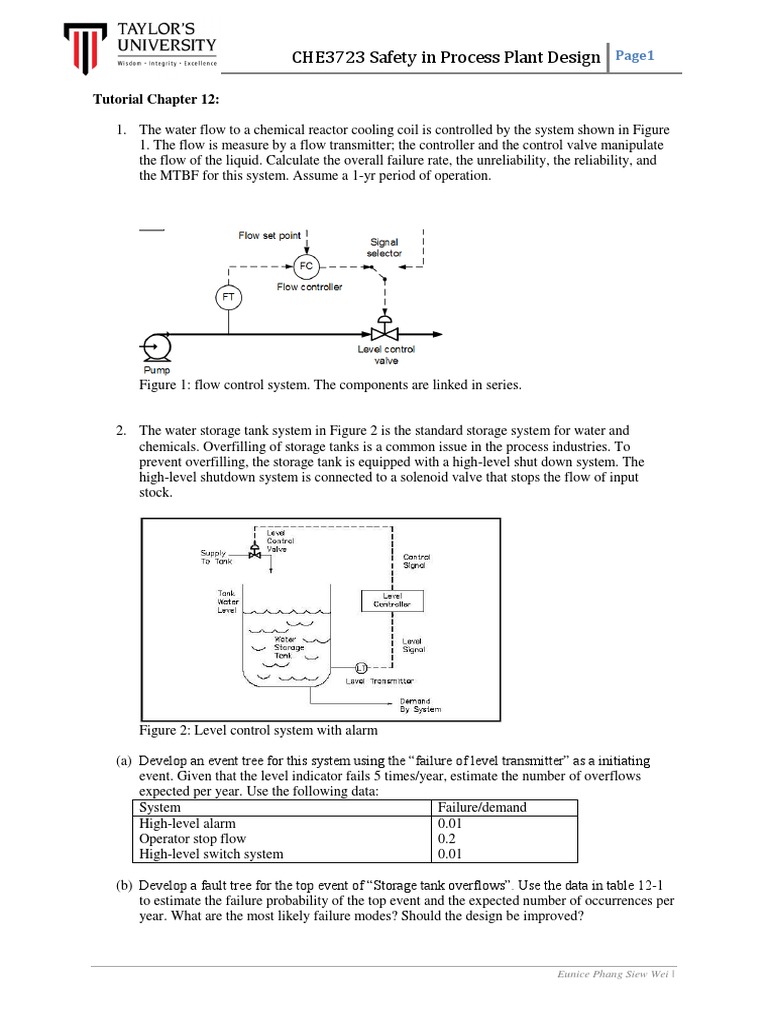

CHE3723 Safety in Process Plant Design Page1

Tutorial Chapter 12:

1. The water flow to a chemical reactor cooling coil is controlled by the system shown in Figure
1. The flow is measure by a flow transmitter; the controller and the control valve manipulate
the flow of the liquid. Calculate the overall failure rate, the unreliability, the reliability, and
the MTBF for this system. Assume a 1-yr period of operation.

Figure 1: flow control system. The components are linked in series.

2. The water storage tank system in Figure 2 is the standard storage system for water and
chemicals. Overfilling of storage tanks is a common issue in the process industries. To
prevent overfilling, the storage tank is equipped with a high-level shut down system. The
high-level shutdown system is connected to a solenoid valve that stops the flow of input
stock.

Figure 2: Level control system with alarm

(a) Develop an event tree for this system using the “failure of level transmitter” as a initiating
event. Given that the level indicator fails 5 times/year, estimate the number of overflows
expected per year. Use the following data:
System Failure/demand
High-level alarm 0.01
Operator stop flow 0.2
High-level switch system 0.01

(b) Develop a fault tree for the top event of “Storage tank overflows”. Use the data in table 12-1
to estimate the failure probability of the top event and the expected number of occurrences per
year. What are the most likely failure modes? Should the design be improved?
