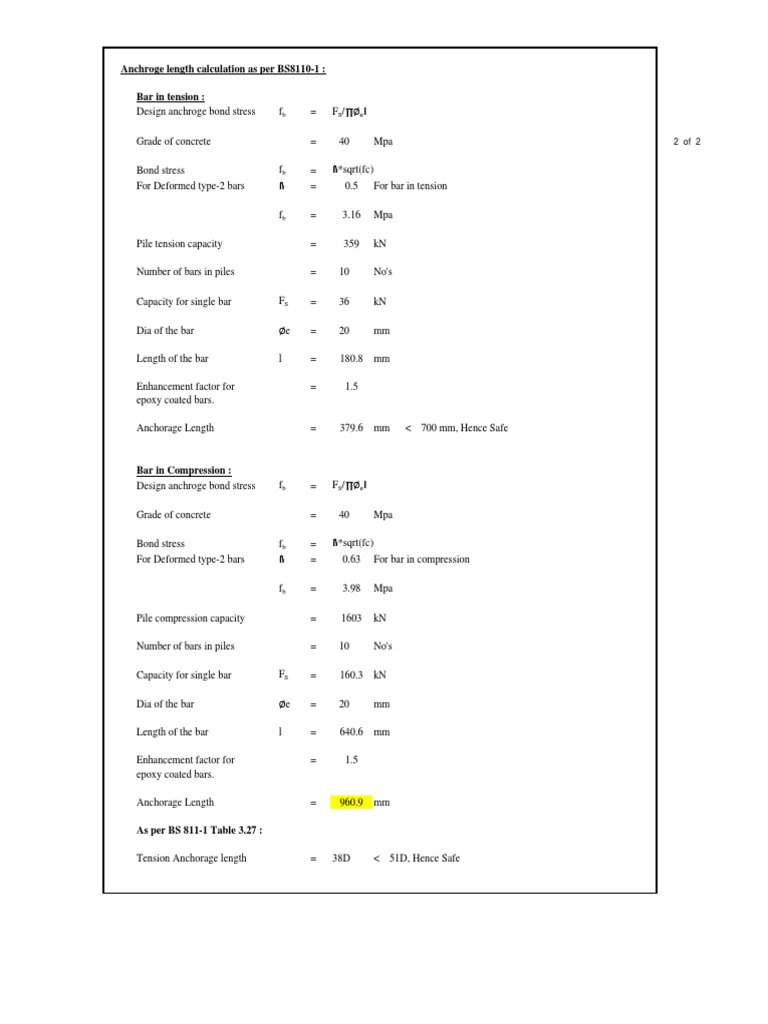

Anchroge length calculation as per BS8110-1 :

Bar in tension :
Design anchroge bond stress fb = FS/∏Øel

Grade of concrete = 40 Mpa 2 of 2

Bond stress fb = ß*sqrt(fc)

For Deformed type-2 bars ß = 0.5 For bar in tension

fb = 3.16 Mpa

Pile tension capacity = 359 kN

Number of bars in piles = 10 No's

Capacity for single bar FS = 36 kN

Dia of the bar Øe = 20 mm

Length of the bar l = 180.8 mm

Enhancement factor for = 1.5

epoxy coated bars.

Anchorage Length = 379.6 mm < 700 mm, Hence Safe

Bar in Compression :
Design anchroge bond stress fb = FS/∏Øel

Grade of concrete = 40 Mpa

Bond stress fb = ß*sqrt(fc)

For Deformed type-2 bars ß = 0.63 For bar in compression

fb = 3.98 Mpa

Pile compression capacity = 1603 kN

Number of bars in piles = 10 No's

Capacity for single bar FS = 160.3 kN

Dia of the bar Øe = 20 mm

Length of the bar l = 640.6 mm

Enhancement factor for = 1.5

epoxy coated bars.

Anchorage Length = 960.9 mm

As per BS 811-1 Table 3.27 :

Tension Anchorage length = 38D < 51D, Hence Safe
