CHAPTER 4

ELECTRONICS

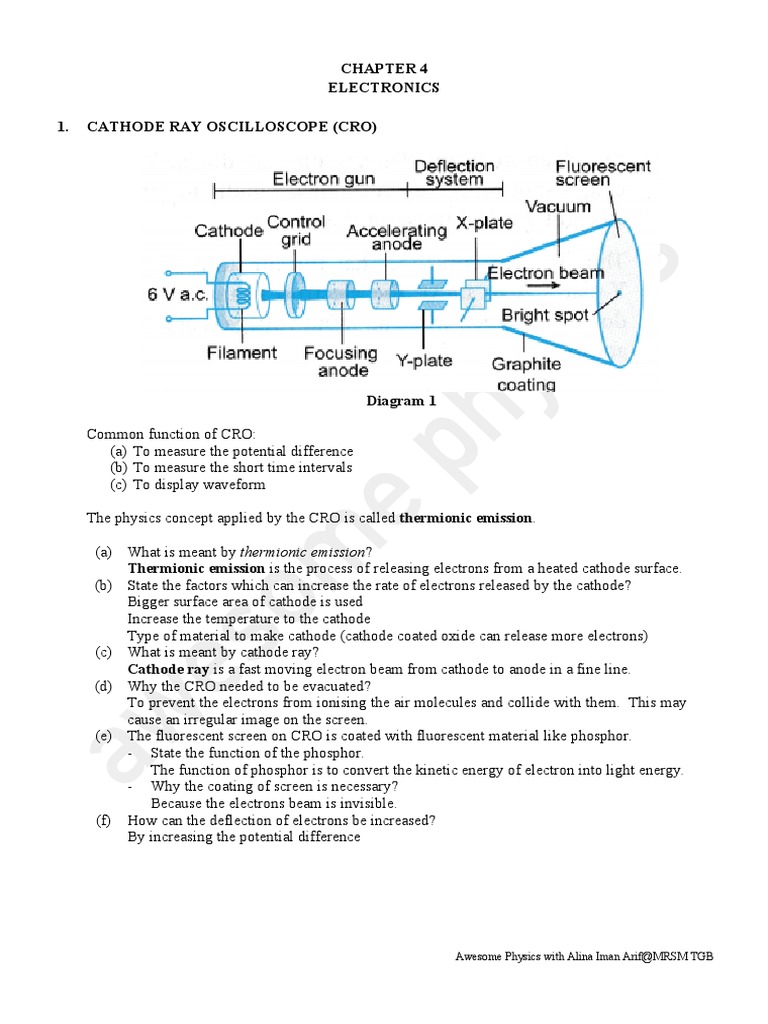

1. CATHODE RAY OSCILLOSCOPE (CRO)

Diagram 1

Common function of CRO:

(a) To measure the potential difference
(b) To measure the short time intervals
(c) To display waveform

The physics concept applied by the CRO is called thermionic emission.

(a) What is meant by thermionic emission?

Thermionic emission is the process of releasing electrons from a heated cathode surface.
(b) State the factors which can increase the rate of electrons released by the cathode?
Bigger surface area of cathode is used
Increase the temperature to the cathode
Type of material to make cathode (cathode coated oxide can release more electrons)
(c) What is meant by cathode ray?
Cathode ray is a fast moving electron beam from cathode to anode in a fine line.
(d) Why the CRO needed to be evacuated?
To prevent the electrons from ionising the air molecules and collide with them. This may
cause an irregular image on the screen.
(e) The fluorescent screen on CRO is coated with fluorescent material like phosphor.
- State the function of the phosphor.
The function of phosphor is to convert the kinetic energy of electron into light energy.
- Why the coating of screen is necessary?
Because the electrons beam is invisible.
(f) How can the deflection of electrons be increased?
By increasing the potential difference

Awesome Physics with Alina Iman Arif@MRSM TGB

2. The CRO can be divided into three main parts:

(a) Electron gun (Cathode, filament, control grid, focusing anode, accelerating anode)
(b) Deflection system (x-plate, y-plate)
(c) Fluorescent screen

Component Function
Filament To heat up the cathode
Cathode To release electron
Control grid To control the number of electron to the screen and
thus control the brightness of screen
Focusing anode To focus the electron to the screen and thus control
the sharpness of image at screen
Accelerating anode To accelerate the electron to the screen
x-plate To control the electron from deflecting to left or right
y-plate To control the electron from deflecting up or down
Fluorescent screen To convert the kinetic energy of electron to light
energy

Front view of CRO

Diagram 2

Control grid (intensity) ® control the brightness of screen

Focusing anode (focus) ® control the sharpness of image on screen

Y part (potential difference) ® showing the value of potential difference

Position (Y-plate) ® to shift up or down the waveform
Volts/Div ® to set the scale for y-axis which is voltage

X part (sweep range) ® showing the time

Position (X-plate) ® to move the waveform to the left or right
Time/Div ® to set the scale for x-axis which is time
Sweep range ® to turn on or off the time.

Awesome Physics with Alina Iman Arif@MRSM TGB

3. Graph and calculation involving CRO
Waveform by CRO

y-input Time base is off Time base is on

No input

Dry cell
(d.c current)

a.c power supply

(from voltage
regulator)

EXAMPLE:
Diagram 3 shows a trace on an oscilloscope for an a.c. source. The y-gain is set to 1.5 V cm-1 and the
time base is 2 ms cm-1.

Diagram 3

(a) Calculate the Vp, Vpp and Vrms.

Peak voltage Peak-to-peak voltage Root mean square voltage

Vp Vpp Vrms
Vp = 1.5Vcm-1 × 2divs Vpp = 1.5Vcm-1 × 4divs !"
Vrms =
= 3.0 V = 6.0 V √$
%.'
=
√$
= 2.12 V
Awesome Physics with Alina Iman Arif@MRSM TGB
(b) Calculate the time taken for one waveform.
Time for one wave, T = 2 ms cm-1 × 4 divs
= 8 ms
= 8 × 10-3 s

(c) Calculate the frequency, f of the a.c source.

( (
Frequency, f = ) = (+×('-.)
= 125 Hz

(d) Sketch the trace that will be displayed if the setting are changed to
(i) 1 V cm-1 and 2 ms cm-1

(ii) 1 V cm-1 and 1 ms cm-1

(iii) 3 V cm-1 and 2 ms cm-1

(iv) 3 V cm-1 and 1 ms cm-1

(v) 1.5 V cm-1 and 4 ms cm-1

Awesome Physics with Alina Iman Arif@MRSM TGB

4. What is semiconductor?
Semiconductor is a group of material that has electrical conductivity that is between that of a
conductor and an insulator.

Examples of semiconductors are silicon, germanium, gallium, arsenic.

Diagram 4: Semiconductor

Diagram 5
Comparison between energy gap in insulator, semiconductor and conductor

Characteristics of semiconductors:
• as insulator at very low temperature
• has good electrical conductivity at higher temperature

The conductivity of semiconductor can be increased by

• increasing the temperature
• doping process.

What is doping process?

Doping is the process of adding a small amount of impurities into the silicon crystal as to
improve the electrical conductivity of semiconductor.

Semiconductor Doping Type of semiconductor

Silicon, 5 valence electrons: n-type semiconductor with extra
germanium has • Phosphorus free moving electron to conduct
4 valence • Arsenic electricity
electrons at the • Antimony
outermost shell
3 valence electrons p-type semiconductor with missing
• Boron electron creates the effect of a
• Gallium positive charge called hole. This
• Iridium hole is responsible to conduct
electricity
Combination of p-type semiconductor with n-type semiconductor with produce a semiconductor
DIODE.
Awesome Physics with Alina Iman Arif@MRSM TGB
5. Doping silicon with impurities

Diagram 5.1: n-type semiconductor Diagram 5.2: p-type semiconductor

(Dopant: pentavalent like phosphorus) (Doped with trivalent like boron)

6. What is diode?
Diode is an electronic which allows the flow of current in one direction.

Diagram 6

Diagram 7

Common use of diode

• to change the a.c voltage to d.c voltage
• as rectifier which allow the flow of current in one direction.

DEPLETION LAYER

• The region around the junction is left with

neither holes nor free electrons.
• This neutral region which has no charge
carriers and poor conductor of electricity

Diagram 8

Awesome Physics with Alina Iman Arif@MRSM TGB

What is meant by rectification?
Rectification is the process of changing the a.c. current to d.c. current by diode.

Type of rectification by diodes: Half wave rectification (Using 2 diodes)

Full wave rectification (Using 4 diodes)

(a) Half wave rectification circuit

Diagram 9
The input voltage is a.c. meaning that the current can start to flow from A or from G.

If from A ® B ® C ® D ® E ® F ® G.
The flow of current is complete and therefore has one waveform for this cycle.

If from G ® F ® E ® D ® C and stop by diode.

The flow of current is blocked by the diode and so no waveform for this circle

The above process is repeated.

(b) Full-wave rectification circuit

Diagram 10

The input voltage is a.c. meaning that the current can start to flow from A or from N.

If from A®B®C® D® E® F® G® H® I ® J® K ® L ®M ® N
The flow of current is complete and therefore has one waveform for this cycle.

If from N® M® L® K® E® F® G® H® I® D® C® B®A
The flow of current is also complete and so has waveform for this circle. The above process is
repeated.

Awesome Physics with Alina Iman Arif@MRSM TGB

 (c) Smoothening process by capacitor
A capacitor is connected parallel to the resistor.
The waveform is displayed using CRO (parallel to the resistor)

Diagram 11

7. Transistor
A transistor is a semiconductor device used to amplify or switch electronic signals and electrical
power.

Transistor is an electronic used as

(a) an automatic switch
(b) a current amplifier

Transistor

Diagram 12

Awesome Physics with Alina Iman Arif@MRSM TGB

(a) Transistor as an automatic switch

Diagram 13

Light Dependent Resistor (LDR) has a very low resistance when exposed to sunlight but very
high resistance when at nighttime.

Again to remember:
High resistance® Cause high potential difference
The arrangement of R1 resistor and LDR along AB is used as potential divider of the voltage.
01 340
Voltage at R1 = (0 2340) × 12 V and Voltage at LDR = (0 2340) × 12 V
1 1

Function of base resistor is to control the base current.

Function of transistor in this circuit is as an automatic switch.

Þ Explain the working principle of transistor circuit in daylight.

1st: In daylight, the LDR has very low resistance as exposed to sunlight.
2nd: Low resistance of LDR will cause a smaller share of battery voltage across it.
3rd: This low voltage across the base-emitter does not switch the transistor on.
4th: Therefore, the transistor circuit is not complete and the lamp does not light up.

Þ Explain the working principle of transistor circuit in nightime.

1st: In nightime, the LDR has very high resistance as the surrounding is dark.
2nd: High resistance of LDR will cause a high share of battery voltage across it.
3rd: This high voltage across the LDR will drive a base current through the
transistor and switch it on.
th
4 : Therefore, the transistor circuit is complete and the lamp lights up.

Awesome Physics with Alina Iman Arif@MRSM TGB

(b) Transistor as current amplifier
X Loudspeaker

40 kΩ
C P
R Capacitor
B 6 V dc
Microphone Y Q
E
10 kΩ

S Z
Diagram 14

1st: The microphone is to convert the sound energy into electrical energy. This
electrical energy will be sent to capacity.
2nd: The capacitor will block the steady current and allow the a.c current to pass
through it.
rd
3 : The small a.c current will pass to the base of transistor will cause a big
amplification to the output current.
Here, the transistor is act as current amplifier.
4th: The loudspeaker now converts the electrical signal back to sound energy again.

Awesome Physics with Alina Iman Arif@MRSM TGB

8. What are logic gates?
Logic gates are the decision makers in electronic systems.
They are called gates because they can have many inputs to a device but only give a
single output.
BOOLEAN
GATES SYMBOL TRUTH TABLE
EXPRESSION

INPUT OUTPUT
A B X
AND 0 0 0
gate X= A•B 0 1 0
1 0 0
1 1 1

INPUT OUTPUT
A B X
OR X= A +B 0 0 0
0 1 1
gate
1 0 1
1 1 1

INPUT OUTPUT
A X
0 1
NOT 1 0
NOT gate is different from
gate
other logic gate as it has only X= A
one input with one output.

INPUT OUTPUT
A B X
0 0 1
NAND
0 1 1
gate X= A • B 1 0 1
1 1 0

NOR INPUT OUTPUT

gate A B X
0 0 1
0 1 0
1 0 0
X= A + B 1 1 0

Awesome Physics with Alina Iman Arif@MRSM TGB

 INPUT OUTPUT
A B X
0 0 0
X-OR X= A ÅB 0 1 1
gate 1 0 1
1 1 0

INPUT OUTPUT
A B X
X= A ÅB 0 0 1
X-NOR 0 1 0
gate 1 0 0
1 1 1

(b) Electric circuit which represents the logic gates

Logic Gate Electric circuit

AND Gate

Both inputs must be closed to complete the circuit

OR Gate
Either one switch or both are closed will complete the circuit

Awesome Physics with Alina Iman Arif@MRSM TGB

NOT Gate

Input 1 is closed will cause the bulb to switch off. Input 1 acts as
current jumper

NAND Gate

Both inputs closed will switch of the bulb. (Current jumper occurs
when both the inputs are closed)

NOR Gate

Either one or both inputs closed will switch off the bulb
