Certification exam Assignment -2
The due date for submitting this assignment has passed. Due on 2019-02-13, 23:59 IST.
Course
outline Assignment submitted on 2019-02-12, 14:51 IST

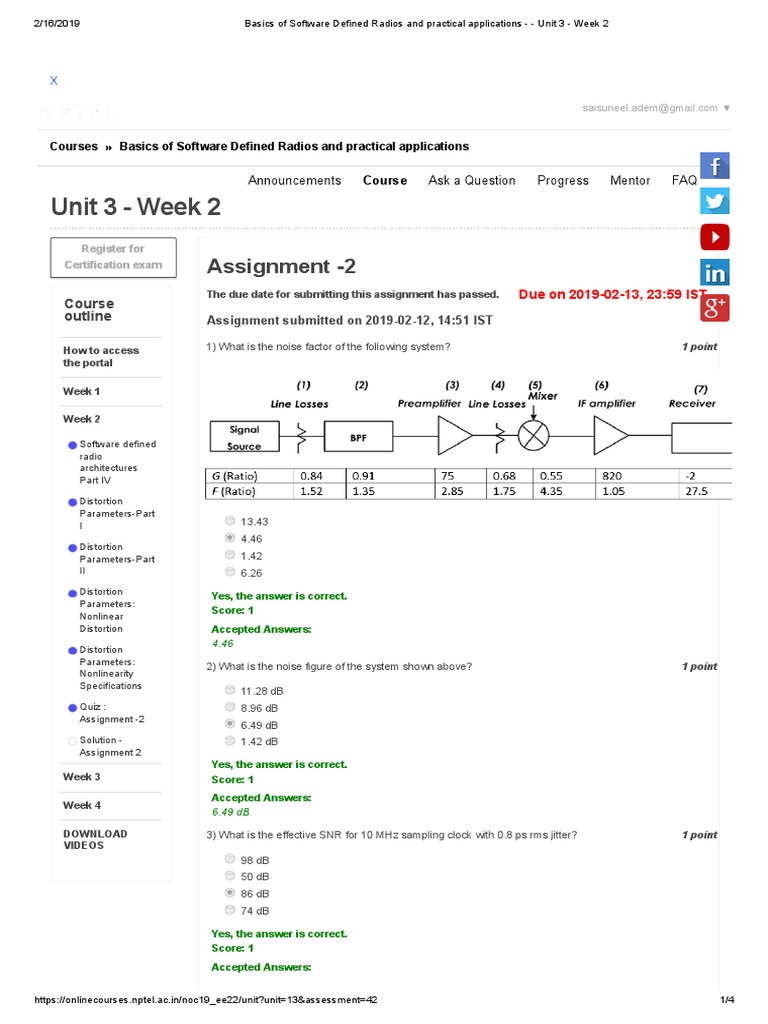

How to access 1) What is the noise factor of the following system? 1 point
the portal

Week 1

Week 2

Software defined
radio
architectures
Part IV

Distortion
Parameters-Part
I 13.43
4.46
Distortion
Parameters-Part 1.42
II 6.26
Distortion Yes, the answer is correct.
Parameters:
Score: 1
Nonlinear
Distortion Accepted Answers:
4.46
Distortion
Parameters:
2) What is the noise figure of the system shown above? 1 point
Nonlinearity
Specifications
11.28 dB
Quiz : 8.96 dB
Assignment -2
6.49 dB
Solution - 1.42 dB
Assignment 2
Yes, the answer is correct.
Week 3 Score: 1
Accepted Answers:
Week 4
6.49 dB

DOWNLOAD 3) What is the effective SNR for 10 MHz sampling clock with 0.8 ps rms jitter? 1 point
VIDEOS
98 dB
50 dB
86 dB
74 dB

Yes, the answer is correct.

Score: 1
Accepted Answers:

https://onlinecourses.nptel.ac.in/noc19_ee22/unit?unit=13&assessment=42 1/4
2/16/2019 Basics of Software Defined Radios and practical applications - - Unit 3 - Week 2
86 dB

4) What is the effective bits for 10 MHz sampling clock with 0.2 ps rms jitter? 1 point

16 bit
14 bit
12 bit
10 bit

No, the answer is incorrect.

Score: 0
Accepted Answers:
14 bit

5) Among following, what would be the rms phase jitter allowed for 60 MHz sampling clock to be 1 point
able to use 10-bit converter?

0.1 ps
2 ps
0.4 ps
0.5 ps

No, the answer is incorrect.

Score: 0
Accepted Answers:
2 ps

6) SNR due to phase jitter is directly proportional to 1 point

Input signal frequency

Input Signal Bandwidth
Instantaneous value of phase jitter in time
Input signal amplitude

Yes, the answer is correct.

Score: 1
Accepted Answers:
Input signal frequency

7) Phase jitter is defined in frequency domain 1 point

True
False

Yes, the answer is correct.

Score: 1
Accepted Answers:
False

8) Phase noise is defined in frequency domain 1 point

True
False

Yes, the answer is correct.

Score: 1
Accepted Answers:
True

9) Generally Phase noise can be estimated from phase jitter 1 point

True
False

No, the answer is incorrect.

Score: 0
Accepted Answers:
False

https://onlinecourses.nptel.ac.in/noc19_ee22/unit?unit=13&assessment=42 2/4
2/16/2019 Basics of Software Defined Radios and practical applications - - Unit 3 - Week 2
10)Which of the following device is main cause of nonlinearity in Transmitter? 1 point

Digital to Analog Converters

Power Amplifiers
Analog to Digital Converters
Oscillators

Yes, the answer is correct.

Score: 1
Accepted Answers:
Power Amplifiers

11)In saturation region of the power amplifier: 1 point

Efficiency is low
Linearity is high
Efficiency is high
DC power to RF power conversion rate is low.

Yes, the answer is correct.

Score: 1
Accepted Answers:
Efficiency is high

12)For a two-tone signal with frequency f1 and f2 which of the following pair represent the second 1 point
and third IMD terms respectively:

3f1 and 2f1+f2

f1-f2 and 2f1+f2
f1+f2 and 2f2
2f1-f2 and 2f2

Yes, the answer is correct.

Score: 1
Accepted Answers:
f1-f2 and 2f1+f2

13)In above ques on, if both the frequencies are equal (f), then the second and third IMD 1 point
terms respec vely will be

3f and 2f
f and 2f
2f and 3f
0f and 3f

Yes, the answer is correct.

Score: 1
Accepted Answers:
0f and 3f

14)If a PA has output powers as 35 dBm, 2 dBm and 15 dBm for output power, second order IMD 1 point
and third order IMD components respectively by applying input signal power of 5 dBm. What will be output
signal power levels for 6 dBm input signal power?

37 dBm, 4 dBm and 18 dBm

34 dBm, 0 dBm and 12 dBm
36 dBm, 4 dBm and 18 dBm
33 dBm, 0 dBm and 12 dBm

Yes, the answer is correct.

Score: 1
Accepted Answers:
36 dBm, 4 dBm and 18 dBm

https://onlinecourses.nptel.ac.in/noc19_ee22/unit?unit=13&assessment=42 3/4
2/16/2019 Basics of Software Defined Radios and practical applications - - Unit 3 - Week 2
15)If a SSPA has output IP3 point at 35 dBm, when 25 dBm output signal power is applied, what 1 point
would be the IMD3 component power?

15 dBm
10 dBm
5 dBm
0 dBm

No, the answer is incorrect.

Score: 0
Accepted Answers:
5 dBm
