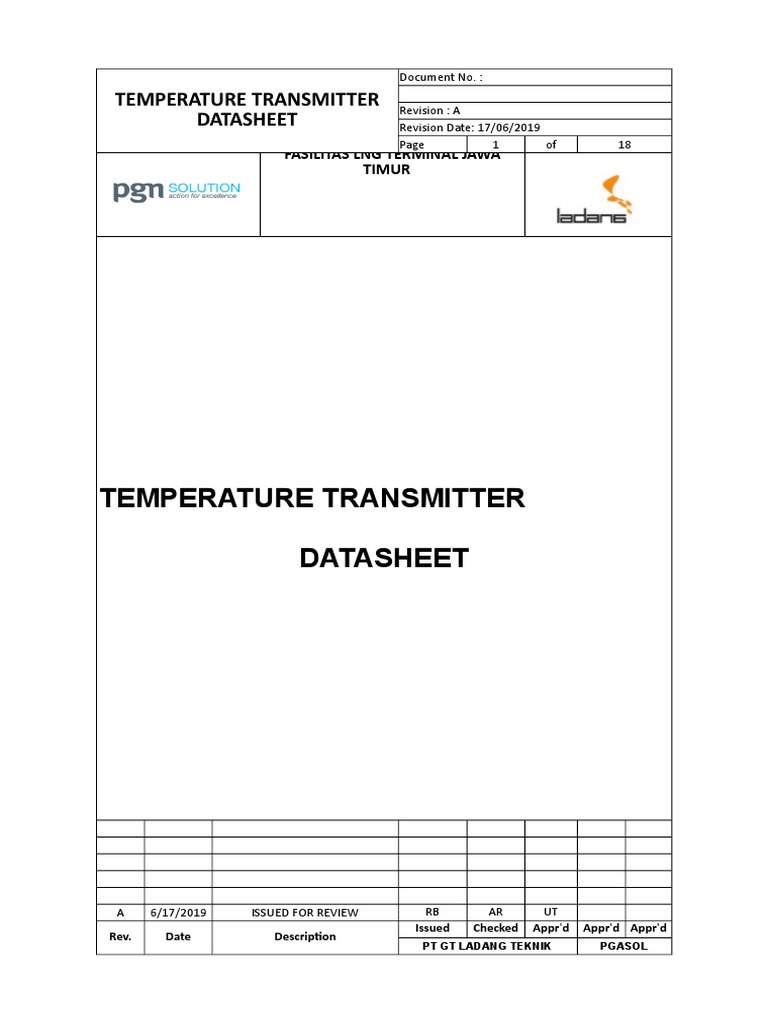

Document No.

:
TEMPERATURE TRANSMITTER Revision : A
DATASHEET Revision Date: 17/06/2019
PEKERJAAN PEMBANGUNAN
Page 1 of 18
FASILITAS LNG TERMINAL JAWA
TIMUR

TEMPERATURE TRANSMITTER

DATASHEET

A 6/17/2019 ISSUED FOR REVIEW RB AR UT

Issued Checked Appr'd Appr'd Appr'd
Rev. Date Description
PT GT LADANG TEKNIK PGASOL
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 2 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 1-TT-7
2 P&ID LTJ-PRC-004-001
3 Line Number 1LNG3-10"-A1B-PU177
4 Equipment -NR-
GENERAL
5 Service Description Temperature Monitoring LNG Transferline to ORU
6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D
7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State LNG / Liquid
10 Temperature -160 °C
11 Pressure 6 kg/cm²G
PROCESS DATA
12 Flowrate 180 m3/hr
13 Density 434 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 14"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT

THERMOWELL
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 3 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 2-TT-1A
2 P&ID LTJ-PRC-004-002
3 Line Number 2LNG1-6"-A1B-PU165
4 Equipment -NR-
GENERAL
5 Service Description TEMPERATURE INLET LNG BUFFER TANK 2-C-1A

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State LNG / Liquid
10 Temperature -160 °C
11 Pressure 6 kg/cm²G
PROCESS DATA
12 Flowrate 60 m3/hr
13 Density 434 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 10"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
37 Material 316 SST
38 Immersion Length 3"
39 Head Length 7"
40 Mounting Bracket / Material Yes / 316 SST
41 Tagging Plate Yes
ACCESSORIES 42 Calibration Report Yes
43 Calibration Certificate Yes
44 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 4 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 2-TT-1B
2 P&ID LTJ-PRC-004-002
3 Line Number 2LNG1-6"-A1B-PU165
4 Equipment -NR-
GENERAL
5 Service Description TEMPERATURE INLET LNG BUFFER TANK 2-C-1B

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State LNG / Liquid
10 Temperature -160 °C
11 Pressure 6 kg/cm²G
PROCESS DATA
12 Flowrate 60 m3/hr
13 Density 434 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 10"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3"
40 Head Length 7"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 5 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-1
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 1

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 6 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-2
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 2

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 7 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-3
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPEATURE OF DOWNSTREAM VAPORIZER UNIT
5 Service Description
3

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 8 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-4
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPEATURE OF DOWNSTREAM VAPORIZER UNIT
5 Service Description
4

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 9 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-5
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 5

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196°C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 10 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-6
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 6

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 11 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-7
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 7

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 12 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-8
2 P&ID LTJ-PRC-004-003
3 Line Number 3NG12-6"-D2D
4 Equipment -N/R-
GENERAL TEMPERATURE OF DOWNSTREAM VAPORIZER
5 Service Description
UNIT 8

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 310 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 13 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-9A
2 P&ID LTJ-PRC-004-004
3 Line Number 3NG28-6"-D2D
4 Equipment -N/R-
GENERAL
5 Service Description TEMPERATURE OF METERING SYSTEM SKID A

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 620 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 7-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 4"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 14 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-9B
2 P&ID LTJ-PRC-004-004
3 Line Number 3NG28-6"-D2D
4 Equipment -N/R-
GENERAL
5 Service Description TEMPERATURE OF METERING SYSTEM SKID B

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 620 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 7-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 4"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 15 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-9C
2 P&ID LTJ-PRC-004-004
3 Line Number 3NG28-6"-D2D
4 Equipment -N/R-
GENERAL
5 Service Description TEMPERATURE OF METERING SYSTEM SKID C

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 620 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 7-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 4"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 16 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-9D
2 P&ID LTJ-PRC-004-004
3 Line Number TBA
4 Equipment -N/R-
GENERAL
5 Service Description TEMPERATURE OF METERING SYSTEM SKID D

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 35 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 7-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 4"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 17 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 3-TT-9E
2 P&ID LTJ-PRC-004-004
3 Line Number TBA
4 Equipment -N/R-
GENERAL
5 Service Description TEMPERATURE OF METERING SYSTEM SKID E

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State Hydrocarbon / Gas
10 Temperature 5 °C
11 Pressure 25.5 Barg
PROCESS DATA
12 Flowrate 35 m3/hr
13 Density 20.5 kg/m3
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 0.1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 7-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 4"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
 Document No.

TEMPERATURE TRANSMITTER DATASHEET Revision: A

Revision Date: 17/06/2019
Page 18 of 18

PEKERJAAN PEMBANGUNAN
FASILITAS LNG TERMINAL JAWA
TIMUR
LEVEL TRANSMITTER DATASHEET
DESCRIPTION
1 Tag Number 4-TT-1
2 P&ID LTJ-PRC-004-002
3 Line Number -N/R-
4 Equipment 4C-1
GENERAL
5 Service Description TEMPERATURE OF LNG BLOWDOWN DRUM

6 Hazardous Area Classification CLASS.1, DIV. II, GROUP D

7 Protection Method Explosion Prodf, Ex 'd'
8 Ingress Protection IP 65
9 Fluid / State LNG / Liquid
10 Temperature -160 °C
11 Pressure 0.5 Barg
PROCESS DATA
12 Flowrate NA
13 Density NA
14 Velocity
15 Transmitter Type 4-20 mA + HART
16 Mounting Remote
17 Mounting Detail 2" Impulse Pipe, Vertical
18 Display (Yes / No) Yes
19 Display Scale (see no.20)
20 Instrument Range -196 °C TO 60 °C
TRANSMITTER
21 Housing Material / Paint Manufacturer / Standard
22 Power Supply 24 VDC, 2-Wire system
23 Output Signal 4-20 mA
24 Accuracy 1% OF SPAN
25 Electrical Connection 1/2" NPT
26 Zero and Span Adjustable (Yes / No) Yes
27 Element Type Thermo Couple Type "T"
28 No. of Elements
29 Head Material Manufacturer
ELEMENT
30 Sheath Material / O.D 321 SST / 6 mm
31 Sensor Length 5-1/4"
32 Connection to Well 3/4" NPT
33 Process Connection / Size 1" NPT
34 Rating -NR-
35 Element Connection / Size 3/4" NPT
36 Construction Type Solid bar stock with tapered body
THERMOWELL
37 Bore Diameter 6.6 mm (0.280")
38 Material 316 SST
39 Immersion Length 3-1/4"
40 Head Length 2"
41 Mounting Bracket / Material Yes / 316 SST
42 Tagging Plate Yes
ACCESSORIES 43 Calibration Report Yes
44 Calibration Certificate Yes
45 Cable Gland / Ex / Material No
