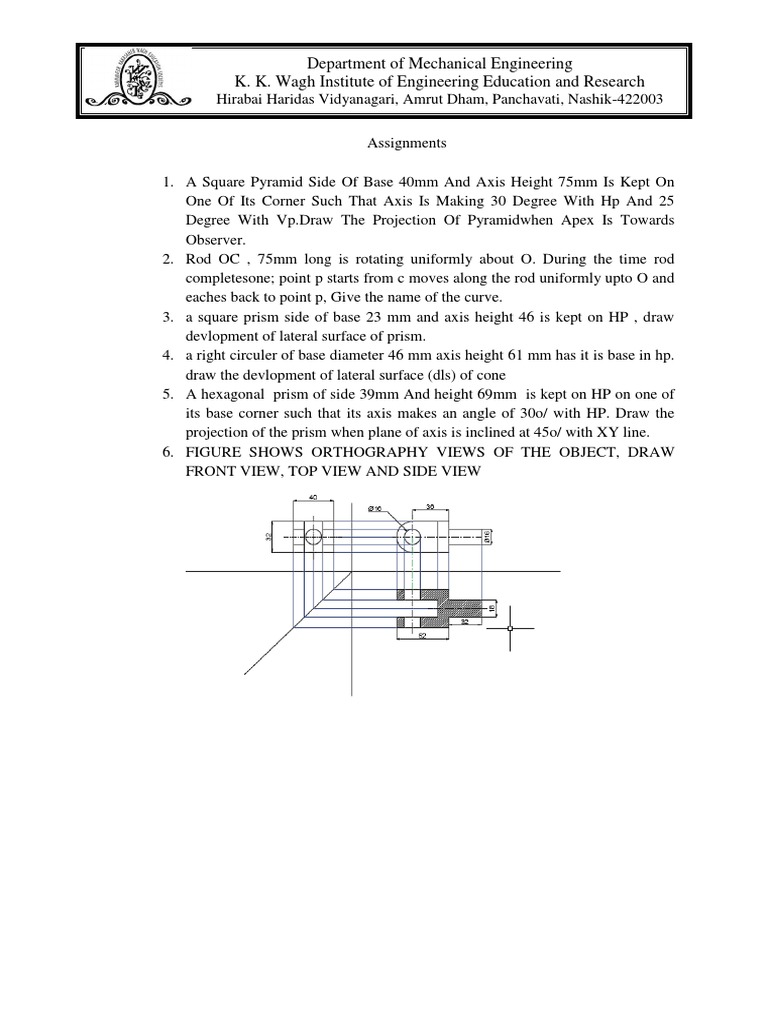

Assignments

1. A Square Pyramid Side Of Base 40mm And Axis Height 75mm Is Kept On
One Of Its Corner Such That Axis Is Making 30 Degree With Hp And 25
Degree With Vp.Draw The Projection Of Pyramidwhen Apex Is Towards
Observer.
2. Rod OC , 75mm long is rotating uniformly about O. During the time rod
completesone; point p starts from c moves along the rod uniformly upto O and
eaches back to point p, Give the name of the curve.
3. a square prism side of base 23 mm and axis height 46 is kept on HP , draw
devlopment of lateral surface of prism.
4. a right circuler of base diameter 46 mm axis height 61 mm has it is base in hp.
draw the devlopment of lateral surface (dls) of cone
5. A hexagonal prism of side 39mm And height 69mm is kept on HP on one of
its base corner such that its axis makes an angle of 30o/ with HP. Draw the
projection of the prism when plane of axis is inclined at 45o/ with XY line.
6. FIGURE SHOWS ORTHOGRAPHY VIEWS OF THE OBJECT, DRAW
FRONT VIEW, TOP VIEW AND SIDE VIEW
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003

Assignment No. 01

 Draw an ellipse by rectangle method having major axis 139 and minor axis 109.

 A 120 mm long link OA rotates about O at uniform angular velocity .A point

initially at A moves along AO at a uniform rate and reaches O during one
revolution of the link. Draw the locus of the point P for one revolution. Name
the locus.
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003

 The major and minor axis of an ellipse measure 100mm and 70mm resp. Draw an
ellipse by rectangle method.

 Draw a parabola having base length 80mm and axis height 50mm by
rectangle method.
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003

Assignment No. 02

 A right circular cone of base diameter 50 mm axis height 60 mm has it is base

in H.P. Draw the development of lateral surface of cone.

 Draw the development of a hexagonal prism with base side 30 mm and axis
height 80 mm, kept on H.P. when it is cut by an A/P inclined at 30° to H.P.
and bisecting axis of prism.
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003

 A pentagonal Pyramid having side of base 27 mm and axis length 49mm is

kept on HP on one of its base edge in such a way that triangular face
containing that edge makes an angle of 35 to HP.Draw the projections of the
pyramid when the base edge on HP is inclined at 40° to VP

 A pentagonal prism side of base 25mm and axis length 51mm is kept on HP
and one of its base corner such that makes an angle 30' to HP. Draw
projection of prism when the plane of axis is inclined aaaaat an angle 45' to xy
line.
 Department of Mechanical Engineering
K. K. Wagh Institute of Engineering Education and Research
Hirabai Haridas Vidyanagari, Amrut Dham, Panchavati, Nashik-422003

Assignment

Projection of Soilds
