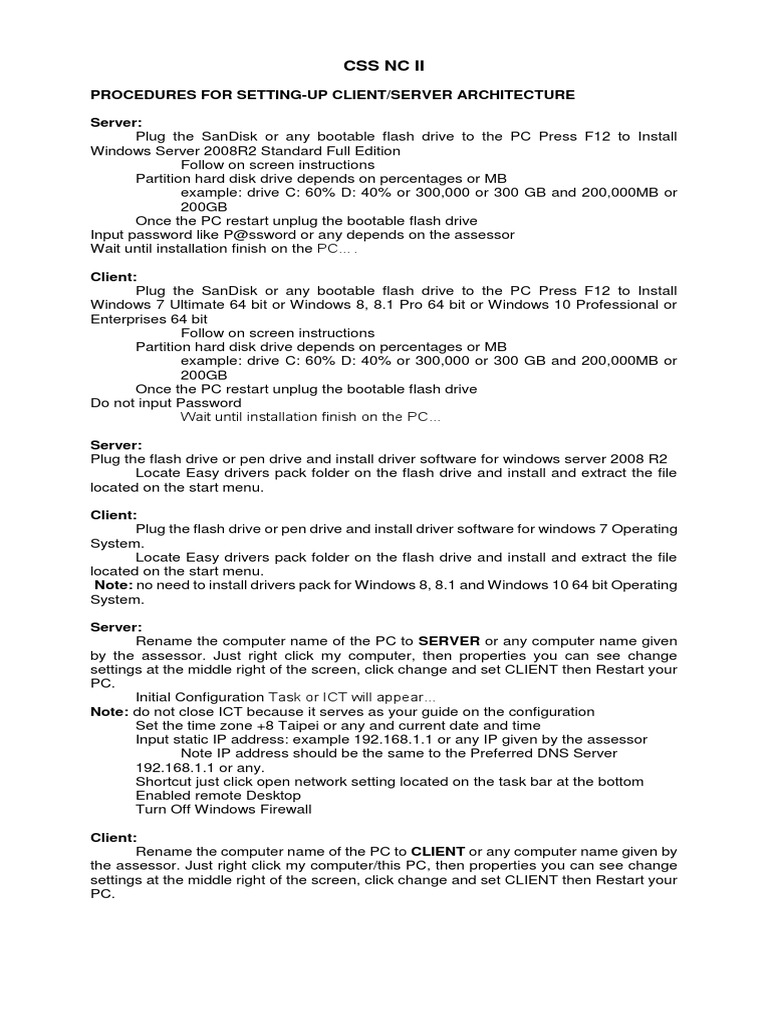

CSS NC II

PROCEDURES FOR SETTING-UP CLIENT/SERVER ARCHITECTURE

Server:
Plug the SanDisk or any bootable flash drive to the PC Press F12 to Install
Windows Server 2008R2 Standard Full Edition
Follow on screen instructions
Partition hard disk drive depends on percentages or MB
example: drive C: 60% D: 40% or 300,000 or 300 GB and 200,000MB or
200GB
Once the PC restart unplug the bootable flash drive
Input password like P@ssword or any depends on the assessor
Wait until installation finish on the PC….

Client:
Plug the SanDisk or any bootable flash drive to the PC Press F12 to Install
Windows 7 Ultimate 64 bit or Windows 8, 8.1 Pro 64 bit or Windows 10 Professional or
Enterprises 64 bit
Follow on screen instructions
Partition hard disk drive depends on percentages or MB
example: drive C: 60% D: 40% or 300,000 or 300 GB and 200,000MB or
200GB
Once the PC restart unplug the bootable flash drive
Do not input Password
Wait until installation finish on the PC…

Server:
Plug the flash drive or pen drive and install driver software for windows server 2008 R2
Locate Easy drivers pack folder on the flash drive and install and extract the file
located on the start menu.

Client:
Plug the flash drive or pen drive and install driver software for windows 7 Operating
System.
Locate Easy drivers pack folder on the flash drive and install and extract the file
located on the start menu.
Note: no need to install drivers pack for Windows 8, 8.1 and Windows 10 64 bit Operating
System.

Server:
Rename the computer name of the PC to SERVER or any computer name given
by the assessor. Just right click my computer, then properties you can see change
settings at the middle right of the screen, click change and set CLIENT then Restart your
PC.
Initial Configuration Task or ICT will appear…
Note: do not close ICT because it serves as your guide on the configuration
Set the time zone +8 Taipei or any and current date and time
Input static IP address: example 192.168.1.1 or any IP given by the assessor
Note IP address should be the same to the Preferred DNS Server
192.168.1.1 or any.
Shortcut just click open network setting located on the task bar at the bottom
Enabled remote Desktop
Turn Off Windows Firewall

Client:
Rename the computer name of the PC to CLIENT or any computer name given by
the assessor. Just right click my computer/this PC, then properties you can see change
settings at the middle right of the screen, click change and set CLIENT then Restart your
PC.
 Set the time zone +8 Taipei or any and current date and time
Shortcut just click open network setting located on the task bar at the bottom

Note: IP Address of the Client should be Obtain or in a dynamic state

Enabled remote desktop just right click my computer, then properties you can see
the Enabled remote desktop on the upper left of the screen just choose allows remote
desktop.
Turn Off Windows Firewall

Server:
On the ICT menu you need to add ROLES:
First – Add ADDS Server or Active Directory Domain Services, then follow
on screen instructions just remembered always positive response wait until it will finish
Second – go to start or search field just type DCPROMO follow on screen
instruction like Create a new forest on the domain, then type your desired domain name
like pnvhs.com or any domain depends on the assessors. make sure you choose the
forest windows server 2008 R2 then make sure DNS is check then next until it will ask for
password just types P@ssword or any depends on the assessors make sure that your
password have at least capital case and special character. Wait until it finish
NOTE: You should restart your PC to save the changes you made from the
computer. After the PC restart just make sure that the Preferred DNS IP will be the same
to your IP Address because after Installation of DCPROMO it allows to change the
preferred DNS so you must be careful and make sure that the Domain Firewall is off.
Third – Add DHCP sever just follow onscreen instructions make sure the IP
is the same as your IP Address and DNS just validate the IP then click next.
click add IP address scope just input any name like sample.scope then follow this
Starting IP Address.:192.168.1.2
Ending IP Address: 192.168.1.11
Note: IP Address is not constant it depends on the assessor make sure that
it depends on the number of computer that the sever can accommodate. Make sure that
the last number of your IP should be unique and it will follow to the other computer. IP
address from 1 to 254 depends on the assessor
Just click next until the PC finishes the installation. Restart the PC to save all the
changes you made

CLIENT:
After the server installed DHCP make sure that you restart your PC to validate
some changes. After restarting go to my computer just right click properties on the middle
of the windows you will see change settings, click change and change the configurations
from work group to domain just right your domain like pnvhs.com or any depends on the
domain you setted on the DCPROMO
It will ask for user name and password
Username: administrator
Password: P@ssword
it will successfully connected to the domain of the server
Restart your PC to save changes you made

SERVER:
Go to start, Administrative Tools then choose Add users and computers just follow
this procedures:
Go to your domain name + in the upper left of the screen. just right click your
domain name click new choose organizational unit type any name like PNVHS_NAME or
any depends on the assessors then enter it will add to your domain forests
Click users locate administrators, right click then copy example user 1 or any then
ok.
Note: just drag the user 1 you create to your OU PNVHS_NAME then drop it will
save on the folder then add additional users if you want to.
After you finish adding all the users follow this step
Go to desktop make a folder example redirection then right click properties then choose
sharing click advance sharing check share this folder click permissions check allow then
click ok then you should copy the root path of the folder you share like
\\SERVER\redirection or any.
Go to start, Administrative tools locate the Group Policy Management or GPM
then choose your domain name forest click the plus sign + like pnvhs.com then right click
then create a new GPO on the domain write any name like redirection then enter

right click your GPO redirection then click edit, then go to user configuration policies then
click windows settings then click folder redirection then right click any destination folder
you want to redirect like desktop, documents, download and etc just right click each folder
then click properties then choose basic redirect and save the root path from the folder
\\SERVER\redirection then click apply and ok
After all this configurations go to the client PC

CLIENT:
Just switch the user account or choose other user then choose your user account
you created on your organizational unit then wait until finish.
follow this example
Userename: user1
Password: administrator
Make a sample folder or file on the desktop or any locations you configured on the
GPO (group policy object) under GPM (group policy management)
After you created a folder go to server

SERVER:
Go to your redirection folder located on the desktop or any locations to make sure
if the folder from the client has been saved. Then click user folder like user 1 then it will
ask for a policy just follow this instructions:
Note: upon clicking the folder it will ask some permissions or privileges just choose
your domain like pnvhs.administrators or any domain name you created then click ok until
the you can open the folder or file from client to check if it was shared
After you done this things go to start and input remote desktop applications you
can configured this both from SERVER or CLIENT and VICE VERSA.
just do this 192.168.1.2 if you used the server while 192.168.1.1 if you
used the client then follow on screen instructions all positive response like YES or OK
It will ask for password just input your password: P@ssword

Client:
Remote Desktop
just do this 192.168.1.2 if you used the server while 192.168.1.1 if you
used the client then follow on screen instructions all positive response like YES or OK
It will ask for password just input your password: P@ssword
Then back to local account just click other user then follow this
computername/username like CLIENT/client then enter
Note: No password required for back to local account

PRINTER SHARING:

SERVER:
plug the flash drive and locate the Epson L360 folder and double click or run the
program to install the driver then follow on screen instructions just choose positive
response.
GO to start choose devices and printers then locate the name of the printer
example EPSON L360 then right click the printer choose printer properties then click
sharing on the upper right of the screen then check share this folder click ok.

CLIENT:
Go to search field type \\192.168.1.1 your IP Address of the server or any IP you
inputted on the server then click enter.
 you will notice that there is the printer shared on the network like EPSON L360
then double click the folder to install the driver until it will finish then print your file you
created.
NOTE: please follow step by step procedures to limit errors or NO ERRORS you will
encountered

NOTE: USED YOUR COMMON SENSE UPON INSTALLATION AND

CONFIGURATION
THANK YOU>>>>>>>>

SETTING UP PEER-TO-PEER NETWORK ARCHITECTURE

DYNAMIC CONFIGURATIONS
PC1 /SERVER
After OS Installations and driver installations make sure that you need to turn off
the windows firewall of the computer machine go to control panel then select windows
firewall or shortcut right click the icon open network settings on the bottom of the screen
then turn off firewall settings.
Go to change advance sharing and set the configurations located on network and security
Note: TURN ON ALL CONFIGURATIONS except PASSWORD
CONFIGURATIONS just TURN OFF.
Go to search field type run or go to run or short cut windows logo +R then type
cmd enter type ipconfig your can see your dynamic IP like 169.254.77.87 depends on
the computer then enter then ping the IP Address of the PC2/CLIENT example. ping
169.253.167.40 -t then enter. the reply should be like this reply for TTL etc…..
Go to desktop make a sample folder or file then share the file just follow this
Right click the folder then click share with choose everyone located on the
drop/down menu then click add then click read and write then click share then ok.
Go to my computer or this PC then click network at the lower left of the screen then
you can see the two computers connected
Note: if ever you can’t see the two computer just refresh or type \\169.253.167.40
this IP address refers to the PC2/client PC. click the client users then click the file that is
shared to the network. then DONE or FINISH.

PC2 /CLIENT
After OS Installations and driver installations make sure that you need to turn off
the windows firewall of the computer machine go to control panel then select windows
firewall or shortcut right click the icon open network settings on the bottom of the screen
then turn off firewall settings.
Go to change advance sharing and set the configurations located on network and security
Note: TURN ON ALL CONFIGURATIONS except PASSWORD
CONFIGURATIONS just TURN OFF.
Go to search field type run or go to run or short cut windows logo +R then type
cmd enter type ipconfig your can see your dynamic IP like 169.253.167.40 depends on
the computer then enter then ping the IP Address of the PC2/CLIENT example. ping
169.254.77.87 -t then enter. the reply should be like this reply for TTL etc…..
Go to desktop make a sample folder or file then share the file just follow this
Right click the folder then click share with choose everyone located on the
drop/down menu then click add then click read and write then click share then ok.
Go to my computer or this PC then click network at the lower left of the screen then
you can see the two computers connected
Note: if ever you can’t see the two computer just refresh or type \\169.254.77.87
this IP address refers to the PC1/client PC. click the client users then click the file that is
shared to the network. then DONE or FINISH.
STATIC CONFIGURATIONS
PC1 /SERVER
After OS Installations and driver installations make sure that you need to turn off
the windows firewall of the computer machine go to control panel then select windows
firewall or shortcut right click the icon open network settings on the bottom of the screen
then turn off firewall settings.
click LAN network connections/Ethernet then type your IP Address you want like
192.168.1.1 or any depends on the assessors or user preferences then click ok.
Go to change advance sharing and set the configurations located on network and security
Note: TURN ON ALL CONFIGURATIONS except PASSWORD
CONFIGURATIONS just TURN OFF.
Go to search field type run or go to run or short cut windows logo +R then type
cmd enter type ipconfig your can see your static IP like 192.168.1.1 enter then ping the
IP Address of the PC2/CLIENT example. ping 192.168.1.2 -t then enter. the reply should
be like this reply for TTL etc…..

Go to desktop make a sample folder or file then share the file just follow this

Right click the folder then click share with choose everyone located on the drop/down
menu then click add then click read and write then click share then ok.
Go to my computer or this PC then click network at the lower left of the screen then
you can see the two computers connected
Note: if ever you can’t see the two computer just refresh or type \\192.168.1.2 this
IP address refers to the PC2/client PC. click the client users then click the file that is
shared to the network. then DONE or FINISH.

PC2 /CLIENT
After OS Installations and driver installations make sure that you need to turn off
the windows firewall of the computer machine go to control panel then select windows
firewall or shortcut right click the icon open network settings on the bottom of the screen
then turn off firewall settings.
click LAN network connections/Ethernet then type your IP Address you want like
192.168.1.2 or any depends on the assessors or user preferences then click ok.
Go to change advance sharing and set the configurations located on network and security
Note: TURN ON ALL CONFIGURATIONS except PASSWORD
CONFIGURATIONS just TURN OFF.
Go to search field type run or go to run or short cut windows logo +R then type
cmd enter type ipconfig your can see your static IP like 192.168.1.1 enter then ping the
IP Address of the PC2/CLIENT example. ping 192.168.1.1 -t then enter. the reply should
be like this reply for TTL etc…..
Go to desktop make a sample folder or file then share the file just follow this
Right click the folder then click share with choose everyone located on the drop/down
menu then click add then click read and write then click share then ok.
Go to my computer or this PC then click network at the lower left of the screen then
you can see the two computers connected
Note: if ever you can’t see the two computer just refresh or type \\192.168.1.1this
IP address refers to the PC2/client PC. click the client users then click the file that is
shared to the network. then DONE or FINISH.

NOTE: USED YOUR COMMON SENSE UPON INSTALLATION AND

CONFIGURATION

THANK YOU>>>>>>>>>
