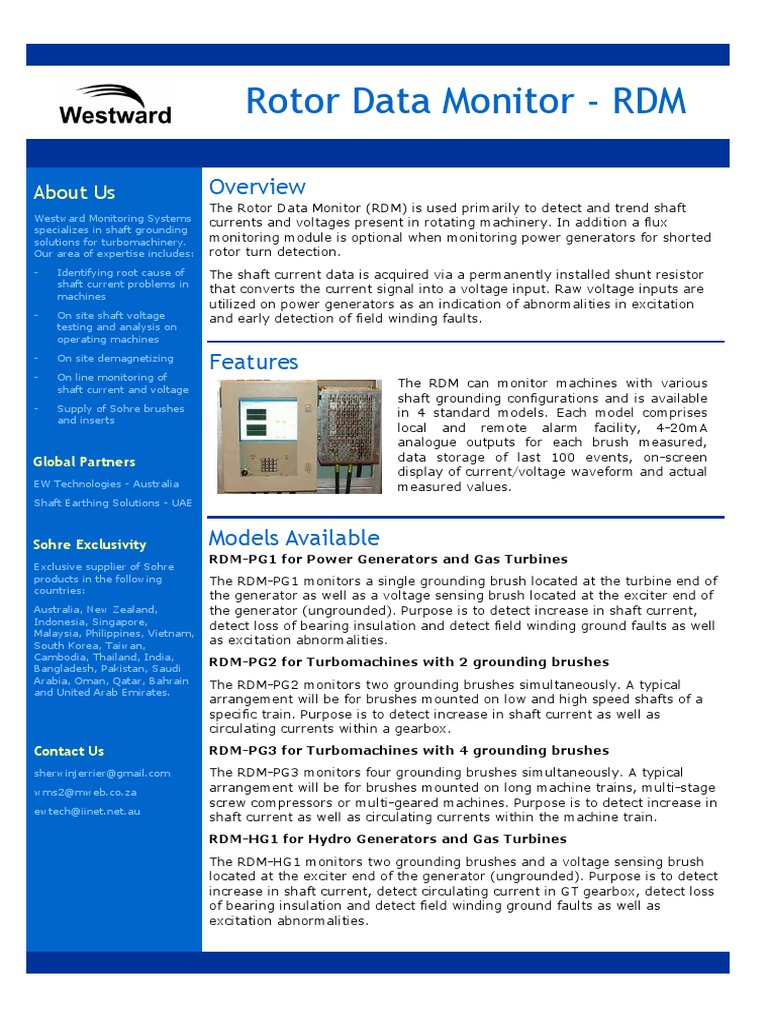

Overview
The Rotor Data Monitor (RDM) is used primarily to detect and trend shaft
currents and voltages present in rotating machinery. In addition a flux
monitoring module is optional when monitoring power generators for shorted
rotor turn detection.
The shaft current data is acquired via a permanently installed shunt resistor
that converts the current signal into a voltage input. Raw voltage inputs are
utilized on power generators as an indication of abnormalities in excitation
and early detection of field winding faults.
Features
The RDM can monitor machines with various
shaft grounding configurations and is available
in 4 standard models. Each model comprises
local and remote alarm facility, 4-20mA
analogue outputs for each brush measured,
data storage of last 100 events, on-screen
display of current/voltage waveform and actual
measured values.
Models Available
RDM-PG1 for Power Generators and Gas Turbines
The RDM-PG1 monitors a single grounding brush located at the turbine end of
the generator as well as a voltage sensing brush located at the exciter end of
the generator (ungrounded). Purpose is to detect increase in shaft current,
detect loss of bearing insulation and detect field winding ground faults as well
as excitation abnormalities.
RDM-PG2 for Turbomachines with 2 grounding brushes
The RDM-PG2 monitors two grounding brushes simultaneously. A typical
arrangement will be for brushes mounted on low and high speed shafts of a
specific train. Purpose is to detect increase in shaft current as well as
circulating currents within a gearbox.
RDM-PG3 for Turbomachines with 4 grounding brushes
The RDM-PG3 monitors four grounding brushes simultaneously. A typical
arrangement will be for brushes mounted on long machine trains, multi-stage
screw compressors or multi-geared machines. Purpose is to detect increase in
shaft current as well as circulating currents within the machine train.
RDM-HG1 for Hydro Generators and Gas Turbines
The RDM-HG1 monitors two grounding brushes and a voltage sensing brush
located at the exciter end of the generator (ungrounded). Purpose is to detect
increase in shaft current, detect circulating current in GT gearbox, detect loss
of bearing insulation and detect field winding ground faults as well as
excitation abnormalities.
 Rotor Data Monitor - RDM

About Us Typical Screen Displays

The RDM-PG1 displays the waveform and
Westward Monitoring Systems
measured values of the grounding brush and
specializes in shaft grounding
solutions for turbomachinery. the shaft voltage induced by the field
Our area of expertise includes: excitation. Alarm set-points for low and high
- Identifying root cause of
current and voltage are GREEN when
shaft current problems in conditions are good and RED when in an alarm
machines condition.
- On site shaft voltage
testing and analysis on The RDM-PG2 displays the waveforms and
operating machines measured values of the two grounding
- On site demagnetizing brushes. Alarm set-points for low and high
current and voltage are GREEN when
- On line monitoring of
shaft current and voltage conditions are good and RED when in an alarm
condition.
- Supply of Sohre brushes
and inserts

The RDM-PG3 displays the waveform and

Global Partners
EW Technologies - Australia
Shaft Earthing Solutions - UAE
measured values of the four grounding brushes
on separate screens. Alarm set-points for low
and high current and voltage are GREEN when
conditions are good and RED when in an alarm
condition.

Sohre Exclusivity
Exclusive supplier of Sohre
products in the following
countries:
Australia, New Zealand,
Indonesia, Singapore,
Malaysia, Philippines, Vietnam,
South Korea, Taiwan,
Cambodia, Thailand, India,
Bangladesh, Pakistan, Saudi
Arabia, Oman, Qatar, Bahrain
and United Arab Emirates. The RDM-HG1 displays the waveform and
measured values of the two grounding brushes
and the shaft voltage induced by the field
excitation. Alarm set-points for low and high
Contact Us current and voltage are GREEN when
sherwinjerrier@gmail.com conditions are good and RED when in an alarm
condition.
wms2@mweb.co.za
ewtech@iinet.net.au
 Rotor Data Monitor - RDM

About Us Optional Flux Monitoring Module

The flux monitoring module is used on power generators that have an existing
Westward Monitoring Systems
permanently mounted radial flux probe. The probe termination point is
specializes in shaft grounding
solutions for turbomachinery. connected to the RDM via co-ax cable and the RDM automatically analyzes the
Our area of expertise includes: data and warns of any developing of shorted field winding turns. Local and
- Identifying root cause of
remote alarming of shorted turns allows for better planning before a general
shaft current problems in overhaul.
machines
- On site shaft voltage
testing and analysis on
operating machines
Typical Screen Display
The voltage peaks created by each coil is
- On site demagnetizing displayed on the screen as well as the overlap
- On line monitoring of of pole peaks to determine coils with shorted
shaft current and voltage turns.
- Supply of Sohre brushes
and inserts

Global Partners
Simple configuration of rotor winding data
EW Technologies - Australia allows for easy application to a wide range of
Shaft Earthing Solutions - UAE rotor designs.

Sohre Exclusivity
Exclusive supplier of Sohre
products in the following
countries: Up to 12 coils can be monitored with various
number of turns per coil.
Australia, New Zealand,
Indonesia, Singapore,
Malaysia, Philippines, Vietnam,
South Korea, Taiwan,
Cambodia, Thailand, India,
Bangladesh, Pakistan, Saudi
Arabia, Oman, Qatar, Bahrain
and United Arab Emirates.

Dimensions
