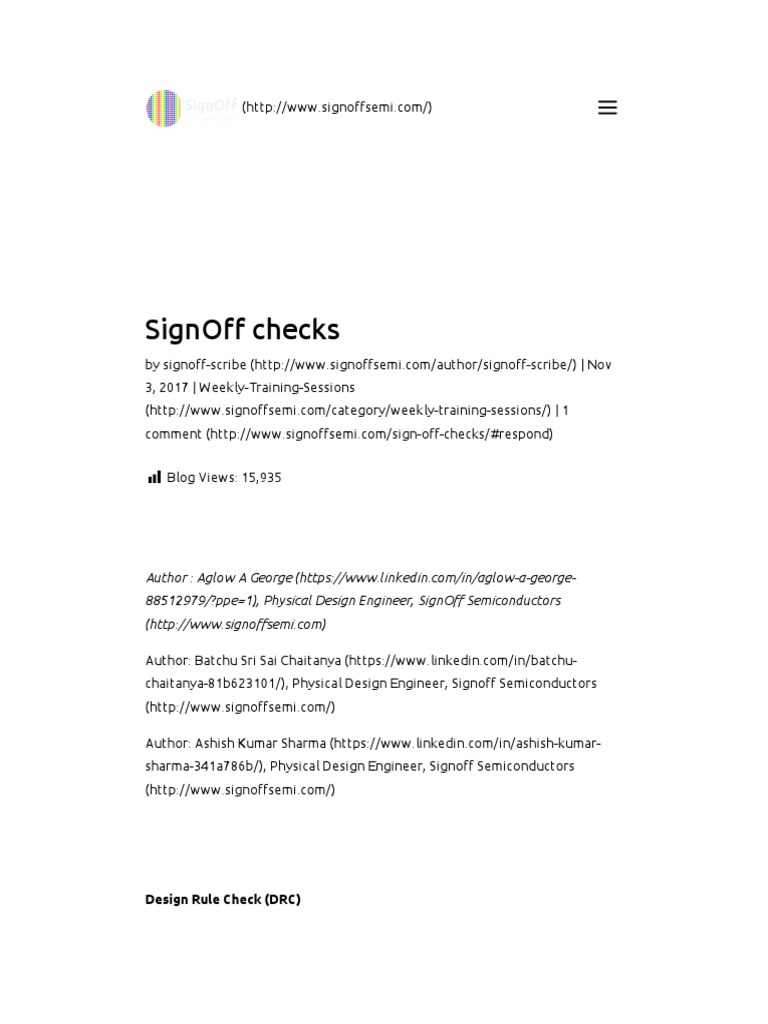

SignOff checks
by signoff-scribe (http://www.signoffsemi.com/author/signoff-scribe/) | Nov
3, 2017 | Weekly-Training-Sessions
(http://www.signoffsemi.com/category/weekly-training-sessions/) | 1
comment (http://www.signoffsemi.com/sign-off-checks/#respond)

Blog Views: 15,935

Author : Aglow A George (https://www.linkedin.com/in/aglow-a-george-

88512979/?ppe=1), Physical Design Engineer, SignOff Semiconductors
(http://www.signoffsemi.com)

Author: Batchu Sri Sai Chaitanya (https://www.linkedin.com/in/batchu-

chaitanya-81b623101/), Physical Design Engineer, Signoff Semiconductors
(http://www.signoffsemi.com/)

Author: Ashish Kumar Sharma (https://www.linkedin.com/in/ashish-kumar-

sharma-341a786b/), Physical Design Engineer, Signoff Semiconductors
(http://www.signoffsemi.com/)

Design Rule Check (DRC)

Design Rule Check (DRC) determines whether the layout of a chip satisfies a
series of recommended parameters called design rules. Design rules are set of
parameters provided by semiconductor manufacturers to the designers, in
order to verify the correctness of a mask set. It varies based on semiconductor
manufacturing process. These rule set describes certain restrictions in
geometry and connectivity to ensure that the design has sufficient margin to
take care of any variability in manufacturing process.

Design rule checks are nothing but physical checks of metal width, pitch and
spacing requirement for the different layers with respect to different
manufacturing process. If we give physical connection to the components
without considering the DRC rules, then it will lead to failure of functionality
of chip, so all DRC violations has to be cleaned up.

After the completion of physical connection, we check each and every

polygon in the design, based on the design rules and reports all the violations.
This whole process is called Design Rule Check.

Typical DRC rules are:

1. Interior
2. Exterior
3. Enclosure
4. Extension

Interior:

Fig1: Distance of interior facing edge for a single layer.

 Fig2: Distance of interior facing edge of two layer.

Exterior:

Fig3: Distance of exterior facing edge of two layer

Enclosure:
 Fig4: Distance between inside edge to outside edge.

Extension:

Fig4: Distance between inside edge to outside edge.

To understand the basic design rules, let’s take CMOS inverter as an

examples:
 Fig5: CMOS Inverter layout

Layout versus Schematic (LVS)

DRC only verifies that the given layout satisfies the design rules provided by
the fabrication unit. It does not ensure the functionality of layout. Because of
this, idea of LVS is orginated. This blog focuses on how LVS works and what all
are the common issues faced in LVS.

How LVS works

Inputs needed to perform LVS are:

• .v – netlist of the design

• GDS – layout database of the design
• LVS rule deck

.v and GDS should be of same stage.

LVS rule deck is a set of code written in Standard Verification Rule Format
(SVRF) or TCL Verification Format (TVF). It guides the tool to extract the
devices and the connectivity of IC’s. It contains the layer definition to identify
the layers used in layout file and to match it with the location of layer in GDS.
It also contains device structure definitions.

LVS check involves three steps:

1. Extraction: The tool takes GDSII file containing all the layers and uses
polygon based approach to determine the components like transistors,
diodes, capacitors and resistors and also connectivity information between
devices presented in the layout by their layers of construction. All the device
layers, terminals of the devices, size of devices, nets, vias and the locations of
pins are defined and given an unique identification.
2. Reduction: All the defined information is extracted in the form of netlist.
3. Comparison: The extracted layout netlist is then compared to the netlist
of the same stage using the LVS rule deck. In this stage the number of
instances, nets and ports are compared. All the mismatches such as shorts and
opens, pin mismatch etc.. are reported. The tools also checks topology and
size mismatch.
 Fig6: LVS Flow

Commonly faced LVS issues:

LVS check includes following comparisons:

• Number of devices in schematic and its layout

• Type of devices in schematic and its layout
• Number of nets in schematic and its layout

Typical errors which can occur during LVS checks are:

1. Shorts: Shorts are formed, if two or more wires which should not be
connected together are connected.
2. Opens: Opens are formed, if the wires or components which should be
connected together are left floating or partially connected.
3. Component mismatch: Component mismatch can happen, if components
of different types are used (e.g, LVT cells instead of HVT cells).
4. Missing components: Component missing can happen, if an expected
component is left out from the layout.
5. Parameter mismatch: All components has it’s own properties, LVS tool is
configured to compare these properties with some tolerance. If this tolerance
is not met, then it will give parameter mismatch.

IR Drop Analysis:

IR Drop can be defined as the voltage drop in metal wires constituting power
grids before it reaches the vdd pins of the cells. IR drop occurs when there are
cells with high current requirement or high switching regions. IR drop causes
voltage drop which in-turn causes the delaying of the cells causing setup and
hold violations. Hold violations cannot be fixed once the chip is fabricated.

There are two types of IR drop analysis namely:

Static IR drop analysis:

• Calculates the average voltage drop of entire design assuming current

drawn across is constant.
• As average current is calculated this analysis depends on time period. This
analysis is good for signoff checks in older technology.

Dynamic IR drop analysis:

• Depends on switching activity of the logic.

• Is vector dependent .
• Less dependent on clock period as depends on instantaneous current.
• Analysis of peak current demand and highly localized cells.

Methods to reduce IR drop:

• Robust power mesh– Initial power grid is made based on static ir analysis
due to late availability of switching activity. If there is IR drop due to some
of the clustered cells then adding a strip will make the power mesh more
robust.

Fig7: Custom power rail added to make it robust

• De-cap– These are decoupling capacitors which are spread across the high
switching region to maintain the voltage.
• Spacing– If clock cells are clustered and causing IR drop, then by spacing
them apart near to different power rails will reduce the IR drop. While
shifting the cell to next power rail, it should be made sure that the power
rail is not driving many cells, because adding another cell may give IR drop.

• Reducing load– Cells driving more load will be drawing more current.
Hence reducing load will reduce IR drop.
• Downsizing– Cells of smaller size will draw less current. But the transition
 of cells should not become worse.
• The number of power switches can be increased to reduce IR drop
• It should be made sure that all the power pins of macros are properly
connected to the power rails.

Note:

• For accurate dynamic analysis vcd files (switching activity file) with sdf
(standard delay format) is better.
• Glitches produced from combinational circuit may act as instantaneous
switch. Reducing them will decrease the pessimism of dynamic IR drop
analysis.
• IR drop analysis is done in RC worst corner (corner having more resistance
of rails) and FF process, high voltage and high temp corner (PVT corner)
because current is drawn more in this corner.

ELECTRO MIGRATION (EM):

Electro migration (EM) refers to the unwanted movement of materials in a

semiconductor. If the current density is high enough, there can be a
momentum transfer from moving electrons to the metal ions making the ions
to drift in the direction of the electron flow. This results in the gradual
displacement of metal atoms in a semiconductor, potentially causing open
and short circuits. Due to high current density and resistance of metal in the
recent technologies EM has become dominating.

• EM leads to open circuits due to voids in wires or vias and leads to short
circuits due to extrusions or “hillocks” on wires. Either can cause a system
failure that is hard to diagnose.
• During older technology nodes EM was considered only on power wires and
clock wires. But now signal wires also need to be considered due to
increased current density in them.
• Fin-FETs have more current density than planar transistors, thus making EM
worse, especially in conjunction with narrow wires.
• Copper interconnects worsen EM because the copper molecule moves
faster.
• In the recent technologies the lower supply voltages is helping to reduce
EM, but not enough to offset all the other causes that amplify it.
• EM is worse at higher temperatures.
• EM fixing techniques such as widening wires, can increase area and cause
timing violations. EM fixing needs to be timing-driven.

Methods to fix EM

1. Widen the wire to reduce current density

2. Keep the wire length short
3. Reduce buffer size in clock line

Not in PD point of view

1. Reduce the frequency

2. Lower the supply voltage

SCAN Tracing:

Files (Scan DEF and .V)

In scan tracing we are checking the connection of flip flops, there should not
be any floating connections. The reason why we are doing scan tracing is
because, in formality check we disable the Scan(so it doesn’t check the scan
chain), and we are assuring that there is no issue with scan chains.

DFM:

Files (GDS and Rule deck file)

As the technology scales down, manufacturing process is becoming more

complex. DFM (design for manufacturing) is the stage in which we modify or
add extra things (like redundant via insertion, wire spreading). These
techniques will increase the yield and reliability in the design.

Few DFM steps:

1. Redundant Via insertion.

2. Wire spreading.
3. Wire slotting.

4. Metal filling.

Formality Check:

Files (Reference netlist, Implemented Netlist, .V and .Lib)

The basic idea behind FM check is to compare implemented netlist with

reference netlist (Synthesis stage netlist / golden netlist). We check whether
the logic output value given in both stages are same.

Example 1: If we check the FM in the Scan mode (i.e, in ON state) we will get
the formality issues, because during the scan chain reordering the position of
Flip Flops will be changed with respect to SCAN def file. To overcome this
issue, we have to disable the scan port (by assigning it’s value to “0”).

Example 2: Undriven port Issue: In golden netlist for the floating pins binary
values are assigned like “0” or ”1”, but when it gets implemented floating pin
is assigned as “X ” which leads to mismatch. To resolve this issue, we set both
pins in implemented and reference netlist either “0” or “1”.

Power Analysis:

Files (SPEF, SAIF,.V, Lib, UPF and SDF)

In Power analysis we calculate the power dissipation. Two types of power

dissipation, (i) Leakage Power (ii) Dynamic power. Leakage power is basically
static power which is dissipate during the Off state or non-toggling (when the
input data is fixed) state of device, and for the dynamic power the activity
factor is required, which is present in the SAIF (switching activity interchange
format) file. We also check for hot spot in the design, the hot spot is basically
the small region where the higher power dissipation is present.
1 Comment
K Prudhvi (https://www.linkedin.com/in/korada-
prudhvi-415939a0/)
on May 8, 2018 at 3:37 PM

Nice job Aglow and Ashish =D =D

Reply

Search

Recent Posts
Gate All Around FET (http://www.signoffsemi.com/gate-all-around/)

Communication Protocols (http://www.signoffsemi.com/communication-

protocols/)

FinFET-2 (Multi-Gate FinFET) (http://www.signoffsemi.com/finfet-2/)

Bulk CMOS (http://www.signoffsemi.com/bulk-cmos/)

Silicon On Insulator ( SOI ) (http://www.signoffsemi.com/silicon-on-insulator-

soi/)

Recent Comments
Siddharth (http://siddhu.dvs@gmail.com) on Standard Cell Library
(http://www.signoffsemi.com/standard-cell-library-2/#comment-2372)

Anil on Standard Cell Library (http://www.signoffsemi.com/standard-cell-

library-2/#comment-2339)

Veeranna K on STA – Part1 (http://www.signoffsemi.com/sta-

part1/#comment-2277)
MOINUDDIN on Standard Cell Library (http://www.signoffsemi.com/standard-
cell-library-2/#comment-2171)

Signoff-Scribe (http://www.signoffsemi.com/user/signoff-scribe/) on Pulse

Width Reduction (http://www.signoffsemi.com/pulse-width-
reduction/#comment-1378)

Archives
February 2019 (http://www.signoffsemi.com/2019/02/)

December 2018 (http://www.signoffsemi.com/2018/12/)

July 2018 (http://www.signoffsemi.com/2018/07/)

March 2018 (http://www.signoffsemi.com/2018/03/)

February 2018 (http://www.signoffsemi.com/2018/02/)

December 2017 (http://www.signoffsemi.com/2017/12/)

November 2017 (http://www.signoffsemi.com/2017/11/)

October 2017 (http://www.signoffsemi.com/2017/10/)

June 2017 (http://www.signoffsemi.com/2017/06/)

May 2017 (http://www.signoffsemi.com/2017/05/)

April 2017 (http://www.signoffsemi.com/2017/04/)

Categories
Random-Blogs (http://www.signoffsemi.com/category/random-blogs-2/)

Weekly-Training-Sessions (http://www.signoffsemi.com/category/weekly-
training-sessions/)

Meta
Log in (http://www.signoffsemi.com/wp-login.php)

Entries RSS (Really Simple Syndication) (http://www.signoffsemi.com/feed/)

Comments RSS (Really Simple Syndication)

(http://www.signoffsemi.com/comments/feed/)

WordPress.org (https://wordpress.org/)
QUICK LINKS WORK WITH US
Home Careers

(http://www.signoffsemi.com/) (http://www.signoffsemi.com/careers/)
About Us Blog as a guest

(http://www.signoffsemi.com/company) (http://www.signoffsemi.com/connect-with-
Team us/)
(http://www.signoffsemi.com/company#anc
hor-for-team)

BUSINESS  (https://www.facebook.com/Sig
Partner with us

(http://www.signoffsemi.com/connect-with-
(https://www.linkedin.com/compa
us/)
semiconductors)
Corporate training

(http://www.signoffsemi.com/connect-with-  080 4865 0875 (tel:080

us/)
4865 0875)
