Technical Specification WWD1

Appendix 10 Technical specification 1 (18)

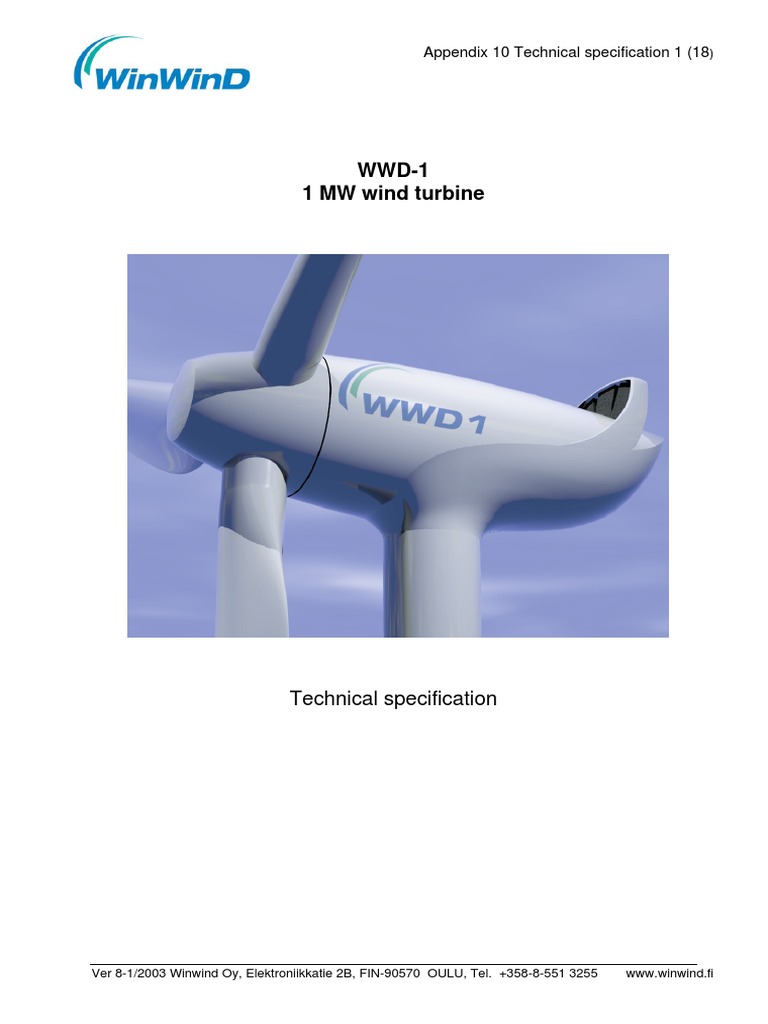

WWD-1
1 MW wind turbine
Technical specification
Ver 8-1/2003 Winwind Oy, Elektroniikkatie 2B, FIN-90570 OULU, Tel. +358-8-551 3255 www.winwind.fi
Contents
1. General............................................................................................................................................................ 3
2. Tower............................................................................................................................................................... 6
3. Rotor................................................................................................................................................................ 6
4. 3-RR main bearing (three row cylinder bearing) .................................................................................. 7
5. Planetary gear ............................................................................................................................................... 7
6. Lubrication..................................................................................................................................................... 8
7. Generator ....................................................................................................................................................... 8
8. Brake system................................................................................................................................................. 8
9. Hydraulic system.......................................................................................................................................... 9
10. Glassfiber cover ......................................................................................................................................... 10
11. Yaw system.................................................................................................................................................. 10
12. Foundation................................................................................................................................................... 11
13. Grid connection .......................................................................................................................................... 11
14. Turbine control, remote monitoring and reporting ........................................................................... 12
14.1. Reporting.............................................................................................................................................. 12
14.2. Transformation of production data into other information systems (optional) ................. 13
14.3. Presenting the production data on the Internet (optional) ...................................................... 14
14.4. Remote control ................................................................................................................................... 14
14.5. Alarms ................................................................................................................................................... 15
15. Self-diagnostic of the wind turbine ....................................................................................................... 15
16. Lightning protection.................................................................................................................................. 15
17. Anti-icing of blades.................................................................................................................................... 16
18. Aviation lights ............................................................................................................................................. 16
19. Maximum temperatures............................................................................................................................ 16
20. Power curve................................................................................................................................................. 17
Information of this document is subject to change without notice.

WinWinD® is a registered trademark of WinWinD Oy.
This document contains general information about WWD-1 wind turbines. The exact
scope of delivery shall is defined in Contents of the Delivery
Date Revision Author Remark

Aug 2003 8/2003 Eku Document update
Aug 2003 8-1/2003 EKu Dimensions updated
Nov 2003 8-2/200 EKu Updated
1. General
WinWinD has developed an innovative wind turbine for the market with its
WWD concept. WinWinD’ s basic values include customer satisfaction and
the operational reliability of the products, as well as the win-win co-
operation achieved between the clients and WinWinD.
On the basis of thorough technical and economic research work the WWD
concept, which allows electricity to be produced with a new innovative inte-
grated power unit, was created. The basis for design was efficiency, reliabil-
ity and ease of maintenance which allows the WWD concept to offer the
most cost-effective production throughout its total life, combined with the
lowest operating costs.
The drive train of the WWD-1 wind turbine consists of a single-stage plane-
tary gear and a low-speed synchronous generator. This Multibrid®-concept
combines the reliability of a direct drive and the compactness of a gear sys-
tem. Low rotational speed together with precise dimensioning ensures reli-
ability. The solution is suitable for a weak grid and also enables operation in
a stand-alone mode.
Low maintenance costs are also benefits of the WWD-concept. The main-
tenance is designed so that the production stops are minimized. This
means, in practice, that all the maintenance is done on-site without expen-
sive equipment. The used components have exceptional long maintenance
cycle, which decreases maintenance costs as well.
General
Type 3 blades, 4 degree tilt, up-wind
Power control Pitch, variable speed
Rated power 1000 kW
Rotor diameter 60 meter
Cut-in wind speed 3,0 m/s
Rated wind speed 12,5 m/s
Cut-out wind speed 20,0 m/s
Design maximum 59,5 m/s (at hub height)
Rotor speed 7,7-25,6 rpm
Generator speed 44-146 rpm
Rotor weight 20 000 kg
Nacelle weight 36 000 kg

Colour of tower and nacelle RAL 7035 grey
Colour of tower and nacelle RAL 7035 grey
Classification IEC III, -7,5 m/s, 20 years (60 m)
Operating temperature -10...+ 35 ºC
Certification Germanischer Lloyd will certify the

WWD-1 wind turbine.
The rotor is combined to the power unit using a custom-made three-row

roller bearing (1). The roller bearing transfers the rotor loads directly to the
main casing past the planetary gear and generator.
The single-stage planetary gear (2) has a planetary carrier that runs with
the rotor. The planetary carrier runs the planet gears, which pass the power
to the sun gear increasing the rotating speed ratio 5,71, that is, to 44-146
rpm. The low speed generator (3) produces the electricity, which is con-
veyed to the frequency converter.
The direction and speed of the wind are measured by the anemometer and
wind vane on the cooler. On the basis of the information of the wind vane,
the drive train is turned using the yaw motor so that the blades face up-
wind. The rotational speed is controlled by three independent electric
pitches (4).
2. Tower
Hub height 56 m 66 m
Tower length 53,5 m 63,5 m
Number of sections 2 3
Weight 68 000 kg 90 000 kg
Colour RAL 7035 RAL 7035
3. Rotor
The rotor consists of three blades, hub and three electrical pitches.
The blades are made of epoxy resin reinforced glassfibre. The
blades also act as aerodynamic brakes. Normally the blades are
synchronised but in case of an emergency each blade can be con-
trolled individually. The pitch system is electric and equipped with a
back-up battery. The blades are equipped with lightning conduc-
tors.
Rotor main data

Rotor diameter 56 m / 60 m
Swept area 2463 m2 / 2826 m2
Rated tip speed 75.6 m/s
Specific power 406 W/m2
Rotor speed 7.7 – 25.6 rpm
Rotor tilt 4 degrees
Rotor cone angle 0
Tip’s distance from the tower 4.56 m
Hub
Manufacturer Metso Foundry (or a second
source)
Type Spherical graphite cast iron
Material GJS-400-18 ULT
Blades
Manufacturer EUROS GmbH (or a second
source)
Material Epoxy resin reinforced glassfibre
Weight About 3300 kg (60 m version)
Profile NACA / TUDELFT

Total length 27.4 m (56 m version)
Surface area About 40 m2 (56 m version)
Cross sections 2.40 / 1.48 m
Colour RAL 7035 grey
Lightning protection Integrated lightning conductors
Power control (pitch)

Type Electrically synchronised pitch, in
case of an emergency independent
pitch for each blade
Manufacturer SSB GmbH (or a second source)
Blade bearing 2-ballbearing
Manufacturer HRE (or a second source)
Gearing 3-stage planetary gear
Manufacturer Bonfiglioli (or a second source)
Maximum speed 20 degrees/s
4. 3-RR main bearing (three row cylinder bearing)
The main bearing is integrated to the hub and the supporting power unit.
The bearing is lubricated with oil and protected against weather. The dou-
ble lip seal is filled with grease.
3-RR bearing
Manufacturer Hoesch-Rothe-Erde (or a second
source)
Material Ball races 42 CrMo 4 V
Roller races 100 Cr 6
Weight About 1350 kg
5. Planetary gear
Planetary gear
Manufacturer Metso Drives
Type 1-stage, PL-540, helical gear
Cooling Oil circulation and cooler
Ratio 1:5.71
Lubrication Forced lubrication

Oil type VG320
Oil change Annual check, change when
needed
6. Lubrication
Hydraulic system
Manufacturer Hydac Oy (or a second source)
Oil type VG320
Cooling Separate cooler
Heating Electric resistor
7. Generator
Generator
Manufacturer ABB Helsinki
Type AMG 1120SE20 DSEB
Cooling Water jacket
Rated power 1057 kW
Rated voltage 660 V (internal voltage)
Insulation category F
Protection category Inside IP23,
IP56 in general
Grid connection Via IGBT-inverter
8. Brake system
Each rotor blade independently acts as an aerodynamic brake. The

computer controls the system with the help of the anemometer and wind
vane.
The stop procedures are:
The normal stop: the blades are synchronised and they are
adjusted to the stop position 5 degrees/s without using any
mechanical brakes.
The fast stop: the blades are adjusted to the stop position 15
degrees/s without using any mechanical brakes.
The emergency stop: the blades are adjusted to the stop posi-
tion with the speed of about 20 degrees/s using the battery
power. The mechanical brakes are used at the same time.
Each blade can be independently adjusted to the stop position. Each blade
is equipped with a back-up battery. If one of the blade pitches fails, the syn-
chronisation is turned off and each blade is driven separately to the storm
position using the back-up battery.
The system meets the standards of Germanischer Lloyd. The standard

does not require the mechanical brakes but that improves security and is
used for locking the rotor during maintenance.
Aerodynamic brake
Type 3 individual blade pitch
Activation Electric
Mechanical brake
Type Active hydraulic disc brake
Number 2
Manufacturer Antec (or a second source)
Location Behind the rotor, on the fast side
Disc material S355 J2G3
9. Hydraulic system
Hydraulic system
Manufacturer Hydac (or a second source)
Hydraulic fluid VG 50
Heating Electric resistor
10. Glassfiber cover
Hub cover
Manufacturer Kuitunikkarit (or a second source)
Material Sandwich glassfiber
Colour RAL 7035 grey
11. Yaw system
The wind vane on the roof of the drive train continuously monitors the direc-
tion of the wind. The wind vane is equipped with an anti-icing system. When
the direction of the wind changes, two geared yaw motors on top of the
tower (at the yaw bearing level) turn on and the hydraulic brakes are loos-
ened automatically.
Yaw bearing
Manufacturer HRE (or a second source)
Type One row prestressed ball bearing
Material 42 CrMo 4, balls 100 CR 6
Yaw gearing
Manufacturer Bonfiglioli (or a second source)
Type 4-stage planetary gear
Number 2
Yaw speed 0,75 degrees/s
Yaw motor
Type Asynchronous motor
Rated power 2,2 kW
Protection IP54
Speed 940 r/min
Yaw brakes
Manufacturer Antec (or a second source)
Type Prestressed, active
Number 6
12. Foundation
The foundation is a massive solid slab foundation laid either on ground or

on pile foundation depending on the local ground conditions.
The tower shall be connected to the foundation by cylindrical flange or ground bolts.
13. Grid connection
WinWinD wind turbine is monitored by a programmable, digital central con-

trol system, which analyses and controls the electricity production accord-
ing to the digital data, provided by the sensors.
An IGBT inverter is used for connecting to the grid. The inverter is con-
nected to an transformer either outside or inside the foundation. The volt-
age level of the electricity fed to the grid is either 10 kV or 20 kV and the
frequency either 50 Hz or 60Hz depending on the grid.
Monitoring
Connecting equipment MITA Systems
Main frame MITA WP3000
Type Microprocessors in parallel
Grid connection IGBT AC inverter
AC inverter
Manufacturer ABB (or a second source)
Type 4 quadrant IGBT frequency con-
verter
Power ab. 1400 kVA
Supply voltage 690 V (+ 10% / -15%)
Supply mains’ frequency 48-63 Hz
Water cooled
Minimum requirements of the transformer

Power 1100 kVA
Rated voltage 690 V
Low-loss
Static Screen
More information is available on document WWD-1 grid connection description
14. Turbine control, remote monitoring and reporting
WinWinD wind turbines can be connected to remote monitoring system us-

ing an ISDN connection or an analogue telephone line. It is possible to use
a GSM connection, too, if there are no landlines available.
14.1. Reporting
The remote control can be used for diverse monitoring of the functions of
the wind turbine, e.g., basic data, (daily, weekly, monthly or annual) produc-
tion and the status of different functions.
Example of the basic data:
In addition, the system gathers diverse data on production and functions.

The following figure is an example of a daily power production report.
The graphic user interface is user-friendly and the outputs are clear. The
following information, for example, is available real time:
9 Information on production and wind
9 Temperatures
9 Currents, voltages and power data
9 Rotational speed
The diagrammatic presentations and drawings include

9 Daily, monthly and annual production
9 The production data of the latest 24 hours at 10 minute intervals
9 Log events
The production data can be printed.
Mita-modules needed:
• Mita Basic dongle
14.2. Transformation of production data into other information systems (op-

tional)
The production data can be automatically retrieved from the wind turbine to
the control room at fixed intervals. The data can then be converted to, for
example, Excel or Access format. It is possible to produce an ASCII text
file, as well.
This enables the client to make use of the diverse production data of the
wind turbine in their own systems.
• Mita AutoCall (to fetch information from turbines to office))
14.3. Presenting the production data on the Internet (optional)
The system enables presenting the production data of the wind turbines on
the Internet. Access to the data can be free or a username with password
can be used. Thus the production data can be viewed regardless of the
place or time; the Internet-connection, however, is a necessity.
In addition, the client can upload the production data onto their own com-
puter in Excel format, which makes further reporting smooth.
WinWinD modules needed:

WinWinD Internet-based wind park production www- service
14.4. Remote control
Wind turbine can be remote controlled. Settings of the main frame can be
changed also remotely. The wind turbine can be started and stopped using
the remote control, too.
Mita Remote Display
14.5. Alarms
In case of a malfunction the system alarms and informs the central control
room or any pre-programmed telephone number of the need for repair.
The alarm can also be forwarded from the central control room to the main-
tenance personnel using either an SMS or e-mail (optional).
• Mita Basic dongle (to receive the alarm call)
• Mita Auto Alarm Dispatch (for e-mail)
WinWinD modules needed: From E-mail to SMS - module
15. Self-diagnostic of the wind turbine
The wind turbine is equipped with an automatic monitoring system, which

continuously protects and controls the generator and the grid and adjusts
the settings according to the wind and weather conditions. This way the
power production can be optimised. During the cold season the sensors
measure the need for heating of the power unit and lubrication oil and en-
sure a safe start.
For case of a grid drop the wind turbine has an uninterruptible power sys-
tem (UPS), which ensures the control for 3 minutes.
The anemometer and wind vane of the wind turbine monitor the changes in
the wind and the technique starts and stops the plant according to the set-
tings.
16. Lightning protection
The most advanced lightning protection technology in the field is used. The
following principles are applied
9 Lightning conductor in each blade
9 Varistors and fuses in the connector casing of the generator
9 Varistors and fuses on the connectors of the inverter
9 Protected sensor cables

9 Overvoltage protection on the high voltage side of the transformer
9 Earthing of the tower according to the VDE 0185 standard
9 The functioning of the varistors and fuses signalled to the control
computer
17. Anti-icing of blades
Anti-icing of the blades is not in use.
18. Aviation lights
Light intensity 10 cd *)
Battery back-up (in case of grid failure) no
Type of light fixed
Light colour red
GPS-synchronisation no
Amount of lights per turbine 1 unit (consist of tens of leds)
Type of the lamps led
*) ICAO (International Civil Aviation Organization) defines minimum requirements for

obstacle lights: ICAO Type A, low-intensity, fixed red light: Minimum intensity 10 cd at
+6° and +10° elevation angles, Vertical beam spread 10°
19. Maximum temperatures
When having +35 ºC or smaller outside temperature at hub height the production
capacity is according the power curve.
When having more than +35 ºC outside temperature at hub height, the production
capacity depends on temperature and wind speed. In some conditions, maximum
power shall be temporarily limited.
20. Power curve
Below is presented the calculated power curve with rotor diameter of 56 m

and 60 m. (Air density 1.225 kg/m3)
The following values are for WWD-1 / 56 m rotor
v (m/s) Ct Ce 11 0,70 0,401 22 0,08 0,063

1 0,81 0,000 12 0,57 0,378 23 0,07 0,055
2 0,81 0,000 13 0,41 0,305 24 0,06 0,048
3 0,81 0,228 14 0,32 0,244 25 0,06 0,042
4 0,81 0,322 15 0,25 0,199
5 0,81 0,380 16 0,21 0,164
6 0,81 0,408 17 0,17 0,136
7 0,81 0,413 18 0,14 0,115
8 0,81 0,418 19 0,12 0,098
9 0,81 0,419 20 0,11 0,084
10 0,76 0,419 21 0,09 0,072
Technical specification 18 (18)
Ver 3/2002

Technical Specification WWD1

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Technical Specification WWD1

Uploaded by

Copyright:

Available Formats

Appendix 10 Technical specification 1 (18)

Information of this document is subject to change without notice.

Date Revision Author Remark

Nacelle weight 36 000 kg

Operating temperature -10...+ 35 ºC

Certification Germanischer Lloyd will certify the

The rotor is combined to the power unit using a custom-made three-row

Rotor main data

Profile NACA / TUDELFT

Power control (pitch)

4. 3-RR main bearing (three row cylinder bearing)

Lubrication Forced lubrication

Each rotor blade independently acts as an aerodynamic brake. The

The stop procedures are:

The system meets the standards of Germanischer Lloyd. The standard

10. Glassfiber cover

11. Yaw system

The foundation is a massive solid slab foundation laid either on ground or

13. Grid connection

WinWinD wind turbine is monitored by a programmable, digital central con-

Minimum requirements of the transformer

More information is available on document WWD-1 grid connection description

14. Turbine control, remote monitoring and reporting

WinWinD wind turbines can be connected to remote monitoring system us-

Example of the basic data:

In addition, the system gathers diverse data on production and functions.

The diagrammatic presentations and drawings include

The production data can be printed.

14.2. Transformation of production data into other information systems (op-

14.3. Presenting the production data on the Internet (optional)

WinWinD modules needed:

14.4. Remote control

Mita Remote Display

WinWinD modules needed: From E-mail to SMS - module

15. Self-diagnostic of the wind turbine

The wind turbine is equipped with an automatic monitoring system, which

16. Lightning protection

9 Protected sensor cables

17. Anti-icing of blades

Anti-icing of the blades is not in use.

18. Aviation lights

*) ICAO (International Civil Aviation Organization) defines minimum requirements for

19. Maximum temperatures

20. Power curve

Below is presented the calculated power curve with rotor diameter of 56 m

The following values are for WWD-1 / 56 m rotor

v (m/s) Ct Ce 11 0,70 0,401 22 0,08 0,063

You might also like
