11/16/2019 4 Different Types of Current Transformers | Electrical4u

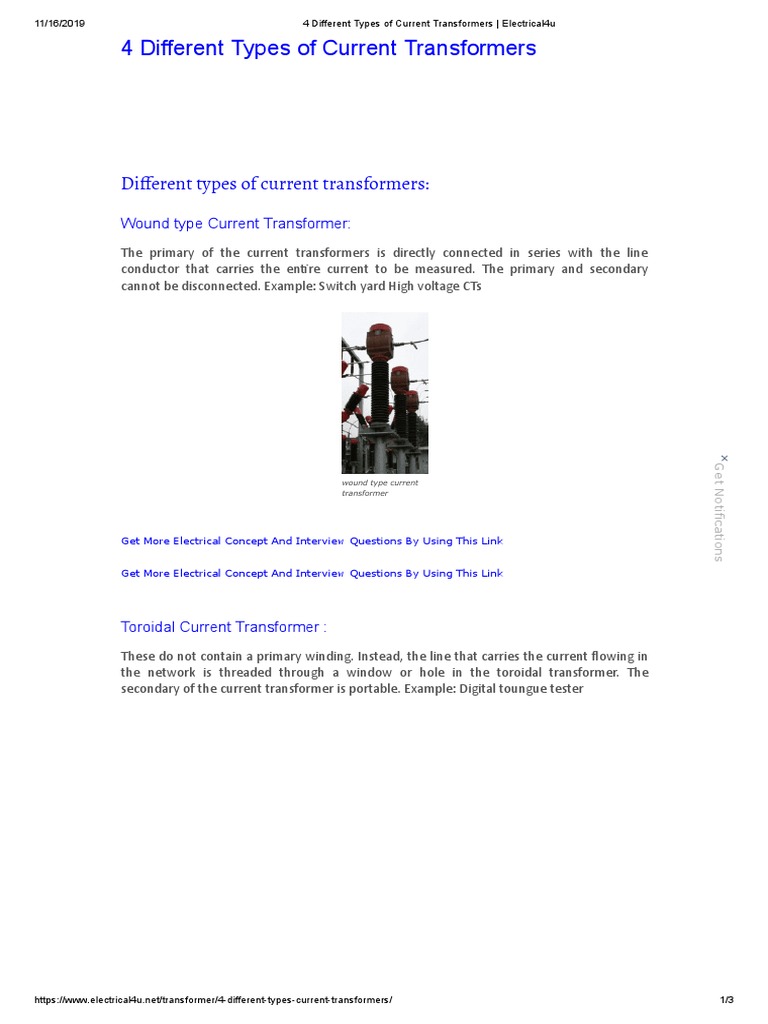

4 Different Types of Current Transformers

Di ferent types of current transformers:

Wound type Current Transformer:


The primary of the current transformers is directly connected in series with the line
conductor that carries the en re current to be measured. The primary and secondary
cannot be disconnected. Example: Switch yard High voltage CTs

×
Get Notifications
wound type current
transformer

Get More Electrical Concept And Interview Questions By Using This Link

Get More Electrical Concept And Interview Questions By Using This Link

Toroidal Current Transformer :


These do not contain a primary winding. Instead, the line that carries the current flowing in
the network is threaded through a window or hole in the toroidal transformer. The
secondary of the current transformer is portable. Example: Digital toungue tester

[Link] 1/3
11/16/2019 4 Different Types of Current Transformers | Electrical4u

Toroidal Current Transformer

Get More Electrical Concept And Interview Questions By Using This Link

Bar-type Current Transformer:


The primary of the current transformers is considered as the line or cable or busbar of the
load circuit. Typically, the single straight line considers as primary winding. These CTs are
connected such as hallow nature. They do not have any physical contact. The secondary of

×
Get Notifications
the transformer cannot be removed on live condi on. Example: Core Balanced Current
transformer CBCT (these current transformers are used to sense the unbalance current flow
in the circuit).

Also Know About: How to Read CT Current Transformer Nameplate Details

Bar type current Transformer

Get More Electrical Concept And Interview Questions By Using This Link

Summation Current Transformer:

[Link] 2/3
11/16/2019 4 Different Types of Current Transformers | Electrical4u

The output from the mul ple current transformer is given to the single transformer, which
converts mul ple output into single output. It just reduces the metering complexity,
installa on of mul ple equipment cost, wiring cost etc.

Summation Current transformer

×
