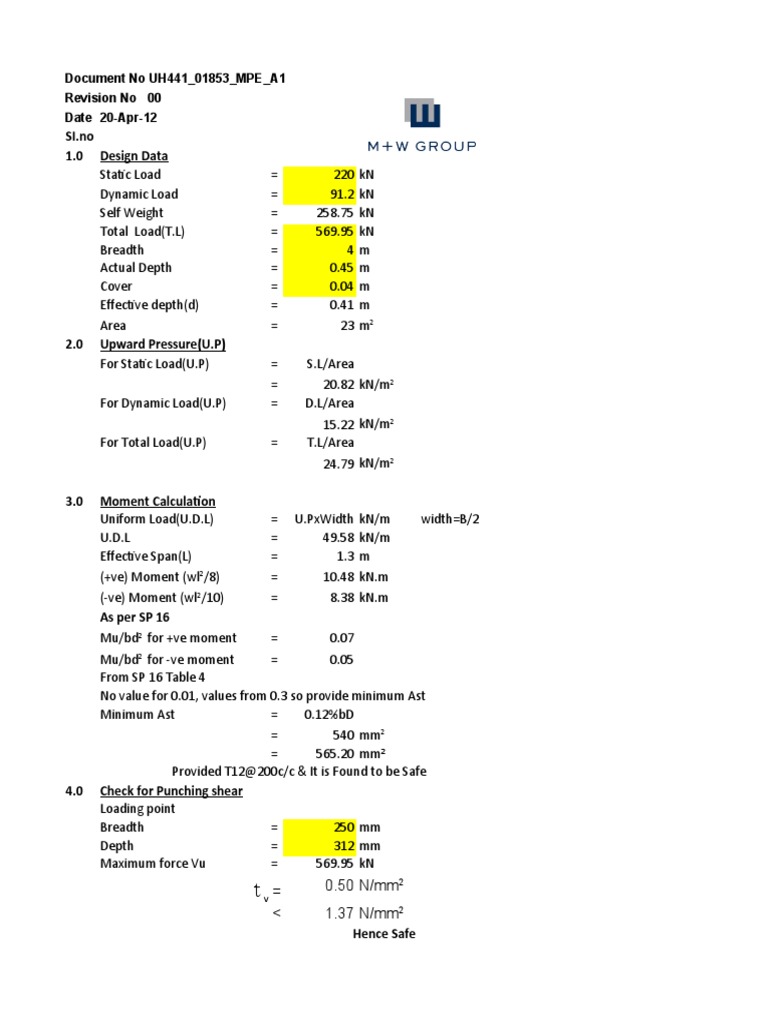

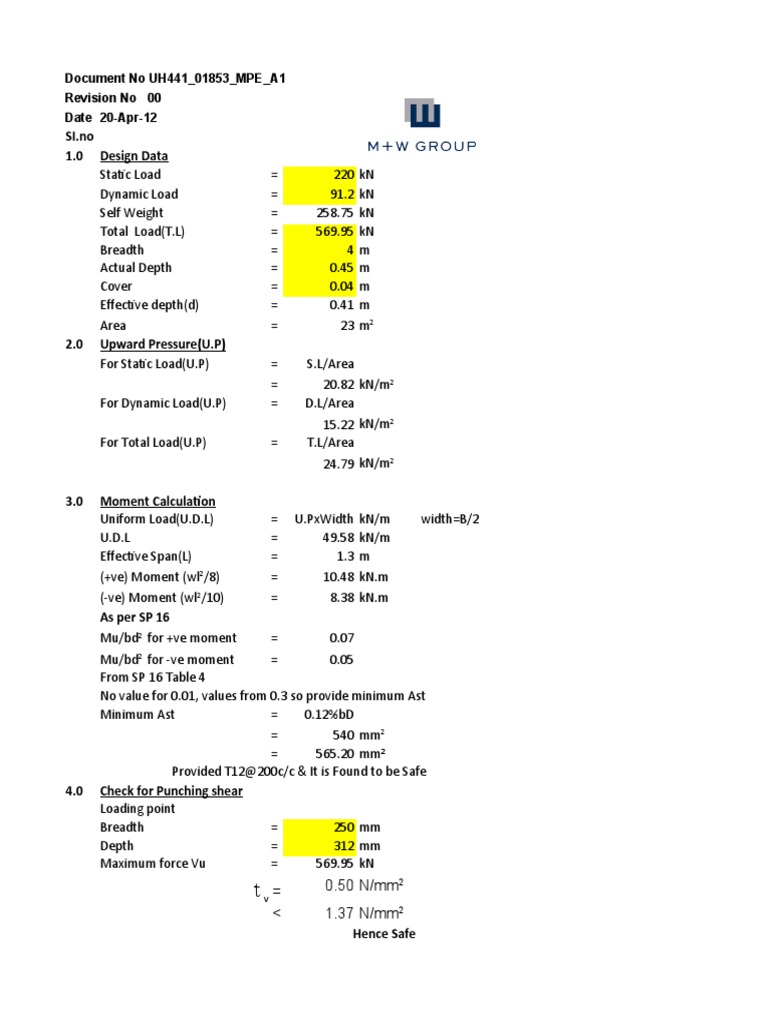

Document No UH441_01853_MPE_A1

Revision No 00
Date 20-Apr-12
SI.no
1.0 Design Data
Static Load = 220 kN
Dynamic Load = 91.2 kN
Self Weight = 258.75 kN
Total Load(T.L) = 569.95 kN
Breadth = 4 m
Actual Depth = 0.45 m
Cover = 0.04 m
Effective depth(d) = 0.41 m
Area = 23 m2
2.0 Upward Pressure(U.P)
For Static Load(U.P) = S.L/Area
= 20.82 kN/m2
For Dynamic Load(U.P) = D.L/Area
15.22 kN/m2
For Total Load(U.P) = T.L/Area
24.79 kN/m2

3.0 Moment Calculation

Uniform Load(U.D.L) = U.PxWidth kN/m width=B/2
U.D.L = 49.58 kN/m
Effective Span(L) = 1.3 m
(+ve) Moment (wl2/8) = 10.48 kN.m
(-ve) Moment (wl2/10) = 8.38 kN.m
As per SP 16
Mu/bd2 for +ve moment = 0.07
2
Mu/bd for -ve moment = 0.05
From SP 16 Table 4
No value for 0.01, values from 0.3 so provide minimum Ast
Minimum Ast = 0.12%bD
= 540 mm2
= 565.20 mm2
Provided T12@200c/c & It is Found to be Safe
4.0 Check for Punching shear
Loading point
Breadth = 250 mm
Depth = 312 mm
Maximum force Vu = 569.95 kN

tv = 0.50 N/mm2
< 1.37 N/mm2
Hence Safe
Document No UH441_01853_MPE_A2
Revision No 00
Date 20-Apr-12
SI.no
1.0 Design Data
Static Load = 680 kN
Dynamic Load = 0 kN
Self Weight = 250 kN
Total Load(T.L) = 930 kN
Breadth = 3.65 m
Actual Depth = 0.445 m
Cover = 0.04 m
Effective depth(d) = 0.405 m
Area = 25 m2
2.0 Upward Pressure(U.P)
For Static Load(U.P) = S.L/Area
= 37.2 kN/m2
For Dynamic Load(U.P) = D.L/Area
0 kN/m2
For Total Load(U.P) = T.L/Area
37.2 kN/m2
< 300kN/m2

3.0 Moment Calculation

Uniform Load(U.D.L) = U.PxWidth kN/m width=B/2
U.D.L = 67.89 kN/m
Effective Span(L) = 3.35 m
(+ve) Moment (wl2/8) = 95.24 kN.m
(-ve) Moment (wl2/10) = 76.19 kN.m
As per SP 16
Mu/bd2 for +ve moment = 0.32
Mu/bd2 for -ve moment = 0.47
From SP 16 Table 4
pt = 0.082
pt = 100ast/bd
Ast =

Minimum Ast = 0.12%bD

= 534 mm2
= 678.24 mm2
Provided T12@200c/c & It is Found to be Safe
4.0 Check for Punching shear
Loading point
Breadth = 500 mm
Depth = 500 mm
Maximum force Vu = 930 kN

tv = 0.63 N/mm2
< 1.37 N/mm2
Hence Safe
Document No UH441_01853_MPE_A3
Revision No 00
Date 20-Apr-12
SI.no
1.0 Design Data
Static Load = 560 kN
Dynamic Load = 0 kN
Self Weight = 84 kN
Total Load(T.L) = 644 kN
Breadth = 1.4 m
Actual Depth = 0.286 m
Cover = 0.05 m
Effective depth(d) = 0.236 m
Area = 8.4 m2
2.0 Upward Pressure(U.P)
For Static Load(U.P) = S.L/Area
= 76.67 kN/m2
For Dynamic Load(U.P) = D.L/Area
0 kN/m2
For Total Load(U.P) = T.L/Area
76.67 kN/m2
< 300kN/m2
Hence Safe
3.0 Moment Calculation
Uniform Load(U.D.L) = U.PxWidth kN/m width=B/2
U.D.L = 107.34 kN/m
Effective Span(L) = 3.6 m
(+ve) Moment (wl2/8) = 173.9 kN.m
(-ve) Moment (wl2/10) = 139.12 kN.m
As per SP 16
Mu/fckbd2 for +ve moment = 2.24
2
Mu/fckbd for -ve moment = 1.79
From SP 16 Table 4
pt = 0.587
Ast = 1940 mm2
Provided T12@200c/c & T16@200c/c It is Found to be Safe
4.0 Check for Punching shear
Loading point
Breadth = 320 mm
Depth = 600 mm
Maximum force Vu = 644 kN

tv = 0.98 N/mm2
< 1.37 N/mm2
Hence Safe
Document No UH441_01853_MPE_A4
Revision No 00
Date 20-Apr-12
SI.no
1.0 Design Data
Static Load = 180 kN
Dynamic Load = 450 kN
Self Weight = 260 kN
Total Load(T.L) = 890 kN
Breadth = 4.9 m
Actual Depth = 1.01 m
Cover = 0.05 m
Effective depth(d) = 0.96 m
Area = 26 m2
2.0 Upward Pressure(U.P)
For Static Load(U.P) = S.L/Area
= 16.93 kN/m2
For Dynamic Load(U.P) = D.L/Area
27.31 kN/m2
For Total Load(U.P) = T.L/Area
34.24 kN/m2
< 300kN/m2
Hence Safe
3.0 Moment Calculation
Uniform Load(U.D.L) = U.PxWidth kN/m width=B/2
U.D.L = 83.89 kN/m
Effective Span(L) = 2.7 m
(+ve) Moment (wl2/8) = 76.45 kN.m
(-ve) Moment (wl2/10) = 61.16 kN.m
As per SP 16
Mu/bd2 for +ve moment = 0.04
Mu/fbd2 for -ve moment = 0.03
From SP 16 Table 4
No value for 0.01 values from 0.3 so provide minimum Ast
Minimum Ast = 0.12%bD
= 2969.4 mm2
Provided T12@100c/c & It is Found to be Safe
4.0 Check for Punching shear
Loading point
Breadth = 500 mm
Depth = 500 mm
Maximum force Vu = 890 kN

tv = 0.16 N/mm2
< 1.37 N/mm2
Hence Safe
