Информация об обслуживании

Заголовок документа: Функциональная группа: Тип информации: Дата:

Hydraulic 910 Информация об 25.12.2019
diagram L90D, complete обслуживании
Профиль:

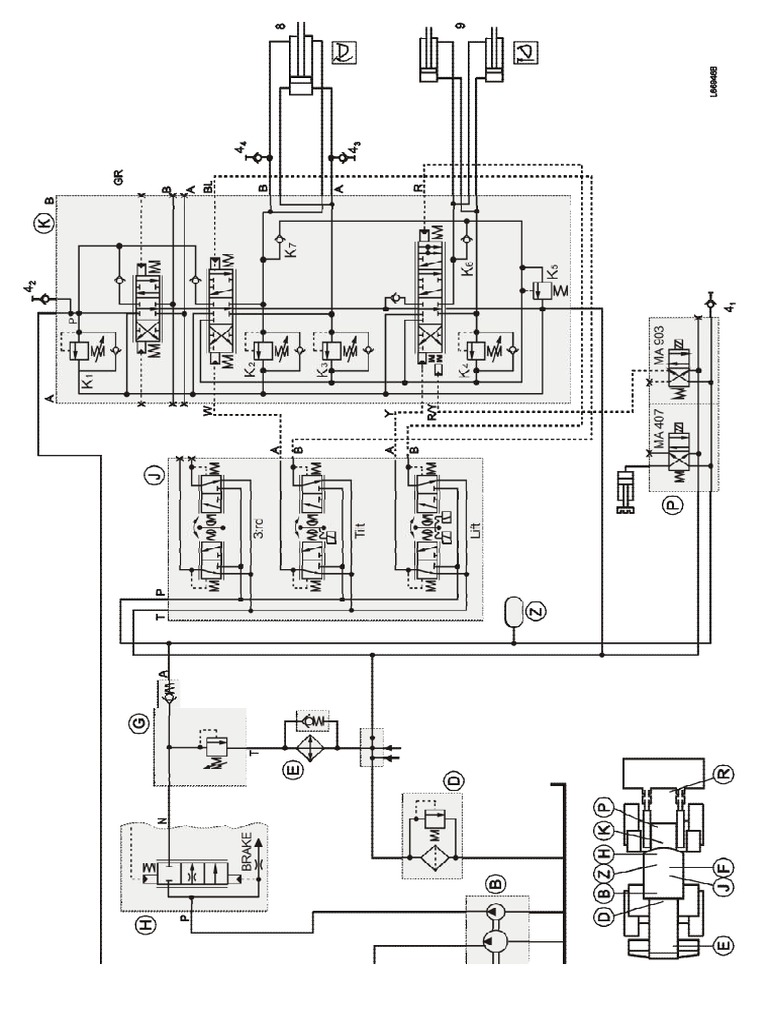

Hydraulic diagram L90D, complete

A Steering pump
B Hydraulic pump working hydraulics as well as brake and servo systems
C∗ Secondary steering pump
D Return oil filter
E Hydraulic oil cooler
G Pressure limiting valve
H Brake valve
I∗ Parking brake valve
J Servo valve
K Control valve
L∗ CDC lever steering
M Steering valve
O∗ Secondary steering valve
P Solenoid valve block
R Attachment locking
S Shuttle valve, 3rd/4th hydraulic function
U∗ Boom Suspension System (BSS)
V Steering accumulator
X Sequence valve

1 Rear axle
2 Front axle
3 Left steering cylinder
4 Right steering cylinder
5 Lift cylinder
6 Tilt cylinder
7∗ 3rd function
8∗ 4th function
9∗ 3rd function

∗ Optional equipment
 Информация об обслуживании

Заголовок документа: Функциональная группа: Тип информации: Дата:

Servo 914 Информация об 25.12.2019
pressure, checking and обслуживании
adjusting <br />(machine
with separate attachment
locking)
Профиль:

Servo pressure, checking and adjusting

Op nbr 91455

999 3831 Support

11 666 019 Pressure gauge 0–6 MPa (0–870 psi)
11 666 020 Pressure gauge 0–25 MPa (0–3625 psi)
11 666 037 Hose

Figure 1
Securing boom

1. 999 3831

The following applies when checking:

Temperature: Normal operating temperature
Engine speed: Entire engine speed range
NOTE!
Always use the support to secure the boom when working under a raised boom.

1. Remove the cover plate from the front frame.

Servo pressure, checking

2. Connect pressure gauge 11 666 019 to the pressure outlet on the solenoid valve block, located in the front frame
above the final drive, see [Invalid linktarget]. Start the engine and read off the servo pressure.
 Servo pressure:3.0–4.0 MPa (435–580 psi)

CAUTION
The switch for increased servo pressure on the instrument panel must not be touched; the pressure will then
increase to 15.5 MPa (2248 psi) at the pressure outlet.

Figure 2
Checking servo pressure and increased servo pressure

1. Pressure outlet for servo pressure and increased servo pressure, separate attachment locking
2. 11 666 037 and 11 666 019 (checking servo pressure) or 11 666 020 (checking increased servo pressure)

Servo pressure, adjusting

3. Remove the cover plate on the right side under the cab. Adjust the servo pressure on the right adjusting screw on
the valve block, see [Invalid linktarget]. The pressure is increased if the screw is turned in.

Increased servo pressure, checking

4. Connect pressure gauge 11 666 020 to the pressure outlet on the solenoid valve block, located in the front frame
above the final drive, see [Invalid linktarget]. Start the engine, activate the switch for increased servo pressure, see
[Invalid linktarget], and read off the pressure.
Increased servo pressure: 15.0 ±0.5 MPa (2175 ±72.5)

Figure 3
Switch, increased servo pressure

Increased servo pressure, adjusting

5. Remove the cover plate on the right side under the cab. Adjust the pressure on the left adjusting screw on the valve
block. The pressure is increased when the screw is turned in. Remove the pressure gauge.
 Figure 4
Valve block, separate attachment locking

1. Solenoid valve, increased servo pressure

2. Adjusting screw, servo pressure
3. Adjusting screw, increased servo pressure

6. Restore the machine to operating condition.

 Информация об обслуживании

Заголовок документа: Функциональная группа: Тип информации: Дата:

Servo 914 Информация об 25.12.2019
pressure, checking by spool обслуживании
in control valve
Профиль:

Servo pressure, checking by spool in control valve

Op nbr 91463

999 3831 Support

999 3704 Nipple, 2 pcs.
11 666 019 Pressure gauge, range 0–6 MPa (0–870 psi), 2 pcs.
11 666 037 Hose, 2 pcs.

The following applies when checking:

Figure 1
Securing boom

1. 999 3831

Temperature: Normal operating temperature

Engine speed: Entire engine speed range
In case of malfunction in any section, check to make sure that there are no leaks and that the output servo pressure
is correct.
NOTE!
Always use the support to secure the boom when working under a raised boom.

1. Remove the cover plate in the front frame.

Servo pressure, checking by spool

2. Fit 999 3704 (2 pcs), one on each side of the valve spool for the function that is to be checked, connect hoses and
the pressure gauge.

Figure 2
Checking servo pressure by valve spool

1. 999 3704 (connected one on each side of the valve spool)

2. 11 666 037 and 11 666 019 (two of each)

3. Start the engine and let it run at low idle. Check that there is no output pressure from the servo valve to the control
valve with the servo valve in the neutral position. Check the output pressure from the servo valve. The pressure
must, depending on the lever deflection, be approx. 0.6–4.0 MPa (87–580 psi) and no pressure on the opposite side.

4. Restore the machine to operating condition.
