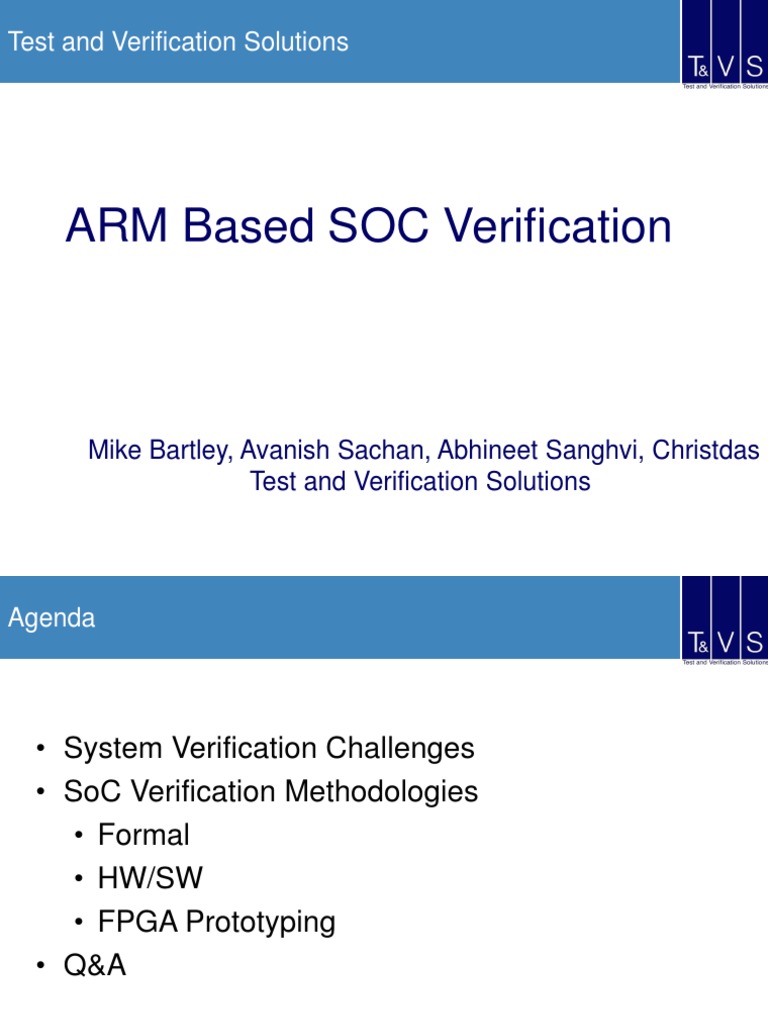

Test and Verification Solutions

ARM Based SOC Verification

Mike Bartley, Avanish Sachan, Abhineet Sanghvi, Christdas

Test and Verification Solutions

7 July 2008 1
Agenda

• System Verification Challenges

• SoC Verification Methodologies
• Formal
• HW/SW
• FPGA Prototyping
• Q&A

7 July 2008
14 March 2013 2
Typical ARM Based SoC Architecture

Debug & Trace

Test I/F
ARM Boot ROM Controller

ARM Core
Boot Config
High Speed
Pheripheral

PLL

External Bus
Interface
TIMER

ARM Interconnect

Memory SubSystem On Chip

Memory Bridge UART
DMA
Controller DDR Cntrl SRAM Cntrl

I2C

GPIO

Low Speed
Pheri pheral

Looks simple BUT ….

7 July 2008
14 March 2013 3
Why is SoC different? System Verification Challenges

High potential bug areas in SoC

 Unexpected access conflict between the
shared resources.
 Complexities arising out of interaction
between subsystems which were
verified stand alone.
 Cache coherency in multi-core system.
 Interrupt connectivity and Priority
scheme.
 Arbitration priority related issues and
access dead-locks.
 Unexpected HW/SW sequencing.
 Exception handling conflicts and priority
scheme.
 Multiple power domain region, clock
domain crossing.
 Multiple reset and clock region.

7 July 2008
14 March 2013 4
Top3 Verification Challenges

• Top1: Mastering Verification Complexity

– Continuous increase in number of IP’s and embedded
processors
• 2006: 30-40 IP’s, 1 CPU
• 2011: 80+ IP’s, 6+ CPU’s
• 2016: 120+ IP’s, 20 CPU’s ?
– The more IP’s the higher the risk of late spec &
implementation changes
– Driving towards true Hw/Sw Co-Verification

29 April 2009 5
2. Scalability

• Constrained-random simulation
has been proven as a good bug-
hunting flow, but...
– How many cycles to verify 2 weeks at
target speed of 1GHz?
• Answer: 0.6 x 1015
Simulation Emulation FPGA Si
(KHz) (1 MHz) (10 MHz) (1 GHz)
Target cycles 1,000,000 sim 1000 emulation 100 FPGA slots 1 chip
1015 slots slots

• How will we scale simulation,

emulation, FPGA to next
generation of CPUs? SoCs?
• What are the alternatives?
29 April 2009 6
ARM SoC DV Methodology

This session describe the current verification methodology used

in SoC verification.

 Formal Verification

 Hardware Software Co Verification

 FPGA Prototyping

7 July 2008
14 March 2013 7
Formal Verification

 Formal verification
 is a systematic process that uses mathematical
reasoning to verify the design.
 works algorithmically and exhaustively explores all
possible input values over time.
 no stimulus!
 Why use formal?
 100% coverage (if you set it up correctly)
 difficult to figure out how stimulate the design
 difficult to create checker
 An ideal formal verification tool requires
 capacity in order to handle complex designs
7 July 2008
14 March 2013 8
Simulation Depth-first vs. Formal Breadth-first

 Where the nodes are states in the simulation

 And the arcs are clocked transitions
 But the trees are
– Very wide
– Very deep
 Model Checking – a very brief introduction
Inputs to the tool

• 3 inputs to the tool • For example

– A model of the design – Usually RTL

– A property or set of – Items are transmitted to one of three

properties representing
the requirements
– A set of assumptions,
expressed in the same
language as the
properties
• typically constraints
on the inputs to the
design
destinations within 2 cycles of being
accepted
• (req_in && gnt_in) |-> ##[1;2]
(req_a || req_b || req_c)
– The request signal is stable until it is
granted
• (req_in && !gnt_out) |-> ##1 req_in
• We would of course need a
complete set of constraints

Apps allow you to auto-generate properties and constraints

INTERCONNECTIVITY VERIFICATION

Formal properties can be written to verify Example

 Connectivity between two IP’s within the SoC
hierarchy

 Connectivity between the IP and DUT ports Block B

through the pads Block A Block C

PortA1 Port2
 The default reset values of all the DUT ports
Port1

 Pad ring structure and control validation IN1

 Point-to-point and Point-to-multipoint

Ctrl
interconnectivity checks

Using Formal analysis for connectivity checking assert_in1__blockc_port1:

facilitates assert property ((dut.ctrl) throughout
dut.in1 == dut.blockb.blockc.port1);
 Controllability
assert_blocka__blockc_port2:
 Completeness assert property (dut.blocka.porta1
== dut.blockb.blockc.port2 );
Generation of Formal Properties can be
automated by running scripts on spreadsheets.
Formal tools like IFV (Cadence) and Questa
(Mentor) support connectivity checking

7 July 2008
14 March 2013 11
BUS PROTOCOL COMPLIANCE VERIFICATION

Protocol Compliance check using

Formal Verification involves

 Development of a formal
specification of the protocol

 Bus Interface of each

component modelled as a FSM

 Protocol is then defined to be

the synchronous composition of
these state machines

Finite state description of the protocol can be formally verified by a state space
search
This helps in verifying the advanced features of SoC Bus Protocols like

 Pipelining - Between address/control and data phases

 Wait Cycles - Within the transfers
 Split Transfers – To facilitate bus arbitration

7 July 2008
14 March 2013 12
LOW POWER VERIFICATION

The Unified Power Format (UPF) is a low

power specification standard that was
recently approved by Accellera .
It captures the low power design
specification in a portable form so that
correct power management components
 Can be implemented at the RTL
 Inferred correctly during synthesis
 Placed-and-routed efficiently and
accurately in the physical design.

Formal Verification techniques can be used for

 UPF specific assertions
 Power control sequence-based assertions
 Assertions to check incorrect and missing level shifters

Similar usage can also be deduced for designs incorporating Silicon

Integration Initiative’s (Si2’s) Common Power Format (CPF)
7 July 2008
14 March 2013 13
DFT VERIFICATION

Scan Chain Connectivity Verification :

Place-and-route tools change the order

of the scan flops to minimize
congestion. In this process, scan
chains might be disconnected and
lockup latches removed, thereby
effecting test pattern generation or
memory-BIST functionality

Static scan-chain integrity checks

allow for immediate verification that
both the order and number of flops is
as expected for different revisions of
the netlist.

Formal properties can also be written to validate

 Test Mode Entry Sequence
 Test Mode exit values
Advantages : Reduced DFT verification cycles , Test Mode functional
Validation , Equivalence checking among versions of netlists.
7 July 2008
14 March 2013 14
Model Checking – a very brief introduction
Outputs from the tool

• Proved
– the property holds for all valid sequences of inputs
• Failed(n)
– there is at least one valid sequence of inputs of length n cycles, as
defined by the design clock, for which the property does not hold.
– In this case, the tool gives a waveform demonstrating the failure.
– Most algorithms ensure that n is as small as possible, but some
more advanced algorithms don’t.
• Explored(n)
– there is no way to make the property fail with an input sequence of
n cycles or less
– For large designs, the algorithm can be expensive in both time and
memory and may not terminate
Some Limitations of Formal Verification

Size limit

Not always feasible

Better for control checking

Rather than data

7 July 2008
14 March 2013 16
Hardware Software Co Verification

 Today we make products

 Made up of hardware and software

 The ability to achieve first silicon and first software success

relies on the capabilities of a verification environment to
support full-system hardware/software co-verification

 Software engineers need to be able to access hardware design

to integrate software functionality with hardware.

 In SoC verification, co-simulation provide the facility to verifying

hardware and software functionality together.

7 July 2008
14 March 2013 17
Top Level Test Generation for CPU

 Bias tests to hit interesting

corner cases
Test – Scenario interleaving
Scenario Test
generator – Target shared resources/’points
of convergence’
Compiler  Non-repetitive useful tests
flow
 There should be an efficient
Coverage

Expected
results

workflow
Testbench
– Generation performance
SoC
– Target diverse platforms
CPU Mem.
– Ease of use
Observe FABRIC – Maintainability
results FABRIC – Reuse (of testing knowledge)
A B C – Effective result checking:
 Propagation of results
 Trace comparison
BFM BFM

18
Hardware Software Co-Verification Flow

Software Environment Hardware Environment

SW Tools
(Compiler, Linker,
Debugger) HDL Simulation
Tools
Executable Object
file DUT

Memory Model
Output for debugger
tools

7 July 2008
14 March 2013 19
How to go faster!
Compute Farm, Emulators, FPGA and test chips

20
The ‘tradeoffs’ for different platforms
Favours lots of … but also need to load tests
short tests! and dump test results!
Compute farm Emulator FPGA Test chip
Speed 10Hz - 100Hz 1MHz 2MHz – 50MHz GHz
…per machine
Partitioning!
Observability Total Trace window + Probes + Host debug
host debug host debug
Behavioural Yes Co-emulation Co-emulation No
testbench? (speed penalty) (speed penalty)
Test in ‘real world’ No Host debug + Mostly Yes
systems ICE with speed
bridges
Are fails easily Yes Yes No No
reproducible in
simulation? Complex timing dependencies
Bring-up time Minutes Weeks  hours Weeks  Days Months

Depends on
process maturity
21
FPGA Prototyping

 It allows faster simulation and close to real time operation

performance

 which could help in identifying a different class of bugs.

 Integrated hardware-software testing.

 Can be hard to map the design to the FPGA

 Debug limited

 Provides debug capability through JTAG and specialized

debug infrastructure which is built in to the FPGA.

7 July 2008
14 March 2013 22
Connecting the FPGA with simulation

Inter-Processor
Communication
(socket) Logic Simulation

BFM
FPGA
With Hardware
On board
Design

7 July 2008
14 March 2013 23
Standard Co-Emulation API (SCE-MI)

 A standard for writing transactors that connect behavioural

test benches or models to emulators or FPGA platforms
 Message or transaction rather than event oriented
 Incorporates a synthesisable BFM
 A subset of SystemVerilog DPI capabilities
 Designed to integrate with SystemC
Hardware
Behavioural Emulator
Monitor
test bench
SCE-MI
SW link

Custom Block
SCE-MI Infrastructure RTL

24
SCE-MI: What are the issues?

 Performance
– Need to consider both bandwidth and latency!
– Try to make operations non-blocking
– Performance of the behavioural testbench may limit the maximum speedup
 Time
– The time for SCE-MI communications will depend on workstation performance
– Simulation time may be suspended during SCE-MI communications to maintain
determinism by consuming zero emulation time
 Concurrency
– Concurrency is created by verification components operating independently of the DUT.
– A component in a process or thread outside the emulator time domain can prevent the
verification environment from being deterministic
 Determinism
– Allowing non-determinism may increase performance
– However determinism is crucial for ease of debug
 Maintenance
– Each protocol needs a SCE-MI transactor.
– These need to be verified and maintained.

25
FPGA Prototyping Limitations

• Many FPGAs are required for SoC partitioning,

• leading to prototype system complexity

• The target SoC may consist of many functional modules that are written at
different abstraction levels in the course of different development phases.
• Only synthesizable modules can be mapped into an FPGA and run for
debugging.

• Unable to partition multiple clocks and reset trees.

• FPGA provides limited debug capability and visibility during single iteration
• hence multiple iterations may be required to narrow down to the
specific bug.

7 July 2008
14 March 2013 26
Conclusion

• Increasing complexity
• Number of CPUs and Ips
• Multiple clock domains, multiple power domains,
• Coherent shared memory structures
• Scalability issues
• Is dynamic enough
• Number of cycles
• Writing complex tests and checkers
• Consider formal
• Product = hardware + software
• Hardware/Software co-verification
• Need longer simulations
• Consider FPGA

7 July 2008
14 March 2013 27
Benefits of working with T&VS
Any Questions?

Benefits of working with T&VS

Faster time-  Cost Savings
to-market
o “TVS engineers saved 2 months on our 12 month schedule,
and reduced our costs by 20%”
Improved Steve Neill, Managing Director of Infineon UK
quality/reduced
product risk  Resource flexibility
o “TVS provided the OVM-compliant verification IP on
Lower schedule and to budget, and were flexible enough to
development
costs incorporate change requests.” Simon Knowles, VP for
Strategy & DXP Technology, Icera
Improved  Increased quality of deliverables
product
features o “TVS helped us incorporate the VIP into our test
environment in good time for our tape-out and left us with
complete documentation to allow us to repeat the work
Trusted
partner should we ever need to on a future generation of our
technology.” Fred Homewood, CEO of Gnodal

7 July 2008
14 March 2013 28
