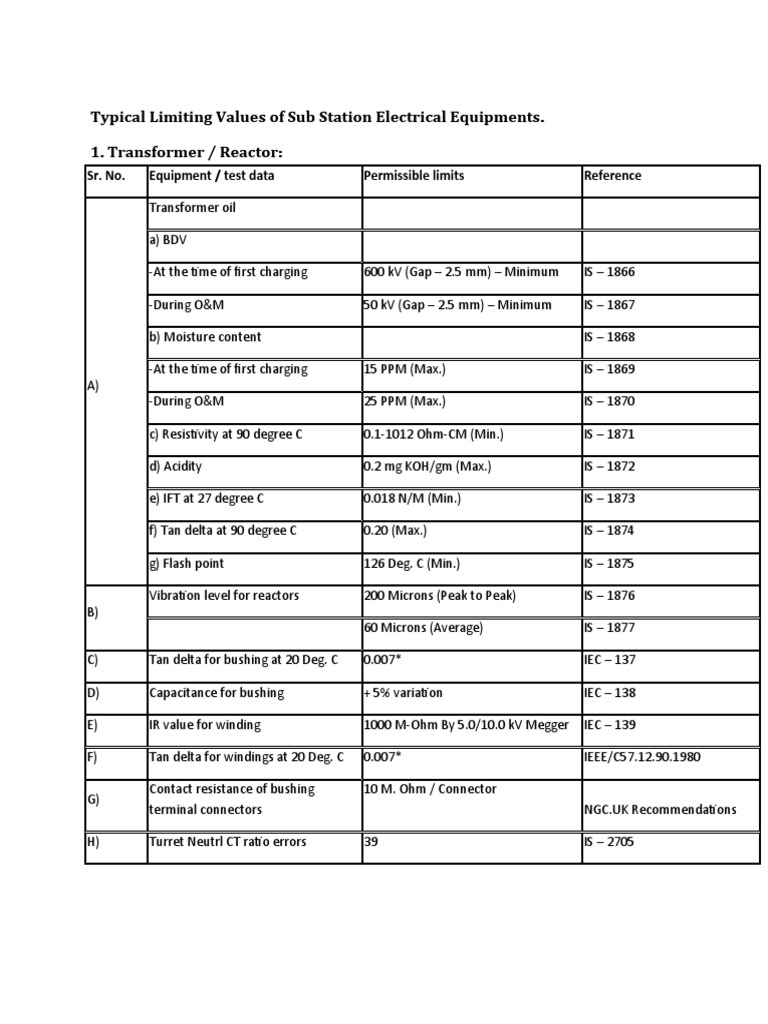

Typical Limiting Values of Sub Station Electrical Equipments.

1. Transformer / Reactor:
Sr. No. Equipment / test data Permissible limits Reference

Transformer oil

a) BDV

-At the time of first charging 600 kV (Gap – 2.5 mm) – Minimum IS – 1866

-During O&M 50 kV (Gap – 2.5 mm) – Minimum IS – 1867

b) Moisture content   IS – 1868

-At the time of first charging 15 PPM (Max.) IS – 1869

A)
-During O&M 25 PPM (Max.) IS – 1870

c) Resistivity at 90 degree C 0.1-1012 Ohm-CM (Min.) IS – 1871

d) Acidity 0.2 mg KOH/gm (Max.) IS – 1872

e) IFT at 27 degree C 0.018 N/M (Min.) IS – 1873

f) Tan delta at 90 degree C 0.20 (Max.) IS – 1874

g) Flash point 126 Deg. C (Min.) IS – 1875

Vibration level for reactors 200 Microns (Peak to Peak) IS – 1876

B)
  60 Microns (Average) IS – 1877

C) Tan delta for bushing at 20 Deg. C 0.007* IEC – 137

D) Capacitance for bushing + 5% variation IEC – 138

E) IR value for winding 1000 M-Ohm By 5.0/10.0 kV Megger IEC – 139

F) Tan delta for windings at 20 Deg. C 0.007* IEEE/C57.12.90.1980

Contact resistance of bushing 10 M. Ohm / Connector

G)
terminal connectors NGC.UK Recommendations

H) Turret Neutrl CT ratio errors 39 IS – 2705
