GENERAL NOTES:

1. ALL DIMENTIONS ARE IN MM UNLESS OTHERWISE SPECIFIED

2. DULLY WRITTEN DIMENSION ARE TO BE FOLLOWED,
NEITHER THE BARS SHALL COUNTED NOR THE
DIMENSIONS SCALED FROM DRAWING.
3. WATER FOR CONSTRUCTION PURPOSES SHALL CONFIRM
TO RELEVANT CLAUSES TO IS:456-2000.
4. ALL REINFORCED CEMENT CONCRETE SHALL BE NORMAL
MIX M-20 CONFORMING TO IS:456-2000, STONE
AGGREGATES SHALL BE 20mm NORMAL SIZE AND SHALL
COMPLY WITH THE REQUIREMENTS AS PER IS:383
1 2 3 4 5 5. ALL STEEL REINFORCEMENT SHALL BE OF TMT TYPE
CONFORMING TO IS:1786 AND HAVING MINIMUM YIELD
STRENGTH OF 415N/mm2.
6. LAP LENGTH/DEVELOPMENT LENGTH FOR
REINFORCEMENT BARS AS PER IS:456-2000 SHALL BE
3255 5260 3885 50 X DIA OF BAR FOR M-20 (UNLESS OTHERWISE
SPECIFIED),LAPS SHALL BE STAGGERED AND AVOIDED AT
THE POINT OF MAXIMUM BENDING MOMENT.
H 7. CLEAR COVER FOR:
BEAM - 30mm
FOUNDATION - 50mm
COLUMNS - 40mm
8. LAP SHOULD NOT BE PROVIDED:
a) WITHIN A JOINT.
b) WITHIN A DISTANCE 2 d FROM JOINT FACE.
4410
c) WITHIN A DISTANCE 41 LENGTH OF MEMBER FROM THE
JOINT FACE .
9. NOT MORE THAN 50% OF BAR SHALL BE SPLICED AT ONE
SECTION.
10. THE REINFORCEMENT DETAILING SHALL BE AS PER
IS:13920.
G 11. THE DESIGN SAFE BEARING CAPACITY OF
SOIL = 120KN/SQM.
12. THE CEMENT SHALL BE OF GRADE 43 CONFORMING
TO IS:8112
3015
400 THIS DRAWING IS THE PROPERTY OF TECHNOCRATS
CONSULTANCY SERVICES AND MUST NOT BE PASSED
F ON TO ANY PERSON OR BODY NOT AUTHORIZED BY
TCS TO RECIEVE IT NOT BE COPIED OR OTHERWISE
MADE USE OF EITHER IN FULL OR IN PART BY SUCH
2584 PERSON OR BODY WITHOUT OUR PRIOR PERMISSION
IN WRITING.
TECHNOCRATS CONSULTANCY SERVICES
E NOOR COMPLEX,90 FEET ROAD,NEAR
POLICE STATION SOURA,SRINAGAR
100 400 KASHMIR-190011.
D 3125 CONTACT NO'S:+91-6005421743.
+91-8082699035.
E-MAIL:technocratsconsultancy03@gmail.com
C NAME OF CLIENT:
PROJECT TITLE:
B 3560

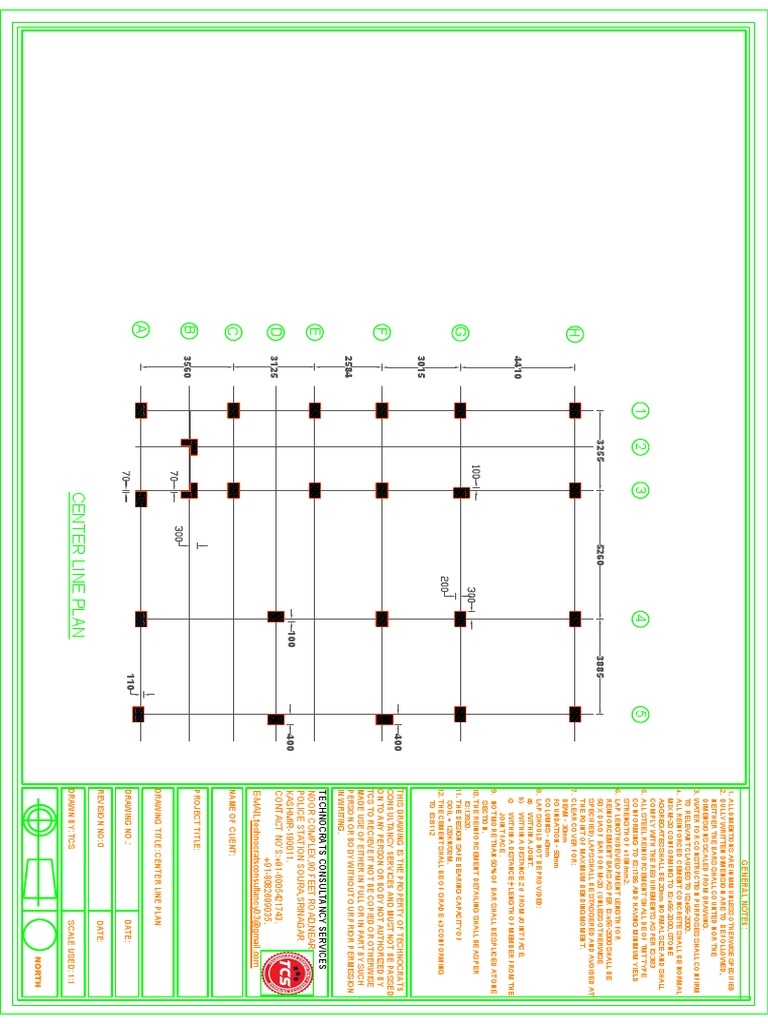

DRAWING TITLE: CENTER LINE PLAN
A
110 DRAWING NO.: DATE:
REVISION NO: 0 DATE:
CENTER LINE PLAN DRAWN BY: TCS SCALE USED: 1:1
NORTH
