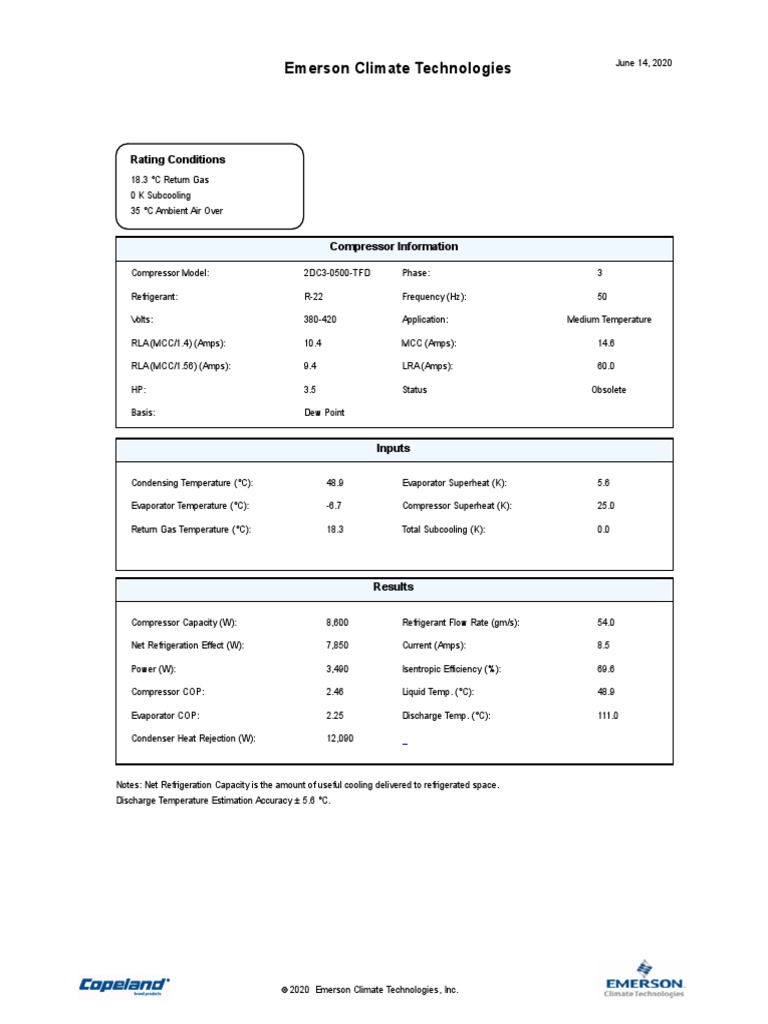

June 14, 2020

Emerson Climate Technologies

Rating Conditions
18.3 °C Return Gas
0 K Subcooling
35 °C Ambient Air Over

Compressor Information

Compressor Model: 2DC3-0500-TFD Phase: 3

Refrigerant: R-22 Frequency (Hz): 50

Volts: 380-420 Application: Medium Temperature

RLA (MCC/1.4) (Amps): 10.4 MCC (Amps): 14.6

RLA (MCC/1.56) (Amps): 9.4 LRA (Amps): 60.0

HP: 3.5 Status Obsolete

Basis: Dew Point

Inputs

Condensing Temperature (°C): 48.9 Evaporator Superheat (K): 5.6

Evaporator Temperature (°C): -6.7 Compressor Superheat (K): 25.0

Return Gas Temperature (°C): 18.3 Total Subcooling (K): 0.0

Results

Compressor Capacity (W): 8,600 Refrigerant Flow Rate (gm/s): 54.0

Net Refrigeration Effect (W): 7,850 Current (Amps): 8.5

Power (W): 3,490 Isentropic Efficiency (%): 69.6

Compressor COP: 2.46 Liquid Temp. (°C): 48.9

Evaporator COP: 2.25 Discharge Temp. (°C): 111.0

Condenser Heat Rejection (W): 12,090

Notes: Net Refrigeration Capacity is the amount of useful cooling delivered to refrigerated space.
Discharge Temperature Estimation Accuracy ± 5.6 °C.

Ó 2020 Emerson Climate Technologies, Inc.
