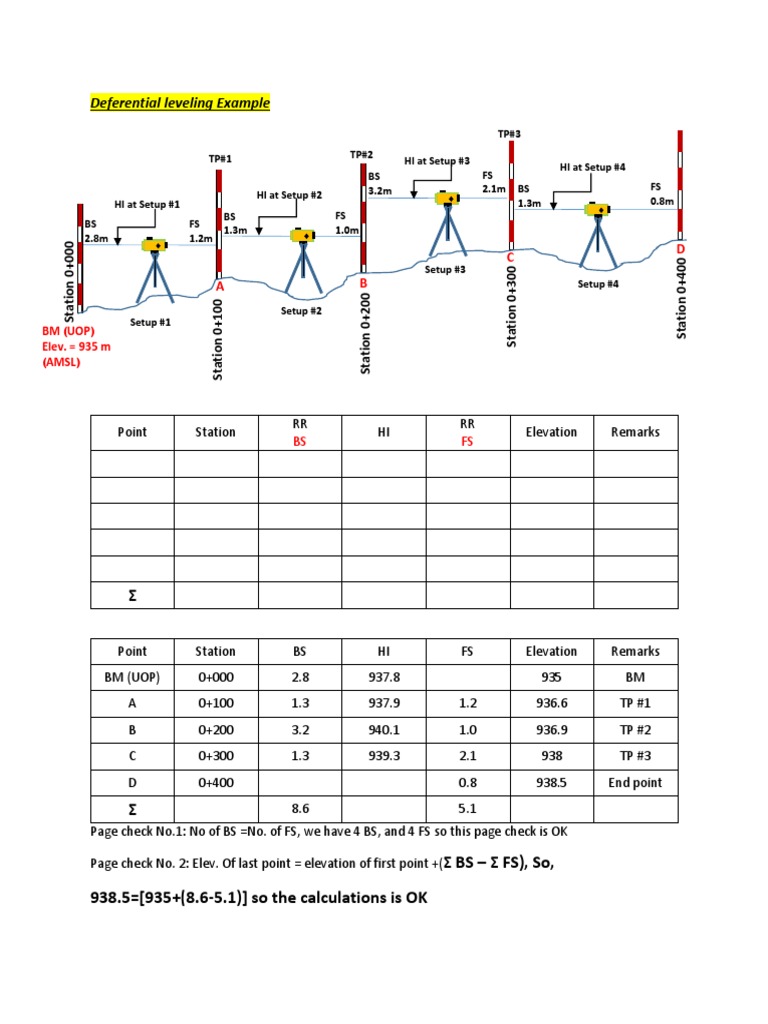

Deferential leveling Example

TP#3

TP#1 TP#2
HI at Setup #3
HI at Setup #4
BS FS
3.2m 2.1m BS FS
HI at Setup #2
HI at Setup #1 1.3m 0.8m
BS FS
BS FS 1.0m
1.3m
2.8m 1.2m
Station 0+000

D
C

Station 0+400
Setup #3

Station 0+300
A B Setup #4

Station 0+200
Station 0+100

Setup #2
Setup #1
BM (UOP)
Elev. = 935 m
(AMSL)

RR RR
Point Station HI Elevation Remarks
BS FS

Point Station BS HI FS Elevation Remarks

BM (UOP) 0+000 2.8 937.8 935 BM
A 0+100 1.3 937.9 1.2 936.6 TP #1
B 0+200 3.2 940.1 1.0 936.9 TP #2
C 0+300 1.3 939.3 2.1 938 TP #3
D 0+400 0.8 938.5 End point
Ʃ 8.6 5.1
Page check No.1: No of BS =No. of FS, we have 4 BS, and 4 FS so this page check is OK

Page check No. 2: Elev. Of last point = elevation of first point +(Ʃ BS – Ʃ FS), So,

938.5=[935+(8.6-5.1)] so the calculations is OK
