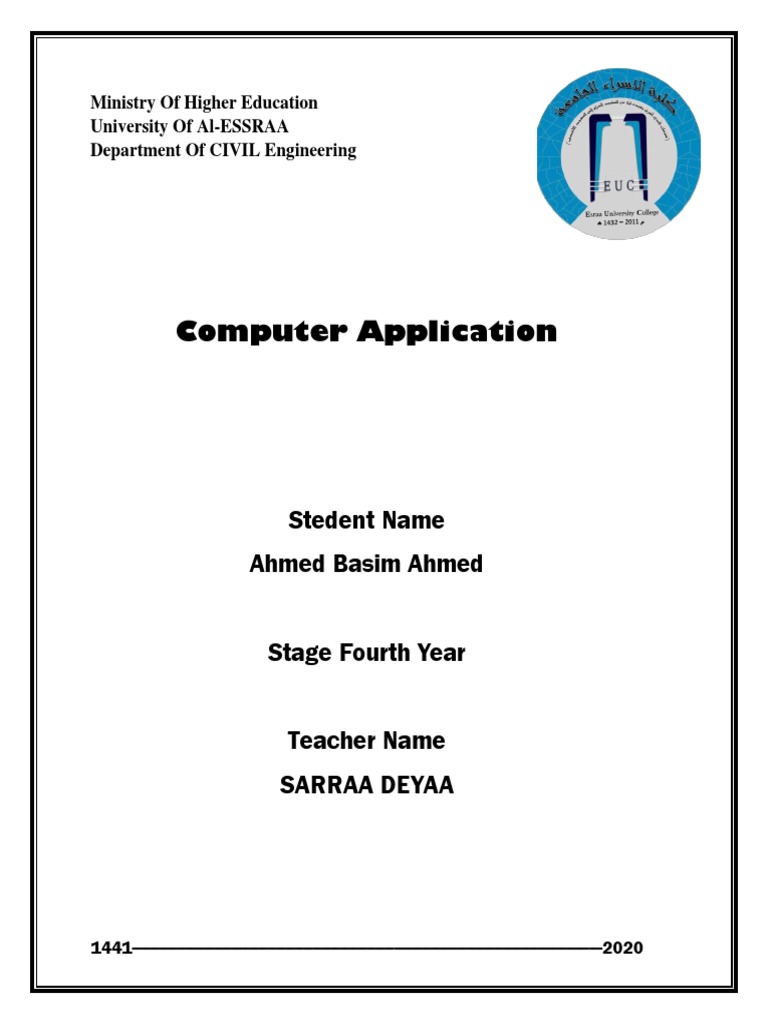

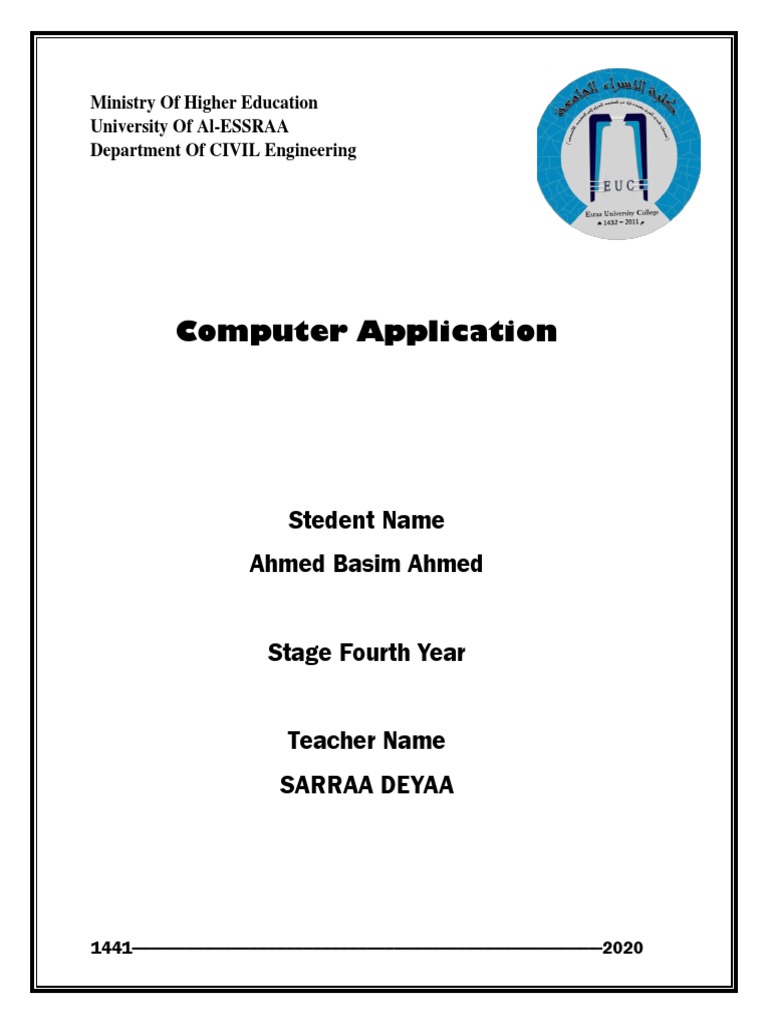

Ministry Of Higher Education

University Of Al-ESSRAA
Department Of CIVIL Engineering

Computer Application

Stedent Name
Ahmed Basim Ahmed

Stage Fourth Year

Teacher Name
SARRAA DEYAA

1441--------------------------------------------------------------------------------------------------------2020
 Example
According to Staad_Pro V8i software, Plot the geometrical modeling of
the steel frame structure shown below,where (z-1bay 4m).where steel
plate thickness 2.0 cm steel, steel member section (vertical double
W16*36)(horizontal standard MC12*36-in x and z direction),(inclined
double angle L3*3.5*1/4),external col.W16*40

Note: means member in z-direction where

1- D.L. self weight

2- L.L : 2.5 N/m2 plate loads and external loads are shown in the figure.
3- = 1.4 D.L + 1.6 L.L

1
2
Staad space

JOINT COOR

1 000;2 400;3 800;4 030;5 430;6 830;7 060;8 460

9 860;10 0100;11 4100;12 8100

REPALL1 003

MEMBIR INC

1 1 4;2 2 5;3 3 6;4 4 7;5 5 9;6 6 9;7 7 10;8 8 11;9 9 12

10 4 5;11 5 6;12 7 8;13 8 9;14 10 11;15 11 12;16 8 10

17 9 11

REP ALL 1 3 27

ELEMENT INC
35 25 26 27 28; 36 27 28 29 30

SUPPORT
3
1 2 3 13 14 15 FIX

CONSTANTS
E STEEL ALL DEN

DEN STEEL ALL

POI STEEL ALL

ALPHA STEEL ALL

MEM PROP

4 TO 9 22 TO 30 TABLE W16*36
10 TO 15 27 TO 32 TABLE MC12*36
16 TO 17 33 TO 34 TABLE DL3*3.5*0.25
1 TO 3 18 TO 20 TABLE W16*40

ELE PROP
35 36 THIC 0.2

LOAD 1
SELF WEIGHT GY -10

LOAD 2
JOINT LOAD
11 GY -7
12 GY -12

MEM LOAD
3 TRP GX -4 0 3
27 UNI GY -2 0 2

FLOOR LOAD

YR 4 4 FLOAD -2.5 YR

LOAD COMB 3

1 1.4 2 1.6

4
DESIGN BEAMS , COLUMNS AND SLAB , WHERE FY=300 MPA

FC=35 MPA , TIE REIN FOR COLUMNS CLEAR COVER 40 CM TRACK 2

AND ESTIMATE THE VOLUME OF THR CONCRETE AND REIN BARS

PERFORMANCE ANALYSIS

LOAD LIST 3
PRINT LNA RESULTS

UNIT MM NEWTON

START CONCRETE DESIGN

CODE , ACI

CLB 20 ALL

CLS 20 ALL

CLT 20 ALL

FY MAIN 300 ALL

FC 35 ALL

REIN 0 MEM 1 TO 9 18 TO 26

TRACK 2 ALL

DESIGN BEAM 10 TO 15 27 TO 32
DESIGN COL. 1 TO 9 18 TO 26
DESIGN ELE 35 36

CONCRETE TAKE OFF

END CONCRETE DESIGN

FINISH
5
PERFORM ANALYSIS

PRINT ANALYSIS RESULTS

UNIT MMS NEWTON
PARAMETER 1

CODE AA SHTO

FY LD 420 ALL
RATIO 1 ALL

TRACK 2 ALL

CHICK CODE ALL

PARAMETER 2
CODE AASHTO
SELECT OPTIMIZED
PARAMETER 3
CODE AASHTO
STEEL TAKE OFF LIST ALL

FINISH
