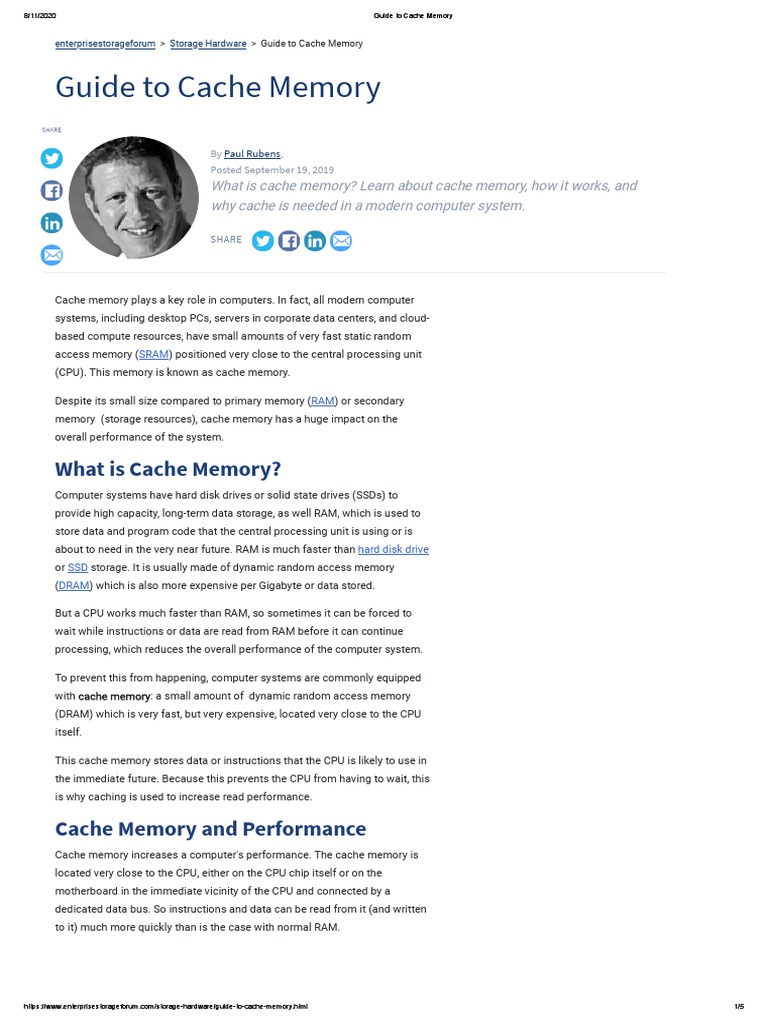

Guide to Cache Memory

SHARE

By Paul Rubens,
Posted September 19, 2019
What is cache memory? Learn about cache memory, how it works, and
why cache is needed in a modern computer system.

SHARE

Cache memory plays a key role in computers. In fact, all modern computer
systems, including desktop PCs, servers in corporate data centers, and cloud-
based compute resources, have small amounts of very fast static random
access memory (SRAM) positioned very close to the central processing unit
(CPU). This memory is known as cache memory.

Despite its small size compared to primary memory (RAM) or secondary

memory  (storage resources), cache memory has a huge impact on the
overall performance of the system.

What is Cache Memory?

Computer systems have hard disk drives or solid state drives (SSDs) to
provide high capacity, long-term data storage, as well RAM, which is used to
store data and program code that the central processing unit is using or is
about to need in the very near future. RAM is much faster than hard disk drive
or SSD storage. It is usually made of dynamic random access memory
(DRAM) which is also more expensive per Gigabyte or data stored.

But a CPU works much faster than RAM, so sometimes it can be forced to
wait while instructions or data are read from RAM before it can continue
processing, which reduces the overall performance of the computer system.

To prevent this from happening, computer systems are commonly equipped

with cache memory: a small amount of  dynamic random access memory
(DRAM) which is very fast, but very expensive, located very close to the CPU
itself.

This cache memory stores data or instructions that the CPU is likely to use in
the immediate future. Because this prevents the CPU from having to wait, this
is why caching is used to increase read performance.

Cache Memory and Performance

Cache memory increases a computer's performance. The cache memory is
located very close to the CPU, either on the CPU chip itself or on the
motherboard in the immediate vicinity of the CPU and connected by a
dedicated data bus. So instructions and data can be read from it (and written
to it) much more quickly than is the case with normal RAM.

https://www.enterprisestorageforum.com/storage-hardware/guide-to-cache-memory.html 1/5
8/11/2020 Guide to Cache Memory

That means that the CPU is much less likely to be kept waiting – or wait
times will be dramatically reduced. The result is that a very small amount of
cache memory can result in a signi cant increase in the computer's
performance.

How Does Cache Memory Work?

SHARE

Cache memory works by taking data or instructions at certain memory

addresses in RAM and copying them into the cache memory, along with a
record of the original address of those instructions or data.

This results in a table containing a small number of RAM memory addresses,

and copies of the instructions or data that those RAM memory address
contain.

Memory Cache "Hit"

When the processor requires instructions or data from a given RAM memory
address, then before retrieving them from RAM it checks to see if the cache
memory contains a reference to that RAM memory address. If it does, then it
reads the corresponding data or instructions from the cache memory instead
of from RAM. This is known as a "cache hit". Since the cache memory is
faster than RAM, and because it is located closer to the CPU, it can get and
start processing the instructions and data much more quickly.

The same procedure is carried out when data or instructions need to be

written back to memory. However, in this case there is an additional step
because if anything is written to cache memory than ultimately it must also
be written RAM.

How this is done depends on the cache's write policy. The simplest policy is
known as "write-through": with this policy anything written to the memory
cache is also written to RAM straight away.

An alternative policy is "write-back." Using a "write-back" policy, data written

to cache memory is now immediately written to RAM as well. Anything
written to cache memory is marked as "dirty," meaning that it is different to
the original data or instructions that were read from RAM. When it is removed
from the cache memory, then and only then is it written to RAM, replacing the
original information.

Intermediate policies allow "dirty" information to be queued up  and written

back to RAM in batches, which can be more e cient than multiple individual
writes.

Memory Cache "Miss"

If data or instructions at a given RAM memory address are not found in cache
memory, then this is known as a "cache miss." In this case, the CPU is forced
to wait while the information is retrieved from RAM.

In fact, the data or instructions are retrieved from RAM and written to cache
memory, and then sent on to the CPU. The reason for this is that data or
instructions that have been recently used are very likely to be required again
in the near future. So anything that the CPU requests from RAM is always
copied to cache memory.

(There is an exception to this. Some data is of a type which is rarely reused

can be marked as non-cacheable. This prevents valuable cache memory
space being occupied by data unnecessarily.)

https://www.enterprisestorageforum.com/storage-hardware/guide-to-cache-memory.html 2/5
8/11/2020 Guide to Cache Memory

This begs the question of what happens if the cache memory is already full.
The answer is that some of the contents of the cache memory has to be
"evicted" to make room for the new information that needs to be written
there.

If a decision needs to be made then the memory cache will apply a

SHARE
"replacement policy" to decide which information is evicted.

There are a number of possible replacement policies. One of the most

common ones is a least recently used (LRU) policy. This policy uses the
principal that if data or instructions have not been used recently, then they are
less likely to be required in the immediate future than data or instructions
that have been required more recently.

The Key Value of Cache Memory

Cache memory is needed to reduce performance bottlenecks between RAM
and the CPU. Its usage is analogous to the use of RAM as a disk cache. In
this case, frequently used data stored on secondary storage systems (such
as hard drives or SSDs) is temporarily placed in RAM, where it can be
accessed by the CPU much more quickly.

Since RAM is more expensive (but faster)  than secondary storage, disk
caches are smaller than hard drives or SSDs. Since SRAM is more expensive
(but faster) than DRAM, memory caches are smaller than RAM.

Types of Cache Memory

Primary Cache  Most cache memory is physically located on the same
die as the CPU itself, and the part closest to the CPU cores is
sometimes called primary cache, although the term is not commonly
used any more.

Secondary Cache  This often refers to a further piece of cache memory,

which is located on a separate chip on the motherboard close to the
CPU. This term is also not commonly used anymore, because most
cache memory is now located on the CPU die itself.

Levels  of Cache Memory

Modern computer systems have more than one piece of cache memory, and
these caches vary in size and proximity to the processor cores, and therefore
also in speed. These are known as cache levels.

The smallest and fastest cache memory is known as Level 1 cache, or L1

cache, and the next is L2 cache. Most  systems now have L3 cache, and
since the introduction of its Skylake chips, Intel has added L4 cache to some
of its processors as well.

Level 1
L1 cache is cache memory that is built into the CPU itself. It runs at the same
clock speed as the CPU. It is the most expensive type of cache memory so its
size is extremely limited. But because it is very fast it is the rst place that a
processor will look for data or instructions that may have been buffered there
from RAM.

In fact, in most modern CPUs, the L1 cache is divided into two parts: a data
section (L1d) and an instruction section (L1i). These hold data and
instructions, respectively.
https://www.enterprisestorageforum.com/storage-hardware/guide-to-cache-memory.html 3/5
8/11/2020 Guide to Cache Memory

A modern CPU may have a cache size on the order of 32 KB of L1i and L1d
per core.

Level 2
L2 cache may also be located in the CPU chip, although not as close to the
core as L1 cache. Or more rarely, it may be located on a separate chip close
SHARE
to the CPU. L2 caches are less expensive and larger than L1 caches, so L2
cache sizes tend to be larger, and may be of the order of 256 KB per core.

Level 3
Level 3 cache tends to be much larger than either L1 or L2 cache, but it also
different in another important way. Whereas L1 and L2 caches are private to
each core of a processor, L3 tends to be a shared cache that is common to
all the cores. This allows it to play an important role in data sharing and inter-
core communication. L3 cache may be of the order of 2 MB per core.

Cache Mapping
Cache memory, as has been discussed, is extremely fast – meaning that it
can be read from very quickly.

But there is a potential bottleneck: before data can be read from cache
memory, it has to be found. The processor knows the RAM memory address
of the data or instruction that it wants to read. It has to search the memory
cache to see if there is a reference to that RAM memory address in the
memory cache, along with the associated data or instruction.

There are a number of ways that data or instructions from RAM can be
mapped into memory cache, and these have direct implications for the speed
at which they can be found. But there is a trade-off: minimizing the search
time also minimizes the likelihood of a cache hit, while maximizing the
chances of a cache hit maximizes the likely search time.

The following cache mapping methods are commonly used:

Direct Mapping
With direct mapped cache,  there is only one place in cache memory that a
given block of data from RAM can be stored.

This means that the CPU only has to look in one place in the memory cache
to see if the data or instructions that it is looking for are present, and if it is it
will be found very quickly. The drawback with direct mapped cache is that it
severely limits what data or instructions can be stored in the memory cache,
so cache hits are rare.

Associative Mapping
Also known as fully associated mapping, this is the opposite of direct
mapping. With an associative mapping scheme, any block of data or
instructions from RAM can be placed in any cache memory block. That
means that the CPU has to search the entire cache memory to see if it
contains what it is looking for, but the chances of a cache hit are much
higher.

Set-Associative Mapping
A compromise between the two types of mapping is set associative mapping,
which allows a block of RAM  to be mapped to a limited number of different
memory cache blocks.

https://www.enterprisestorageforum.com/storage-hardware/guide-to-cache-memory.html 4/5
8/11/2020 Guide to Cache Memory

A 2-way associative mapping systems allows a RAM block to be placed in

one of two places in cache memory. In contrast, an 8-way associative
mapping system would allow a RAM block to be placed in any one of 8 cache
memory blocks.

A 2-way system takes twice as long to search as a direct mapped system, as

SHARE
the CPU has to look in two places instead of just one, but there is a much
greater chance of a cache hit.


SEE ALL
  STO R A G E
HARDWARE
Join the discussion! A RT I C L E S

LoudVoice Comments Privacy Policy Powered by OneAll

An eWEEK Property



TERMS OF SERVICE PRIVACY NOTICE CONTACT US ADVERTISE SITEMAP ABOUT US CALIFORNIA – DO NOT SELL MY INFO

Copyright 2020 TechnologyAdvice All Rights Reserved.

Advertiser Disclosure: Some of the products that appear on this site are from companies from which TechnologyAdvice receives compensation. This
compensation may impact how and where products appear on this site including, for example, the order in which they appear. TechnologyAdvice does not
include all companies or all types of products available in the marketplace.

https://www.enterprisestorageforum.com/storage-hardware/guide-to-cache-memory.html 5/5
