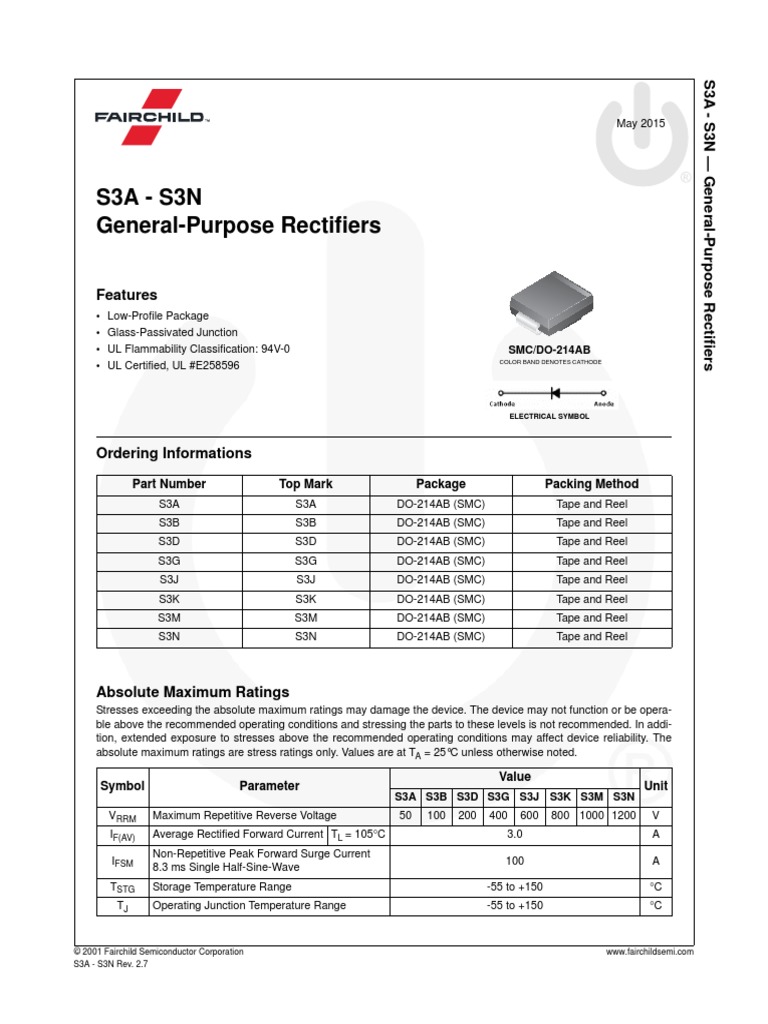

S3A - S3N — General-Purpose Rectifiers

May 2015

S3A - S3N
General-Purpose Rectifiers

Features
• Low-Profile Package
• Glass-Passivated Junction
• UL Flammability Classification: 94V-0 SMC/DO-214AB
COLOR BAND DENOTES CATHODE
• UL Certified, UL #E258596

ELECTRICAL SYMBOL

Ordering Informations
Part Number Top Mark Package Packing Method
S3A S3A DO-214AB (SMC) Tape and Reel
S3B S3B DO-214AB (SMC) Tape and Reel
S3D S3D DO-214AB (SMC) Tape and Reel
S3G S3G DO-214AB (SMC) Tape and Reel
S3J S3J DO-214AB (SMC) Tape and Reel
S3K S3K DO-214AB (SMC) Tape and Reel
S3M S3M DO-214AB (SMC) Tape and Reel
S3N S3N DO-214AB (SMC) Tape and Reel

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted.

Value
Symbol Parameter Unit
S3A S3B S3D S3G S3J S3K S3M S3N
VRRM Maximum Repetitive Reverse Voltage 50 100 200 400 600 800 1000 1200 V
IF(AV) Average Rectified Forward Current TL = 105°C 3.0 A
Non-Repetitive Peak Forward Surge Current
IFSM 100 A
8.3 ms Single Half-Sine-Wave
TSTG Storage Temperature Range -55 to +150 °C
TJ Operating Junction Temperature Range -55 to +150 °C

© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com

S3A - S3N Rev. 2.7
 S3A - S3N — General-Purpose Rectifiers
Thermal Characteristics(1)
Symbol Parameter Value Unit
PD Power Dissipation 2.6 W
RθJA Thermal Resistance, Junction-to-Ambient 100 °C/W
RθJL Thermal Resistance, Junction-to-Lead 13 °C/W

Note:
1. Device is mounted on FR-4 PCB 0.013 mm. Land pattern size: refer to the package drawing.
Trace size: force line = 50 mil & sense line = 4 mil.

Electrical Characteristics
Values are at TA = 25°C unless otherwise noted.

Value
Symbol Parameter Conditions Unit
S3A S3B S3D S3G S3J S3K S3M S3N
VF Maximum Forward Voltage IF = 3.0 A 1.2 V
IF = 0.5 A,
Maximum Reverse Recovery
trr IR = 1.0 A, 2.5 μs
Time
Irr = 0.25 A
Maximum Reverse Current TA = 25°C 5
IR μA
at rated VR TA = 125°C 250
VR = 4.0 V,
CT Typical Total Capacitance 60 pF
f = 1.0 MHz

© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com

S3A - S3N Rev. 2.7 2
 S3A - S3N — General-Purpose Rectifiers
Typical Performance Characteristics
Average Rectified Forward Current, IF [A]

4.0 100

3.5

Forward Current, IF [A]

3.0 10

2.5

2.0 1
TJ = 25º C
1.5 μs
Pulse Width = 300μ
2% Duty Cycle
1.0 0.1
0.5

0.0 0.01
50 60 70 80 90 100 110 120 130 140 150 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3
o
Lead Temperature, [ C] Forward Voltage, VF [V]

Figure 1. Forward Current Derating Curve Figure 2. Forward Voltage Characteristics

100
Peak Forward Surge Current, IFSM [A]

120

100 T A = 125 º C
Reverse Current, IR [μA]

80 10

60

40 1

8.3ms Single Half Sine-Wave

20 JEDEC Method
TA = 25 º C

0 0.1
1 2 5 10 20 50 100 0 20 40 60 80 100 120 140
Number of Cycles at 60Hz % of Reverse Voltage, VR[V]

Figure 3. Non-Repetitive Surge Current Figure 4. Reverse Current vs. Reverse Voltage

100
Total Capacitance, CT [pF]

50

TJ = 25º C

10

5
1 5 10 50 100
Reverse Voltage, VR [V]

Figure 5. Total Capacitance

© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com

S3A - S3N Rev. 2.7 3
 S3A - S3N — General-Purpose Rectifiers
Physical Dimensions

Figure 6. 2-Lead, SMC, JEDEC DO-214, Variation AB

© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com

S3A - S3N Rev. 2.7 4
