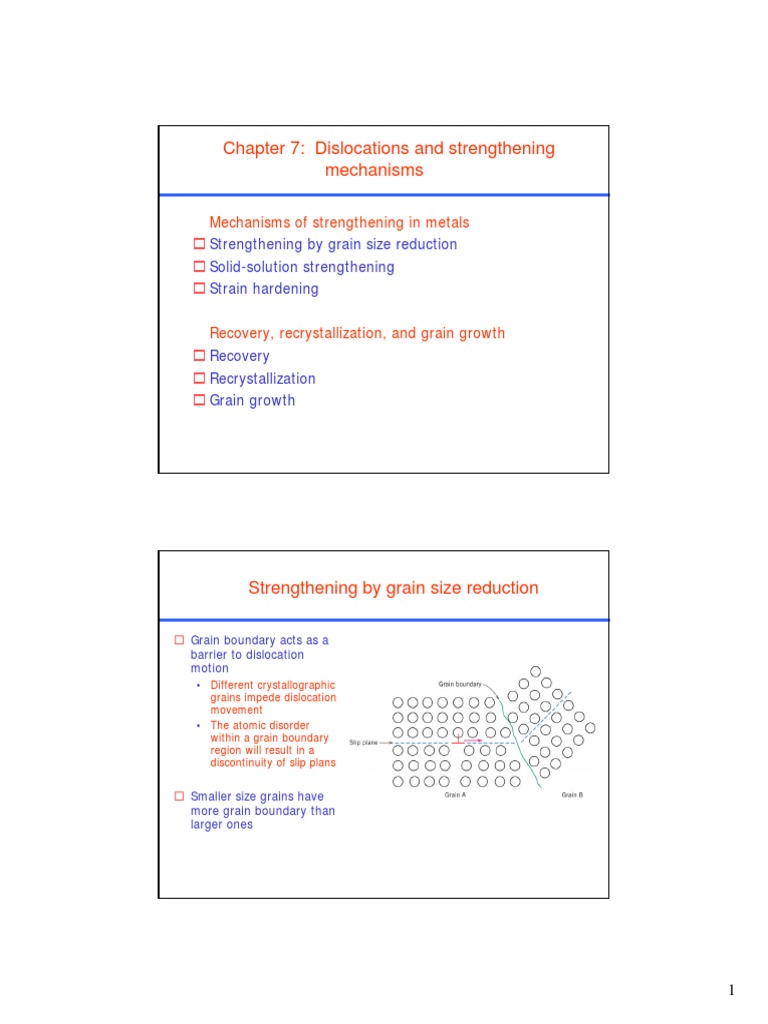

Chapter 7: Dislocations and strengthening

mechanisms

Mechanisms of strengthening in metals

Strengthening by grain size reduction
Solid-solution strengthening
Strain hardening

Recovery, recrystallization, and grain growth

Recovery
Recrystallization
Grain growth

Strengthening by grain size reduction

Grain boundary acts as a

barrier to dislocation
motion
• Different crystallographic
grains impede dislocation
movement
• The atomic disorder
within a grain boundary
region will result in a
discontinuity of slip plans

Smaller size grains have

more grain boundary than
larger ones

1
 Strengthening by grain size reduction (continue)

A fine-grained material is harder

and stronger than coarse-grained
one

Hall-Petch equation

σ yield = σo + k y d −1 / 2

Other grain boundary factors:

• high/small angle grain
boundary
• twin boundary
• boundaries with different
phases

Yield strength versus d for Cu-Zn alloy

Solid-solution strengthening

Impurity atoms generate stresses by distorting the lattice

This stress can produce a barrier to dislocation motion

2
 Solid-solution strengthening (cont.)

Ex: Solid Solution: Strengthening in Copper

Tensile strength & yield strength increase with wt% Ni.

Tensile strength (MPa)

180
Yield strength (MPa)

Adapted from Fig.

400 7.16 (a) and (b),
Callister 7e.
120
300

200 60
0 10 20 30 40 50 0 10 20 30 40 50
wt.% Ni, (Concentration C) wt.%Ni, (Concentration C)

Empirical relation: σy ~ C1/ 2

Alloying increases σy and TS

3
 Strain hardening

Strain hardening (cold working) : a ductile metal becomes

harder and stronger as it is plastically deformed
force
roll
die Ad
Ao blank Ad Ao
roll
force
Ao
die Ad container die holder
Ao tensile force
force ram billet extrusion Ad
die container die

Ao − Ad
%CW = x100
Ao

Strain hardening

Mechanisms: dislocation-dislocation
interactions
• Dislocations entangle
with one another
during cold work.
• Dislocation motion
becomes more difficult.

0.9 μm

Ti alloy after cold working:

4
 Strain hardening

Yield and tensile strength increase with cold work

Impact of Cold Work

As cold work is increased

Yield strength (σy)
increases.
Tensile strength (TS)
increases.
Ductility (%EL or %AR)
decreases.

10

5
 Effect of heating after %CW

The influence of annealing

annealing temperature (ºC)
temperature on the tensile 100 200 300 400 500 600 700

tensile strength (MPa)

strength and ductility of a 600 60
tensile strength
brass alloy

ductility (%EL)
50
500
Recrystallization temperature 40
(RT): the temp at which
recrystallization just reaches 400 30
completion in 1 h ductility 20
300
Re Re Gr
co cry ain
ve sta Gr
ry lliz ow
ati th
on

Recovery, recrystallization, and grain growth

Recovery: dislocation motion reduces some of the stored

internal energy when metals are heated up
Recrystallization: formation of a new set of strain-free
grains and equiaxed grains that have low dislocation
densities
Grain growth: the strain-free grains will continue to grow
after recrystallization is complete

6
 Recovery

Annihilation reduces dislocation density.

• Scenario 1 extra half-plane
of atoms Dislocations
Results from annihilate
diffusion atoms
diffuse and form
to regions a perfect
of tension atomic
extra half-plane plane.
of atoms
• Scenario 2
3. “Climbed” disl. can now τR
move on new slip plane
2. grey atoms leave by
4. opposite dislocations
vacancy diffusion
meet and annihilate
allowing disl. to “climb”
1. dislocation blocked; Obstacle dislocation
can’t move to the right

Recrystallization

Driving force: internal energy of unstrained and strained grains

New crystals are formed that
• have a small disl. Density
• are small
• consume cold-work crystals

0.6 mm 0.6 mm

33% cold New crystals

worked nucleate after
brass 3 sec. at 580C.

7
 Recrystallization (continue)

All cold-worked crystals are consumed

0.6 mm 0.6 mm

After 4 After 8
seconds seconds

Recrystallization (continue)

Recrystallization-melting temp

8
 Grain growth

At longer times, larger grains consume smaller ones.

Why? Grain boundary area (and therefore energy) is
reduced.
0.6 mm 0.6 mm

After 8 s, After 15 min,

580C 580C
coefficient dependent
Empirical Relation:
on material and T.
exponent typ. ~ 2
grain diam. elapsed time
at time t. d n − d on = Kt
Ostwald Ripening

TR = recrystallization
temperature

TR

º
18

9
~

Grain growth

Driving force for grain

growth: reduction in
total energy

Grain growth via

atomic diffusion

Summary

Strength is increased by making dislocation motion difficult.

Particular ways to increase strength are to:
--decrease grain size
--solid solution strengthening
--precipitate strengthening
--cold work
Heating (annealing) can reduce dislocation density and
increase grain size.

10
