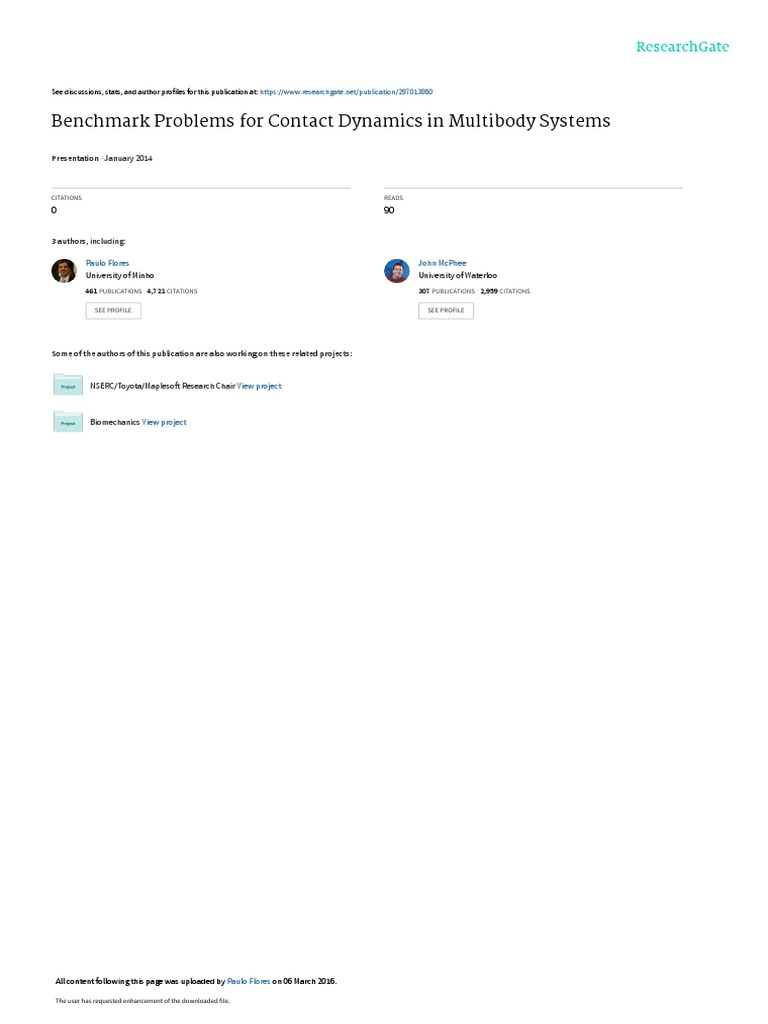

See discussions, stats, and author profiles for this publication at: https://www.researchgate.

net/publication/297013860

Benchmark Problems for Contact Dynamics in Multibody Systems

Presentation · January 2014

CITATIONS READS

0 90

3 authors, including:

Paulo Flores John McPhee

University of Minho University of Waterloo
461 PUBLICATIONS   4,721 CITATIONS    307 PUBLICATIONS   2,959 CITATIONS

SEE PROFILE SEE PROFILE

Some of the authors of this publication are also working on these related projects:

NSERC/Toyota/Maplesoft Research Chair View project

Biomechanics View project

All content following this page was uploaded by Paulo Flores on 06 March 2016.

The user has requested enhancement of the downloaded file.

 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Benchmark Problems for Contact Dynamics in

Multibody Systems

Ramin Masoudi1 , Paulo Flores2 , John McPhee1

1 Department of Systems Design Engineering,

University of Waterloo, Canada

2
Department of Mechanical Engineering,
University of Minho, Guimarães, Portugal

The 3rd Joint International Conference on Multibody System Dynamics - IMSD 2014
30 June - 03 July 2014

1 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

2 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

3 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact problems in multibody systems

Y Contact phenomenon in mechanical systems
Contact mechanics
Stress – strain distributions
Wave propagation
Continuum mechanics formulations
Design of mechanical systems

Contact dynamics
Dynamic parameters, e.g. force, impulse, velocity
Impact-induced waves
Force – deformation/impulse – momentum formalisms
Simulation of multibody systems

Y Benchmarking contact dynamics problems aims at

Systematic treatment of various contact dynamics scenarios
Classifying multibody systems including contact
Introducing new benchmark problems
4 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact problems in multibody systems

Y Contact phenomenon in mechanical systems
Contact mechanics
Stress – strain distributions
Wave propagation
Continuum mechanics formulations
Design of mechanical systems

Contact dynamics
Dynamic parameters, e.g. force, impulse, velocity
Impact-induced waves
Force – deformation/impulse – momentum formalisms
Simulation of multibody systems

Y Benchmarking contact dynamics problems aims at

Systematic treatment of various contact dynamics scenarios
Classifying multibody systems including contact
Introducing new benchmark problems
4 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact problems in multibody systems

Y Contact phenomenon in mechanical systems
Contact mechanics
Stress – strain distributions
Wave propagation
Continuum mechanics formulations
Design of mechanical systems

Contact dynamics
Dynamic parameters, e.g. force, impulse, velocity
Impact-induced waves
Force – deformation/impulse – momentum formalisms
Simulation of multibody systems

Y Benchmarking contact dynamics problems aims at

Systematic treatment of various contact dynamics scenarios
Classifying multibody systems including contact
Introducing new benchmark problems
4 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact problems in multibody systems

Y Contact phenomenon in mechanical systems
Contact mechanics
Stress – strain distributions
Wave propagation
Continuum mechanics formulations
Design of mechanical systems

Contact dynamics
Dynamic parameters, e.g. force, impulse, velocity
Impact-induced waves
Force – deformation/impulse – momentum formalisms
Simulation of multibody systems

Y Benchmarking contact dynamics problems aims at

Systematic treatment of various contact dynamics scenarios
Classifying multibody systems including contact
Introducing new benchmark problems
4 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact problems in multibody systems

Y Contact phenomenon in mechanical systems
Contact mechanics
Stress – strain distributions
Wave propagation
Continuum mechanics formulations
Design of mechanical systems

Contact dynamics
Dynamic parameters, e.g. force, impulse, velocity
Impact-induced waves
Force – deformation/impulse – momentum formalisms
Simulation of multibody systems

Y Benchmarking contact dynamics problems aims at

Systematic treatment of various contact dynamics scenarios
Classifying multibody systems including contact
Introducing new benchmark problems
4 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Motion constraints in multibody systems

Y A typical multibody system with bilateral and unilateral constraints
Fext
Bilateral constraints are permanent 

Revolute joints
Prismatic joints
Fext
Spring & dampers


Unilateral constraints are temporary 

Collisions Fext Fext
Sliding and rolling connections
Actuators 

Fc
Y In systems with unilateral constraints Fext
Fc

State evolution −→ constraints changing
⇓
Time-variant structure/topology systems

5 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

6 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact categories - materials & geometry
Smooth Rough




Contact force
Surface
properties
fc

Point
Dissipative Penetration
contact

Distributed Contact Energy trans-

contact
Contact properties Elastic
interfaces formation




Vn

Central
Geometry Oblique Vimpact Vt
factors

Eccentric Direct

7 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact dynamics – different analysis approaches

. .
Also known as Also known as
û Continuous analysis Regularized Non-smooth û Rigid approach
7 Force-based method approach models 7 Discrete model
Y Compliant contact Y Impact analysis
. .

Contact dynamics

8 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact dynamics – different analysis approaches

. .
Also known as Also known as
û Continuous analysis Regularized Non-smooth û Rigid approach
7 Force-based method approach models 7 Discrete model
Y Compliant contact Y Impact analysis
. .

Contact dynamics

8 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact dynamics – different analysis approaches

. .
Also known as Also known as
û Continuous analysis Regularized Non-smooth û Rigid approach
7 Force-based method approach models 7 Discrete model
Y Compliant contact Y Impact analysis
. .

Contact dynamics

8 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact dynamics – different analysis approaches

. .
Also known as Also known as
û Continuous analysis Regularized Non-smooth û Rigid approach
7 Force-based method approach models 7 Discrete model
Y Compliant contact Y Impact analysis
. .

Contact dynamics

8 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Classification schemes
Y Contact dynamics – different analysis approaches

. .
Also known as Also known as
û Continuous analysis Regularized Non-smooth û Rigid approach
7 Force-based method approach models 7 Discrete model
Y Compliant contact Y Impact analysis
. .

Contact dynamics

Y Contact/Impact is characterized by Si
p

Pj
X3 Ri d
Contact detection, minimum distance p
Pi
Pj
Pi
R
condition along with X2
i
p
Rj p
n
Sj
Rj
nj × ni = 0 & d × ni = 0 X1

Reaction forces → change in the

velocities of interacting bodies
8 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

9 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact dynamics – physic-based modeling

Y Contact dynamics – solution approaches

In non-smooth approach:
Contact duration is assumed extremely short
Impulse-momentum schemes are applied
Coefficient of restitution is involved, Newton’s, Poisson’s, and Stronge’s models
Multiple contacts and intermittent contacts modeling are quite complicated

In continuous approach:
Interaction forces act in a continuous manner
Equivalent stiffness, damping behavior, and indentation nonlinearity are to be
estimated
The obtained governing differential equations are stiff
Statistical procedures are promising to include micro-level behavior

10 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact dynamics – physic-based modeling

Y Contact dynamics – solution approaches

In non-smooth approach:
Contact duration is assumed extremely short
Impulse-momentum schemes are applied
Coefficient of restitution is involved, Newton’s, Poisson’s, and Stronge’s models
Multiple contacts and intermittent contacts modeling are quite complicated

In continuous approach:
Interaction forces act in a continuous manner
Equivalent stiffness, damping behavior, and indentation nonlinearity are to be
estimated
The obtained governing differential equations are stiff
Statistical procedures are promising to include micro-level behavior

10 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact dynamics – physic-based modeling

Y Contact dynamics – solution approaches

In non-smooth approach:
Contact duration is assumed extremely short
Impulse-momentum schemes are applied
Coefficient of restitution is involved, Newton’s, Poisson’s, and Stronge’s models
Multiple contacts and intermittent contacts modeling are quite complicated

In continuous approach:
Interaction forces act in a continuous manner
Equivalent stiffness, damping behavior, and indentation nonlinearity are to be
estimated
The obtained governing differential equations are stiff
Statistical procedures are promising to include micro-level behavior

10 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

Non-smooth models Regularized models

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

Non-smooth models Regularized models

F Linear complementarity formulation,

planar friction or spatial frictionless contacts
F Augmented Lagrangian method,
transform inequality constraints into equivalent
equations using proximal point of the convex
analysis
F Newton’s model, frictionless contact
F Poisson’s model, friction contact

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

Non-smooth models Regularized models

F Linear complementarity formulation,

planar friction or spatial frictionless contacts
F Augmented Lagrangian method,
transform inequality constraints into equivalent
equations using proximal point of the convex
analysis
F Newton’s model, frictionless contact
F Poisson’s model, friction contact

F Event-driven schemes,
accurate but time consuming, applicable
for few contacts
F Time-stepping schemes, fast,
no contact indicators are required

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

Non-smooth models Regularized models

F Linear complementarity formulation, F Rigid impact formulation, contact

planar friction or spatial frictionless contacts forces are introduced to the dynamic equations
using constraint Jacobian
F Augmented Lagrangian method,
transform inequality constraints into equivalent F Explicit continuous formulation,
equations using proximal point of the convex motion is influenced by elastodynamic forces
analysis F Implicit continuous formulation, finite
F Newton’s model, frictionless contact element formulations
F Poisson’s model, friction contact

F Event-driven schemes,
accurate but time consuming, applicable
for few contacts
F Time-stepping schemes, fast,
no contact indicators are required

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Y Contact dynamics – Multibody systems

In multibody systems

Non-smooth models Regularized models

F Linear complementarity formulation, F Rigid impact formulation, contact

planar friction or spatial frictionless contacts forces are introduced to the dynamic equations
using constraint Jacobian
F Augmented Lagrangian method,
transform inequality constraints into equivalent F Explicit continuous formulation,
equations using proximal point of the convex motion is influenced by elastodynamic forces
analysis F Implicit continuous formulation, finite
F Newton’s model, frictionless contact element formulations
F Poisson’s model, friction contact

F Event-driven schemes, F DAEs/ODEs solvers

accurate but time consuming, applicable F Penalty methods, constraints
for few contacts are included in the motion equations
F Time-stepping schemes, fast, with a penalty parameter
no contact indicators are required

11 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

12 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

A benchmark problem
Y A piano action mechanism (as a multibody multi-contact system)
five main bodies; flexible and rigid
Damper
bilateral and unilateral connections Hammer

interfaces covered with felt

Butt spring
16 contact locations Bridle strap

friction at micro- and macro- level

Backcheck
String

x 10
5
Let−off button Key
3
Loading − Experiment
Jack
Macroscopic pressure, P (Pa)

Loading − Simulation
2.5 Unloading − Simulation
Unloading − Experiment Whippen
2

1.5 Capstan
1
Balance rail

 0.5

0
0.39 0.4 0.41 0.42 0.43 0.44 0.45
Volume fraction, v f




13 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

A benchmark problem
Y A piano action mechanism (as a multibody multi-contact system)
five main bodies; flexible and rigid
Damper
bilateral and unilateral connections Hammer

interfaces covered with felt

Butt spring
16 contact locations Bridle strap

friction at micro- and macro- level

Backcheck
String

x 10
5
Let−off button Key
3
Loading − Experiment
Jack
Macroscopic pressure, P (Pa)

Loading − Simulation
2.5 Unloading − Simulation
Unloading − Experiment Whippen
2

1.5 Capstan
1
Balance rail

 0.5

0
0.39 0.4 0.41 0.42 0.43 0.44 0.45
Volume fraction, v f




13 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

A benchmark problem
Y A piano action mechanism (as a multibody multi-contact system)
five main bodies; flexible and rigid
Damper
bilateral and unilateral connections Hammer

interfaces covered with felt

Butt spring
16 contact locations Bridle strap

friction at micro- and macro- level

Backcheck
String

x 10
5
Let−off button Key
3
Loading − Experiment
Jack
Macroscopic pressure, P (Pa)

Loading − Simulation
2.5 Unloading − Simulation
Unloading − Experiment Whippen
2

1.5 Capstan
1
Balance rail

 0.5

0
0.39 0.4 0.41 0.42 0.43 0.44 0.45
Volume fraction, v f




13 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

A benchmark problem
Y A piano action mechanism (as a multibody multi-contact system)
five main bodies; flexible and rigid
Damper
bilateral and unilateral connections Hammer

interfaces covered with felt

Butt spring
16 contact locations Bridle strap

friction at micro- and macro- level

Backcheck
String

x 10
5
Let−off button Key
3
Loading − Experiment
Jack
Macroscopic pressure, P (Pa)

Loading − Simulation
2.5 Unloading − Simulation
Unloading − Experiment Whippen
2

1.5 Capstan
1
Balance rail

 0.5

0
0.39 0.4 0.41 0.42 0.43 0.44 0.45
Volume fraction, v f




13 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

A benchmark problem
Y A piano action mechanism (as a multibody multi-contact system)
five main bodies; flexible and rigid
Damper
bilateral and unilateral connections Hammer

interfaces covered with felt

Butt spring
16 contact locations Bridle strap

friction at micro- and macro- level

Backcheck
String

x 10
5
Let−off button Key
3
Loading − Experiment
Jack
Macroscopic pressure, P (Pa)

Loading − Simulation
2.5 Unloading − Simulation
Unloading − Experiment Whippen
2

1.5 Capstan
1
Balance rail

 0.5

0
0.39 0.4 0.41 0.42 0.43 0.44 0.45
Volume fraction, v f




13 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Elastic compression
Y A micromechanical contact scheme

Euler–Bernoulli beam theory X3

Contact forces in micro-level

Bulk pressure in terms of macro deformation
Pf (q,f)

Pf (q,f)
!3  Pf (q,f)
η h i
η η Pf (q,f)
P = Kp (1 − η) 2 + (3/2) 1−η − Qγv Pf (q,f)
Qγ(1 − η) f

Pf (q,f)
Test Fiber
Pf (q,f)
Pf (q,f)

C3 X2

X3 FY
C3t X1
C3n

X2 δY

X1

14 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Elastic compression
Y A micromechanical contact scheme

Euler–Bernoulli beam theory X3

Contact forces in micro-level

P
Bulk pressure in terms of macro deformation
Pf (q,f)

Pf (q,f)
!3  Pf (q,f)
η h i
η η Pf (q,f)
P = Kp (1 − η) 2 + (3/2) 1−η − Qγv Pf (q,f)
Qγ(1 − η) f

Pf (q,f)
Test Fiber
Pf (q,f)
Pf (q,f)

C3 X2

X3 FY
C3t X1
C3n

X2 δY

X1

14 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Compression hysteresis
Y Experiments on felt reveal: 250
3.15 m/s
1.59 m/s
200
Lack of viscoelastic response in compression behavior 1.00 m/s

Force (N)
150
Hysteresis due to fiber-to-fiber friction
100 ing
ad
Lo
Existence of withdrawal force between fibers g
50 in
ad
lo
Un
0
0 0.2 0.4 0.6 0.8 1
Compression (mm)

15 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Compression hysteresis
Y Experiments on felt reveal: 250
3.15 m/s
1.59 m/s
200
Lack of viscoelastic response in compression behavior 1.00 m/s

Force (N)
150
Hysteresis due to fiber-to-fiber friction
100 ing
ad
Lo
Existence of withdrawal force between fibers g
50 in
ad
lo
Un
0
0 0.2 0.4 0.6 0.8 1
Y Two subnetworks are imagined: Compression (mm)

1 A bounded network of non-sliding contacts, represents
 λ
elastic response 

λ
μ



Cjt ≥ µCjn + Wf0 λ ⇒ Cj cos(θcr ) = µCj sin(θcr ) + Wf0 λ θ
  
φ



15 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Compression hysteresis
Y Experiments on felt reveal: 250
3.15 m/s
1.59 m/s
200
Lack of viscoelastic response in compression behavior 1.00 m/s

Force (N)
150
Hysteresis due to fiber-to-fiber friction
100 ing
ad
Lo
Existence of withdrawal force between fibers g
50 in
ad
lo
Un
0
0 0.2 0.4 0.6 0.8 1
Y Two subnetworks are imagined: Compression (mm)

1 A bounded network of non-sliding contacts, represents
 λ
elastic response 

λ
μ



Cjt ≥ µCjn + Wf0 λ ⇒ Cj cos(θcr ) = µCj sin(θcr ) + Wf0 λ θ
  
φ
2 Fibers that slide, generate hysteresis
Z θcrZ π 
rsc = Ω(φ, θ) sin(θ) dθ dφ
0 0

15 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact force modeling

Nonlinear hysteretic behavior of contact
in interfaces: 30

0.45 2.5

 25 2
0.4
if sn ≥ 0

Contact Force (N)

FL (xp )

 1.5

Fn (xp , sn ) = 20 0.35
1

FL (xp ) + δ
 (xp ) tanh(αsn ) if sn < 0 0.5
LU 0.3
15
1.76 1.8 1.84 0
−4
x 10 0 1 2 3 4 5
−4
x 10
10

5 Simulation
Loading
Unloading
0
0 0.2 0.4 0.6 0.8 1 1.2 1.4
Penetration (m) −3
x 10

16 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Contact force modeling

Nonlinear hysteretic behavior of contact
in interfaces: 30

0.45 2.5

 25 2
0.4
if sn ≥ 0

Contact Force (N)

FL (xp )

 1.5

Fn (xp , sn ) = 20 0.35
1

FL (xp ) + δ
 (xp ) tanh(αsn ) if sn < 0 0.5
LU 0.3
15
1.76 1.8 1.84 0
−4
x 10 0 1 2 3 4 5
−4
x 10
10
amic Model 25

5 Simulation
0.8 Loading
Piecewise −vt
Smoothed Unloading
0.6
0
0 0.2 0.4 0.6 0.8 1 1.2 1.4
0.4 Penetration (m) −3
Coefficient of Friction, µ

x 10
0.2

0
Tangential friction model:
−0.2
 
−0.4
B1 st /υt
Ft ≤ µs Fn , µs = A tanh st /υt +
4 
−0.6 1 + B2 st /υt
vt
−0.8
−6 −4 −2 0 2 4 6
Tangential Speed (m/s) −5
x 10

Figure 2.7: Piecewise and Smoothed Friction Curves

16 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Outline

1 Introduction

2 Classification of contact dynamics problems

3 Contact dynamics – modeling and solution criteria

4 Contact dynamics – a benchmark problem

5 Summary and future work

17 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Summary & future work

Summary & Future work:

Contact dynamics problems in multibody systems were introduced.

Some well-established contact modeling, formulation schemes, and computer
implementation were presented.
A sophisticated benchmark problem including contact and friction was discussed.
More realistic contact modeling can be acquired by relating micro-level physics to bulk
behavior of the contact.
There is ample room for future improvement in the field of continuous contact
modeling to replace empirical equivalent models with physics-based systems.

18 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Summary & future work

Summary & Future work:

Contact dynamics problems in multibody systems were introduced.

Some well-established contact modeling, formulation schemes, and computer
implementation were presented.
A sophisticated benchmark problem including contact and friction was discussed.
More realistic contact modeling can be acquired by relating micro-level physics to bulk
behavior of the contact.
There is ample room for future improvement in the field of continuous contact
modeling to replace empirical equivalent models with physics-based systems.

18 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Summary & future work

Summary & Future work:

Contact dynamics problems in multibody systems were introduced.

Some well-established contact modeling, formulation schemes, and computer
implementation were presented.
A sophisticated benchmark problem including contact and friction was discussed.
More realistic contact modeling can be acquired by relating micro-level physics to bulk
behavior of the contact.
There is ample room for future improvement in the field of continuous contact
modeling to replace empirical equivalent models with physics-based systems.

18 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Summary & future work

Summary & Future work:

Contact dynamics problems in multibody systems were introduced.

Some well-established contact modeling, formulation schemes, and computer
implementation were presented.
A sophisticated benchmark problem including contact and friction was discussed.
More realistic contact modeling can be acquired by relating micro-level physics to bulk
behavior of the contact.
There is ample room for future improvement in the field of continuous contact
modeling to replace empirical equivalent models with physics-based systems.

18 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Summary & future work

Summary & Future work:

Contact dynamics problems in multibody systems were introduced.

Some well-established contact modeling, formulation schemes, and computer
implementation were presented.
A sophisticated benchmark problem including contact and friction was discussed.
More realistic contact modeling can be acquired by relating micro-level physics to bulk
behavior of the contact.
There is ample room for future improvement in the field of continuous contact
modeling to replace empirical equivalent models with physics-based systems.

18 / 19
 Introduction
Classification of contact dynamics problems
Contact dynamics – modeling and solution criteria
Contact dynamics – a benchmark problem
Summary and future work

Acknowledgement

View publication stats 19 / 19
