MWU SERIES HARDWARE

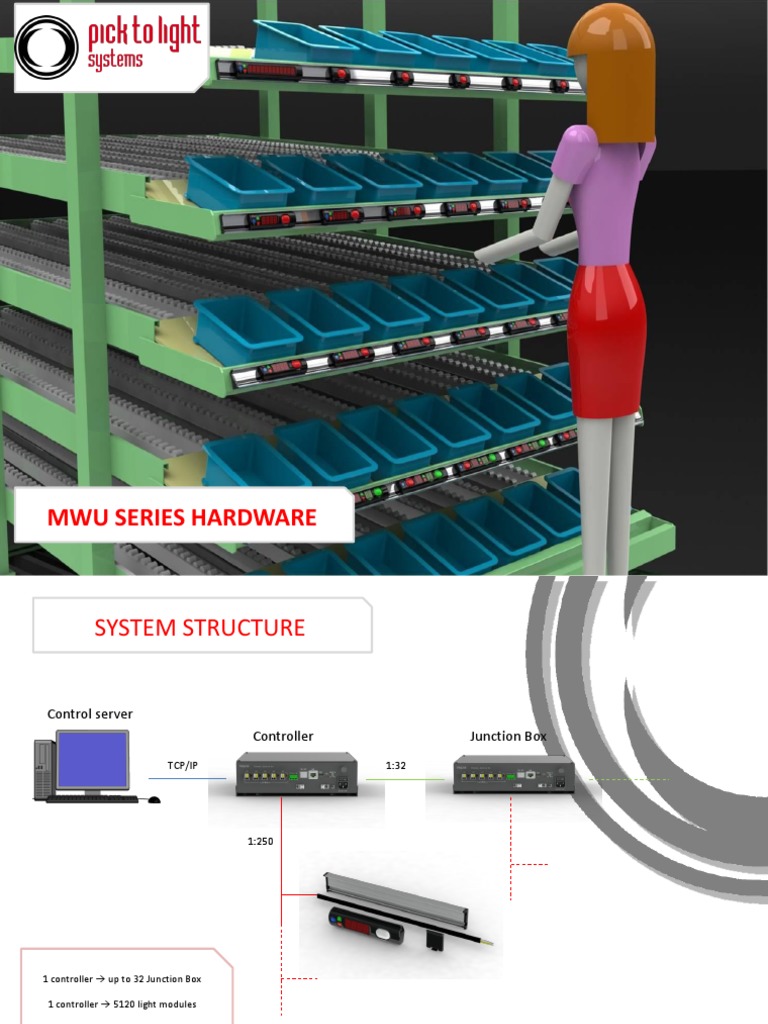

SYSTEM STRUCTURE

Control server
Controller Junction Box
TCP/IP 1:32

1:250

1 controller  up to 32 Junction Box

1 controller  5120 light modules

1 Junction Box  250 light modules

 INSTALLATION TYPE
In case that a small number of light modules are mounted to the shelf and aluminum duct
Aluminum duct is attached to shelf and light modules are mounted to the duct. Control server is not needed, Light modules are mounted alone to the shelf through the flat base. And
the flat base is used for the light module to be mounted alone at distant place
The light modules can be mounted at any place on the front of the aluminum duct.
Installing method：
Installing method：
Attach the flat base to the front of the shelf with 2 screws.
Attach the aluminum duct to the front of the shelf with double-faced adhesive tape
After placing the AI cable, mount the light module to the flat base on the shelf.
and further fix with screws.
Place AI cable in the channel of the duct and mount the light module to the duct.
TCP/IP
Aluminum duct
Flat base

Controller

MWU2003
Cable holder
MWU2001
Duct end L
MWU2001
Duct end R
 INSTALLATION TYPE
Control server
The pipe base is fixed on a pipe-framed shelf first and the light
module will be mounted to the pipe base.

Installing method：
Fix the pipe base on the pipe frame with two binding bands.
After placing AI cable , the light module is mounted to the pipe base.
TCP/IP
Controller

Pipe base

Biding band
 MWU2000L: NO DIGIT LIGHT MODULE

MWU2000LF
Full color button

MWU2000LG
Green button
Non-digit light module
No Fn button provided
No buzzer provided
Size：76mm×37mm×20.5mm 30g
MWU2000LR
Red button

MWU2000FE
Full color button
Buzzer
Sensor（Sensing range: Up to 15 cm downward direction)

Module-mountable bases

MWUD2135 Aluminum duct base MWU2000-03 Flat base MWU2000-04 Pipe base
 MWU2040: 4&5 DIGIT LIGHT MODULE

MWU2040PF
Full color button

MWU2040PG
Green button
4&5 digit light module
Fn button, S/- buttons and, buzzer provided
7-seg 4-digit display
Size：155mm×37mm×20.5mm 67g MWU2040PR
Red button

MWU2401F
Full color button
Fn button provided, S/- buttons not provided
Buzzer provided
E-PAPER 5-digit display

Module-mountable bases

MWUD2135 Aluminum duct base MWU2040-03 Flat base MWU2040-04 Pipe base
 MWU LIGHT MODULE WITH SENSOR
MWU2000FE
Non-digit light module
Full color button
No Fn button provided
Buzzer
Size：76mm×37mm×20.5mm 30g
Sensor (sensing range 15cm)

MWU2040FE
Full color button
7-seg 4-digit display
Light module with sensor Sensor (sensing range 15cm)
Fn button provided and S/- buttons not provided
Buzzer provided
Size：155mm×43.2mm×20.5mm 65g MWU2401FE
Full color button
E-PAPER 5-digit display
Sensor (sensing range 15cm)

Extension sensor MWU2401FE-SE

No light module Extension sensor (sensing range 15cm)
Size：76mm×43.2mm×20.5mm To be connected to MWU2040FE and MWU2401FEExtend
sensing range. (this module does not work alone

Module-mountable bases

MWUD2135 Aluminum duct base MWU2401FE-03 MWU2000-03 MWU2401FE-04 MWU2000-04

Flat base Flat base Pipe base Pipe base
 MWU LIGHT MODULE WITH STICK

MWU2000LFS
Non digit light module
Without Fn button and S/- buttons
With buzzer
7-color display, milky white button
With limit switch
MWU2040PFS
7seg. 4-digit light module
With Fn button and s/- buttons
With buzzer
7-color display, milky white button
With limit switch (LS)

Mountable base Mountable base

MWU2000S-03 MWU2000S-04 MWU2040S-03 MWU2040S-04

Flat base Pipe base Flat base Pipe base
 MWU SPLIT AND LARGE DISPLAY

MWU2040PRG-22 MWU2414
2-2 digit dual light module 12-digit alphanumeric light module
With Fn button and S/- buttons w/o Fn button, with +/- buttons
With buzzer 7-color button
Red button (left), green button(right) With buzzer
Size：198mm×37mm×20.5mm 85g Size：225mm×37mm×20.5mm 106g

Mountable base
Mountable base

MWUD2135 Aluminum duct base MWUD2135 Aluminum duct base MWU2414-04 Pipe base
CONTROLLER, JUNCTION BOX, INSTALLATION MATERIAL

Ethernet Junction Box

Size：304mm×225mm×89mm 3.0kg
TW2209
Controller
To be connected under Ethernet.
Up to 32 Junction Box.
Using Junction Box devices up to 5120 light modules.
Directly up to 250 MWU type light modules.

Ethernet Junction Box

Size：304mm×225mm×89mm 3.0kg
TW2210
Junction Box
To be connected under Ethernet.
Up to 250 MWU tipe light modules.

Aluminum duct base

MWU2135 Size： L=1350mm×14.5mm×43mm 790g
Aluminum duct
Light module mountable aluminum base to be attached to shelf
CONTROLLER, JUNCTION BOX, INSTALLATION MATERIAL

AI Cable 1.5mm2 (16AWG）X 2-wire （Yellow and white ）

AI-CABLE-EU
Size：100m/roll 8mm X 4mm Allowable tension :20kg
Cable
2-wired cable for power and signal line

AI cable branch connector

AI-J01 Size：26mm×11.5mm×12.3mm 2.5g
Connector to branch AI cable

MWU cable holder

MWUE2003 Size：38.4mm×30mm×10.7mm
Holder to prevent AI-CABLE-EU from coming off the duct

MWU duct end （R）（L）

MWUE2001 Size：5mm（except boss）×14.5mm×43mm 1.4g
MWUE2002
To be attached to the end of aluminum duct base
