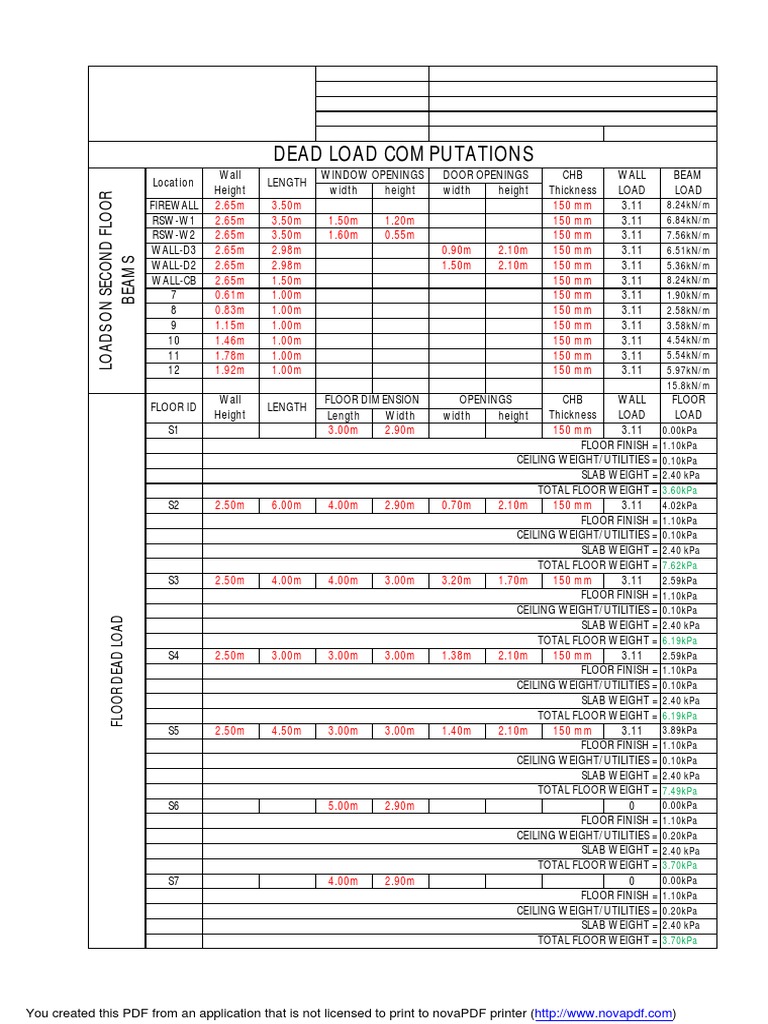

DEAD LOAD COMPUTATIONS

Wall WINDOW OPENINGS DOOR OPENINGS CHB WALL BEAM

Location LENGTH
Height width height width height Thickness LOAD LOAD
LOADS ON SECOND FLOOR

FIREWALL 2.65m 3.50m 150 mm 3.11 8.24kN/m

RSW-W1 2.65m 3.50m 1.50m 1.20m 150 mm 3.11 6.84kN/m
RSW-W2 2.65m 3.50m 1.60m 0.55m 150 mm 3.11 7.56kN/m
WALL-D3 2.65m 2.98m 0.90m 2.10m 150 mm 3.11 6.51kN/m
BEAMS

WALL-D2 2.65m 2.98m 1.50m 2.10m 150 mm 3.11 5.36kN/m

WALL-CB 2.65m 1.50m 150 mm 3.11 8.24kN/m
7 0.61m 1.00m 150 mm 3.11 1.90kN/m
8 0.83m 1.00m 150 mm 3.11 2.58kN/m
9 1.15m 1.00m 150 mm 3.11 3.58kN/m
10 1.46m 1.00m 150 mm 3.11 4.54kN/m
11 1.78m 1.00m 150 mm 3.11 5.54kN/m
12 1.92m 1.00m 150 mm 3.11 5.97kN/m
15.8kN/m
Wall FLOOR DIMENSION OPENINGS CHB WALL FLOOR
FLOOR ID LENGTH
Height Length Width width height Thickness LOAD LOAD
S1 3.00m 2.90m 150 mm 3.11 0.00kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.10kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 3.60kPa
S2 2.50m 6.00m 4.00m 2.90m 0.70m 2.10m 150 mm 3.11 4.02kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.10kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 7.62kPa
S3 2.50m 4.00m 4.00m 3.00m 3.20m 1.70m 150 mm 3.11 2.59kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.10kPa
FLOOR DEAD LOAD

SLAB WEIGHT = 2.40 kPa

TOTAL FLOOR WEIGHT = 6.19kPa
S4 2.50m 3.00m 3.00m 3.00m 1.38m 2.10m 150 mm 3.11 2.59kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.10kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 6.19kPa
S5 2.50m 4.50m 3.00m 3.00m 1.40m 2.10m 150 mm 3.11 3.89kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.10kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 7.49kPa
S6 5.00m 2.90m 0 0.00kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.20kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 3.70kPa
S7 4.00m 2.90m 0 0.00kPa
FLOOR FINISH = 1.10kPa
CEILING WEIGHT/UTILITIES = 0.20kPa
SLAB WEIGHT = 2.40 kPa
TOTAL FLOOR WEIGHT = 3.70kPa
