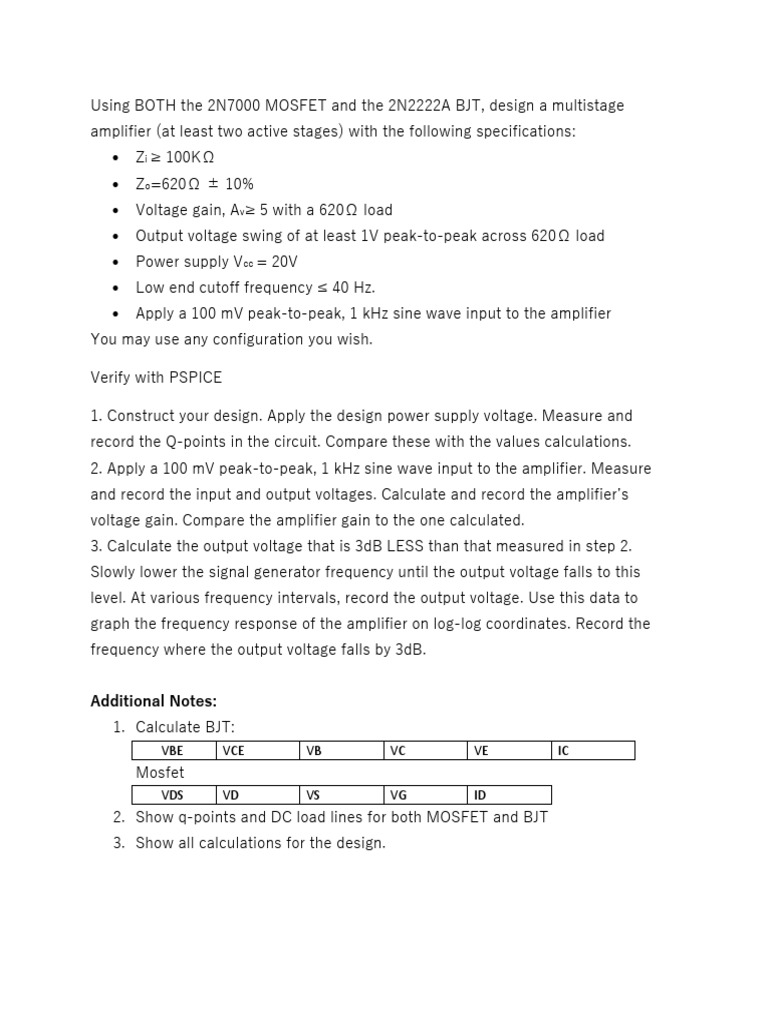

Using BOTH the 2N7000 MOSFET and the 2N2222A BJT, design a multistage

amplifier (at least two active stages) with the following specifications:
• Zi ≥ 100KΩ
• Zo=620Ω ± 10%
• Voltage gain, Av≥ 5 with a 620Ω load
• Output voltage swing of at least 1V peak-to-peak across 620Ω load
• Power supply Vcc = 20V
• Low end cutoff frequency ≤ 40 Hz.
• Apply a 100 mV peak-to-peak, 1 kHz sine wave input to the amplifier
You may use any configuration you wish.

Verify with PSPICE

1. Construct your design. Apply the design power supply voltage. Measure and
record the Q-points in the circuit. Compare these with the values calculations.
2. Apply a 100 mV peak-to-peak, 1 kHz sine wave input to the amplifier. Measure
and record the input and output voltages. Calculate and record the amplifier’s
voltage gain. Compare the amplifier gain to the one calculated.
3. Calculate the output voltage that is 3dB LESS than that measured in step 2.
Slowly lower the signal generator frequency until the output voltage falls to this
level. At various frequency intervals, record the output voltage. Use this data to
graph the frequency response of the amplifier on log-log coordinates. Record the
frequency where the output voltage falls by 3dB.

Additional Notes:
1. Calculate BJT:
VBE VCE VB VC VE IC
Mosfet
VDS VD VS VG ID
2. Show q-points and DC load lines for both MOSFET and BJT
3. Show all calculations for the design.
