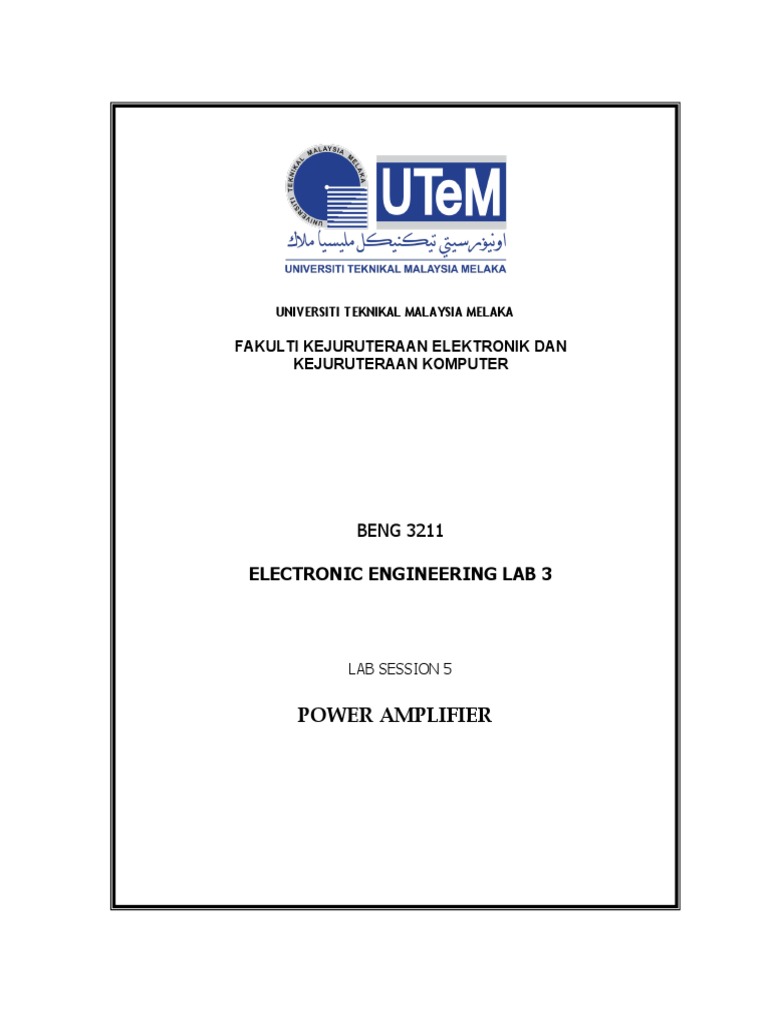

UNIVERSITI TEKNIKAL MALAYSIA MELAKA

FAKULTI KEJURUTERAAN ELEKTRONIK DAN

KEJURUTERAAN KOMPUTER

BENG 3211

ELECTRONIC ENGINEERING LAB 3

LAB SESSION 5

POWER AMPLIFIER
Lab 1 Voltage Regulators BENE2163

1.0 Objectives

To analyse a class A audio power amplifier

2.0 Material Required

No. Equipment No. Component

1 DC power supply 1 Resistor 1kΩ
2 Function Generator 2 Resistor 10kΩ
3 Digital Multimeter 3 Resistor 2.2kΩ
4 Oscilloscope 4 Resistor 220Ω
5 Resistor 470Ω
6 Resistor 47Ω
7 Capacitor 1uF
8 NPN transistor 2N3053

3.0 Theory

Power amplifiers must have the capability of providing higher level of current to
the load. For this reason, the last stage of most operational amplifiers IC is a power
amplifier. Power amplifiers can be stand alone when the level of output current needed is
high. The transistors used for this purpose are different from the one used for voltage
amplifier. They must be able to furnish high current and also be able to operate at higher
temperature. Normally, heat sink is used to make sure that the heat dissipated in the
transistor is removed quickly to the surrounding area.

Power amplifiers are classified based on their conduction angle. A Class-A power
amplifier is biased so that the transistor conducts continuously. The transistor of Class-A
amplifier is biased in the active region during the entire operation. The operation of a
transistor in active region is almost linear, thus the Class-A amplifier is a linear amplifier.
Class A amplifiers are inefficient (maximum efficiency=25%).

42
Lab 1 Voltage Regulators BENE2163

4.0 Procedure

1. Simulate the circuit as shown in Figure 1. Do not connect anything across Vin and
V0. Measure VC, VE and VB and ICQ. These are the DC operation point.

2. Apply an AC sinusoidal voltage at Vin with 0.8Vpp, 3kHz frequency using a

function generator. Increase the amplitude of Vin slowly and stop increasing it
when the output voltage V0 begins to show distortion. Record the pk-pk value of
these Vin and V0 from the oscilloscope. [Distortion means the curve has non-
smooth sinusoidal curve]

3. Using Vin in step 2, measure ICQ, VC, VE and VB using a multimeter (multimeter
shows reading in rms value).

4. Continued from step 2, place a load resistor RL = 470Ω between point a and b.
Measure ICQ, VC, VE and VB using a multimeter. Also, record the pk-pk value of
Vin and V0 from the oscilloscope.

5. Remove the load resistor RL from point a and b. Vary the frequency of the
function generator between 50 Hz and 20 kHz. Use at least 20 different frequency
values. For each frequency, record the pk-pk value of Vin and V0 from the
oscilloscope in a Table. If V0 shows distortion, reduce the pk-pk value of Vin
until V0 is no longer distorted. Then, calculate the voltage gain for each reading,
where Voltage Gain = 20log10(V0/Vin).

43
Lab 1 Voltage Regulators BENE2163

Figure 1

5.0 Discussion

1. Using the values of VC, VE, VB and ICQ from step 1 of the PROCEDURES and
given β = 100, plot DC and AC load line of the transistor (plot IC vs. VCE). To plot
DC load line, use VCE = VCC - IC(RC+RE). To plot AC load line, when IC = 0, use
VCEQ = VCC – ICQ(RC+RE) and VCE(cutoff) = VCEQ + ICQRC. When VCE = 0, use IC(sat)
= ICQ+VCEQ/RC. Then, from this graph, find the Q-point (VCEQ, ICQ).

2. For static conditions, calculate the:

a) Power supplied by the source [Pi(dc) = ICQVCC+(VCC-VB)2/10k + VB2/2.2k]

b) Power dissipated in the transistor (PQ = ICQVCEQ + IBQVBEQ, VBEQ = 0.7V)
c) Power dissipated in RC (PRC = ICQ 2RC)
d) Power dissipated in RE (PRE = IEQ2RE, IEQ = ICQ + IBQ)

3. For dynamic conditions, calculate the:

a) Maximum swing of current [IC(p-p)=2(IC(sat) - ICQ)] and voltage (VCE(p-p) =

2VCEQ)
b) AC power [Po(ac) = IC(p-p)VCE(p-p)/8]
c) Power supplied by the DC source (Pi(dc) = ICQVCC)
d) Power dissipated in the resistor Rc [PRC=VCE(p-p)2/(8RC)]
e) Power dissipated by the transistor (PQ = ICQVCEQ+IBQVBEQ, VBEQ = 0.7V)
f) Efficiency (η= Po(ac) / Pi(dc))

4. From the simulated ICQ, VC, VE and VB values in step 3 of the PROCEDURES,
calculate all parameters mentioned in question 3. Then, compare these results
with question 3. Explain why there are differences between the two values.

5. From the simulated ICQ, VC, VE and VB values in step 4 of the PROCEDURES,
draw the new AC and DC load lines of the transistor (IC vs. VCE). Observe and
explain how new load affects the output power, Q-point and the distortion.

6. From the voltage gain calculated in step 5 of the PROCEDURES, plot the
frequency response of the circuit (Voltage Gain vs. Frequency). Then, determine
the cut-off frequency from the graph.

44
