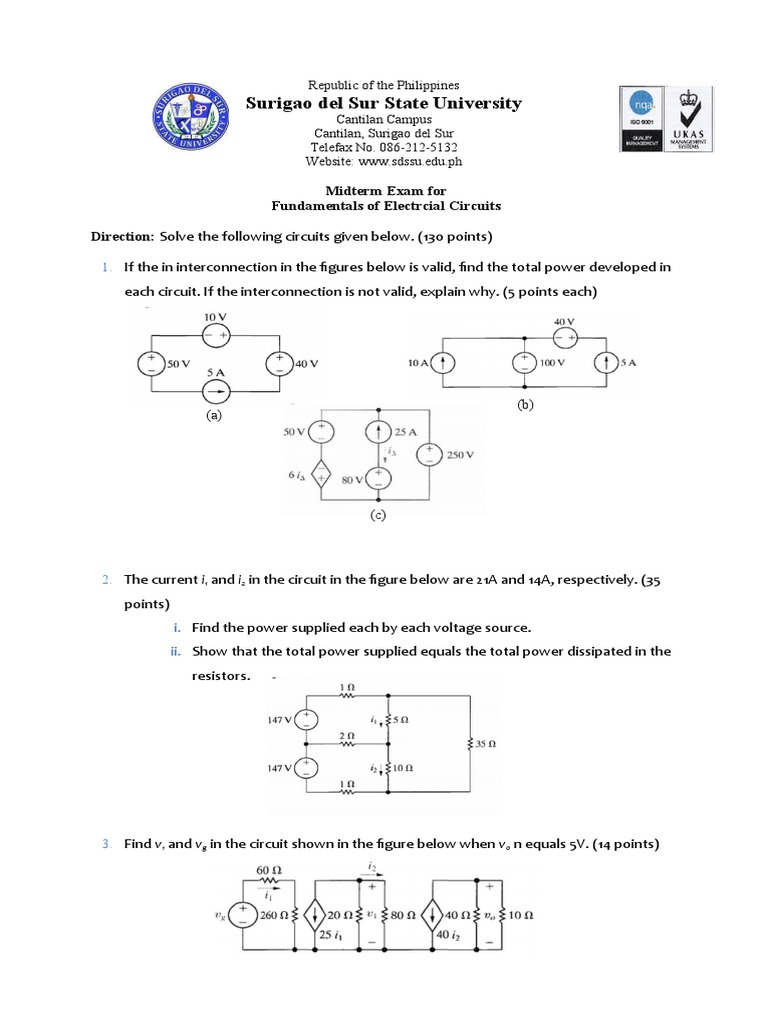

Midterm Exam for

Fundamentals of Electrcial Circuits

Direction: Solve the following circuits given below. (130 points)

1. If the in interconnection in the figures below is valid, find the total power developed in
each circuit. If the interconnection is not valid, explain why. (5 points each)

(b)
(a)

(c)

2. The current i1 and i2 in the circuit in the figure below are 21A and 14A, respectively. (35
points)
i. Find the power supplied each by each voltage source.
ii. Show that the total power supplied equals the total power dissipated in the
resistors.

3. Find v1 and vg in the circuit shown in the figure below when v0 n equals 5V. (14 points)
4. For the circuit shown below, calculate i∆ and v0. (25 points)

5. The current ia and ib in the circuit in the figure below are 4A and -2A, respectively. (41
points)
i. Find ig and vg.
ii. Find the power dissipated in each resistor.
iii. Show that the power delivered by the current source is equal to the the
power absorbed by all the other elements.
