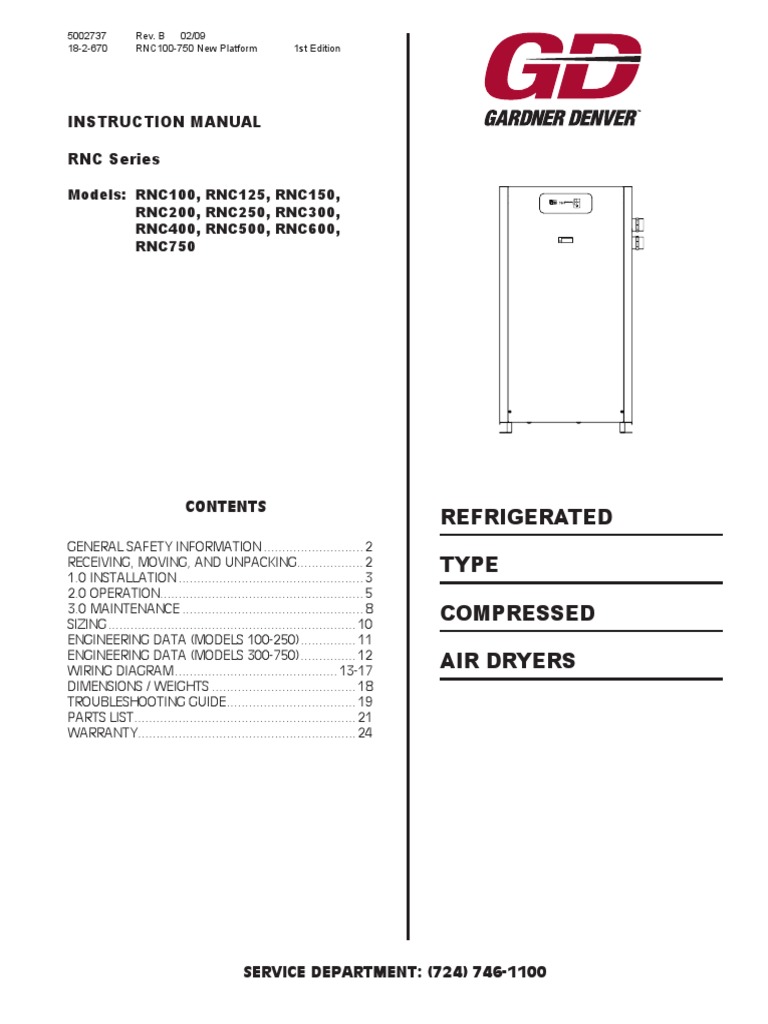

5002737

Rev. B 02/09
18-2-670 RNC100-750 New Platform 1st Edition

INSTRUCTION MANUAL

RNC Series

Models: RNC100, RNC125, RNC150,

RNC200, RNC250, RNC300,
33F......................39F
1C.......................4C

RNC400, RNC500, RNC600,

RNC750

CONTENTS
REFRIGERATED
GENERAL SAFETY INFORMATION............................ 2
RECEIVING, MOVING, AND UNPACKING................... 2
1.0 INSTALLATION................................................... 3
TYPE
2.0 OPERATION........................................................ 5
3.0 MAINTENANCE.................................................. 8
SIZING.................................................................... 10
COMPRESSED
ENGINEERING DATA (Models 100-250)................ 11
ENGINEERING DATA (Models 300-750)................ 12
WIRING DIAGRAM............................................. 13-17
AIR DRYERS
DIMENSIONS / WEIGHTS........................................ 18
TROUBLESHOOTING GUIDE.................................... 19
PARTS LIST............................................................. 21
WARRANTY............................................................ 24

SERVICE DEPARTMENT: (724) 746-1100

GENERAL SAFETY INFORMATION
1. Pressurized devices:
This equipment is a pressure containing
device.
• Do not exceed maximum operating
pressure as shown on equipment
serial number tag.
• Make sure equipment is depressurized before
working on or disassembling it for service.
2. Electrical:
This equipment requires electricity to
operate.
• Install equipment in compliance
with all applicable electrical codes.
• Standard equipment is supplied with electrical
enclosures not intended for installation in hazardous
environments.
• Disconnect power supply to equipment when
performing any electrical service work.
3. Breathing Air:
• Air treated by this equipment may
not be suitable for breathing without
further purification.
Refer to applicable standards and
specifications for the requirements for breathing
quality air.
2
RECEIVING, MOVING, AND UNPACKING
A. RECEIVING
This shipment has been thoroughly checked, packed and
inspected before leaving our plant. It was received in
good condition by the carrier and was so acknowledged.
Check for Visible Loss or Damage. If this shipment shows
evidence of loss or damage at time of delivery to you,
insist that a notation of this loss or damage be made on
the delivery receipt by the carrier’s agent.
B. UNPACKING
Check for Concealed Loss or Damage. When a shipment
has been delivered to you in apparent good order, but
concealed damage is found upon unpacking, notify the
carrier immediately and insist on his agent inspecting
the shipment. Concealed damage claims are not our
responsibility as our terms are F.O.B. point of shipment.
C. MOVING
In moving or transporting dryer, do not tip dryer onto its
side.
D. STORAGE/SHUT DOWN
Dryer should not be stored outside (either
packed or unpacked) or exposed to the weather. Damage to
electrical and control components may result.
IMPORTANT: WATER-COOLED UNITS - If unit is shut down below
freezing temperatures, the water-cooled condenser may
freeze and cause permanent damage. Condenser must be
drained when the unit is shut down.
Important: Do not store dryer in temperatures above 130°F
(54.4°C).
IMPORTANT: Control Panel

READ PRIOR TO STARTING THIS EQUIPMENT

1.0 INSTALLATION
Moisture Separator Air Inlet
1.1 Location
Air Outlet
A. For typical placement in a compressed air system, see Coalescing Filter
(Option)
drawing.
Float Drain
B. Air compressor intake–Locate air compressor so that (Standard) Electrical Entry
contaminants potentially harmful to the dryer (e.g. (230 VAC)

ammonia) are not drawn into the air system.

Drain Outlet
C. Dryer should be installed in a moderately heated, well
ventilated area. Avoid locations immediately adjacent Condensor
to cold exterior windows or walls, or adjacent to high
temperature ovens or boilers.
D. Clearances: Minimum requirements for free air flow and
service access
Front 36 inches (914 mm) Model
Back 6 inches (152 mm) RNC100
Sides 36 inches (914 mm)
E. Standard units are designed to operate in ambients:
Control Panel
Air-cooled: 40 to 110°F (4 to 43°C).
Water-cooled: 40 to 130°F (4 to 54°C).
F. Installations in altitudes above 4500 feet (1370 meters) –
Dryer is adjusted to operate in altitudes up to 4500 feet Air Inlet

(1370 meters). If dryer is installed in an altitude above

this, and has not been preset at the factory for this Moisture Separator

altitude, contact manufacturer’s Service Department. Air Outlet

Electric Time Drain
G. The installation of a flexible connection prior to the with 3-Way Valve
(Standard) Electrical Entry
dryer is recommended to prevent possible damage from (230VAC)
vibration.
Coalescing Filter Drain Outlet
NOTE: Outdoor installation–Standard units are designed (Option)

for in­door installation. Contact manufacturer if installing Condenser

outdoors.

1.2 Mounting
Mount the dryer on a level solid surface. Holes are provided in
the dryer base to permanently mount the dryer to the floor. Models
RNC125 & RNC150

Electrical Entry
Control Panel

Air Inlet

Aftercooler Dryer
Oil Removal Air Outlet
Compressor Separator Filter

Moisture Separator
RS 232 Entry
Coalescing Filter
(Option)

Condenser

Drain Outlet

3-Way Drain Valve

Solenoid Valve

Models
RNC200, RNC250, RNC300, RNC400, RNC500, RNC600, & RNC750

3
1.3 Piping connections B. Model 100 with standard panel or optional I-Controller
Level 1 ONLY:
A. Air Inlet - Connect compressed air line from air source Separator has a knurled fitting with flexible drain tubing
to air inlet. (Reference markings on dryer or, see callout attached. Be sure knurled fitting is tightened by turning
drawing on pages 18 for air inlet/outlet connection counter-clockwise before operating dryer.
locations)
Refer to Serial Number Tag for maximum
working pressure. Do not exceed dryer’s Maximum Working
Pressure.
TO CLOSE
NOTE: TURN COUNTERCLOCKWISE
Install dryer in air system at highest pressure possible (e.g.
before pressure reducing valves).
C. Models 125-750
Note: For manual draining, convenient dryer depressurization,
Install dryer at coolest compressed air temperature possible. and drain valve maintenance, a three-way valve assembly
Maximum inlet compressed air temperature: 110°F (43°C). is installed between the drain port on the moisture
If inlet air exceeds this temperature, precool the air with an separator and the drain valve. Models with the optional
aftercooler. cold coalescing filter are equipped with a separate drain
B. Air Outlet—Connect air outlet to downstream air lines. valve and three-way valve assembly. On Models 125 and
150, the three-way valve is panel mounted inside the
C. By-pass piping—
dryer cabinet. On Models 200-750, the three-way valve is
If servicing the dryer without interrupting the air supply
mounted to the bottom of the separator vessel using a
is desired, piping should include inlet and outlet valves
quick disconnect fitting. Review the following for proper
and an air by-pass valve.
drain function:
D. Water-cooled models - cooling water inlet and outlet
• Automatic Draining - Valve handle should be
1. Connect cooling water supply to cooling water inlet.
positioned parallel to the valve body (as shown), with
2. Connect cooling water return line to cooling water
the arrow on the handle pointing toward the drain
outlet connection.
valve. In this position, condensate will flow from the
NOTE: Strainer and water regulating valve are supplied on bowl to the drain valve.
water-cooled models. Also, it is recommended to add water
• Drain Isolation (Shutdown) - Valve handle shall be
inlet/outlet temperature and pressure gauges to the water
turned perpendicular to the valve body (rotate 90°).
piping.
In this position, condensate flow is shutoff.

1.4 Electrical connections

IMPORTANT: Use copper supply wires only.
A. Dryer is designed to operate on the
voltage, phase, and frequency listed on
the serial number tag.
B. If dryer is supplied with a cord and plug,
install in a receptacle of proper voltage.
C. Electrical entry on larger dryers is through a hole in the
cabinet. It is located on the right side panel when facing
the front of the unit. Connect power source to the Models 125-150
terminal strip in the electrical enclosure as shown on the MRD100-150
electrical schematic included with the dryer.
If optional disconnect is supplied, use entry hole in
disconnect enclosure.
NOTE: Refrigeration condensing unit is designed to run
continuously and should NOT be wired to cycle on/off with
the air compressor.

1.5 Moisture separator

A. Model 100:
Separator (and Oil Removal Filter where
applicable) has an internal drain which
automatically discharges collected Models 200-750
condensate. MRD200-750
• Manual Draining - Drain valve handle shall be rotated
Models 125-750: slightly past the drain isolation position to allow
Separator (and Oil Removal Filter where applicable) has an throttling through the valve for manual discharge
external drain which automatically discharges collected and depressurization.
condensate.

NOTE: It may be desirable to pipe the condensate from

the Automatic Drain outlet to a suitable drain.

4
 • NOTE: (Models 200-750 only) The quick disconnect NOTE: It is recommended that dryer be started 15 minutes
fitting allows removal of the entire drain assembly. before compressed air flow begins.
However, the unit must be depressurized prior
to disassembly or serious injury may occur. NOTE: If there is no power to the control board for a
NOTE: Discharge is at system pressure. Drain line should be period of two weeks or more, it may return to the default
anchored. mode.
NOTE: Condensate may contain oil. Comply with applicable 1. Confirm On/Off Switch is in the “Off” position.
laws concerning proper disposal. 2. On water-cooled models: after 24 hours, begin cooling
water flow.
2.0 OPERATION 3. Check for proper electrical voltage.
4. Energize dryer. Green power-on light will illuminate.
2.1 Minimum/Maximum operating conditions
5. Slowly pressurize unit air side by opening inlet isolation
A. Maximum inlet air pressure: refer to dryer serial number valve. Check for leaks.
tag
6. After 15 minutes, open outlet isolation valve slowly.
B. Minimum inlet air pressure: 30 psig (2.1 kgf/cm2)
7. Close air by-pass valve.
C. Maximum inlet air temperature: 120°F (49°C)
8. Identify Controller on dryer.
D. Maximum ambient temperature: A. Models with I-Controller Level 1 or 2 - proceed to
Air-cooled models: 110°F (43°C) Step 9.
Water-cooled models: 130°F (54°C) B. For Models with I-Controller Level 3, see Section 2.6
E. Minimum ambient temperature: 40°F (4°C) for further instructions.
9. Toggle ON/OFF switch to the ON position.
I - Controller Level 1 - Model 100 (Standard)
2.3 Timer Drain
(Only Models with I-Controller Level 2)
NOTE: The Timer Drain LED level has been pre-programmed
at the factory for your specific RNC Series dryer.
Programming is based upon a minimum of 100 psi saturated
inlet air pressure and maximum energy efficiency. The drain
open time is fixed at one second and a small amount of air
will be exhausted with each cycle. Generally, no adjustment to
On/Off Power On Dew Point the timer is required.
Switch Light Indicator
If water is present downstream of the dryer,
always verify that any condensate drains installed upstream of
the dryer are draining properly before attempting to readjust
I - Controller Level 2 - Model 100 (Optional) the LED setting.
Models 125-750 (Standard)
1. For minimum inlet air pressures that fall between
On/Off Power On Compressor On Dew Point column values, the setting for the lower pressure is
Switch Light Light Temperature recommended. (i.e. select the 100 psi column values for
Indicator 124 psi inlet pressure listed in Table 1.)
2. Where the dryer is consistently operating at less than
Drain maximum capacity, it may be possible to increase the LED
Push-to-Test set point to minimize air loss. Discretionary adjustments
33F......................39F
1C.......................4C
to the dryer should only be made on a hot, humid day
when the maximum expected air load is flowing through
the dryer. Failure to do so may prevent the condensate
Condensate from draining completely when operating under peak
Draining
load conditions.
Switch Legend
Table 1 Timed drain illuminated LED Settings
Inlet Pressure
75 100* 125 150 200 225
2.2 Start-up RNC100 3 3 4 4 4 4
RNC125 3 3 3 3 4 4
IMPORTANT: Energize dryer disconnect switch (provided by RNC150 2 3 3 3 3 4
Dryer Model

RNC200 2 3 3 3 3 3
others, see NEC) 24 hours before refrigeration compressor
RNC250 2 2 2 3 3 3
is started! Never use the disconnect switch to shut-down RNC300 1 2 2 2 3 3
the dryer for a extended period of time (except for repair). RNC400 1 2 2 3 3 4
Failure to follow these instructions may result in a non- RNC500 1 1 2 2 3 3
warrantable compressor failure. RNC600 1 1 1 2 2 3
RNC750 1 1 1 1 2 2
* Recommended and pre-programmed factory settings for each RNC
Series model dryer. Assumes CAGI ADF100 inlet conditions with 100°F
ambient and 10°F air-cooled aftercooler approach temperature.

5
Table 2 LED Legend Vacuum Fluo-
rescent Text Warning/
Minutes Display Drain LED Alarm Light
LED between
Maintenance
Light
Illuminated Drain Cycles
1st 1 On Reset
Switch
2nd 3 Compres-
3rd 5 sor Running
Light
4th 10
Drain Push-
5th 20 Off to-Test
6th 30 Switch Power-on
7th 40 Light
8th 50
Gauge Temperature Programming
9th 60 LED’s LED’s Buttons

2.4 Timer Drain Programming Mode I-Controller Level 3 - (Optional)

Dew Point Drain Interval
Temperature Indica- Selector 2.6 I-Controller Level 3 –
tor (Optional on models RNC200-RNC750)

Condensate Draining
(Flashes in
programming mode)
(LED illuminated
indicates drain cycle Drain Interval
setting) Program
1. Press the “Drain Interval Program” button (the
“Condensate Draining” LED will start to flash, and
the illuminated LED on the “Dew Point Temperature
Indicator” will identify the factory setting for “Minutes
Between Drain Cycles.” (See Table 1)
2. Press and release the “Drain Interval Selector” button to
sequence the “Minutes Between Drain Cycle LED’s” from
left to right until reaching your selection. The “Red” LED
is not used (Reference Table 2 for “Drain Cycle Intervals”)
3. To initiate the new setting, press the “Drain Interval
Program” button (this will store the new setting and exit
the program).
4. Exiting the Program will cause the Timer Drain to
discharge and begin a new cycle.
NOTE: Failure to perform step 3 within 25 seconds of
completing step 2 will cause the unit to revert back to the
previous setting.
NOTE: In the event of a brief or extended period of power
loss, the unit will retain the existing program setting and will
begin a new cycle once power is reapplied. Had drain been
ready to drain before the loss of power, the drain bowl’s
capacity would prevent downstream flooding. Condensate
will drain completely within a couple of cycles. (Manually
pressing the “Push-to-Test” button would drain bowl
immediately)
RNC Series dryers upgraded with the optional I-Controller
Level 3 include text messaging on the Vacuum Fluorescent
Text Display (VFTD), Alert/Alarm condition display panel
warning lights, process diagram LED indicator lights, Demand
Operated Condensate Drain(s) as standard features.
Programming, Start-up and, Operating Instructions
RNC Series dryers are pre-programmed in accordance with
the manufacturers recommendations. Programming details
are listed within Table 3.
NOTES:
a) Programming can be accomplished while dryer is in
either the ON or OFF mode.
b) The OPERATION sub-directory list automatically scrolls
sequentially every 3 seconds. Press the (ENTER) key
repeatedly to scroll manually.
VFTD Text Viewing Instructions
1. Press (Right-Arrow) or (Left-Arrow) to select from the
following Main Menu items: OPERATION,
MAINTENANCE, CONFIGURATION, UNIT SET UP
2. Press the (ENTER) key to access the sub-directory of the
Main Menu item of your choice.
NOTE: Press (ENTER) repeatedly to sequence through the
sub-directory text displays listed in Table 3.
Left Arrow Right Arrow

2.5 Operating check points

Enter
Check the following on a periodic basis:
A. Green power on light is illuminated.
Programming Buttons
B. Dewpoint indicator is in green area.
C. Condensate is discharging from drain.

6
Table 3 2.7 Electronic Demand Drain – I-Controller Level 3
A. An automatic electric demand drain (EDD)
Operation Maintenance Configuration Unit Set Up
discharges condensate removed by the
(view) (view) (programmable*)
(factory
(programmable*)
(factory separator.
setting) setting)
Dew Point Hours Gardner Denver *Dew Point Set Pt 50°F/ B. All standard I-Controller Level 3 models are
n/a
Temp (°F/°C) to Service IC3 Ver (xxx) (50°F-95°F) 10°C supplied with one EDD. Models with the
Ambient Temp Total *Set Language Eng.,
English
*Ambient Set Pt 105°F/ additional (optional) cold coalescing filter are supplied
(°F/°C) Hours Spanish, French ( 95°F-122°F) 41°C
with a second EDD.
Inlet Air Temp *Set Date *Inlet Air Set Pt 105°F/
Current
(°F/°C) MO/DA/YR (95°F-140°F) 41°C C. Models 200-750
HR:MIN:SEC *Set Time Eastern *Service Interval 2000 For manual draining, convenient dryer depressurization,
MO/DA/YR HR:MIN:SEC Standard (0-4000 Hours) Hours
and EDD service, a three-way valve assembly has been
Dryer *Set Temp
ON (OFF) °F/°C
F installed at the bottom of the moisture separator (and
cold coalescing filter where applicable). Review the
following for proper drain function:
Programming Instructions
(CONFIGURATION or UNIT SET UP modes only) • Automatic Draining - Valve handle should be
positioned parallel to the valve body (as shown), with
1. Press (Right-Arrow) or (Left-Arrow) to select from the the arrow on the handle pointing toward the EDD.
following Main Menu items: OPERATION, MAINTENANCE, In this position, condensate will flow from the bowl
CONFIGURATION, UNIT SET UP to the EDD.
2. Press the (ENTER) key to access the sub-directory of the • Drain Isolation (Shutdown) - Valve handle shall be
Main Menu item of your choice. turned perpendicular to the valve body (rotate 90°).
Note: Press (ENTER) repeatedly to sequence through In this position, condensate flow is shutoff.
the sub-directory text displays as listed in Table 3.
3. To reprogram your selection, press and release and/or
hold down the (+) or (-) key until you reach the desired
value
4. Press (ENTER) to accept the new setting.
NOTES:
a) Display will automatically return to normal operating
mode 30 seconds after last key is depressed.
b) Programming automatically reverts back to prior settings • Manual Draining - Drain valve handle shall be rotated
in 30 seconds if (ENTER) is not depressed. slightly past the drain isolation position to allow
throttling through the valve for manual discharge
Start-up Instructions - I-Controller Level 3 and depressurization.
(Continued from Section 2.2) • NOTE: The quick disconnect fitting allows removal
1. Energize dryer. of the entire drain assembly. However, the
unit must be depressurized prior to
A. Green POWER ON light will illuminate. disassembly or serious injury may occur.
B. VFTD will read “GARDNER DENVER IC3 (version)” Text
display automatically sequences at 3 second intervals NOTE: Discharge is at system pressure. Drain line should be
in the following order: anchored.
a. AMBIENT AIR TEMP (°F or °C) NOTE: Condensate may contain oil. Comply with applicable
b. INLET AIR TEMP (°F or °C) laws concerning proper disposal.
c. TIME/DATE (hours: minutes: seconds/month/ D. Verify that isolation valves are open. If the drain fails to
day/year) discharge after the valve is energized, the electronic
d. DRYER OFF or ON (status) control circuit will repeatedly energize the valve in an
e. DEW POINT TEMP (°F or °C) attempt to clear the discharge port. If, after 60 seconds,
C. LEDs – The GREEN Thermometer LEDs on the Process the drain still fails to discharge, the control circuit then
Diagram will illuminate when the corresponding switches to the alarm mode. In this mode the valve
temperature point is shown in the VFTD. is de-energized and the red alarm light is activated on
2. Depress Green (START) button. the drain and the dryer controller. The valve is then
A. The Green “COMPRESSOR ON” panel light automatically energized every 4 minutes for 5 seconds.
and process diagram LED will illuminate. Check the drain operation. Push drain (push-to-test)
button on the Energy Management Monitor control
NOTE: If dryer is started while “DRYER OFF” is displayed board to energize drain. A flow of condensate and/or air
within the VFTD, it will change to “DRYER ON” with the next should be present at the drain outlet. The alarm mode
display rotation. automatically clears after the drain returns to normal
operation.

7
E. Condensate enters the reservoir (1) through the inlet
port. When the condensate level in the reservoir covers
the capacitance sensor, an electronic signal is sent to the
solid state countdown processor. The processor delays
the opening of the solenoid valve for a given period
of time. Once the time has elapsed, the solid state
processor transmits information to energize the coil in
the solenoid valve (2). The magnetic force of the coil
causes the solenoid core (3) to move, closing the pilot air
supply line and opening the pilot air exhaust line. After
the pilot air above the diaphragm (4) is vented, pressure
in the reservoir opens the discharge port and forces
the condensate through the discharge port and outlet
piping.
2 information.
3 When to replace the Separator/Filters
4
1
2.8 Operating Instructions – I-Controller Level 3
1. Check the following on a periodic basis:
a. Power-on light glows (green) indicating power to the
dryer
b. Compressor-on light glows (green) indicating the
refrigeration compressor is operating
c. VFTD is automatically scrolling every 3 seconds
through OPERATION mode readings and settings
d. Warning/Maintenance Alert light (yellow) is NOT
flashing
e. Alarm light (red) is NOT flashing
f. Condensate is draining
2. ALARM/ALERT Fault Condition Activation
(See wiring diagram for N/O contact location.)
Upon activation, text identifying the Fault will be
displayed on the VFTD. An Audible Alarm will sound, a
Flashing Panel light (Warning/Yellow or, Alarm/Red) and, a
Flashing Process Diagram LED (Green or Red) combine to
indicate the fault condition. Where applicable (see table
2 on page 20) a normally open (N/O) circuit will activate a
customer supplied remote alarm.
NOTE: If yellow Alert light or, red Alarm light ARE flashing,
see fault condition identified in VFTD window. Reference the
condition in the Troubleshooting Guide on page 20.
3. REMOTE START/STOP Function
Software programming allows the dryer to be stopped
and started by a remotely controlled signal. Consult
factory for details.
4. DOWNLOADABLE MEMORY Function
Software programming allows the dryer to store the last
10 alarm related events. Output command delivers the
events complete with the date, time and, fault condition.
Consult factory for details.
5. RS-232 & RS-485 Communications Capable
Dedicated pin arrangement is used to monitor dryer
operation from a host computer. Consult factory for
details.
8
3.0 MAINTENANCE
3.1 Condenser coil
A. Air-cooled - clean off accumulated dust and dirt monthly
or as necessary in dirty environments.
B. Water-cooled - clean strainer monthly, more often if
required. Shut off water, remove small plug to relieve
pressure, then remove large plug to remove strainer.
Clean strainer and replace.
3.2 Moisture Separator/Oil Removal Filter
NOTE: Prepackaged maintenance kits are available
that include all necessary filter and timed drain valve
components. Maintain maximum performance and
efficiency with Genuine Parts. See page 21 for ordering
Replace filter element when pressure drop across dryer is
excessive or annually.
Dryers have the option of one or two stages of filtration.
The directions for servicing either filter is identical.
When removing liquids at rated flow conditions, an
increase in pressure drop will occur as the separator/
filter elements become loaded with solid particles.
Procedure for Separator / Filter Element Replacement
THIS FILTER IS A PRESSURE CONTAINING DEVICE.
DEPRESSURIZE BEFORE SERVICING. If filter has not been
depressurized before disassembly, an audible alarm will sound
when the bowl begins to be removed from the head. If this
occurs, stop disassembly, isolate and completely depressurize
filter before proceeding.
1. Isolate dryer (close inlet and outlet valves if installed) or
shut off air supply.
2. Depressurize filter by slowly opening manual drain by-
pass valve.
3. Remove bowl
a. For models RNC100 through RNC150 - bayonet
mount - push bowl up, turn bowl 1/8th turn to your
left, and pull bowl straight down
b. For models RNC200 through RNC750 - threaded
bowls - unscrew bowl from head using hand, strap
wrench or C spanner.
4. Clean filter bowl
5. Replace moisture separator element.
a. Replacing complete Grade B element.
1) Pull off old element and discard
2) Make certain o-rings on male of replacement
element adaptor are in place and push element
into filter head.
NOTE: Do not handle Oil Removal Filter elements by outside
foam cover. Handle by bottom end cap only.
6. After making certain that o-ring inside top of bowl (and
on bayonet mount heads, wave spring) are in place,
reassemble bowl to head.
NOTE: Make certain o-ring is generously lubricated. (Use
lubricant provided)
NOTE: Wave spring ends should be pointed down to prevent
the wave spring from interfering with reassembly.
NOTE: Threaded bowl to head connection, generously
lubricate threads with a high grade/temperate lubricant 150
°F, 66°C. (Use lubricant provided).
7. Disassemble condensate drain valve(s).
8. Rebuild drain valves using Genuine Parts. See page 21
for ordering information.
3.3 Check separator daily to be sure automatic
drain is discharging.
NOTE: Units with two stage filtration have two sets of drains.
3.4 Blow down separator weekly by pushing test
button on control panel.
3.5 Rebuild drain mechanism annually.
To facilitate service, maintenance kits are available.
See page 21.

Model RNC100 Models RNC200 thru RNC750

Separator Element
or Optional Oil Removal
Element

Bowl Wave Spring

O-Ring Separator Element or
Optional Oil Removal Element

Pneumatic Pilot
Operated Drain

Drain Quick Disconnect

Tube
Timer Drain Valve
(ONLY with I-Controller Level 2)

Timer Drain Valve - Standard with I-Controller Level 2

Models RNC125 thru RNC150

Demand Drain - I-Controller Level 3 Only

Separator Element
or Optional Oil Removal
Element

Bowl Wave
O-ring Spring

Timer Drain Valve - Standard

9
SIZING TABLE 2
Air capacity correction factors (Multipliers)
Determining dryer capacity at actual operating conditions
INLET COMPRESSED AIR CONDITIONS
To determine the maximum inlet flow capacity of a dryer
INLET inlet temperatures
at various operating conditions, multiply the rated capacity
from Table 1 by the multipliers shown in Table 2. PRESSURES 80°F 90°F 100°F 110°F 120°F

Example: How many scfm can an air-cooled model RNC750 psig kgf/cm2 27°C 32°C 38°C 43°C 49°C
handle when compressed air to be dried is at 200 psig and 50 3.5 1.35 1.05 0.84 0.69 0.56
100°F; ambient air temperature is 80°F? 80 5.6 1.50 1.17 0.95 0.79 0.66
100 7.0 1.55 1.23 1.00 0.82 0.70
Answer: 750 x 1.22 x 1.12 = 1,025 scfm.
125 8.8 1.63 1.31 1.07 0.91 0.74
150 10.5 1.70 1.37 1.13 0.95 0.80
TABLE 1 175 12.3 1.75 1.42 1.18 0.99 0.84
200 14.0 1.80 1.47 1.22 1.03 0.89
Rated capacity (scfm) and pressure drop @ 100 psig inlet
pressure, 100°F inlet temperature, and 100°F ambient
temperature COOLING MEDIUM*

RNC MODEL 100 125 150 200 250 AMBIENT MULTIPLIER

TEMPERATURE
Rated capacity 60 Hz 100 125 150 200 250
of air-cooled 50 Hz 84 105 125 170 210 °F °C
models (scfm)
80 27 1.12
RNC MODEL 300 400 500 600 750 90 32 1.06
100 38 1.00
Rated capacity 60 Hz 300 400 500 600 750 110 43 0.94
of air-cooled 50 Hz 250 340 420 540 630
models (scfm)
*Air-cooled models; water-cooled models use 1.15 multiplier if cooling water
is below 35°C, 95°F.

10
ENGINEERING DATA (Models 100-250)
Air System Data
Rated Flow Capacity at 100°F, 100 psig Inlet, 100°F Ambient Temperature 100 125 150 200 250
Maximum / Minimum Inlet Air Pressure (compressed air at inlet to dryer) 232 psig (16 barg) / 30 psig (2 barg)
Maximum / Minimum Inlet Air Temperature (compressed air at inlet to dryer) 120°F (49°C) / 40°F (4°C)
Maximum / Minimum Ambient Temperature Air-cooled: 110°F (43°C) / 40°F (4°C), Water-cooled: 130°F (54°C) / 40°F (4°C)
Outlet Air Temperature (nominal at rated conditions) 85°F (29°C)
Refrigeration System Data
Refrigeration Capacity @ 35°F Evaporator & 100°F Ambient (BTU/hr) 60 Hz 4820 6030 8900 15200
50 Hz 4020 5690 7420 12700
Refrigerant Type R-134A
Refrigerant Charge See Data Tag on Dryer
Suction Pressure Setting - Hot Gas Bypass Valve (psig) 30.5 psig (2.1 barg)
Compressor Control Ranges (out-in) High N/A 281 - 190 psig (19.4 - 13.1 barg)
Low N/A 22 - 34 psig (1.5 - 2.3 barg)
Air-Cooled Condensers
Air Flow Across Condenser (cfm) (air-cooled models) 60 Hz 300 450 710 1070
50 Hz 250 370 590 890
Condenser Fan Switch Setting (in-out) Fan 1 110 - 70 psig (7.6 - 4.8 barg) 113 - 78 psig (7.8 - 5.4 barg)
Fan 2 N/A
Water-Cooled Condensers
Water Regulating Valve Setting 135 psig (9.3 barg)
Required Available Water Pressure Differential 40 psig (2.8 barg) - minimum
Flow Required with 85°F Cooling Water (gallons per minute) 60 Hz N/A 1.1 2.0
50 Hz N/A 0.9 1.7
Electrical Data
Nominal Voltage 115/1/60 208-230/3/60
Min. - Max. Voltage 104 - 127 187 - 253
Input Power @ Rated Flow (watts) 932 1280 1298 1255 1962
Rated Load Amps** 10.2 15.2 7.5 10.4
Locked Rotor Amps** 51.0 66.3 51.0 66.0
Minimum Circuit Ampacity 13.6 18.3 10.5 15.9
Branch Circuit Fuse Size (amps) 20 25 15 20
Resistance (ohms) 4.3 S / 0.7 R 3.2 S / 0.4 R 1.8 1.3
Nominal Voltage 208-230/1/60 460/3/60
Min. - Max. Voltage 187 - 253 414 - 506
Input Power @ Rated Flow (watts) 932 1280 1298 1255 1962
Rated Load Amps** 5.4 9.0 3.6 4.7
Locked Rotor Amps** 30.0 33.5 25.0 33.0
Minimum Circuit Ampacity 7.3 10.5 5.2 7.5
Branch Circuit Fuse Size (amps) 15 15 15 15
Resistance (ohms) Main/Start 9.0 S / 2.3 R 7.9 S / 1.6 R 7.4 5.0
Nominal Voltage 100/1/50 575/3/60
Min. - Max. Voltage 90 - 110 518 - 633
Input Power @ Rated Flow (watts) 680 1019 991 1255 1962
Rated Load Amps 10.2 15.2 3.6 4.7
Locked Rotor Amps 51.0 66.3 25.0 33.0
Minimum Circuit Ampacity 13.6 18.3 4.2 6.0
Branch Circuit Fuse Size (amps) 20 25 15 15
Resistance (ohms) 4.3 S / 0.7 R 3.2 S / 0.4 R 7.4 5.0
Nominal Voltage 240/1/50 380-420/3/50
Min. - Max. Voltage 216 - 264 342 - 462
Input Power @ Rated Flow (watts) 680 1019 991 1002 1613
Rated Load Amps** 4.5 8.3 3.6 4.7
Locked Rotor Amps** 21.0 53.0 25.0 33.0
Minimum Circuit Ampacity 6.2 9.9 5.2 7.5
Branch Circuit Fuse Size (amps) 15 15 15 15
Resistance (ohms) 19.5 S / 3.3 R 10.5 S / 1.8 R 7.4 5.0

* For 60 Hz, 35°F Evaporator, 100°F Ambient; for 50Hz, 35°F Evaporator, 77°F Ambient
** Compressor Only

11
ENGINEERING DATA (Models 300-750)
Air System Data
Rated Flow Capacity at 100°F, 100 psig Inlet, 100°F Ambient Temperature 300 400 500 600 750
Maximum / Minimum Inlet Air Pressure (compressed air at inlet to dryer) 232 psig (16 barg) / 30 psig (2 barg)
Maximum / Minimum Inlet Air Temperature (compressed air at inlet to dryer) 120°F (49°C) / 40°F (4°C)
Maximum / Minimum Ambient Temperature Air-cooled: 110°F (43°C) / 40°F (4°C), Water-cooled: 130°F (54°C) / 40°F (4°C)
Outlet Air Temperature (nominal at rated conditions) 85°F (29°C)
Refrigeration System Data
Refrigeration Capacity @ 35°F Evaporator & 100°F Ambient (BTU/hr) 60 Hz 15200 19200 22000 30500
50 Hz 12700 16000 18300 25400
Refrigerant Type R-134A
Refrigerant Charge See Data Tag on Dryer
Suction Pressure Setting - Hot Gas Bypass Valve (psig) 30.5 psig (2.1 barg)
Compressor Control Ranges (out-in) High 281 - 190 psig (19.4 - 13.1 barg)
Low 22 - 34 psig (1.5 - 2.3 barg)
Air-Cooled Condensers
Air Flow Across Condenser (cfm) (air-cooled models) 60 Hz 1070 2470 1680 2170
50 Hz 890 2060 1400 1810
Condenser Fan Switch Setting (in-out) Fan 1 113 - 78 psig (7.8 - 5.4 barg)
Fan 2 N/A 183 - 124 psig (12.6 - 8.6 barg)
Water-Cooled Condensers
Water Regulating Valve Setting 135 psig (9.3 barg)
Required Available Water Pressure Differential 40 psig (2.8 barg) - minimum
Flow Required with 85°F Cooling Water (gallons per minute) 60 Hz 2.0 2.1 4.9 6.8
50 Hz 1.7 1.8 4.1 5.6
Electrical Data
Nominal Voltage 208-230/3/60
Min. - Max. Voltage 187 - 253
Input Power @ Rated Flow (watts) 1999 2031 2680 2910 4120
Rated Load Amps** 10.4 11.4 13.9 22.1
Locked Rotor Amps** 66.0 75.0 88.0 115.0
Minimum Circuit Ampacity 15.9 20.0 19.7 30.4
Branch Circuit Fuse Size (amps) 20 25 30 45
Resistance (ohms) 1.3 1.1 1.0 0.7
Nominal Voltage 460/3/60
Min. - Max. Voltage 414 - 506
Input Power @ Rated Flow (watts) 1999 2031 2680 2910 4120
Rated Load Amps** 4.7 5.1 7.1 9.6
Locked Rotor Amps** 33.0 40.0 44.0 63.0
Minimum Circuit Ampacity 7.5 9.6 10.4 15.2
Branch Circuit Fuse Size (amps) 15 15 15 20
Resistance (ohms) Main/Start 5.0 4.1 4.0 2.7
Nominal Voltage 575/3/60
Min. - Max. Voltage 518 - 633
Input Power @ Rated Flow (watts) 1999 2031 2680 2910 4120
Rated Load Amps 4.7 5.1 7.1 9.6
Locked Rotor Amps 33.0 40.0 44.0 63.0
Minimum Circuit Ampacity 6.0 7.7 8.3 12.2
Branch Circuit Fuse Size (amps) 15 15 15 20
Resistance (ohms) 5.0 4.1 4.0 2.7
Nominal Voltage 380-420/3/50
Min. - Max. Voltage 342 - 462
Input Power @ Rated Flow (watts) 1622 1667 1992 2040 2860
Rated Load Amps** 4.7 5.1 7.1 9.6
Locked Rotor Amps** 33.0 40.0 44.0 63.0
Minimum Circuit Ampacity 7.5 8.1 10.4 15.2
Branch Circuit Fuse Size (amps) 15 15 15 20
Resistance (ohms) 5.0 4.1 4.0 2.7

* For 60 Hz, 35°F Evaporator, 100°F Ambient; for 50Hz, 35°F Evaporator, 77°F Ambient
** Compressor Only

12
WIRING DIAGRAM
I-Controller Level 1
Model 100 (120/230 VAC)
120 VAC
POWER CORD SUPPLIED

230 VAC
CUSTOMER SUPPLIED

L1 L2 PE
COMPRESSOR HARNESS
OVERLOAD
T1 T1 3 1 3
O I
L1 T1
T1
POWER ON
PILOT LIGHT
T2
CAPACITOR
L2 T2 T2 L3 SR S 5 4 C
MTR1
S
R COMPRESSOR
T2

START RELAY
GROUND PE L3 M 6
SR
STUD PE

FAN 1 HARNESS

T1 FPS 1

T2 FAN 1
MTR2

PE

I-Controller Level 2
Model 100 thru 150 (115 or 208-230V/60 Hz, 100 or 240V/50 Hz)
DRAIN HARNESS

L1 BROWN 2
CUSTOMER CONNECTION 3 BLUE 1 120VAC
00 TO GROUND BAR PE GRN/YELLOW 3 OPTIONAL DRAIN
GARDNER DENVER TEST ALM
L1 N PE IC1 LEVEL BOARD
01
LINE
L1
02
NEUTRAL
03 N NOTES: JUMPER J5-1 TO J5-3 AND J5-5 TO J5-7 FOR 120 VAC
J5
04 1
2 THERMISTER
3
4 TC1
5
05 6 THERMISTER
7
DRAIN HARNESS
GROUND BAR 3 3
06
DRAIN LINE L1 L1 BROWN 2
3 3 BLUE 1 120VAC
07 TO GROUND BAR PE GRN/YELLOW 3 DRAIN
DRAIN NEUTRAL
N TEST ALM
08 N
COMPRESSOR ON
1
09 HEATER HARNESS
L1
-1NC
CONT 1
-2NC 1L1
HEATER 1
1L1
10
COMPRESSOR
L1 CONTACTOR N N H1 H2
11 O I
L1 1 1 A1 CONT 1 A2
TO GROUND BAR PE
12 L1
N N N

13 COMPRESSOR HARNESS
L1 CONT 1 OVERLOAD
N
L1 L1 T1 T1 C 3 1
14
CAPACITOR
N L2 T2 T2 1 L3 SR S 4 C
MTR1
S
15 START RELAY R COMPRESSOR
L1 L3 T3 TO GROUND BAR PE L3 SR M
L1
16
FAN 1 HARNESS
17
T2 T2 FPS 1

18 T1 T1
MTR2 FAN 1
19 TO GROUND BAR PE

20

21

13
WIRING DIAGRAM
I-Controller Level 2
Models 200 thru 600 (230-400-460V/3/50-60 Hz)

CUSTOMER CONNECTION
L1 L2 L3 FROM LINE 21
L1 L3
00 22

01 TB1 L1 L2 L3 PE 23 L1 L1

COMPRESSOR HARNESS
02 24
L1 CONT 1 T1
L1 L1 T1 T1 T1 L3 L3
03 25
L2 T2
L2 L2 T2 T2 T2
04 MTR1 COMPRESSOR 26
L3 T3
L3 L3 T3 T3 T3
05 27

FU2

FU1
L3 T3
TB2
06 28
H6 H5 H4 H3 H2 H1
REF SHEET 01 LINE 19 PE L2 L1
07 REF SHEET 02 LINE 18 29 208V H6 H5
230V H6 H4
FAN 1 HARNESS 400V H6 H3
08 30 460V H6 H2
FPS 1 X3 XF 575V H6 H1
T1
09 31 FU3 FACTORY SET TO 460V
MTR2 FAN 1 X1 X2
T2
10 32
TB2
11 33
PE (4 Terminal Blocks) (4 Terminal Blocks)
TB2 TB2
12 34 X N
Optional Fan X N
(for 500-600 models only)
13 FAN 2 HARNESS 35

T2 FPS 2
14 36
MTR3 FAN 2
T3
15 37
TB2
16 38
PE
17 39

18 HEATER HARNESS 40
HEATER 1
19 L3 41
CONT 1
L2 -1NC -2NC 1L2 H1 H2
20 42
TB2
21 L1 L3 43
PE X N
TO LINE 22 TO SHEET 02 TO SHEET 02

FROM SHEET 01 FROM SHEET 01

X N
COMPRESSOR
00 CONTACTOR
O I TB2 TB2 A1 A2 TB2
X X 1 1 4 N
X 1 2 CONT 1 N
01
1 2 2 4
02 LINE HPS/LPS SENSOR HARNESS
X
X
03

04 HPS LPS
NEUTRAL
TB2
IC2 LEVEL BOARD

05 N N
N

06

07 THERMISTER

08
THERMISTER
09

10 DRAIN NEUTRAL N

11 DRAIN LINE 3

12 TB2 X -4NO CONT 1 -3NO 5 COMPRESSOR

X

13

TB2 TB2 TB2

14 X X
X X 3
DRAIN HARNESS
15
3 BLUE 2
X BROWN 1
16 TB2 24VAC
PE GRN/YELLOW 3
PE
TEST ALM
17 DRAIN HARNESS

18
OPTIONAL DRAIN
19
3 BLUE 2
X BROWN 1
20 TB2 24VAC
PE GRN/YELLOW 3
PE
X N
INSTRUMENT BOARD LANDING TEST ALM
21 DRAIN HARNESS
TB2 TB1
L1

PE
L2
L3
PE
PE
PE
PE
PE
1

N
N
N
X
X
X
2
2
3
3

L1

PE
L2
L3

HARNESS LANDING

14
WIRING DIAGRAM
I-Controller Level 2
Model 750 (230-400-460V/3/50-60 Hz)

CUSTOMER CONNECTION
FROM LINE 21
TB1 L1 L2 L3 PE L1 L3
00 22
DISCONNECT
01 23 L1 L1
L1
L2
L3

COMPRESSOR HARNESS
02 24
L1 CONT 1 T1
L1 L1 T1 T1 T1 L3 L3
03 25
L2 T2
L2 L2 T2 T2 T2
04 MTR1 COMPRESSOR 26
L3 T3
L3 L3 T3 T3 T3
05 27

FU2

FU1
L3 T3
TB2
06 28
H6 H5 H4 H3 H2 H1
REF SHEET 01 LINE 20 PE L2 L1
07 REF SHEET 02 LINE 12 29 208V H6 H5
230V H6 H4
FAN 1 HARNESS 400V H6 H3
08 30 460V H6 H2
FPS 1 X3 XF 575V H6 H1
T1
09 31 FU3 FACTORY SET TO 460V
MTR2 FAN 1 X1 X2
T2
10 32
TB2
11 33
PE (4 Terminal Blocks) (4 Terminal Blocks)
TB2 TB2
12 34 X N
X N

13 FAN 2 HARNESS 35

T2 FPS 2
14 36
MTR3 FAN 2
T3
15 37
TB2
16 38
PE
17 39

18 HEATER HARNESS 40
HEATER 1
19 L3 41
CONT 1
L2 -1NC -2NC 1L2 H1 H2
20 42
TB2
21 L1 L3 43
PE X N
TO LINE 22 TO SHEET 02 TO SHEET 02

FROM SHEET 01 FROM SHEET 01

X N
COMPRESSOR
00 CONTACTOR
O I TB2 TB2 A1 A2 TB2
X X 1 1 4 N
X 1 2 CONT 1 N
01
1 2 2 4
02 LINE HPS/LPS SENSOR HARNESS
X
X
03

04 HPS LPS
NEUTRAL
TB2
05 N N
N
IC2 LEVEL BOARD

06

07 THERMISTER

08
THERMISTER
09

10 DRAIN NEUTRAL N

11 DRAIN LINE 3

12 TB2 X -4NO CONT 1 -3NO COMPRESSOR

X 5

13

TB2 TB2 TB2

14 X X 3
X X
DRAIN HARNESS
15
3 BLUE 2
X BROWN 1
16 TB2 24VAC
PE GRN/YELLOW PE
PE
TEST ALM
17 DRAIN HARNESS

18
OPTIONAL DRAIN
19
3 BLUE 2
X BROWN 1
20 TB2 24VAC
PE GRN/YELLOW PE
PE
X N
TEST ALM
21 DRAIN HARNESS
INSTRUMENT BOARD LANDING
TB2 TB1
L1

PE
L2
L3
PE
PE
PE
PE
PE
N
N
N
1

X
X
X
2
2
3
3

L1

PE
L2
L3

HARNESS LANDING

15
WIRING DIAGRAM
I-Controller Level 3
Models 200 thru 600 (230-400-460V/3/50-60 Hz)

CUSTOMER CONNECTION

L1 L2 L3 FROM LINE 21
L1 L3
00 22

01 TB1 L1 L2 L3 PE 23 L1 L1
COMPRESSOR HARNESS
02 24
L1 CONT 1 T1
03 L1 L1 T1 T1 T1 25 L3 L3
L2 T2
04 L2 L2 T2 T2 T2 26
MTR1 COMPRESSOR
L3 T3
05 L3 L3 T3 T3 T3 27

FU2

FU1
L3 T3
TB2
06 28 H6 H5 H4 H3 H2 H1
PE L1 L3
07 REF SHEET 01 LINE 20 29 208V H1 H2
REF SHEET 02 LINE 10 230V H1 H3
FAN 1 HARNESS 400V H1 H4
08 REF SHEET 02 LINE 11 30 460V H1 H5
T1 FPS 1 X1 FACTORY SET TO 460V
09 31 FU3
MTR2 FAN 1 X3 X2
10 T2 32
TB2
11 33 (4 Terminal Blocks) (4 Terminal Blocks)
PE TB2 TB2
12 34 X N
Optional Fan X N
(for 500-600 models only)
13 FAN 2 HARNESS 35
T2 FPS 2
14 36
T3 MTR3 FAN 2
15 37
TB2
16 38
PE
17 39

18 HEATER HARNESS 40
HEATER 1
19 L3 41
CONT 1
L2 -1NC -2NC 1L2 H1 H2
20 42
TB2
21 L1 L3 43
PE X N
TO LINE 22
TO SHEET 02 TO SHEET 02

00
TB2
PE
PE
01
TB2
02 24VAC IN 2
X
X TB2
N DRAIN 1 HARNESS
24VAC IN 1 N
03 P4 (2PIN)
TB2 TB2
14 X 1
NC 7 14 TB2 TB2 X
2
04 FAULT
CONNECTION C 6
13
13 N N 24VAC
TB2 TB2
12 PE PE
NO 5 12 TB2 PE
3
05 4
8 8
8
8
DRAIN TEST TB2 TEST
7 7 7 4
3 TB2 TB2 7
6
06 2
X
X
6
6
6
POWER ON A1 A2 TB2 TB2 ALM
9 9 N 5 5 5
1 CONT N 5
07 P3 (7PIN)
COMPRESSOR
CONTACTOR
08

09 DRAIN 1 HARNESS OPTIONAL DRAIN

6
THERMISTOR #3 TC3
10 5
X 1
4 2
THERMISTOR #2 TC2 N 24VAC
11 3
PE PE
2 3
THERMISTOR #1 TC1 8
12 1
7 4 TEST
P2 (6PIN) 6
6
13 5 5 ALM

14
TB2
15 10
11
11 TB2
REMOTE START / STOP 10
9 10
16 8
6 6 HPS/LPS SENSOR HARNESS
DRAIN ALARM 5 5
7
17 6 TB2
4
SSMP JUMPER 4
5
18 4
4 4 TB2
3 LPS
LPCO 3 3 3
3
19 2
2 2 TB2
HPCO 2
1 1 2
1
20 P1 (10 PIN) TB2
1 HPS
1

21

22
TERMINAL BLOCK LAYOUT
TB2 TB1
L1
L2
L3
PE
11
10
12
13
14
PE
PE
PE
PE
PE
N
N
N
X
X

6
6
5
5

7
7
8
8
X

L1
L2
L3
PE

16
WIRING DIAGRAM
I-Controller Level 3
Model 750 (230-400-460/3/50-60 Hz)

CUSTOMER CONNECTION
FROM LINE 21
TB1 L1 L2 L3 PE L1 L3
00 22

DISCONNECT
L1 L1
01 23

COMPRESSOR HARNESS
02 24
L1 CONT 1 T1
L1 L1 T1 T1 T1 L3 L3
03 25
L2 T2
L2 L2 T2 T2 T2
04 MTR1 COMPRESSOR 26
L3 T3
L3 L3 T3 T3 T3
05 27

FU2

FU1
L3 T3
TB2
06 28
H6 H5 H4 H3 H2 H1
REF SHEET 01 LINE 20 PE L1 L3
07 29 208V H1 H2
230V H1 H3
FAN 1 HARNESS 400V H1 H4
08 30 H5
460V H1
T1 FPS 1 X1 FACTORY SET TO 460V
09 31 FU3
MTR2 FAN 1 X3 X2
T2
10 32
TB2
11 33
PE (4 Terminal Blocks) (4 Terminal Blocks)
TB2 TB2
12 34 X N
X N

13 FAN 2 HARNESS 35

T2 FPS 2
14 36
MTR3 FAN 2
T3
15 37
TB2
16 38
PE
17 39

18 HEATER HARNESS 40
HEATER 1
L3
19 41
CONT 1
L2 -1NC -2NC 1L2 H1 H2
20 42
TB2
21 L1 L3 43
TO LINE 22 PE X N
TO SHEET 02 TO SHEET 02

00
TB2
PE
01 PE

TB2
02 X
24VAC IN 2 X TB2
N DRAIN 1 HARNESS
24VAC IN 1 N
03 P4 (2PIN)
TB2 TB2 1
14 X
NC 7 14 TB2 TB2 X
FAULT 13 N 2
04 C 6 13 TB2 N 24VAC
CONNECTION TB2
12 PE PE
NO 5 12 TB2 PE
8 8 8 3
05 4 8
DRAIN TEST TB2 4 TEST
7 7 7
3 TB2 7
X TB2 6 6
06 2 X 6 6
POWER ON A1 A2 TB2 TB2 5 ALM
9 9 N 5 5
1 CONT N 5
07 P3 (7PIN)
COMPRESSOR
CONTACTOR
08

09 DRAIN 1 HARNESS OPTIONAL DRAIN

6
THERMISTOR #3 TC3
10 5 1
X
4 2
THERMISTOR #2 TC2 N 24VAC
11 3 PE
PE
2 3
THERMISTOR #1 TC1 8
12 1 4 TEST
7
P2 (6PIN) 6
6
13 5 5 ALM

14

TB2
15 11
10 11 TB2
REMOTE START / STOP 10
9 10
16 6 6 HPS/LPS SENSOR HARNESS
8
DRAIN ALARM 5 5
7
17 6 TB2
JUMPER 4 4
SSMP
5
18 4 4 TB2 LPS
4 3
LPCO 3 3 3
3
19 2 2 TB2
2 2
HPCO 1 1 2
1
20 P1 (10 PIN) TB2 1 HPS
1
21

22

TERMINAL BLOCK LAYOUT

TB2 TB1
L1
L2
L3
PE
11
10
12
13
14
PE
PE
PE
PE
PE
1
N
N
N
X
X
X

6
6
2
3
5
5

7
7
8
8
4

L1
L2
L3
PE

17
DIMENSIONS / WEIGHTS

Dimensions, inches (mm)

Model 100 125 150 200 250 300 400 500 600 750
A 37.56 (954) 37.56 (954) 37.56 (954) 38.60 (980) 38.60 (980) 45.38 (1153) 45.38 (1153) 58.06 (1475) 58.06 (1475) 58.06 (1475)
B 25.62 (651) 25.62 (651) 25.62 (651) 32.15 (817) 32.15 (817) 32.15 (817) 32.15 (817) 32.15 (817) 32.15 (817) 32.15 (817)
C 1.63 (41) 1.63 (41) 1.63 (41) 1.88 (48) 1.88 (48) 2.63 (67) 2.63 (67) 2.77 (70) 2.77 (70) 2.77 (70)
D 23.62 (600) 23.62 (600) 23.62 (600) 30.15 (766) 30.15 (766) 30.15 (766) 30.15 (766) 30.15 (766) 30.15 (766) 30.15 (766)
E 17.62 (448) 17.62 (448) 17.62 (448) 30.15 (766) 30.15 (766) 30.15 (766) 30.15 (766) 39.62 (1006) 39.62 (1006) 39.62 (1006)
F 19.62 (498) 19.62 (498) 19.62 (498) 32.15 (817) 32.15 (817) 32.15 (817) 32.15 (817) 41.62 (1057) 41.62 (1057) 41.62 (1057)
G 9.58 (243) 9.58 (243) 9.58 (243) 7.64 (194) 7.64 (194) 13.51 (343) 16.25 (413) 20.44 (519) 20.44 (519) 20.44 (519)
H 14.96 (380) 14.96 (380) 14.96 (380) 15.80 (401) 15.80 (401) 21.82 (554) 25.68 (652) 27.79 (706) 27.79 (706) 27.79 (706)
I 28.54 (725) 28.54 (725) 28.54 (725) 30.19 (767) 30.19 (767) 29.98 (761) 36.89 (937) 49.06 (1246) 49.06 (1246) 49.06 (1246)
J 25.02 (636) 25.02 (636) 25.02 (636) 26.04 (661) 26.04 (661) 25.74 (654) 32.82 (833) 44.78 (1137) 44.78 (1137) 44.78 (1137)
K 0.31 (7.9) 0.31 (7.9) 0.31 (7.9) 0.31 (7.9) 0.31 (7.9) 0.31 (7.9) 0.31 (7.9) 0.63 (16) 0.63 (16) 0.63 (16)
L 1 MPT 1 MPT 1 MPT 1.5 MPT 1.5 MPT 1.5 MPT 2 MPT 2.5 MPT 2.5 MPT 2.5 MPT
M N/A N/A N/A 4.56 (116) 4.56 (116) 4.56 (116) 4.56 (116) 4.81 (122) 4.81 (122) 4.81 (122)
N N/A N/A N/A 9.84 (250) 9.84 (250) 9.84 (250) 9.84 (250) 20.82 (529) 20.82 (529) 20.82 (529)
O N/A N/A N/A 3.13 (80) 3.13 (80) 3.13 (80) 3.13 (80) 3.13 (80) 3.13 (80) 3.13 (80)
Weight
251 (114) 273 (124) 279 (127) 425 (193) 463 (210) 527 (239) 571 (259) 684 (310) 691 (313) 734 (333)
lbs (kg)

NOTE: Dimensions and Weights are for reference only. Request certified drawings for construction purposes.

"H"
"B" "C" "G" "L" - I/O CONNECTIONS
Ø 1.00 (25mm) ELECTRICAL ENTRY
33F......................39F
1C.......................4C
MODELS 200-750:
RS-232 ACCESS: Ø .750 (19mm)
MODELS 200-750

A 0.25-NPT DRAIN CONNECTION

MODELS 100-150

"A"
"I" 6-FT POWER CORD
MODELS 100-150 (115 VOLT)

"J" Ø 1.00 (25MM) ELECTRICAL ENTRY

MODELS 100-150 (230 VOLT):

CONDENSER AIR FLOW

0.25-NPT DRAIN CONNECTION

MODELS 200-600

2.500 "M"
"N" "O" 1/2-18 FPT I/O WATER CONNECTIONS
MODELS 200-750 ONLY

FRONT VIEW RIGHT SIDE VIEW

Ø "K" MOUNTING HOLE

4-PLACES TYP.
"D"

"E"
"F"

DETAIL A
BOTTOM VIEW

18
TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION

A) Water downstream of dryer.
B) High pressure drop across dryer.
C) Dew point indicator in red area.
D) Refrigeration system not
functioning properly.
1. Residual free moisture remaining in
downstream pipelines.
2. Air bypass system is open.
3. Inlet and Outlet connections are reversed.
4. Temperatures surrounding air lines
downstream of dryer have dropped below
dryers dew point rating.
5. Excessive free moisture (bulk liquid) at dryer
inlet.
6. Condensate not being automatically drained
Drain mechanism is clogged or inoperative.
Drain line is restricted or frozen.
Electric drains-timer not set to allow for
sufficient condensate removal. discharged.
7. Dryer overloaded resulting in elevated dew
point.
8. Refrigeration system not functioning.
1. Excessive air flow.
2. Freezing of moisture in evaporator because
of refrigeration system fault.
3. Separator or optional Oil Removal filter
element clogged.
1. Dryer overloaded resulting in high air outlet
temperature.
2. Refrigeration system not functioning
properly resulting in high air outlet
temperature.
3. Dryer is running with no load.
Blow out system with dry air.
Check valve positions.
Check for correct connection.
Insulate or heat trace air lines exposed to low
ambients or dry air to lower dew point.
Install separator ahead of dryer.
Replace drain mechanism if inoperative.
Open drain line.
Electric drains-reset time so that all liquid is
Check inlet air temperature and pressure, flow
rate (compressor capacity) and ambient air or
water temperature.
See D below.
Check flow rate.
See D below.
Replace filter element(s).
See A 7.
See D below.
Light will go out when air flow is established.

1. Power on light off. a. Power failure. Check power to unit.

2. Compressor on light off.
3. Refrigeration compressor cycles on
and off.
a. ON/OFF switch is “OFF”.
b. Line disconnect switch open.
c. Blown fuses, open breaker.
d. Faulty wiring, loose terminals.
a. High or low ambient conditions.
b. Air-cooled models - Dirty, clogged
condenser fins, obstructed air flow across
condenser, or non functioning fan motor or
fan control switch.
Turn switch “ON”.
Close disconnect switch.
Check for continuity.
Have electrician check electrical connections.
Check min./max. temperature ranges.
Clean condenser and check for free air flow, if
problem persists contact qualified refrigeration
repairman or manufacturer’s service
department.

19
I-CONTROLLER LEVEL 3
Alert/Alarm Condition Indicators

TABLE 2
I-Controller Level 3 Alert/Alarm Fault Status Indicator Guide
Text Window Fault Condition Panel Lights Process Diagram LEDs* Audible Alarm (1)
Fault Event Alarm Alert / Compressor Thermometer Gauge Separator /Filter Contacts N/O Contacts N/C
Notification Identification Maintenance Drain
LCD text See Troubleshooting Section Red Yellow Green Green Red Green Alarmed Normal
ALERT AMBIENT TEMP High Ambient Air Temperature - Flashes ON/OFF Flashes - - - N/C
ALERT INLET AIR TEMP High Inlet Air Temperature - Flashes ON/OFF Flashes - - - N/C
ALARM DEW POINT TEMP High Dew Point Temperature Flashes - ON Flashes - - N/O N/C
SHUTDOWN LOW PRESSURE Low Compressor Suction Pressure Flashes - OFF - Flashes - N/O (2) N/C
SHUTDOWN HIGH PRESSURE High Compressor Discharge Pressure Flashes - OFF - Flashes - N/O (2) N/C
SHUTDOWN MOTOR PROTECT Compressor Motor Overload Flashes - OFF - - - N/O (2) N/C
ALERT MAINTENANCE Perform Standard Maintenance Reminder - Flashes ON - - - N/C
ALARM DRAIN Failure to Drain Condensate Flashes - ON - - Flashes N/O N/C N/C
* During an Alert/Alarm condition, the Process Diagram LED rotation ceases. The Fault based LED will “Flash” until the fault condition is resolved.
(1) Depress the (RESET) button to silence the Audible Alarm. The Fault Condition will remain visible in the VFTD text window until corrected.
(2) The Refrigeration Compressor will remain “”OFF”” until the fault condition is corrected.

Troubleshooting Guide
I-Controller Level 3

VFTD Reading
(Fault conditions) Possible Cause(s) Corrective Action
ALERT AMBIENT TEMP 1. Poor ventilation Ensure ventilation is adequate for heat load
(High Ambient Air Temperature) Ensure compressor is not ventilated toward dryer

ALERT INLET AIR TEMP 1. No aftercooler on compressor Install an aftercooler

(High Inlet Air Temperature) 2. Dirty aftercooler Clean aftercooler
3. Poor Ventilation Ensure ventilation is adequate for heat load

ALARM DEW POINT TEMP 1. Refrigerant leak Have serviced by a qualified refrigeration technician
(High Dew Point Temperature) 2. System Overload Review ambient, inlet, and air flow conditions
3. Dirty Condenser Blow dust out of condenser fins

SHUTDOWN LOW PRESSURE 1. Low ambient condition Elevate ambient temperature

(Low Compressor Suction 2. Refrigerant leak Have serviced by a qualified refrigeration technician
Pressure) 3. Improper Hot Gas Bypass Valve Properly adjust HGBV
setting

SHUTDOWN HIGH PRESSURE 1. Fan(s) not working Check condenser fan function
(High Compressor Discharge 2. High ambient condition Ensure ventilation is adequate for heat load
Pressure) Ensure compressor is not ventilated toward dryer
3. System overload Review ambient, inlet, and air flow conditions

SHUTDOWN MOTOR PROTECT 1. Motor overloads triggered Check voltage. Check for short to ground
(Compressor Motor Overload) 2. Refrigerant leak Have serviced by a qualified refrigeration technician

ALERT MAINTENANCE 1. Pre-set Maintenance interval Blow dust out of condensers, verify drain function,
check pressure drop across dryer

ALARM DRAIN 1. Failure to discharge Check automatic discharge line for closed hand
(Failure to Drain Condensate) condensate valve or kink in hose
Clean and rebuild drain valve
Verify power to valve with Push-to-Test button

20
PARTS LIST

100 125 150

115/1/60 115/1/60 115/1/60
PARTS DESCRIPTION 208-230/1/60 220-240/1/50 208-230/1/60 220-240/1/50 208-230/1/60 220-240/1/50
100/1/60 100/1/60 100/1/60
Condensing Unit Assembly G5002001 G5002002 G5002003 G5002004 G5002005 G5002006 G5002004 G5002005 G5002006
Compressor (Only) G5002243 G5002250 G5002256 G3221302 G3210940 G3232808 G3221302 G3210940 G3232808
Overload G5002244 G5002251 G5002257 G3233219 G3233220 G3252935 G3233219 G3233220 G3252935
Start Relay G5002245 G5002252 G5002258 G3233254 G3228342 G3238979 G3233254 G3228342 G3238979
Start Capacitor G5002246 G5002253 G5002253 G3232695 G3220873 G3252936 G3232695 G3220873 G3252936
Fan Motor G5002247 G5002254 G5002259 G3233151 G3210368 G3210368 G3233151 G3210368 G3210368
Fan Blade G5002248 G5002255 G5002255 G3219405 G3219405 G3219405 G3219405 G3219405 G3219405
Hot Gas Bypass Valve G5002350 G5002350 G5002350 G5002350 G5002350 G5002350 G5002350 G5002350 G5002350
Condenser G5002249 G5002249 G5002249 G3232828 G3232828 G3232828 G3232828 G3232828 G3232828
Dryer G3223808 G3223808 G3223808 G3223809 G3223809 G3223809 G3223809 G3223809 G3223809
Fan Pressure Switch G3230761 G3230761 G3230761 G3230761 G3230761 G3230761 G3230761 G3230761 G3230761
Contactor N/A N/A N/A G5002260 G5002262 G5002262 G5002260 G5002262 G5002262
Auxiliary Contactor N/A N/A N/A G5002261 G5002263 G5002263 G5002261 G5002263 G5002263
Crankcase Heater N/A N/A N/A G3223258 G3223259 G3223259 G3223258 G3223259 G3223259
Light Assembly (Green) G3227421 G3215356 G3215356 N/A N/A N/A N/A N/A N/A
Dew Point Indicator G3224008 G3224008 G3224008 N/A N/A N/A N/A N/A N/A
On-Off Switch G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777
Temperature Sensor G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926
Service Kit (IC2 Board Replacement) G3211489 G3211489 G3211489 G3211489 G3211489 G3211489 G3211489 G3211489 G3211489
Digital PC Board Fuse G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932

208-230/3/60 380-420/3/50, 460/3/60, and 575/3/60

PARTS DESCRIPTION 200 250, 300, 400 500 600 750 200 250, 300, 400 500 600 750
Condensing Unit Assembly G5002007 G5002009 G5002011 G5002013 G5002015 G5002008 G5002010 G5002012 G5002014 G5002016
Compressor (Only) G3221303 G3232809 G3221304 G5002921 G3227182 G3210937 G3211540 G3210939 G5002930 G3232811
Fan Motor G3238932 G3233153 G3233153 G5002922 G3233153 G3233152 G3228005 G3228005 G5002931 G3228005
Fan Blade G3232640 G3232642 G3219406 G5002923 G3219406 G3232640 G3232642 G3219406 G5002923 G3219406
Crankcase Heater G3232974 G3232974 G3232974 G3232974 G3232974 G3232975 G3232975 G3232975 G3232975 G3232975
Condenser G3232829 G3232830 G3232831 G5002924 G3232832 G3232829 G3232830 G3232831 G5002924 G3232832
Low Refrigerant Pressure Switch G4006372 G4006372 G4006372 G4006372 G4006372 G4006372 G4006372 G4006372 G4006372 G4006372
High Refrigerant Pressure Switch G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764
Fan Cutout Switch 1 G3230762 G3230762 G3230762 G3230762 G3230762 G3230762 G3230762 G3230762 G3230762 G3230762
Fan Cutout Switch 2 N/A N/A G3230763 G3230763 G3230763 N/A N/A G3230763 G3230763 G3230763
Hot Gas By-Pass Valve (Air-Cooled) G5002350 G5002350 G5002350 G5002351 G5002351 G5002350 G5002350 G5002350 G5002351 G5002351
Filter Dryer (Liquid Line) G5002925 G5002925 G5002925 G5002925 G5002925 G5002925 G5002925 G5002925 G5002925 G5002925
Temperature Sensor G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926 G3210926
Contactor G5002926 G5002926 G5002926 G5002926 G5002928 G5002926 G5002926 G5002926 G5002926 G5002928
Auxiliary Contacts G5002927 G5002927 G5002927 G5002927 G5002929 G5002927 G5002927 G5002927 G5002927 G5002927
Transformer 230/400/460 G3159128 G3159128 G3159128 G3159128 G3159128 G3159128 G3159128 G3159128 G3159128 G3159128
Fuse Primary G3223962 G3223962 G3223962 G3223962 G3223962 G3223953 G3223953 G3223953 G3223953 G3223953
Fuse Secondary G4010495 G4010495 G4010495 G4010495 G4010495 G4010495 G4010495 G4010495 G4010495 G4010495
Digital PC Board (IC 2.0) G3227172 G3227172 G3227172 G3227172 G3227172 G3227172 G3227172 G3227172 G3227172 G3227172
Digital PC Board (IC 3.0) G3227145 G3227145 G3227145 G3227145 G3227145 G3227145 G3227145 G3227145 G3227145 G3227145
Digital PC Board Fuse G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932 G5002932
Electric Drain valve w/24V Coil (50/60 Hz) G3232511 G3232511 G3232511 G3232511 G3232511 G3232511 G3232511 G3232511 G3232511 G3232511
Power Transformer (575V) G3073856 G3073856 G3073856 G3073856 G3073856 G3073856 G3073856 G3073856 G3073856 G3073856
Refrigerant High Pressure Switch (H2O) G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764 G3230764
On-Off Switch G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777 G3230777
Cooling Water Regulating Valve G3232502 G3232502 G3232502 G3232502 G3232502 G3232502 G3232502 G3232502 G3232502 G3232502
Cooling Water Strainer Screen G3230672 G3230672 G3230672 G3230672 G3230672 G3230672 G3230672 G3230672 G3230672 G3230672

Maintenance Kits
MODEL 100 125 150 200 250 300 400 500 600 750
Standard RNCMK22S RNCMK23S RNCMK23S RNCMK24S RNCMK24S RNCMK25S RNCMK26S RNCMK26S RNCMK27S RNCMK28S
With Optional Cold Coalescer RNCMK42S RNCMK43S RNCMK43S RNCMK44S RNCMK44S RNCMK45S RNCMK46S RNCMK46S RNCMK47S RNCMK48S

21
 NOTES

22
NOTES

23
 WARRANTY
The manufacturer warrants the product manufactured by it, when properly installed, operated, applied, and maintained
in accordance with procedures and recommendations outlined in manufacturer’s instruction manuals, to be free from
defects in material or workmanship for a period as specified below, provided such defect is discovered and brought to the
manufacturer’s attention within the aforesaid warranty period.

The manufacturer will repair or replace any product or part determined to be defective by the manufacturer within the
warranty period, provided such defect occurred in normal service and not as a result of misuse, abuse, neglect or accident.
Normal maintenance items requiring routine replacement are not warranted. The warranty covers parts and labor for the
warranty period unless otherwise specified. Repair or replacement shall be made at the factory or the installation site, at the
sole option of the manufacturer. Any service performed on the product by anyone other than the manufacturer must first
be authorized by the manufacturer.

Unauthorized service voids the warranty and any resulting charge or subsequent claim will not be paid. Products repaired or
replaced under warranty shall be warranted for the unexpired portion of the warranty applying to the original product.

The foregoing is the exclusive remedy of any buyer of the manufacturer’s product. The maximum damages liability of the
manufacturer is the original purchase price of the product or part.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, OR STATUTORY,
AND IS EXPRESSLY IN LIEU OF THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE. THE MANUFACTURER SHALL NOT BE LIABLE FOR LOSS OR DAMAGE BY REASON OF STRICT LIABILITY IN
TORT OR ITS NEGLIGENCE IN WHATEVER MANNER INCLUDING DESIGN, MANUFACTURE OR INSPECTION OF THE EQUIPMENT OR ITS
FAILURE TO DISCOVER, REPORT, REPAIR, OR MODIFY LATENT DEFECTS INHERENT THEREIN.

THE MANUFACTURER, HIS REPRESENTATIVE OR DISTRIBUTOR SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER
INCIDENTAL OR CONSEQUENTIAL COSTS, EXPENSES, OR DAMAGES INCURRED BY THE BUYER, WHETHER ARISING FROM BREACH OF
WARRANTY, NEGLIGENCE OR STRICT LIABILITY IN TORT.

The manufacturer does not warrant any product, part, material, component, or accessory manufactured by others and sold
or supplied in connection with the sale of manufacturer’s products.

Warranty Period

Parts and labor for two (2) years from the date of shipment from the factory; heat exchangers are covered (parts only) for
an additional three (3) years (total of five [5]). On units that manufacturer requests be returned to the factory, a one time
removal/reinstallation labor allowance as noted in the Service Warranty Policies and Procedures Handbook will apply. Freight
to the factory from the installation site and to the installation site from the factory will be paid by the manufacturer; means
of transportation to be specified by manufacturer.

AUTHORIZATION FROM THE SERVICE DEPARTMENT IS NECESSARY BEFORE MATERIAL

IS RETURNED TO THE FACTORY OR IN-WARRANTY REPAIRS ARE MADE.

SERVICE DEPARTMENT: (724) 746-1100

For additional information contact

your local representative or
Gardner Denver Compressor and Pump Division,
1800 Gardner Expressway, Quincy, Illinois 62301
Customer Service Department Telephone:
(800) 682-9868 FAX: (217) 228-8243
© 2009 Gardner Denver, Inc. Sales and Service in all major cities.
http://www.gardnerdenver.com respond@gardnerdenver.com For parts information, contact Gardner Denver,
Member Master Distribution Center, Memphis, TN
18-2-670 RNC100-750 New Platform 1st Edition Litho in U.S.A.
Telephone: (800) 245-4946 FAX: (901) 542-6159
