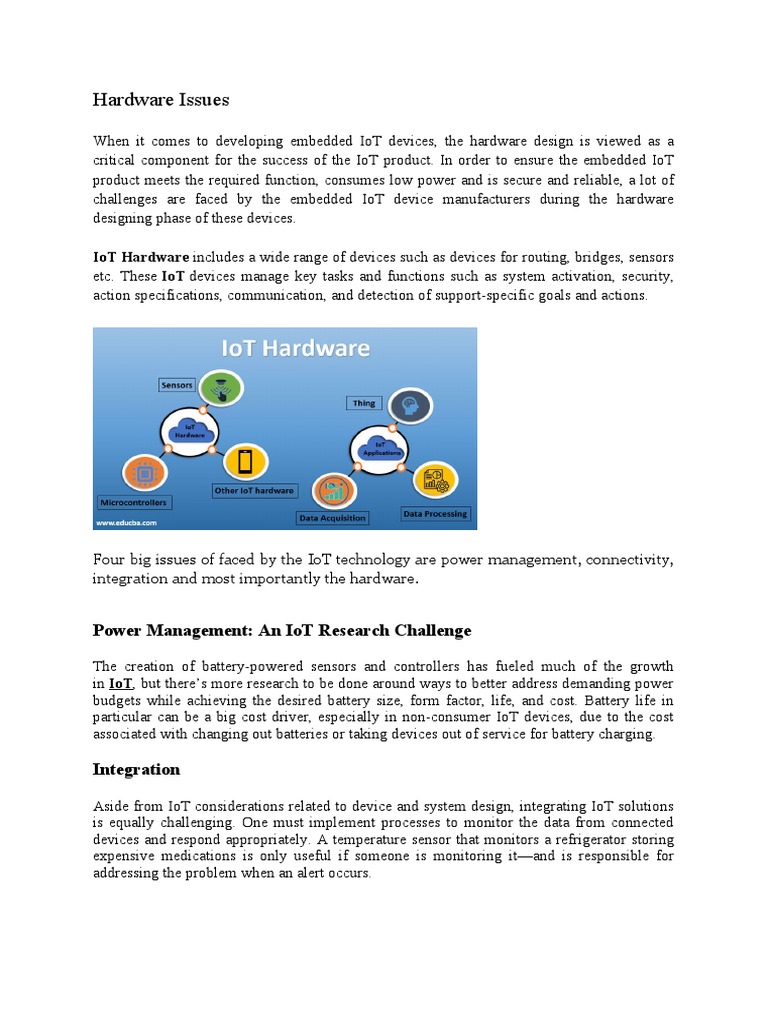

When it comes to developing embedded IoT devices, the hardware design is viewed as a
critical component for the success of the IoT product. In order to ensure the embedded IoT
product meets the required function, consumes low power and is secure and reliable, a lot of
challenges are faced by the embedded IoT device manufacturers during the hardware
designing phase of these devices.
IoT Hardware includes a wide range of devices such as devices for routing, bridges, sensors
etc. These IoT devices manage key tasks and functions such as system activation, security,
action specifications, communication, and detection of support-specific goals and actions.
Four big issues of faced by the IoT technology are power management, connectivity,
integration and most importantly the hardware.
The creation of battery-powered sensors and controllers has fueled much of the growth
in IoT, but there’s more research to be done around ways to better address demanding power
budgets while achieving the desired battery size, form factor, life, and cost. Battery life in
particular can be a big cost driver, especially in non-consumer IoT devices, due to the cost
associated with changing out batteries or taking devices out of service for battery charging.
Integration
Aside from IoT considerations related to device and system design, integrating IoT solutions
is equally challenging. One must implement processes to monitor the data from connected
devices and respond appropriately. A temperature sensor that monitors a refrigerator storing
expensive medications is only useful if someone is monitoring it—and is responsible for
addressing the problem when an alert occurs.
IoT Connectivity Challenges
In order to have an “Internet of Things,” the things must be able to connect to a server that
can capture and process the data. IoT technology, for the most part, operates wirelessly.
The typical go-to for IoT connectivity is WiFi. It works well for the consumer market but
takes on more complexity in business use cases, since every device must be programmed
with the WiFi credentials. In addition, many IT departments will not allow third-party
devices on their networks due to security concerns.
Cellular is another popular choice; the downside is the recurring monthly charge for data use,
which varies depending on the a
Bluetooth technology, widely used for wireless connections for consumer devices, is also
finding use in business applications as a solution for IoT connectivity. AirFinder leverages
existing Bluetooth technology to connect devices in an isolated network to protect computer
networks from security risks.
For basic use cases, many off-the-shelf devices or components are available but for a specific
product one need to design well defined architecture keeping in view the constraints of the
design, PCB, connectors, components, enclosures, power supply etc. All these factors along
with how the people interact with the device makes the development cycle more complicated,
expensive, and time-consuming process.
The software that runs the new device generally requires one or more revisions. Bugs must be
worked out and sometimes changes need to be made to align with the way people actually use
the device.
1. Physical Damage
This is the most common cause of PCB failure. This is due to the physical pressure or shock.
The device in question might have been dropped from a great distance. Perhaps it was
smacked or hit forcibly by another object? There’s also the possibility that the device was
disassembled for whatever reason, and damage happened directly to the board.
2. Component Failure
Apart from physical damage, faulty components are the other most common cause of printed
circuit board failures. In fact there is no physical damage but a device has failed to operate or
power on, one can almost guarantee it has to do with one of the components connected to the
board.
3. Trace Damage
Traces on a circuit board are the conductive pathways comprised of silver or copper. If a
trace suffers damage, whether through regular use or physical damage then it can cause
significant issues with the printed circuit boards conductivity, components and the device in
question. Some of the more common reasons for trace damage include lightning strikes,
severe power surges or shorts, metallic dust contamination, overheating and normal wear.
4. Poor Design
Sometimes the design of the PCB and selection of the components may be a cause for the
failure of the electronic system. For example, width of the trace for signal and power supply
may be interchanged, poor area plan for placement of a component etc.
5. Power Failure
In most cases, a power failure is remarkably similar to a component failure. The ultimate
issue stems from the fact that there was a major power failure to all or part of the board. One
of the components could have been exposed to higher voltages than normal, causing it to
overheat and explode. Or maybe there was a trace failure causing a short somewhere?
Whatever the case, a power meter can be used to test each individual component and the
general conductivity of the board.
8. Environmental Factors
Exposure to heat, dust and moisture, accidental impact (drops and falls), and power
overloads/surges can be causes of circuit board failure. However, the most damaging cause of
premature circuit board failure is electrostatic discharge (ESD) at the assembly stage.
Temperature change could be the cause of a PCB’s malfunction. This phenomenon is
commonly seen in Pool and Spa equipment due to their component’s high electrical currents.
With temperature change, expansion and contraction of the PCB is possible, potentially
risking a warped board and damaged soldering joints.
9. Age
Finally, with age comes component failure. A failing capacitor will generate intermittent
power issues. The same goes with other PCB parts. Old parts can be changed out for new
ones.
Sensors are devices that detect external information, replacing it with a signal that humans
and machines can distinguish. Sensors play an important role in creating solutions using IoT.
Sensors made it possible to collect data in most any situation and are now used in various
fields - medical care, nursing care, industrial, logistics, transportation, agriculture, disaster
prevention, tourism, regional businesses and many more.
Failures in a sensor can be caused by excess temperature, excess current or voltage, ionizing
radiation, mechanical shock, stress or impact, and many other causes. In
semiconductor devices, problems in the device package may cause failures due to
contamination, mechanical stress of the device, or open or short circuits.
Abnormal measurements, sudden shifts appearing in the measuring channel, faultiness of
measuring devices, changes in statistical characteristics of noises of an object or of
measurements, malfunctions in the computer, and also a sharp change in the trajectory of a
monitoring process, etc. should be enumerated among these changes.
1. Catastrophic failure
The sensor does not give any measurement or the measurement values received are
completely out of range. This could be due to sensor failure or due to a short or open circuit
in the sensor or the wiring.
2. Offset error
The measurements obtained from the sensor are stable, but readings are slightly above or
below the expected value. Thus there is an offset error in the measurement. This may be due
to poor wiring connections, formation of ground loops or solution contamination on sensor or
wire.
3. Unstable readings
The reading obtained are erratic at times. This could be over of under temperature, ingress of
foreign particle on the sensor, low or unstable voltage at the sensor, external or non-
representative interference or due to formation of ground loops.
https://www.controldesign.com/articles/2012/fusaro-five-common-problems-with-wiring-
connection/
(1) Vibration/Loose Wiring
Loose connections, sometimes caused by the very machinery to which they're attached, are
among a host of wiring and connection problems that can bring to a halt the most carefully
developed and hardworking networks.
The electronics devices used may have alteast one power cable and multiple interfacing
signal cable for various input and output signals to the system. These cables may be either
directly soldered to the PCB Connectors or they may be properly terminated in mating
connectors. Vibration in industrial applications can cause terminated wires to loosen,
resulting in broken or intermittent connections.
Think that a data highway for the digital signal is running next to a cable tray with a 60 Hz ac
power supply and one is getting intermittent interference. The ac power lines and a data
signal had different enough frequencies that one wouldn't affect the other. But still the
workstations went blank. It turned out there was a variable-speed drive on that ac line that
was the cause of the problem.
Industrial equipment can generate strong electromagnetic fields that degrade analog and even
digital signal integrity.
The conductors carrying the signal are susceptible to outside interference from other
electrical components or wires running parallel to it. The electrical cabling near the
conductors could cause interference that could make the data on the network cable
unreadable. There could be lot of collisions on the network which will make the signals
distorted. To avoid the interference. the wires and cables used for interfacing must be
properly routed i.e. they must be as far from electromagnetic interfering sources or the cables
used may be even shielded or run the cables in conduits which grounded properly.
Moisture might be an occasional and unexpected problem in some industries, but it's a fact of
life in the food industry, where sanitizing washdowns are required at least daily. That kind of
environment is tough on electronics. Airborne chemicals, cleaning applications or salt spray
can result in corrosion of metal contact parts in terminal blocks. Consequently, this can affect
the integrity of the connection.
The solution was to standardize on marking all our wiring by destination, no matter where in
the plant the wire is found. It's not so important where the wire's at or where it's coming from,
but where it's going. It takes discipline to get people to adhere to this practice even when
they're in a hurry, but it will save us time the next time we deal with that wire or cable. Thus
labelling the terminal blocks above the termination point, and labelling wires based on
destination render easy troubleshooting and repairs.
(5) Flexibility/Stress
If human joints and nerves can suffer from repetitive motions, imagine what thousands or
even millions of cycles can do to cable.
2. Wrong Connection
Electronics circuits use DC power supply. While making a power connection, positive
terminal of the circuit gets connected to negative terminal of the power supply and vice versa.
Once this connection is powered it will lead to failure of circuit or few of the components
which are polarity sensitive.
5. Bad Filter
A badly filtered power supply can also create noise and cause problems with sensitive
circuits. A large value capacitor 20- 200 uf near the power supply can reduce the voltage
ripple.
6. Floating Inputs
Inputs to logic circuits and micro controllers should either be grounded or connected to V+
through a 4.7 or 10K resistor. Leaving a floating input can render your circuit useless.
Floating inputs will act as an antenna and pick up spurious signals from house hold AC or
other sources.
7. Overheating
If the circuit is on and a transistor, resistor, or IC is too hot to touch and you cannot keep your
finger on it for several seconds, something is wrong. Such components can normally operate
somewhat warm--but not hot. You need a higher wattage resistor or you are overloading your
transistor or IC with too much current.
Designers often underestimated the current that small servos and motors require resulting in
power supplies overheating or shutting down.
If size is not an issue, allow more room than you think you need to fit the main components.
Packing too tight can make soldering difficult and slow and increase the chance of noise
problems between components. Design in connection points such as pins, sockets, or
temporary wires that give you access to measure current and voltage on the actual circuit.
