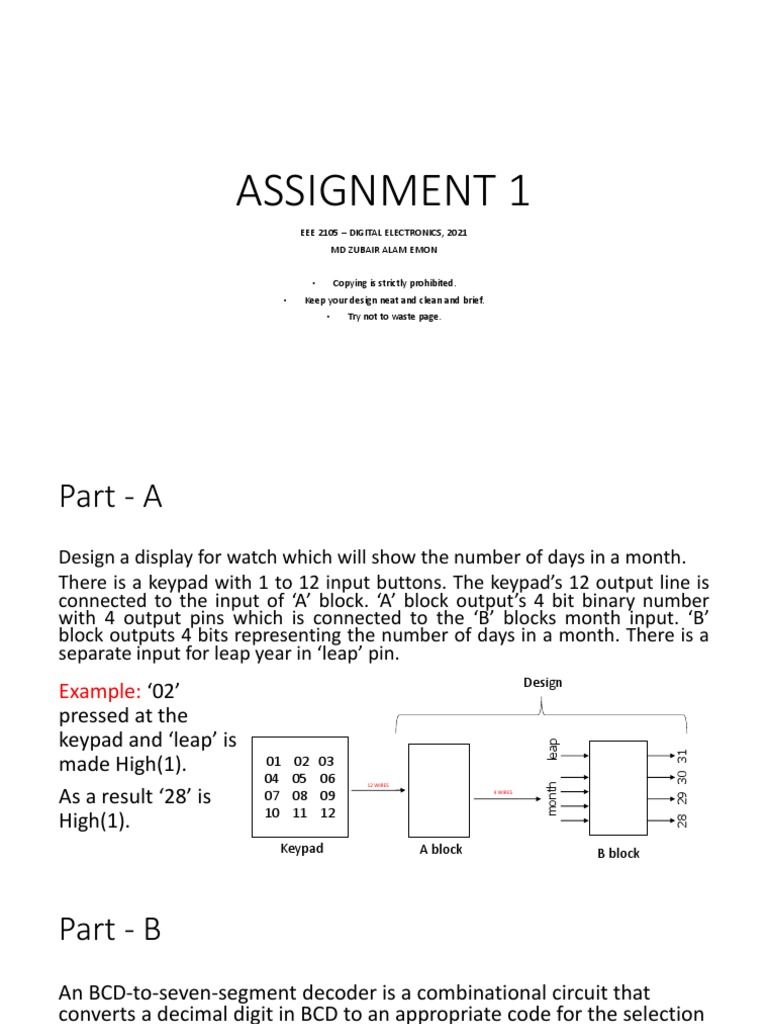

leap
28 29 30 31
made High(1). 01 02 03
04 05 06
month
12 WIRES
10 11 12
High(1).
Keypad A block B block
Part - B
An BCD-to-seven-segment decoder is a combinational circuit that
converts a decimal digit in BCD to an appropriate code for the selection
of segments in an indicator used to display the decimal digit in a
familiar form. The seven outputs of the decoder (a, b, c, d, e, f, g) select
the corresponding segments in the display, as shown in Fig. (a) . The
numeric display chosen to represent the decimal digit is shown in Fig.
(b). Using a truth table and Karnaugh maps, design the BCD-to-seven-
segment decoder using a minimum number of gates. The six invalid
combinations should result in a blank display.
Part - C
Design a circuit to display the number of days using 7 segment display.
In Part – A, the output from ‘B’ block will be fed to 2 decoders. One
decoder(C_a) will provide the units digit BCD and the other(C_b) will
provide the tens digit BCD. These will be fed to a BCD to 7 segment
decoder designed in Part – B to drive the 7 segment displays. Design
the necessary C_a, C-b blocks. C_a
Example: ‘02’ pressed at the 7 WIRES
leap
4 WIRES
segment
28 29 30 31
High(1).
As a result ‘28’ is High(1). C_a will month
give 2 in BCD and C_b will give 8
in BCD to the BCD to 7 segment 4 WIRES
4 WIRES
BCD to 7
7 WIRES
